Gundam Retractable Lightsaber - Super Beam Saber

December 2nd UpdateA refined external solution for integrating a flashlight is now available. For the standard version, please navigate to the corresponding page.

Extendable Lightsaber Standard Version from Konoka Kinoshita - MakerWorld

November 21st Update: Added dome-shaped blade and external flashlight attachment.

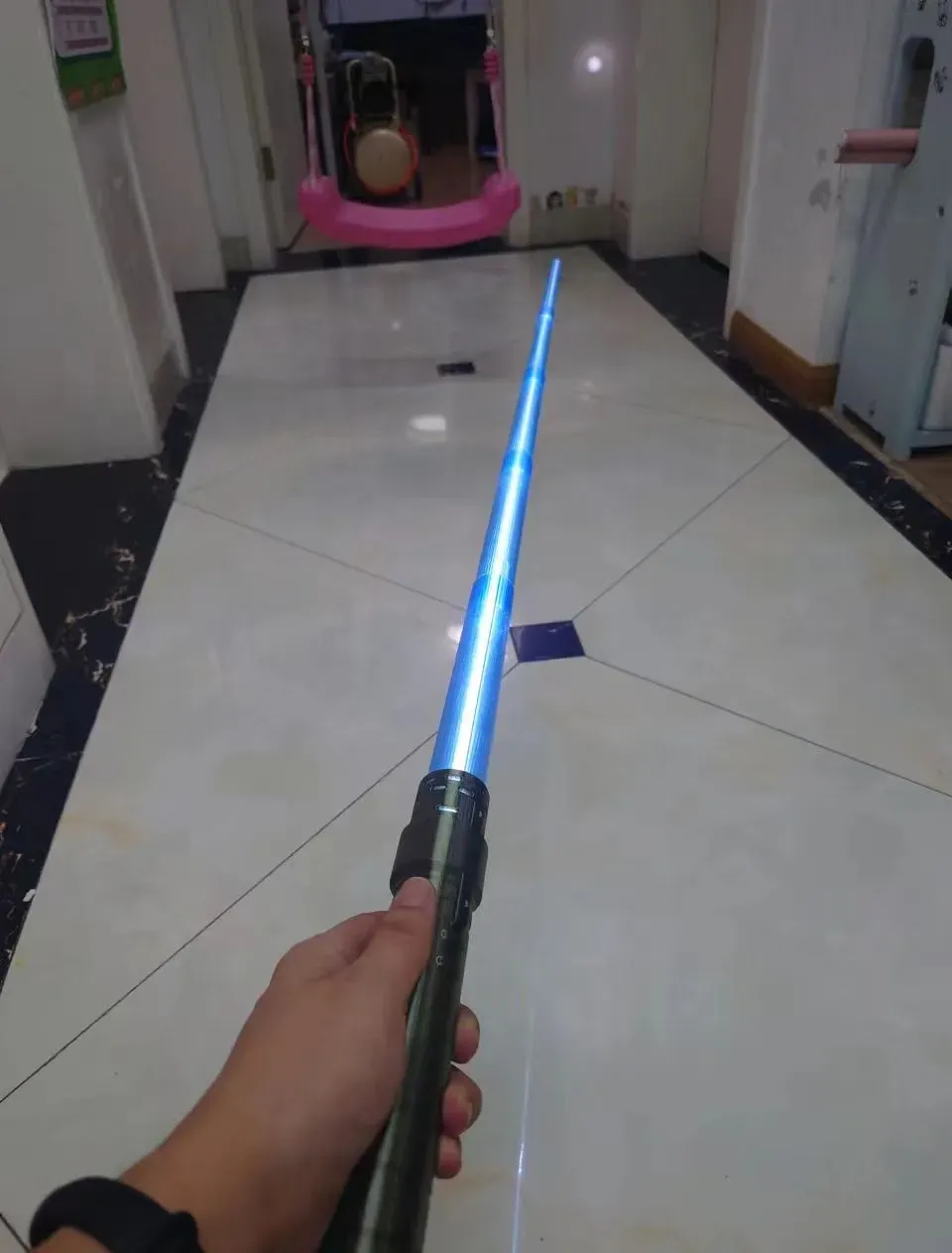

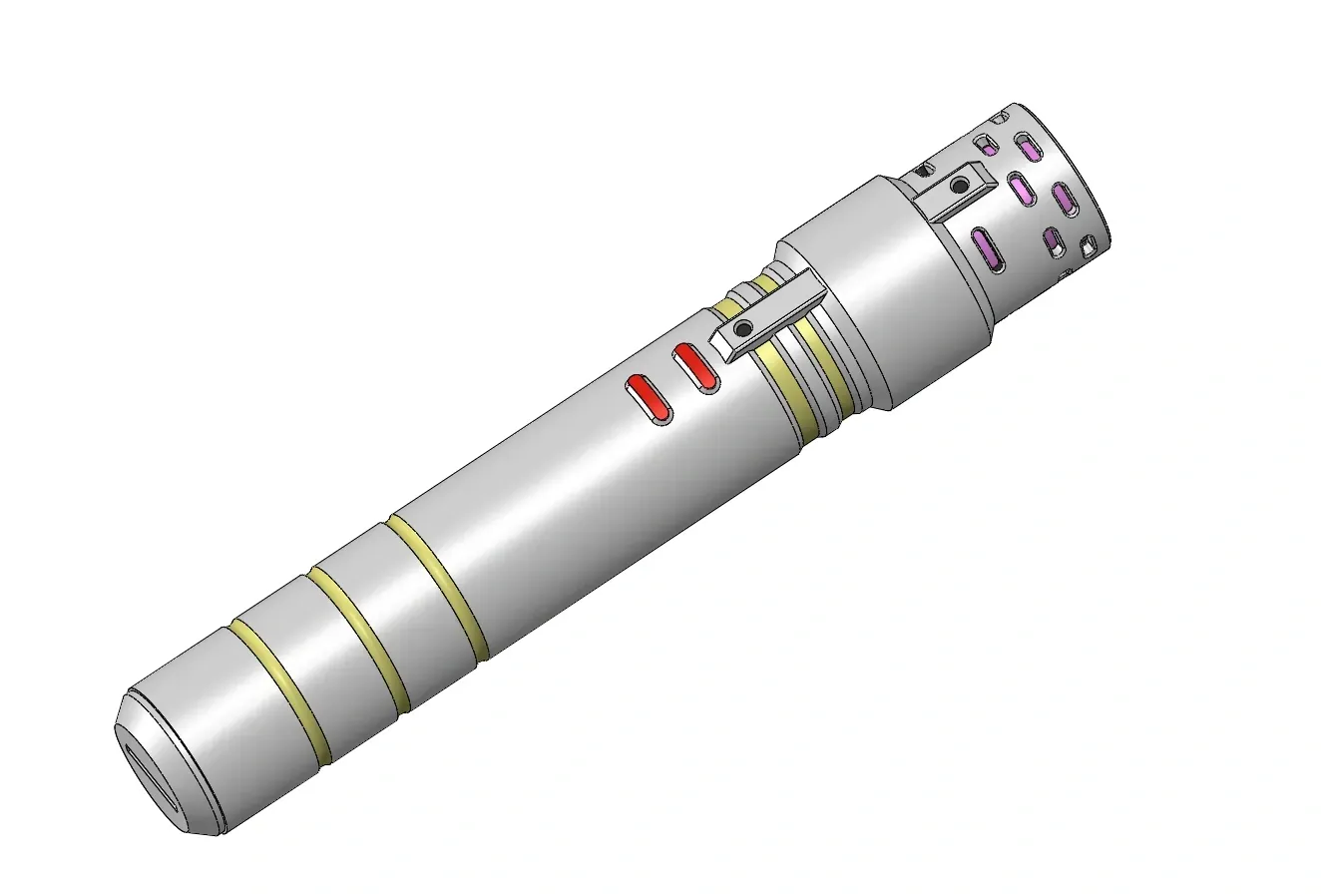

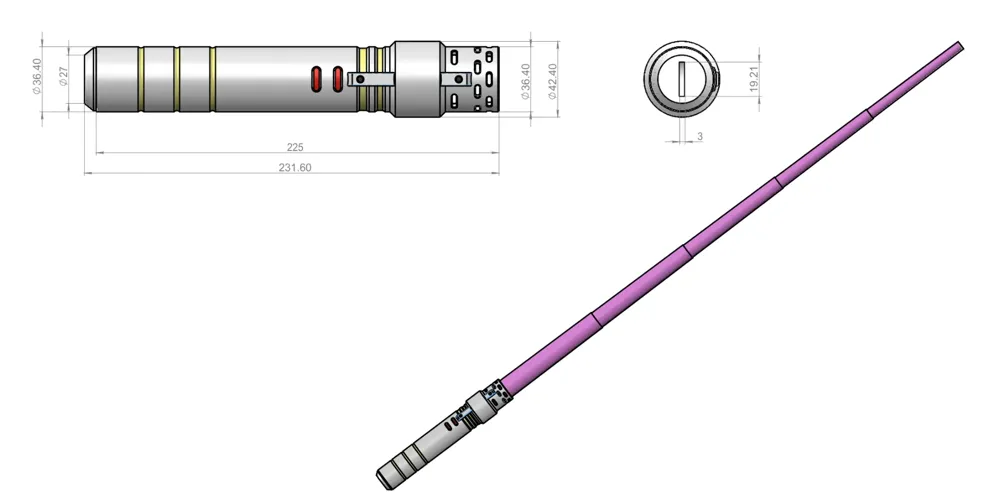

Super Lightsaber, significantly increased length, the current handle length is 230mm. A maximum length of 255mm may be added later if needed, making it more suitable for adult use. Two lighting solutions are currently offered, with detailed explanations below.

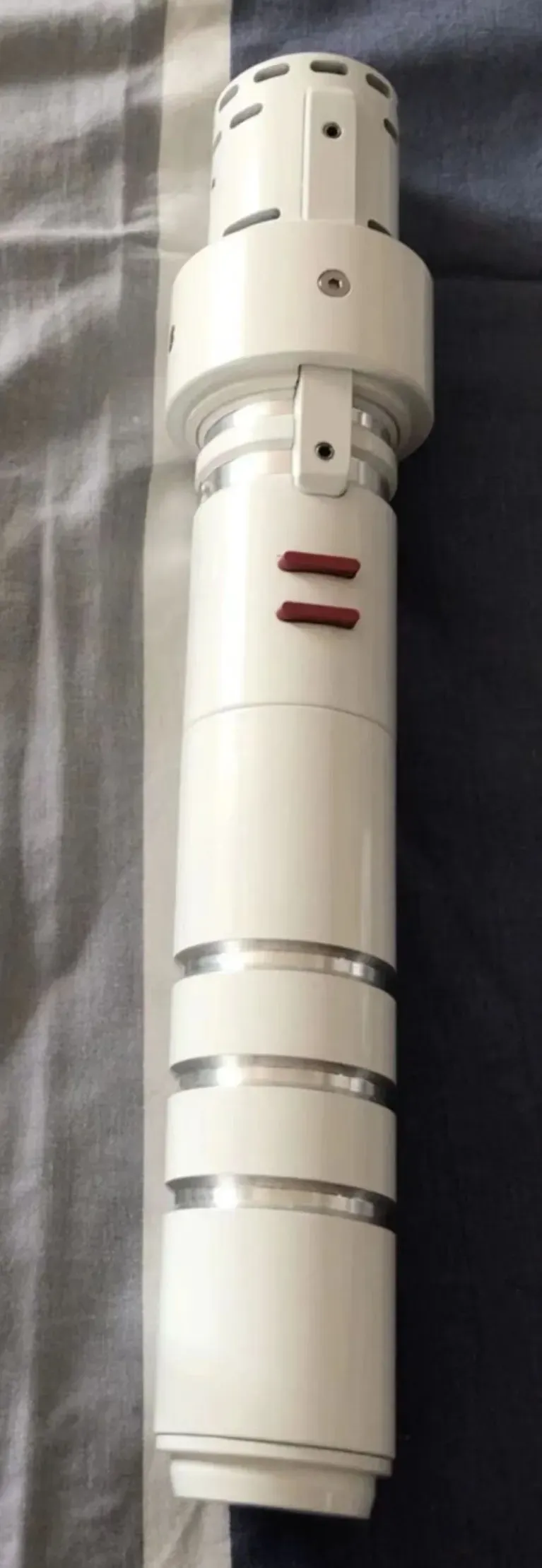

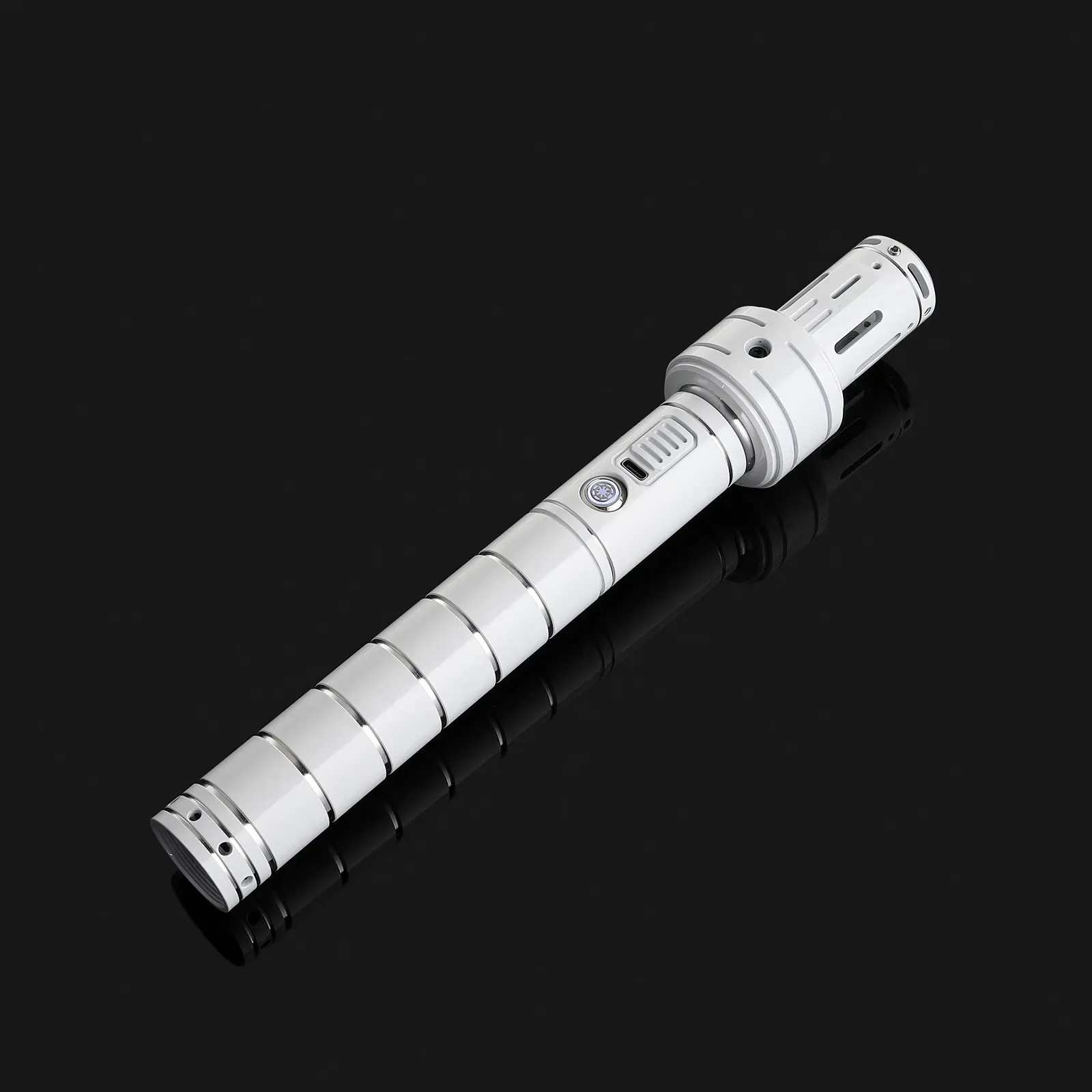

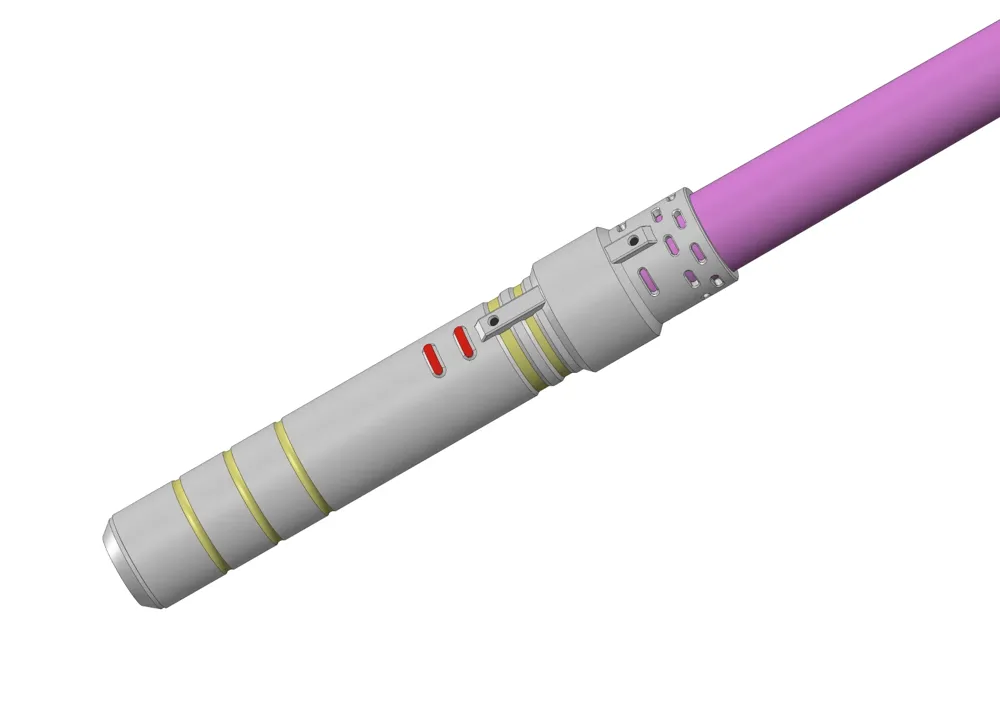

The design references the older UW lightsaber handle; additional skins will be released in the future.

Future Skin Designs

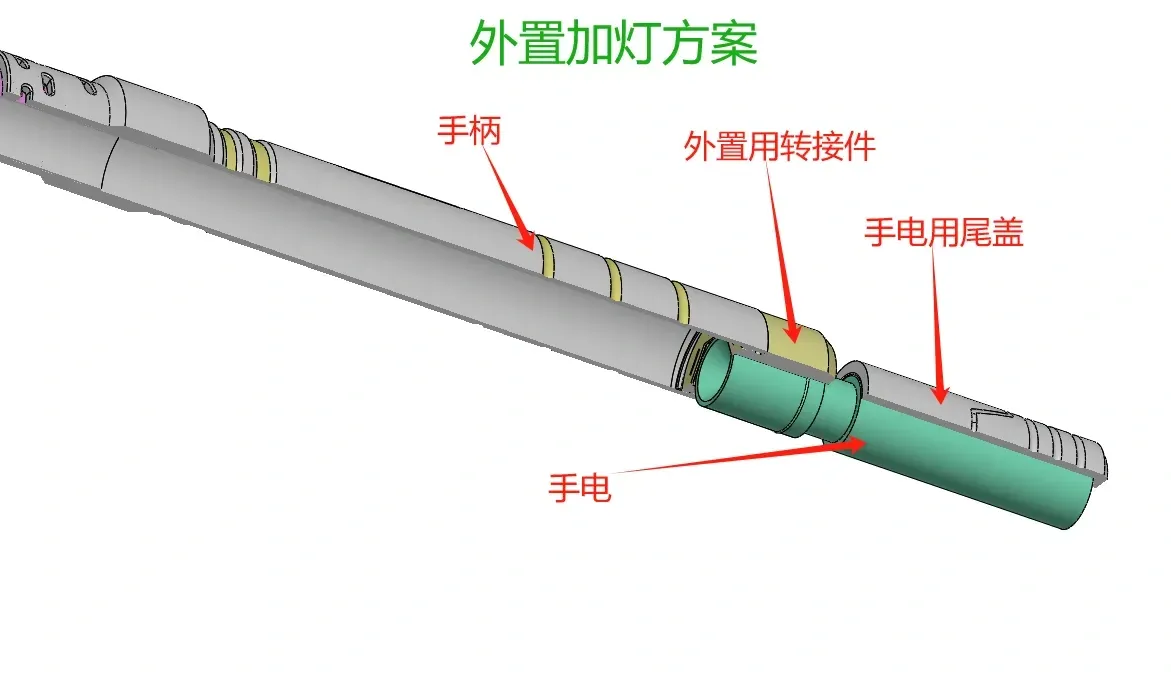

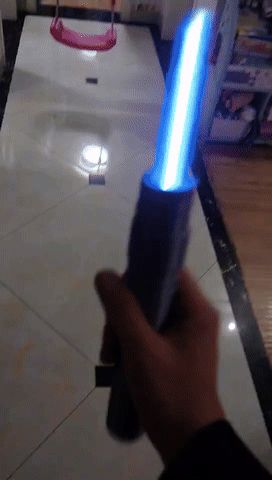

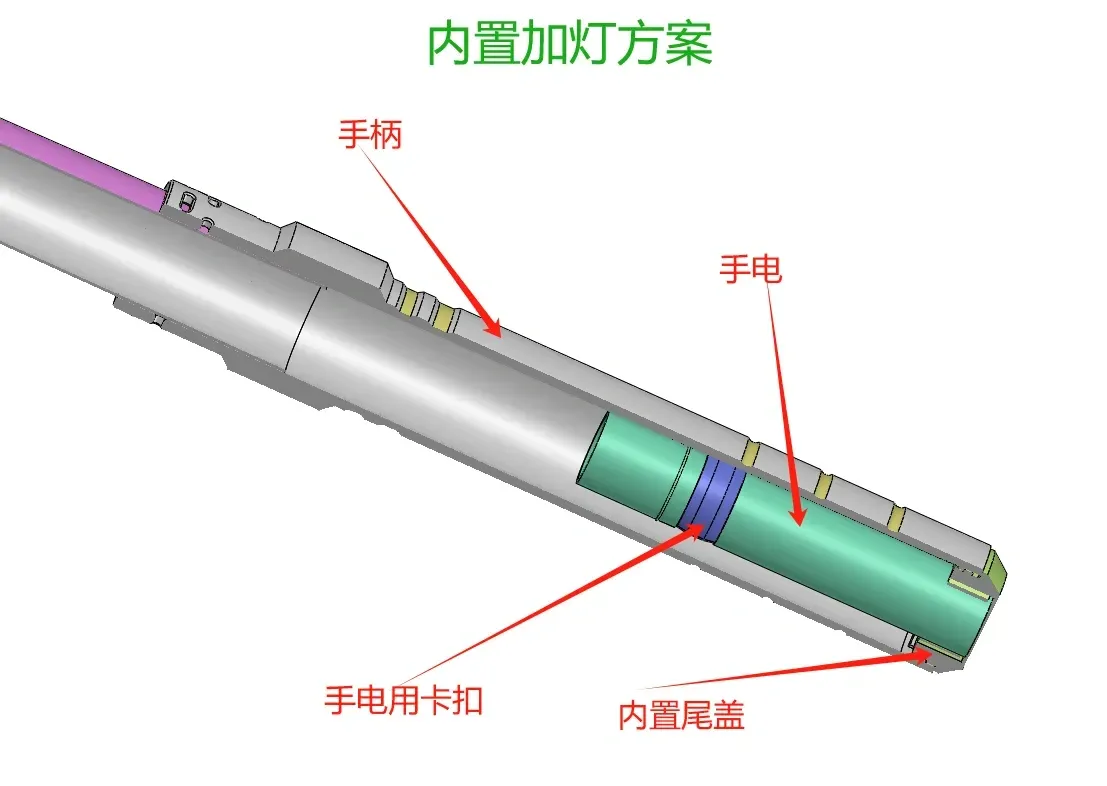

Flashlight Installation Instructions Below

Both solutions prioritize ease of installation by simply inserting the flashlight into the adapter. Adjust the hole size if necessary to compensate for looseness or tightness. Mobile users experiencing difficulty can leave a comment.

Each method presents advantages and disadvantages. The first offers a more aesthetically pleasing appearance during use, but switching the flashlight on and off requires removal, affecting extension functionality. The second is less visually appealing, but retains full zoom and switch functionality, with no impact on extension. Choose the solution that best suits your needs.

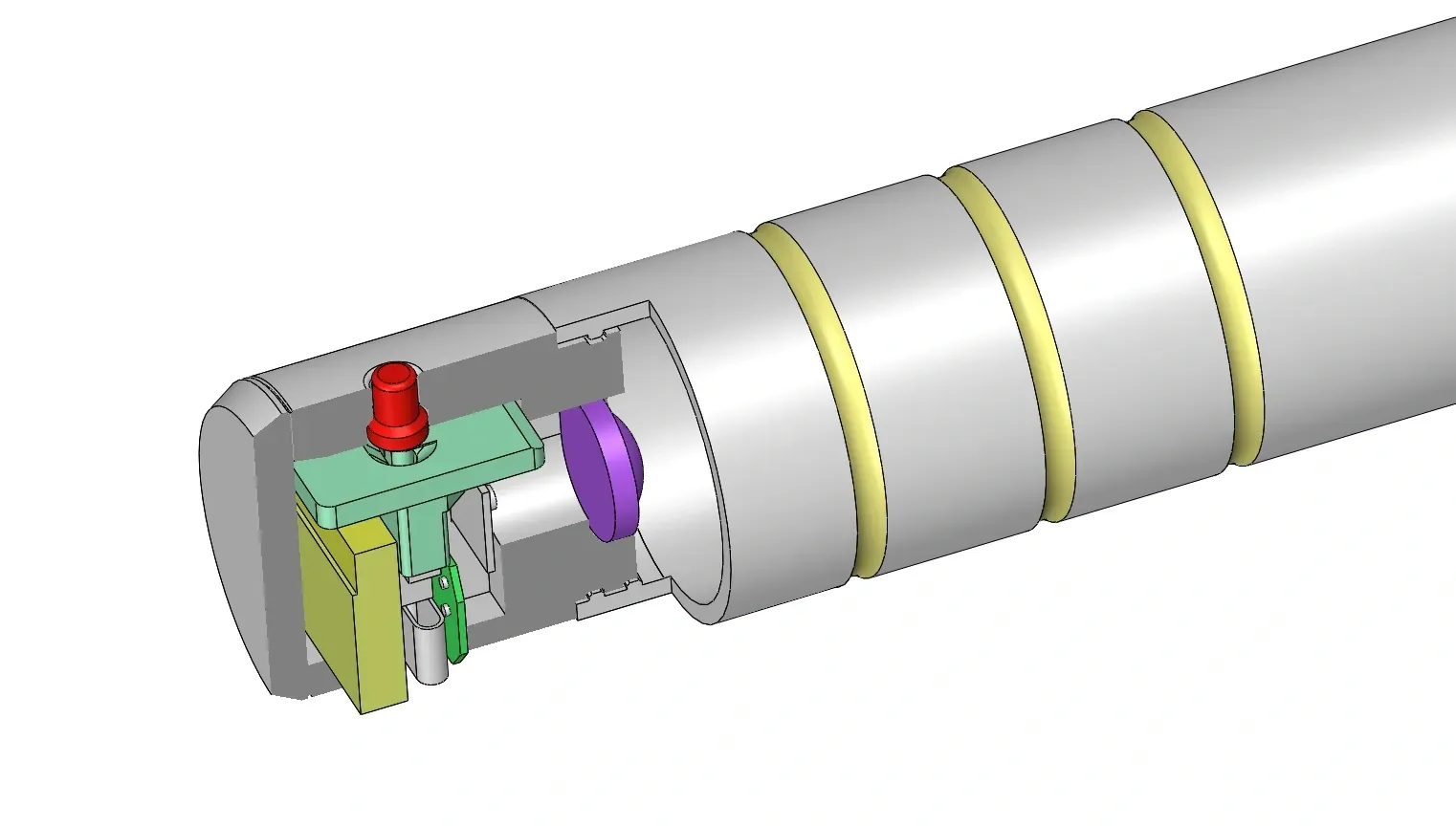

A third solution, involving flashlight disassembly, has been updated. Due to duplicate configurations, it cannot be uploaded here; please access the standard version page for download.

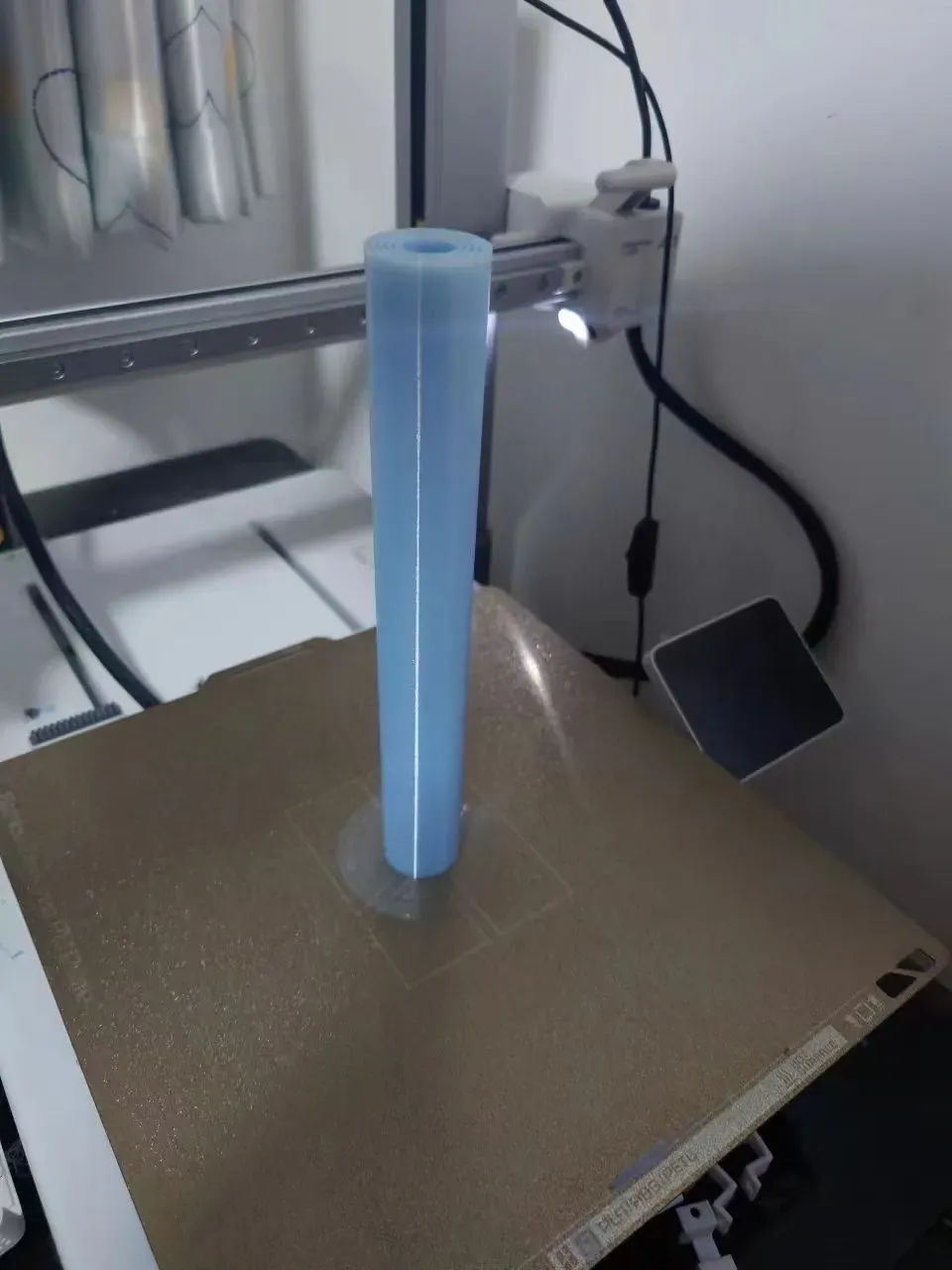

The hilt and blade are both printed using A1. Reduce printing speed to below 150mm/s. Ensure sufficient bed adhesion before printing; apply adhesive if necessary.

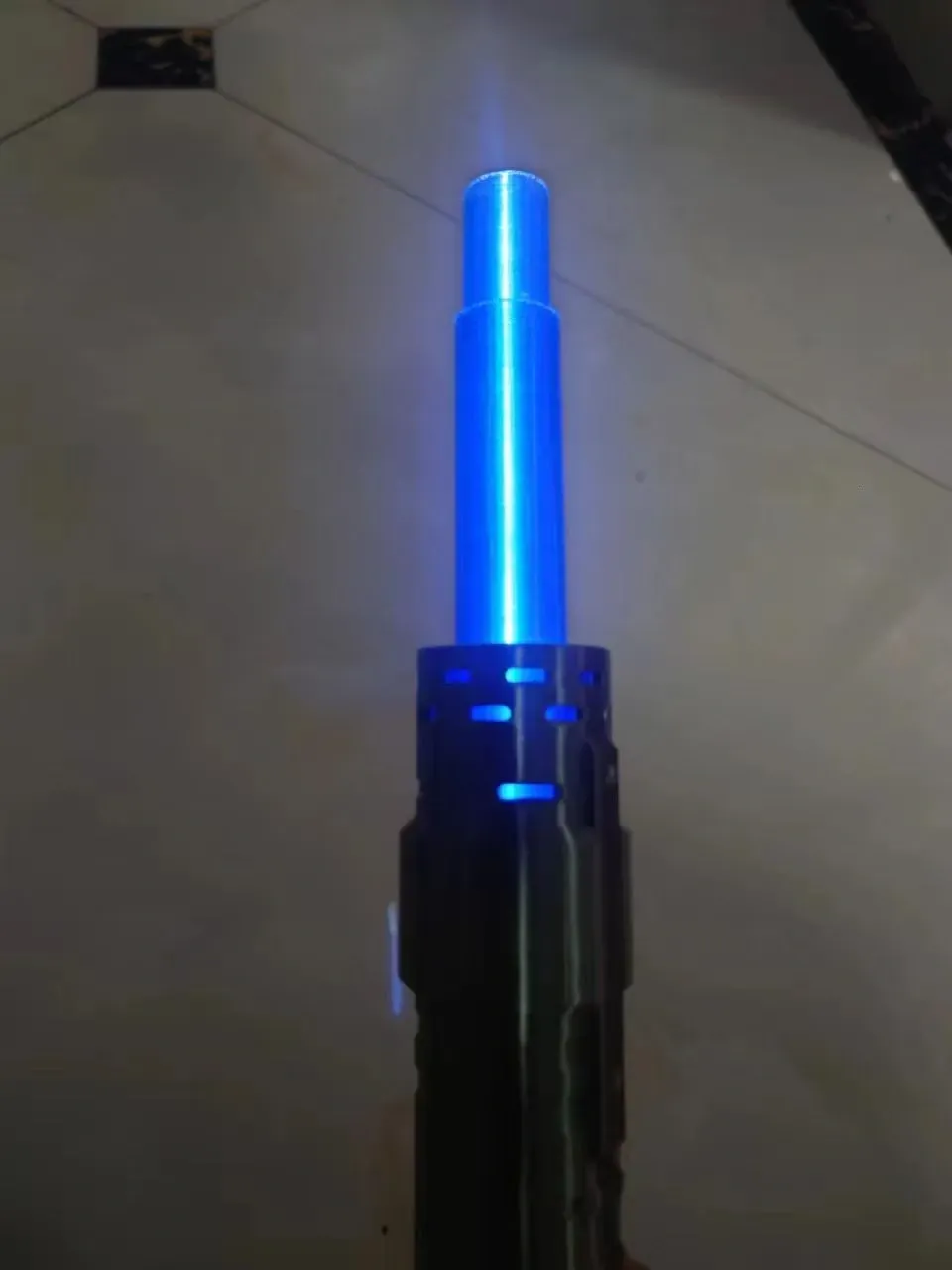

Plate 4 features a hollowed handle with ventilation holes, allowing for light transmission and enhanced texture after adding the light.

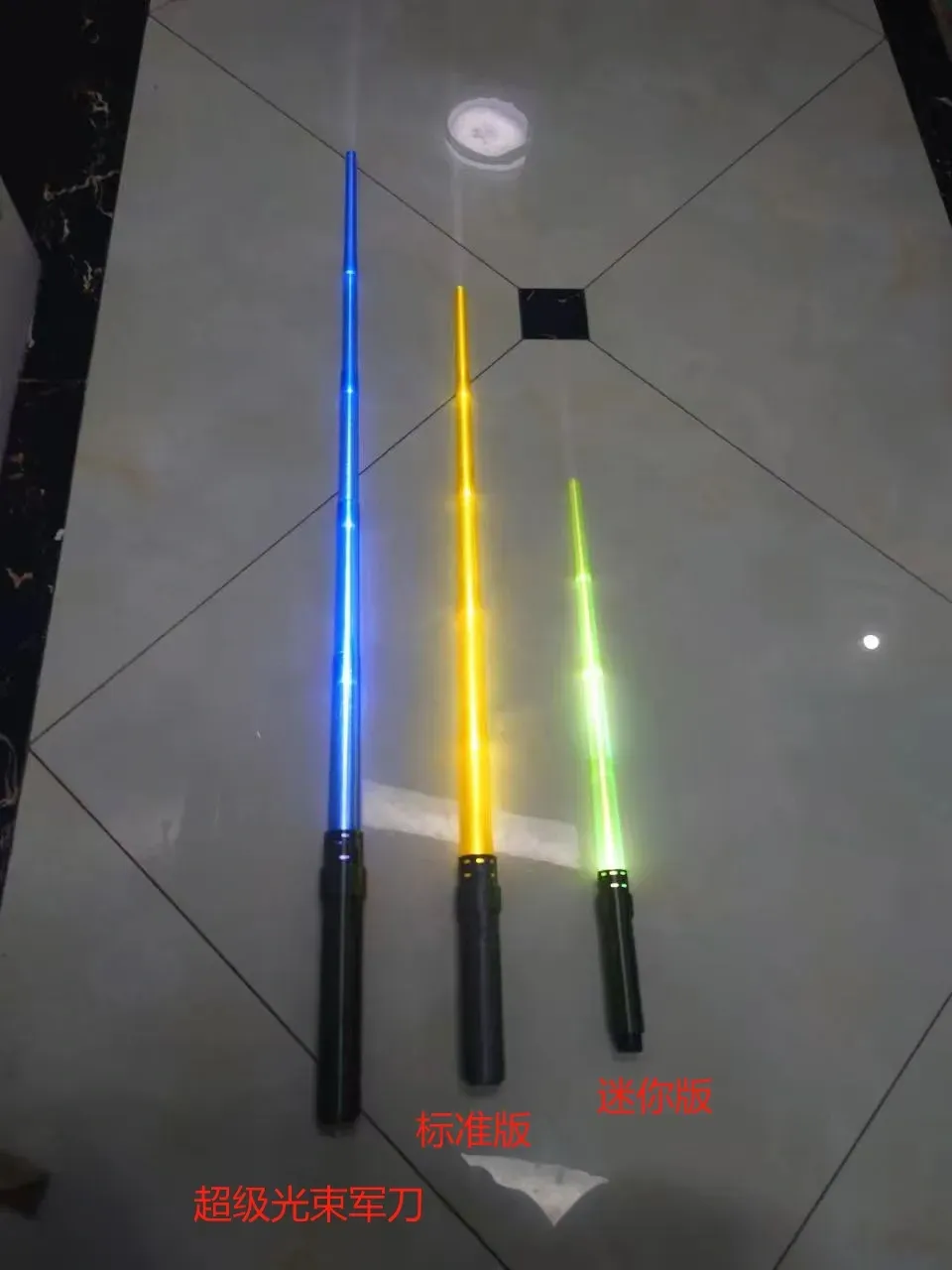

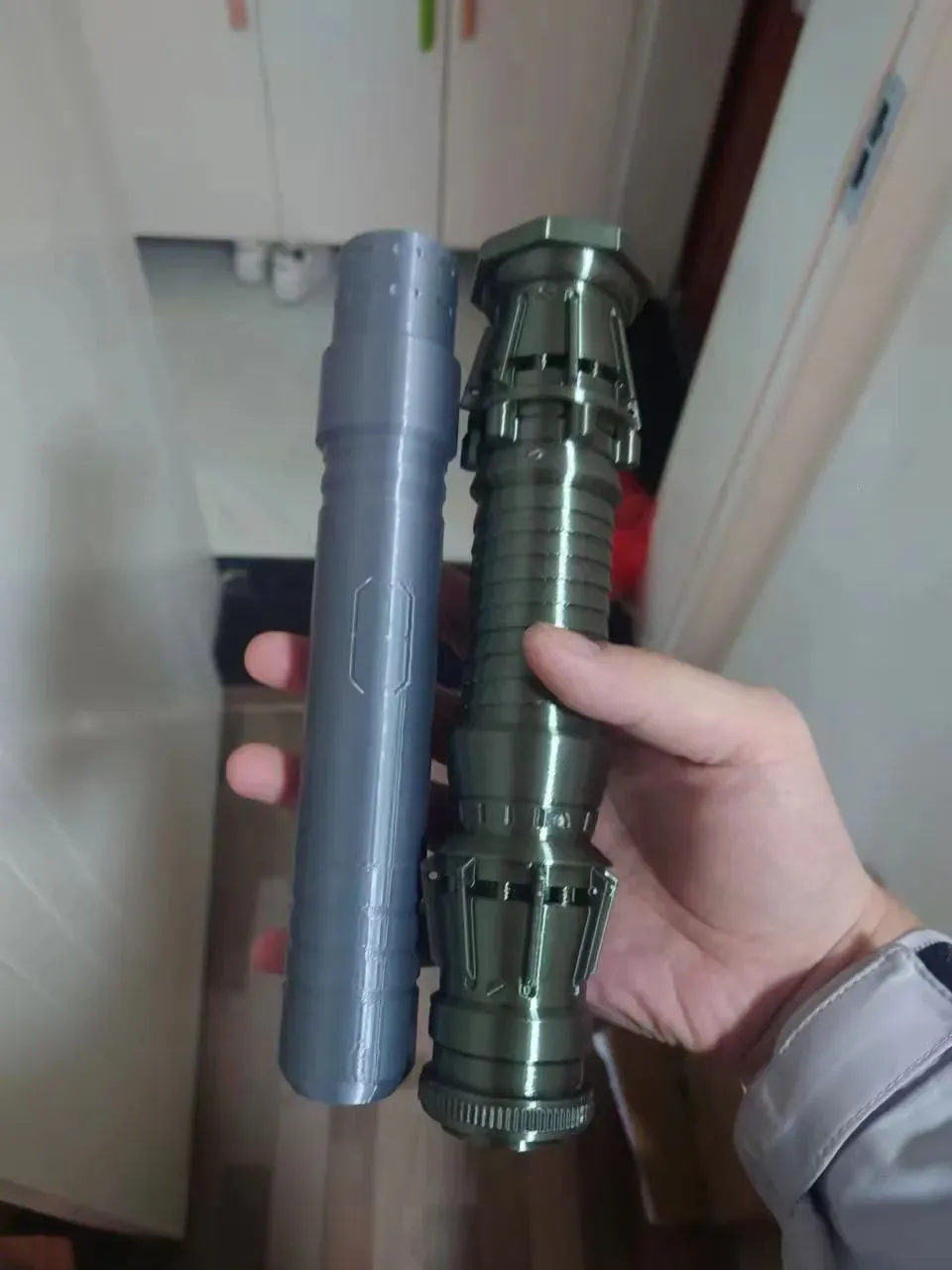

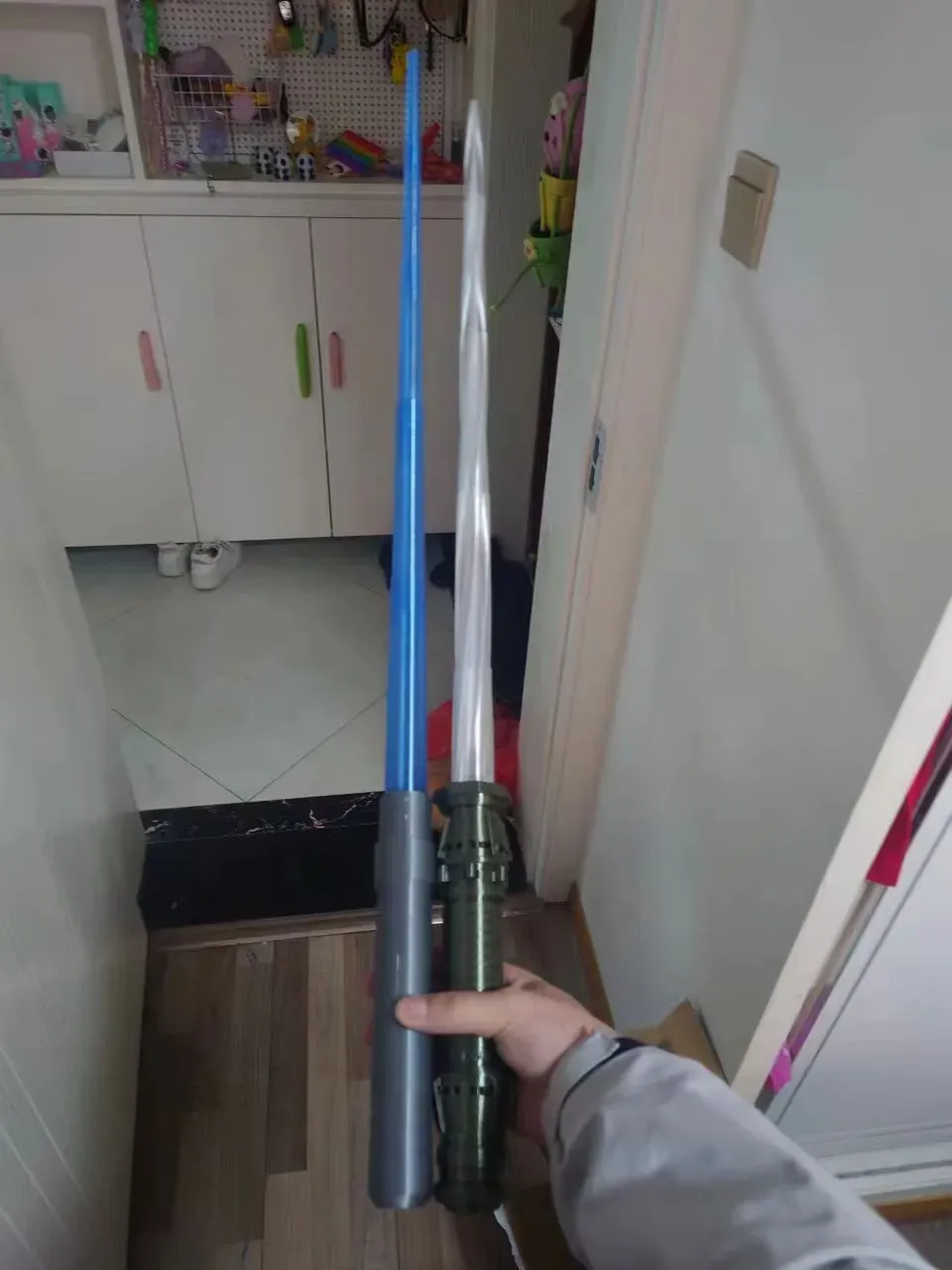

Version Comparison Below

Creating this was no easy feat, consuming several spools of filament during testing. A like would be greatly appreciated if you find this model helpful.

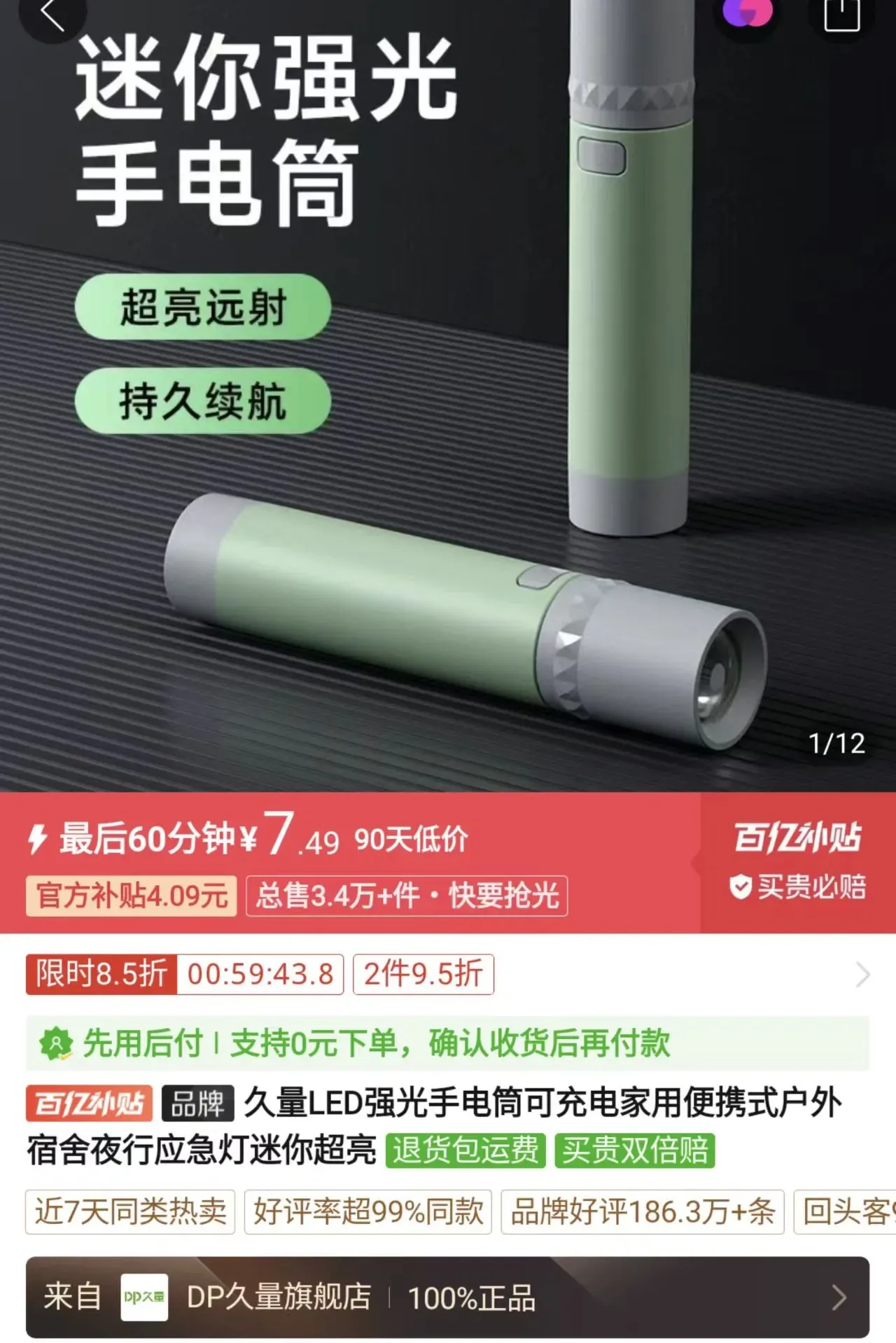

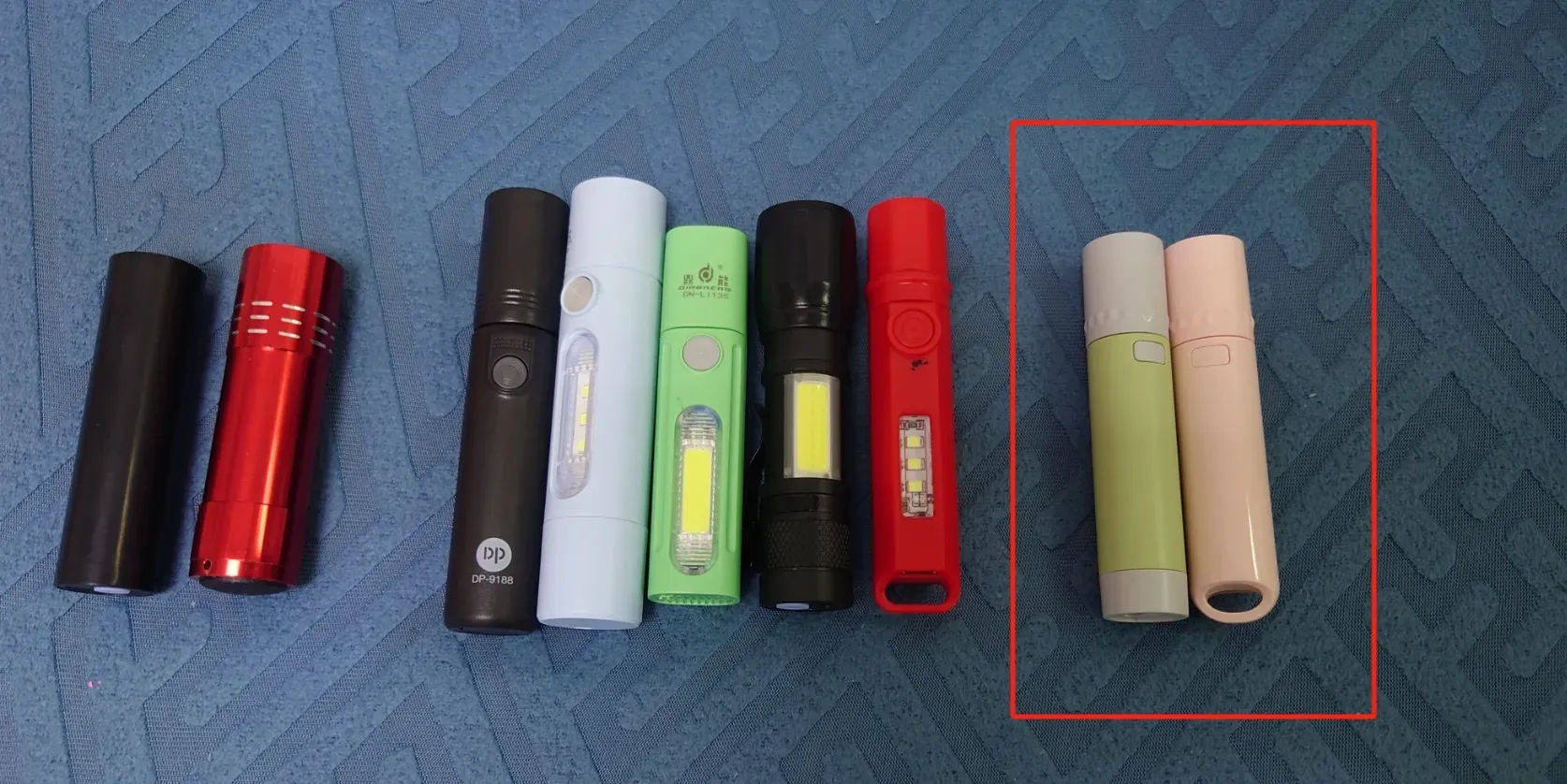

It is recommended to use the flashlight model shown in the image on the right, specifically the JULONG 9190. Other models may have different dimensions and may not fit.
