Boeing 787-10 Dreamliner 1:200
Print Profile(1)
Description

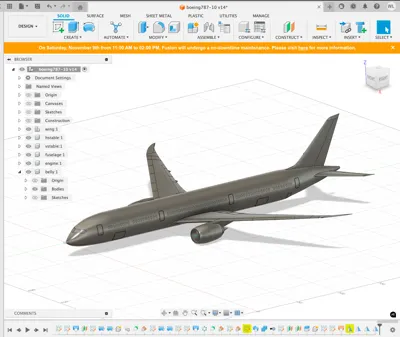

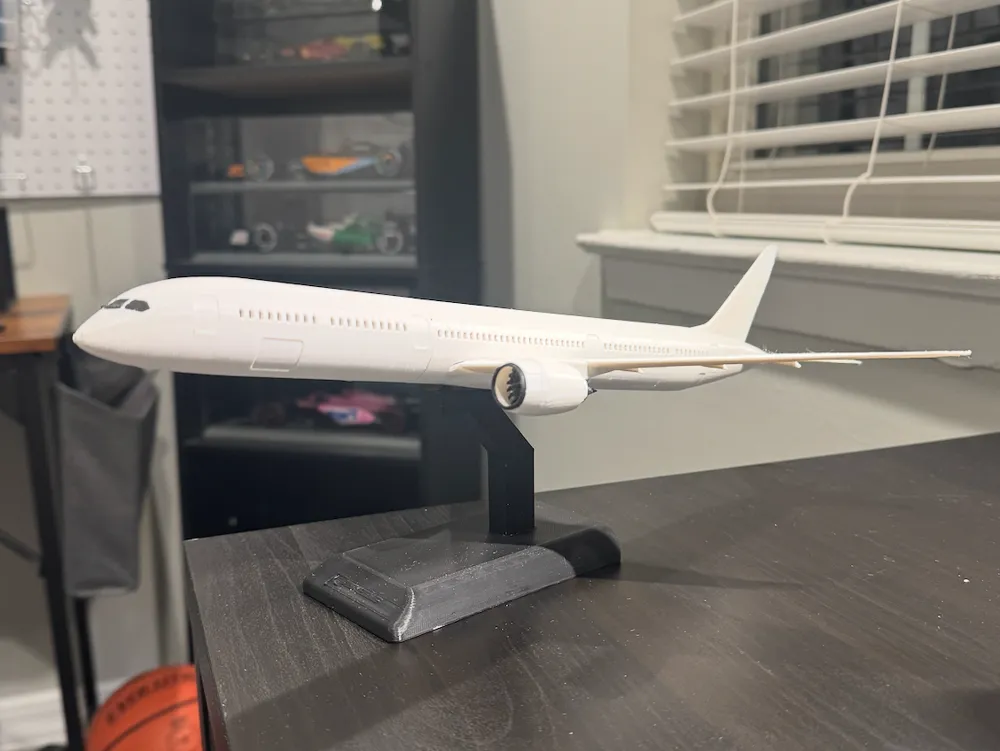

This is a 1:200 model of Boeing787-10 Dreamliner. It is the most detailed and real model you can print out for free. PLA is recommended for the print. Assemble is required, AMS not needed.
Support is only needed for the wings and stabilizers, a higher infill is recommended for the main body. The assemble of the main body is easy, you connect the two body with the connection, apply glue on both end of the connection. You might have to sand the wings a little bit to fit them into the main body, DO NOT FORCE THE WINGS TO GO IN if they get stuck, just sand it and try again. Both horizontal stabilizer goes in from the right side( the side with larger openings). The vertical stabilizer goes in the main body and then you need to push it back toward the tail of the aircraft to make it tighter. For the cockpit windows you just push them in, glue is needed for the front two.
Assembly of the engine:

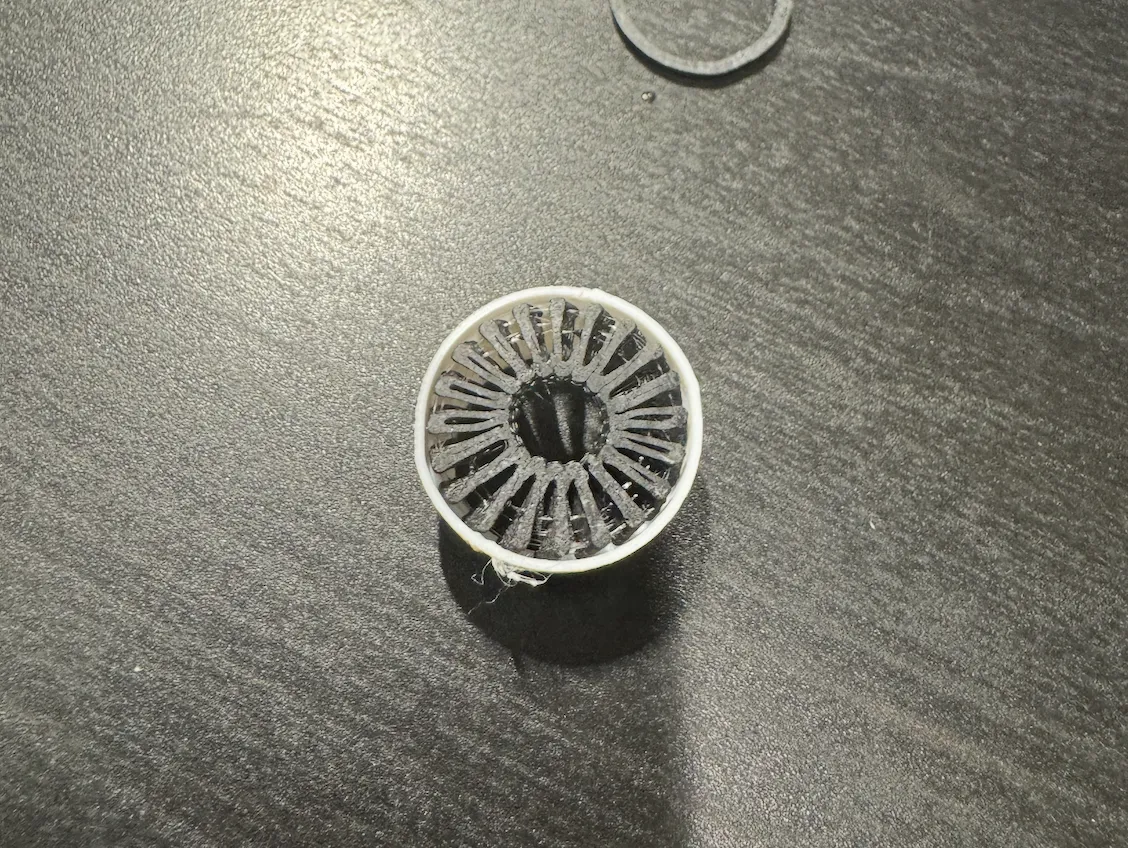

- Apply some glue and push the blade in to “engine middle”

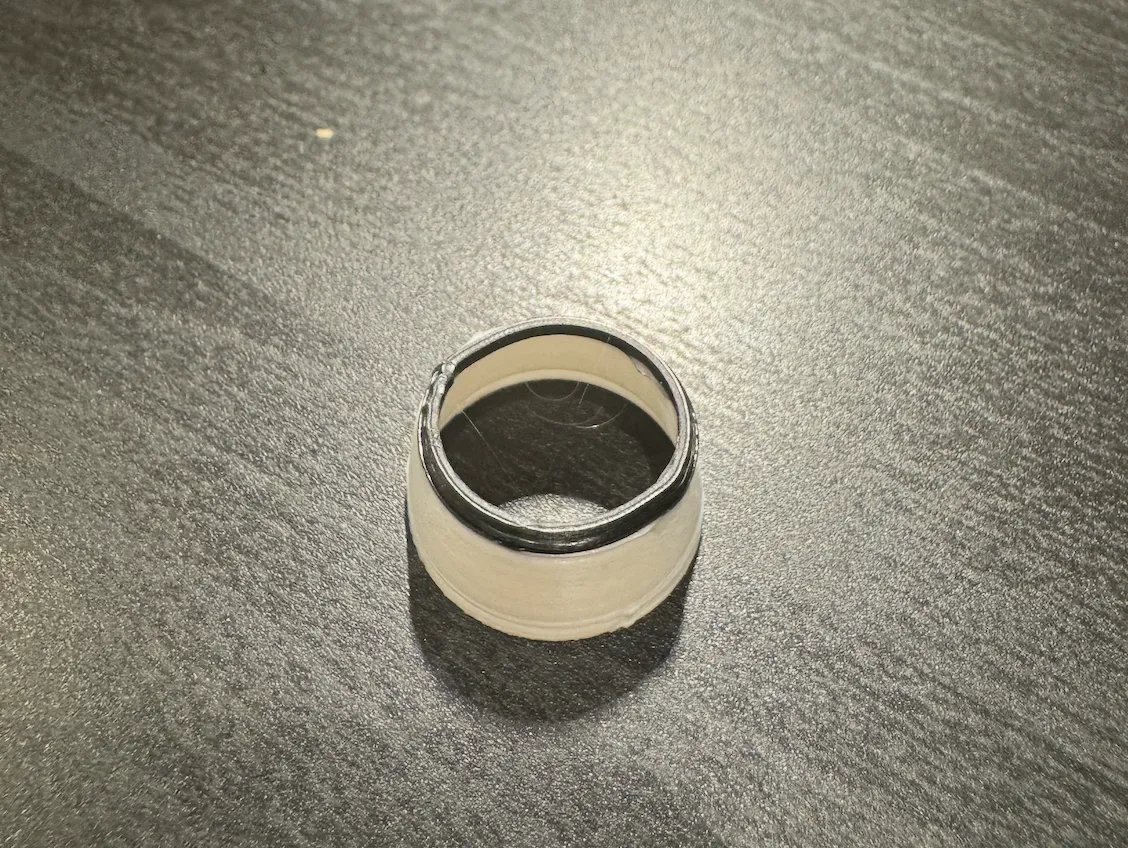

2. Add glue to the front of engine middle, attach the engine ring
3. Apply glue on engine print, glue the blade and engine middle

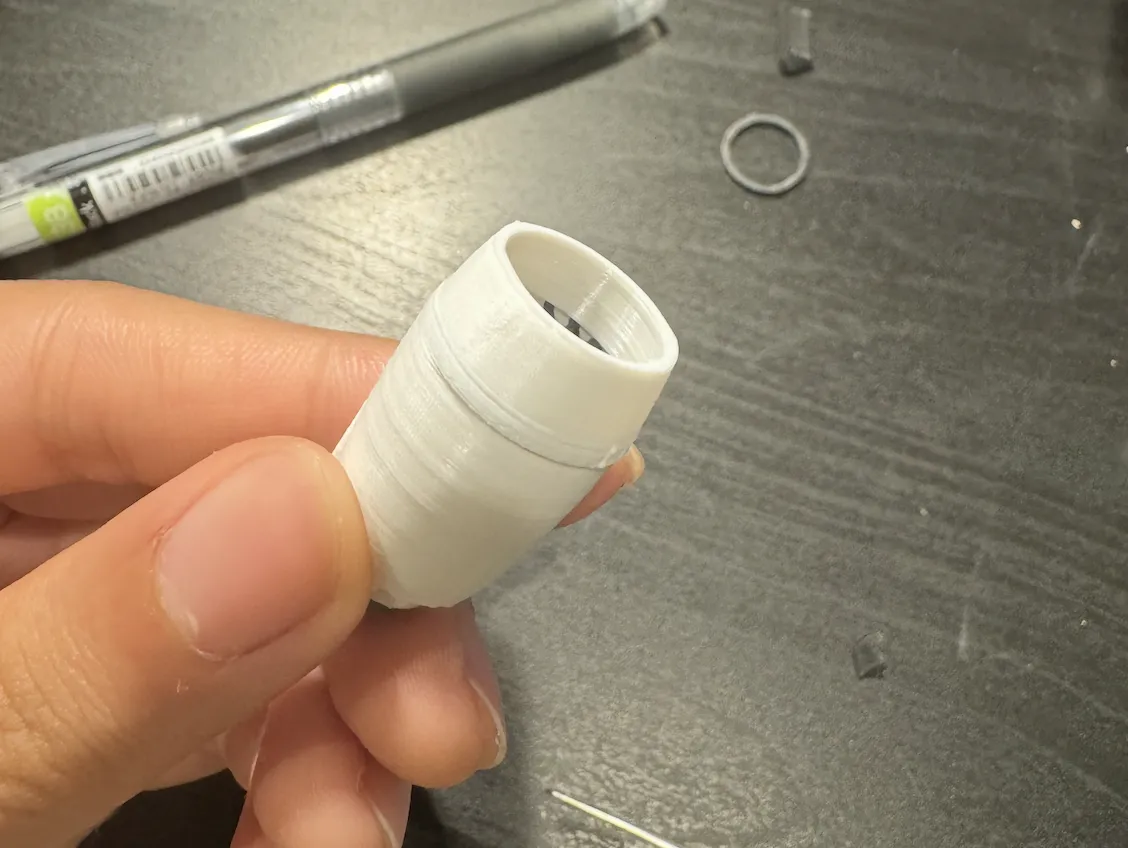

4. Add glue and attach engine back
5. Add the engine cone inside the blade

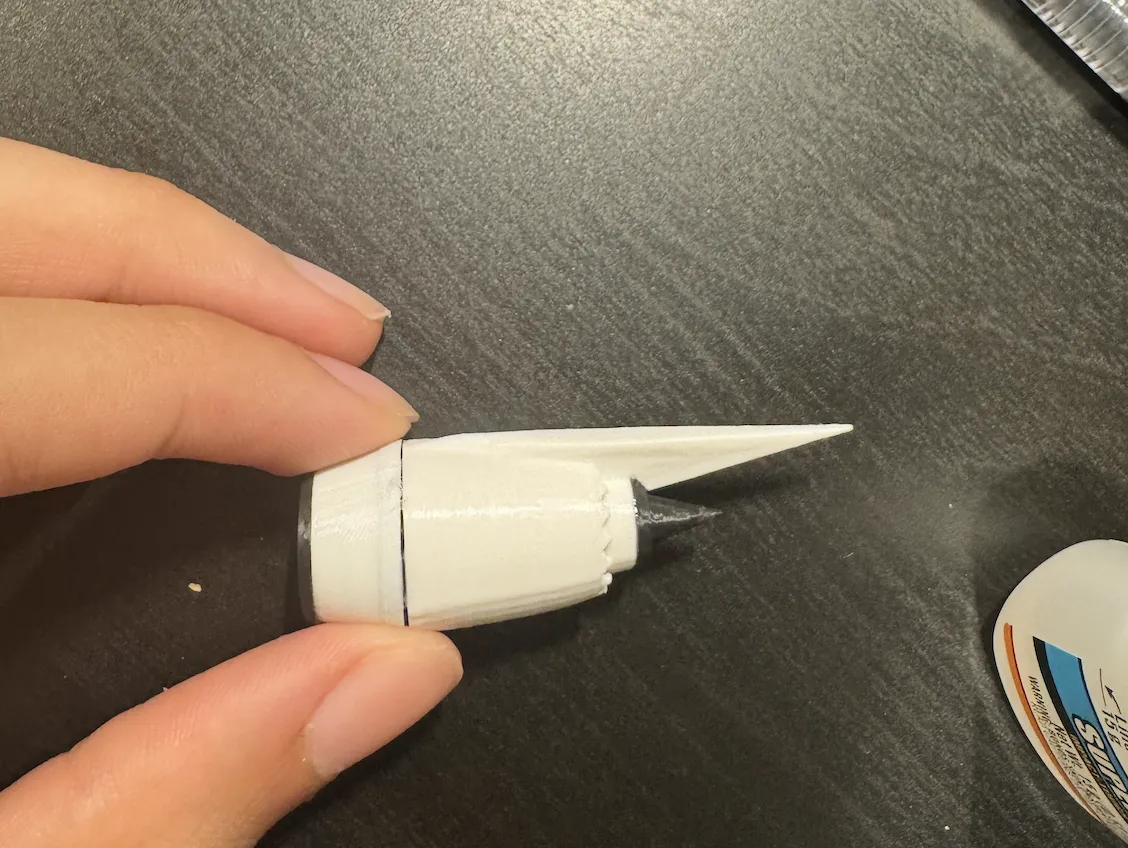

6. Attach the engine to the wings.
Leave any other model of the plane you want in the comment
