A solid, stylish, versatile case for the 7" version of the Raspberry Pi Touch Display 2.

Please note: There is a desktop case for the 5" version of the Official Raspberry Pi Touch Display 2 available here: https://makerworld.com/en/models/1768564-raspberry-pi-5-touch-display-2-desktop-case

[Features]

Perfect fit for the RPi Touch Display 2

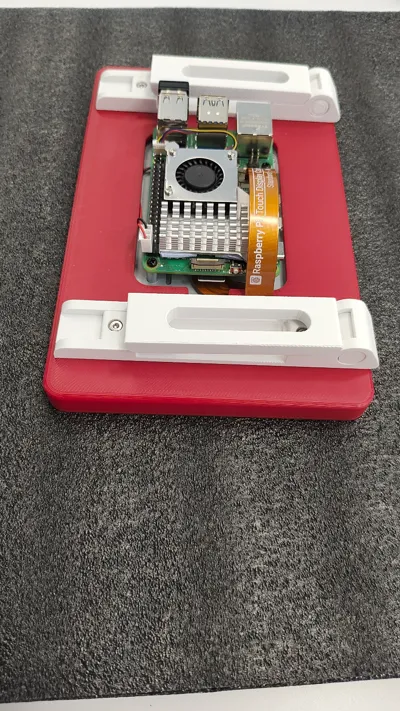

Allows for the attachment of multiple models of the RPi in exposed form (There are also specific case surrounds for the Rpi 5 and Rpi 4B)

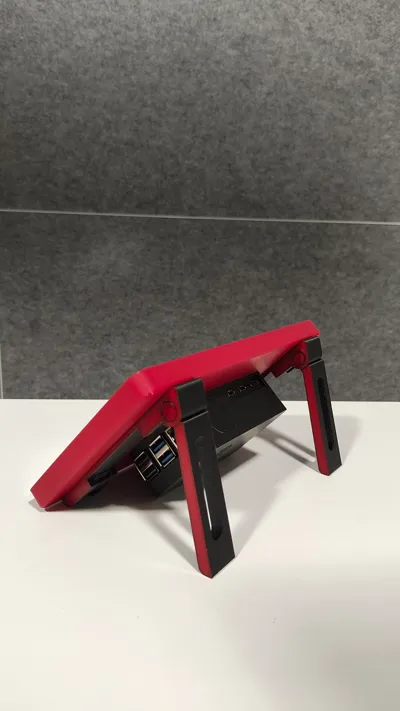

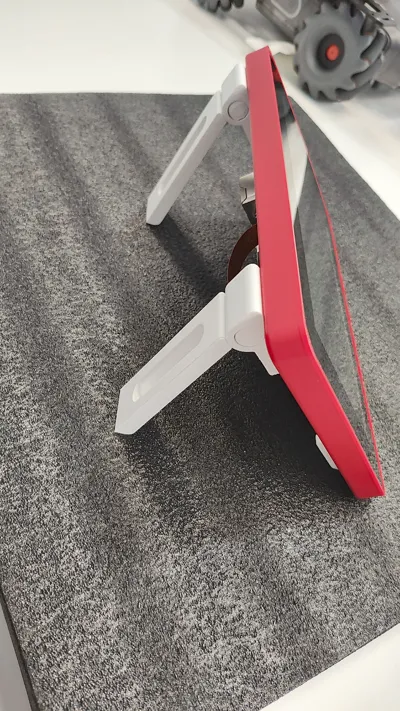

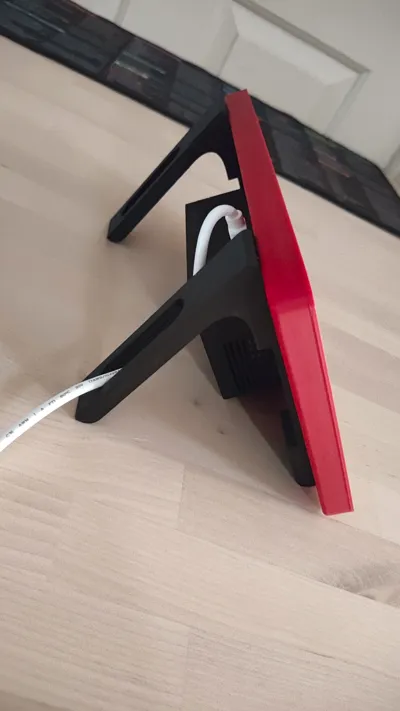

Can stand in multiple configurations (as per the photos)

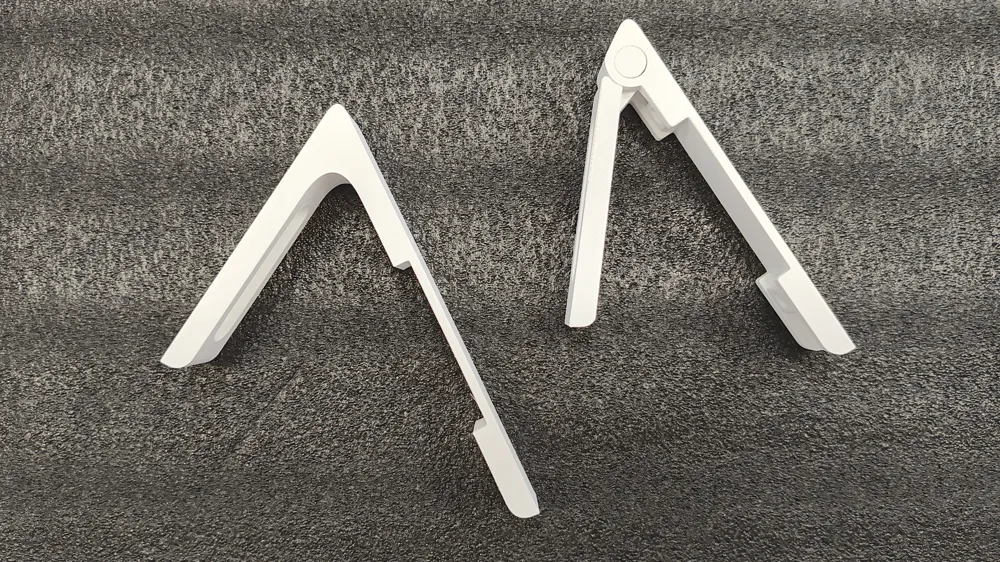

Original leg stands fit comfortably over the hands when held

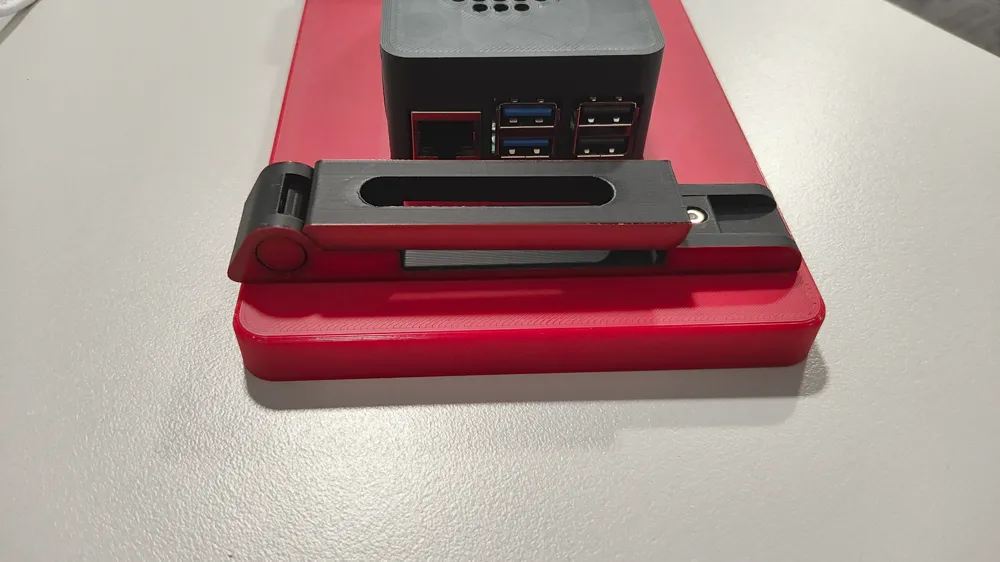

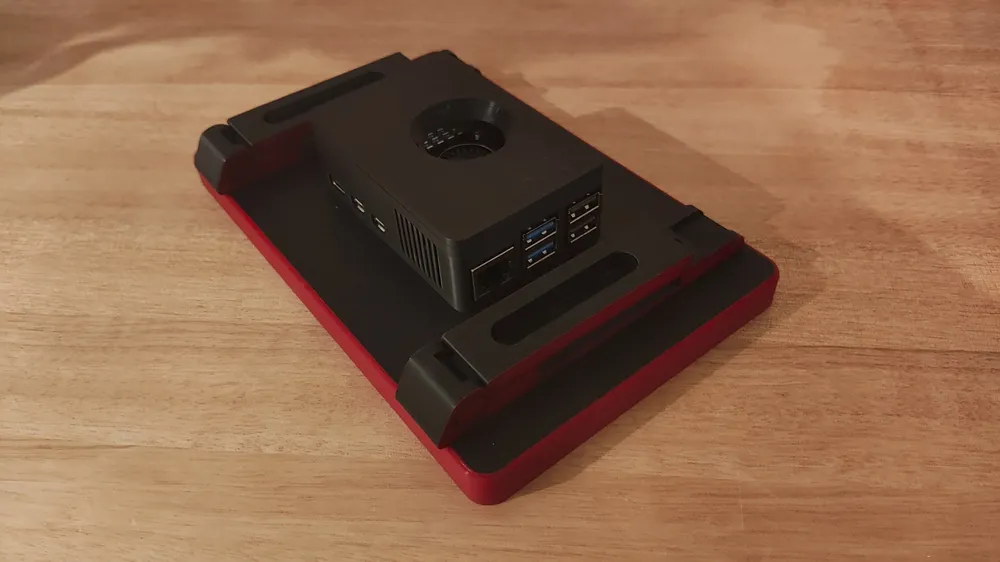

The RPi cover provides great airflow , especially when used with the official RPi active cooling solution.
A split case version is available for the A1 Mini!
Detailed assembly instructions (PDF)

UPDATE (02/09/2025): I have added a print profile for the Raspberry Pi 4B Case surround for those with the 4B. As I don't have access to a model 4B, I modeled it based on vendor specifications and reference resources. Everything should fit nicely, but please do let me know if there are any issues related to fitment of the 4B board into the case.

UPDATE (21/01/2025): A standalone version of the case for the Raspberry Pi 5 has just been released. Check it out here: standalone case for the Raspberry Pi 5 . Also, I have updated the main printing profile to include a blank port cover (No Logo).

NOTE: All profiles have been field tested and engineered for strength and longevity, hence the longer print times.

Happy to hear feedback and see pictures of your make. If there is enough interest in this case, I'll develop it further to accommodate different hats, a camera mount, etc.

Boost Me (for free)

If you like this case, feel free to send a boost my way. Also, if you have any ideas or need help, drop me a message in the comments.
