Drop Point cam-plate for Sony PS-Q3A turntable

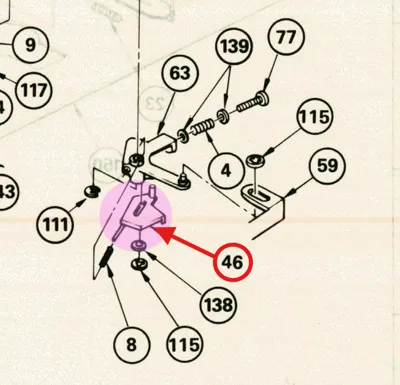

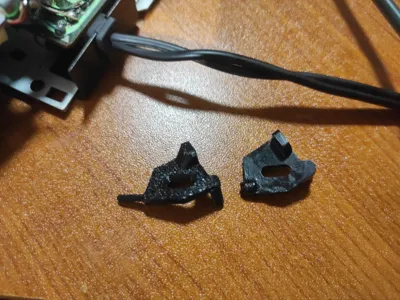

It's located in the arm mechanism, the exact location is in the service manual. I was forced to replace it because the small plastic pin that holds the spring broke and even after gluing it it could no longer resist the tension of the spring and the adjustment for the arm entry, the adjustment screw of which is located on the back of the turntable. It worked very well and I decided to share my work for anyone who needs it. It might also work for the next model, the PS-Q7, but I'm not sure about that since I don't own it.

-Use PETG (more resistant and less brittle than PLA).

-Print as fine as possible (orignally printed on my A1 with 0.08 mm layer).

-50% triangle infill, 2 walls loops, 4 top and bottom shells, 60% triangle infill.

-Position on the plate as shown in the image (aligned layers, better resistance to mechanical stress).
