MG996R Servo Stabilizing Mount with Shaft Support
Print Profile(1)
Description
"MG996R Servo Stabilizing Mount with Shaft Support"

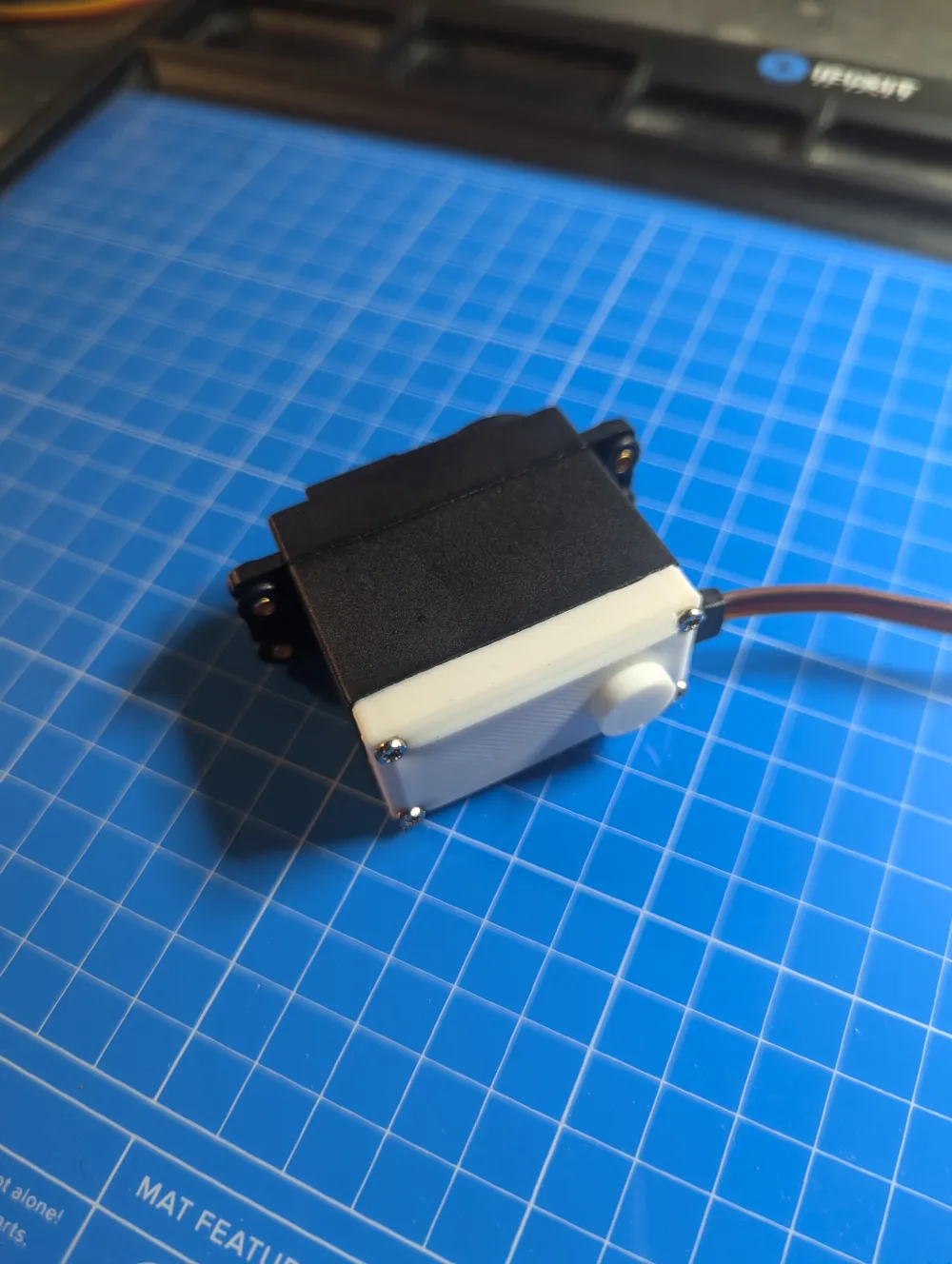

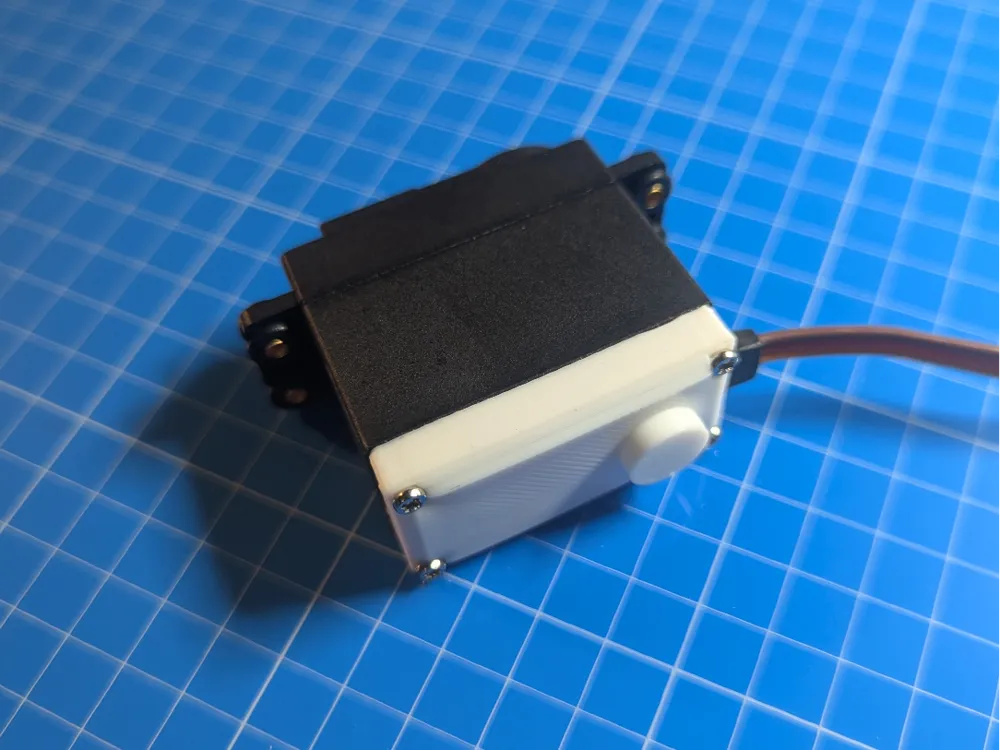

This part is designed to work with the MG 996R servo motor, providing a stable mounting solution that allows the servo's rotation axis to extend through the opposite side of the housing. It includes an integrated support boss on the reverse side, which enhances stability for connected joints and minimizes unwanted play during movement.
Features:
- A support boss opposite the mounting face, designed to stabilize any shaft or joint connected to the servo, preventing excessive lateral movement.
- Mounting holes that align with the MG996R servo, allowing secure attachment with the original screws. Just swap out the old servo bottom housing.
Print recommendations:
- Material: PLA, PETG, or ABS for added durability.
- Infill: 20% recommended.
- Supports: Needed (Only minimal though)
Additional notes:
- Compatible specifically with MG996R servo motors.
- The printed part itself remains stationary; only the servos shaft rotates.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
