Waveshare 7.5 inch e-paper case
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
4.1 h
2 plates
Open in Bambu Studio
Boost
92
317
44
26
389
217
Released
Description

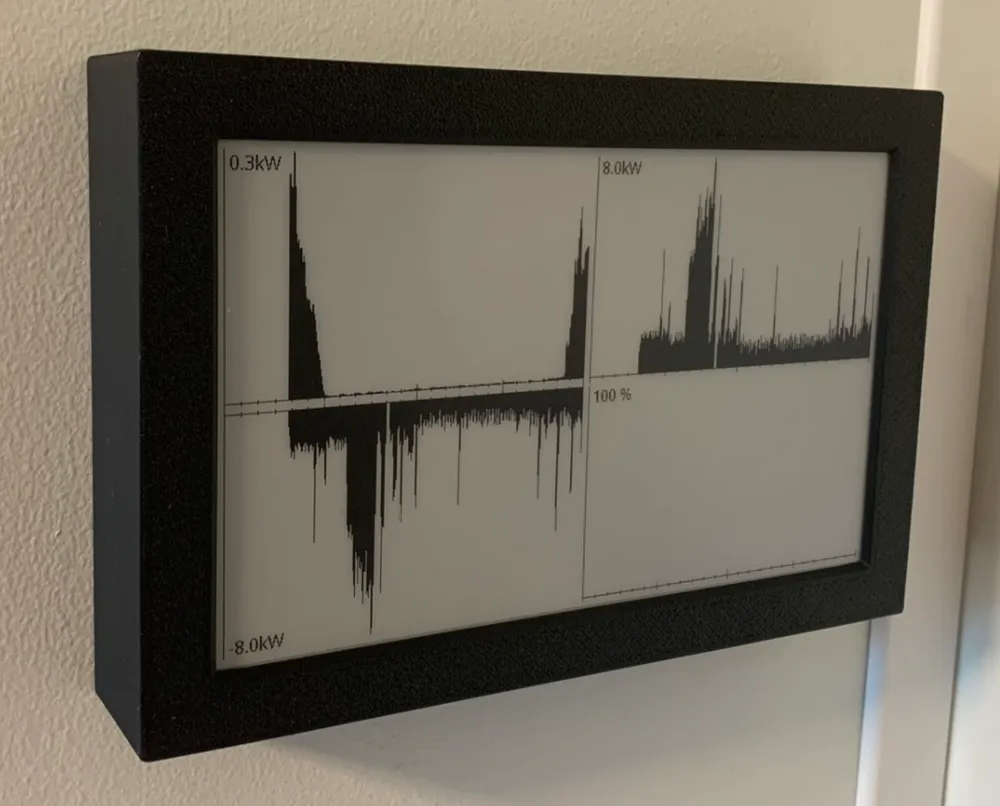

A case I made for mounting a Waveshare 7.5 inch e-paper display and the raspberry pi that drives it on my wall. Comes in 4 parts.
- Outer frame, that seats the display.

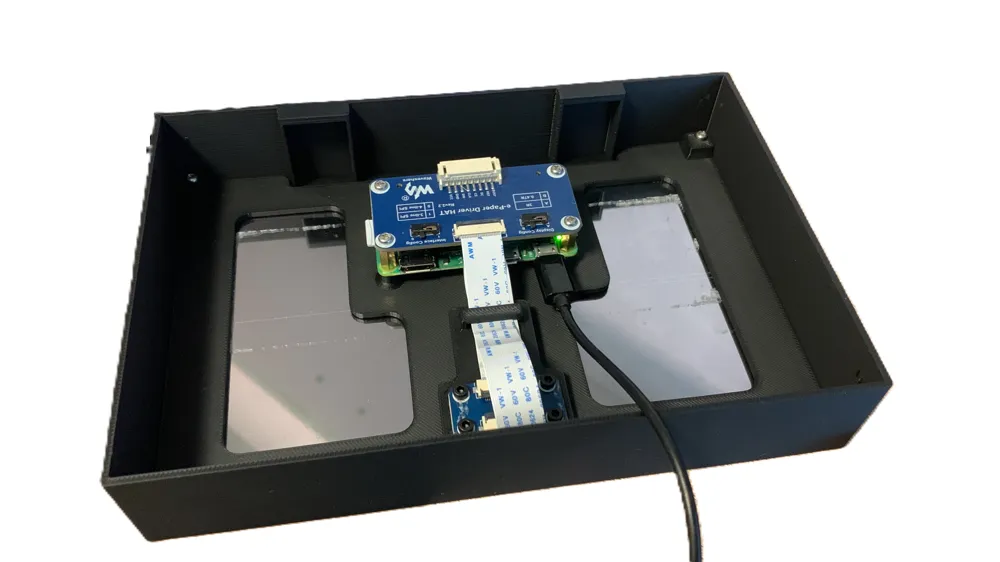

- Mounting plate, that holds the display in place and provides the place to mount the connector pcb & raspberry pi zero with hat.
- A cable clip, that sits on the mounting for the connector pcb. This is just there to manage the overly long flat-cable between the connector and raspberry pi.
- Wall mount, goes on the wall, has two hooks that slot into the outer frame so you can hang it up.
Needs 12 x M2.5x3.5x4 Threaded Inserts for full assembly.
This is my first design ever, and first upload to Maker World so… be gentle. :D
Enjoy!
