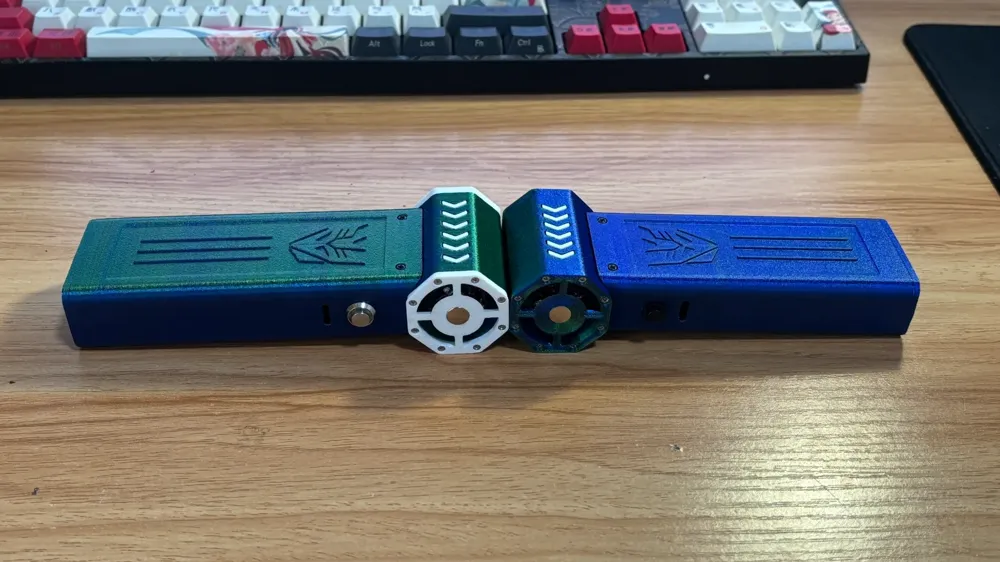

Violent Fan (21700 Edition)
Print Profile(1)
Description

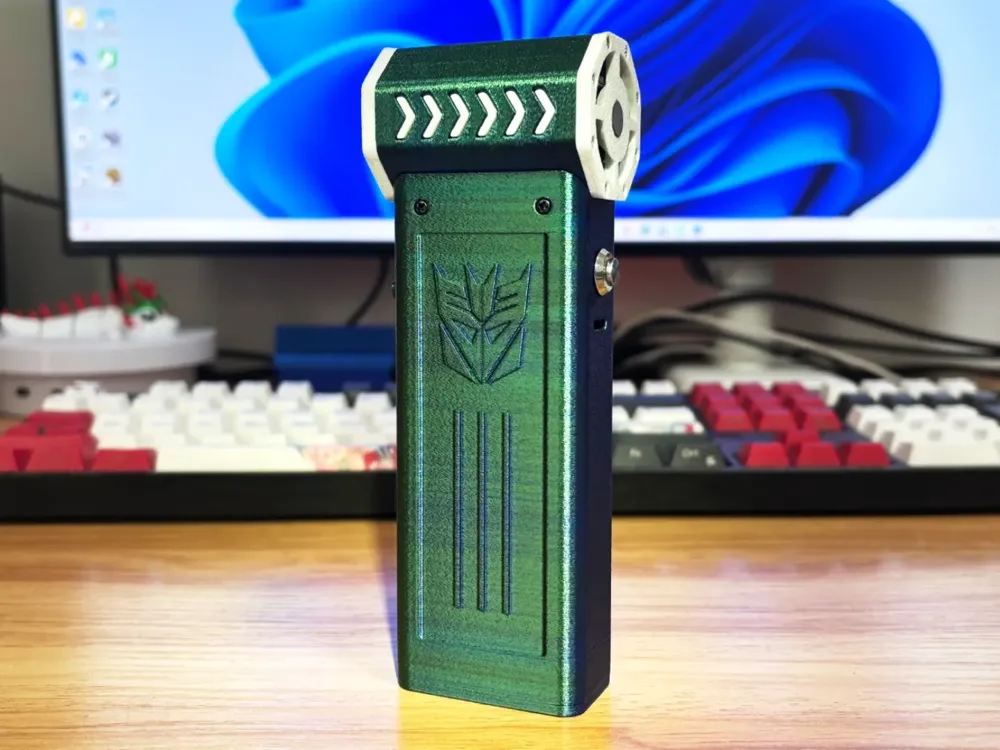

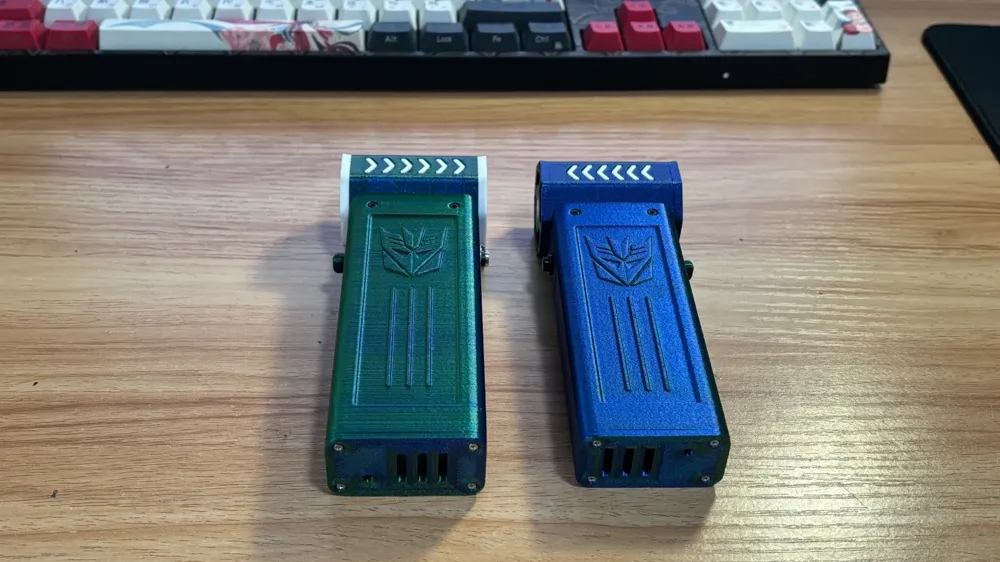

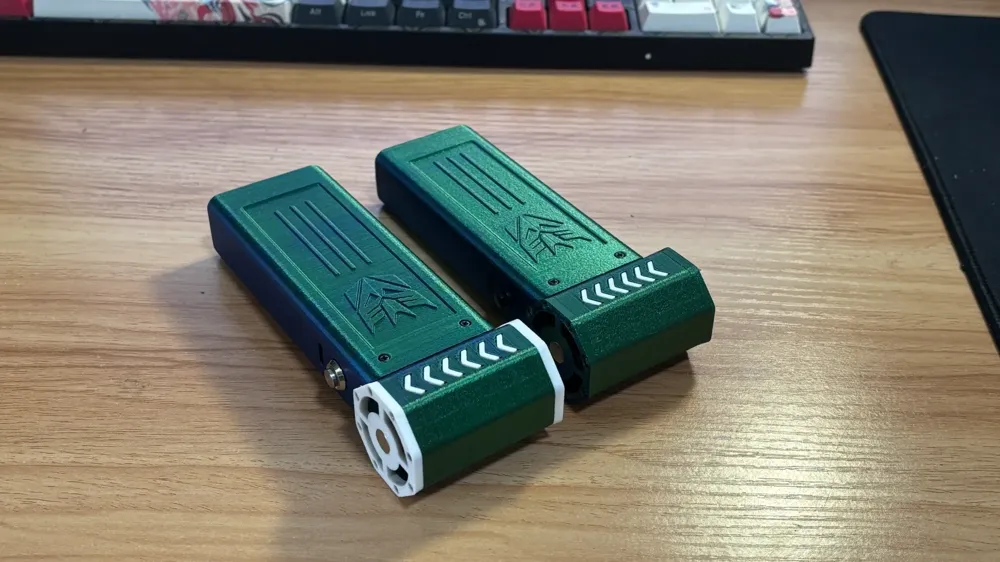

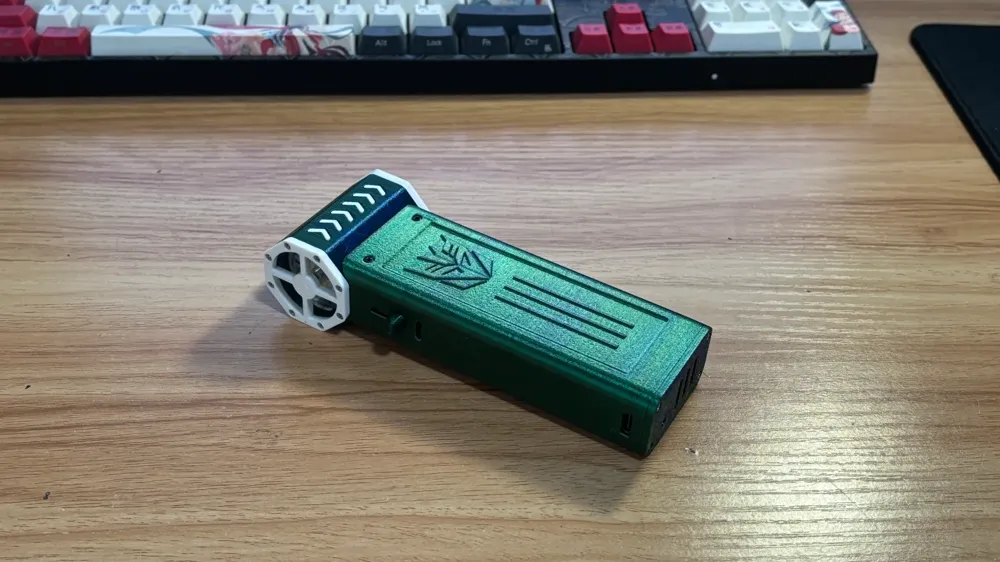

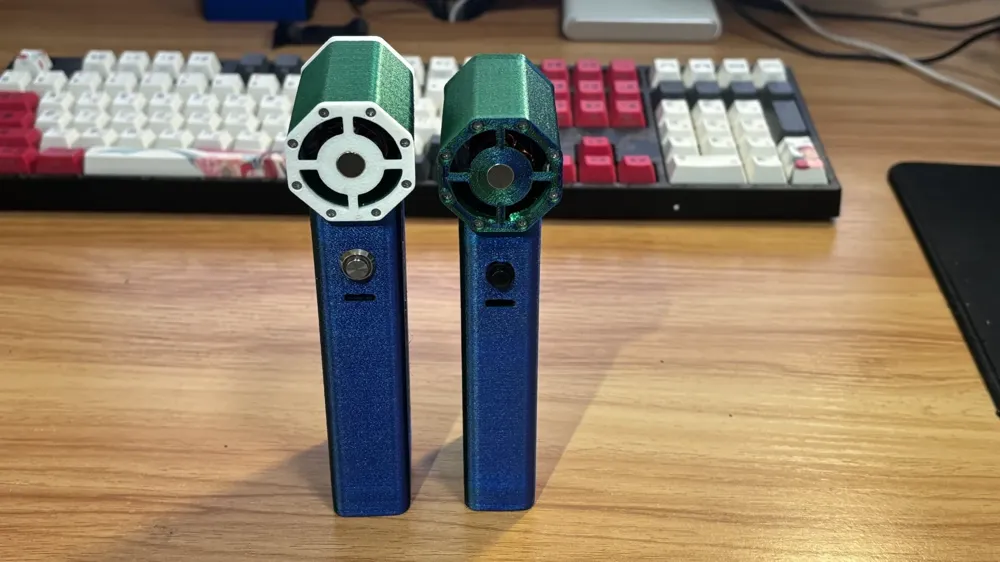

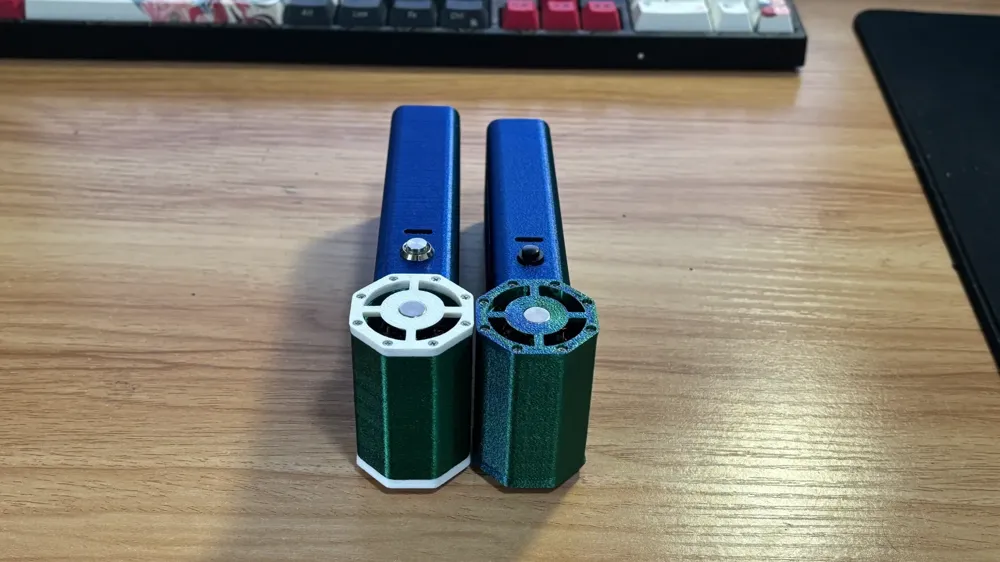

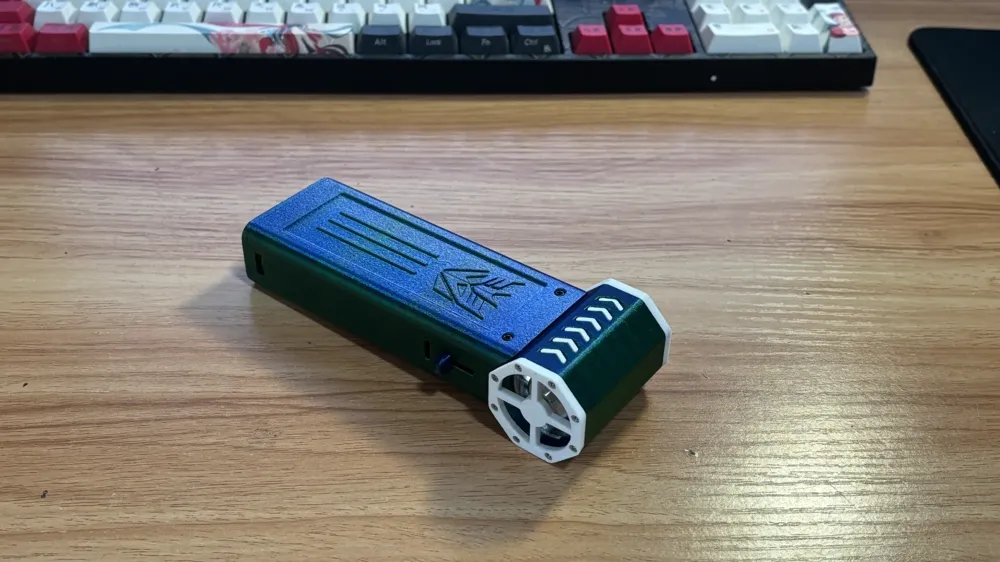

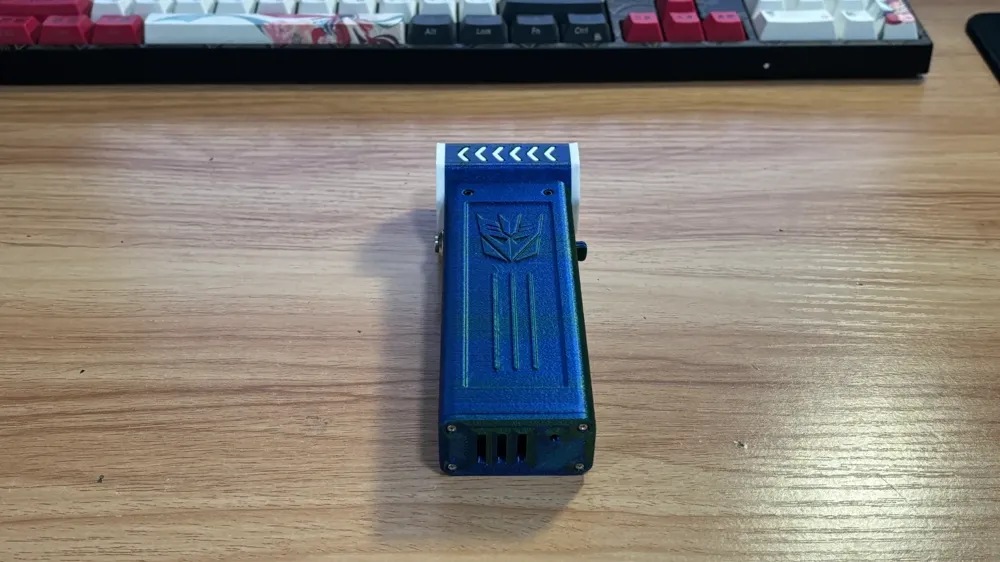

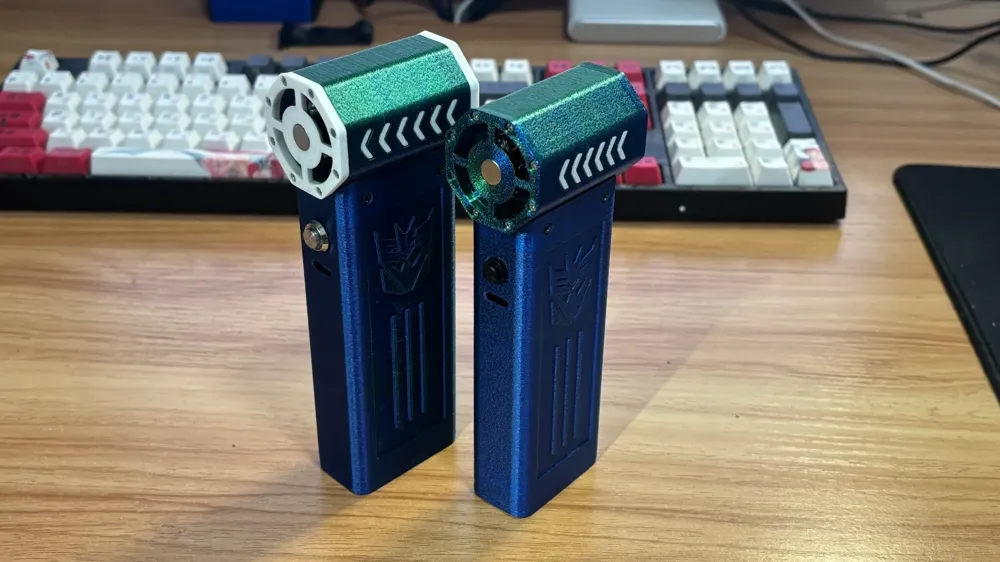

High-Performance DIY Fan 3D Printing Project Description

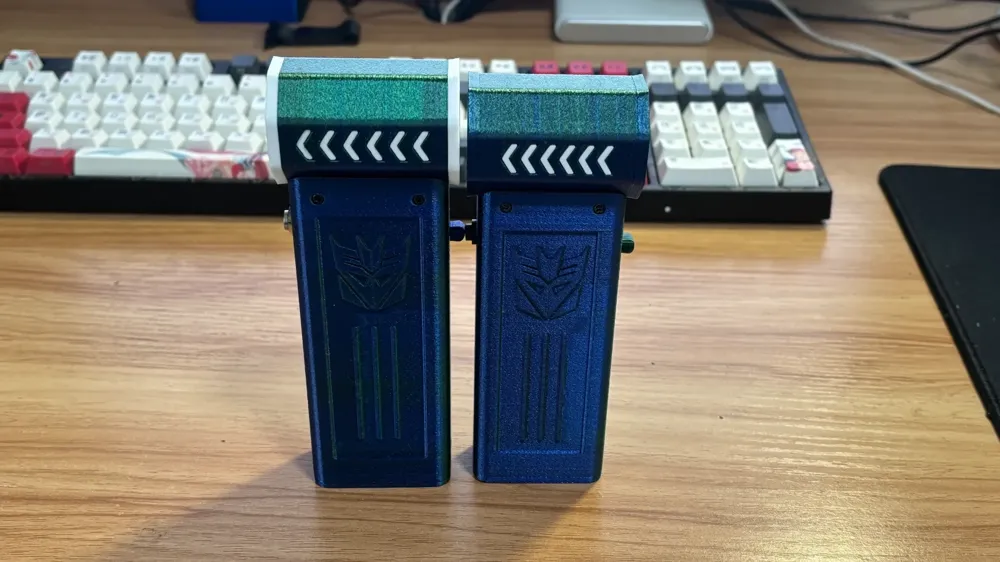

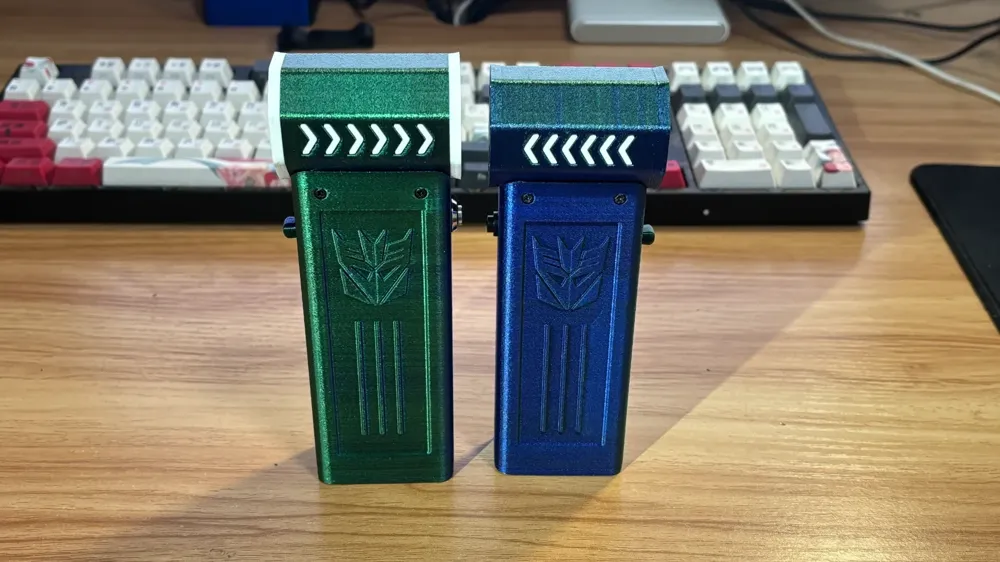

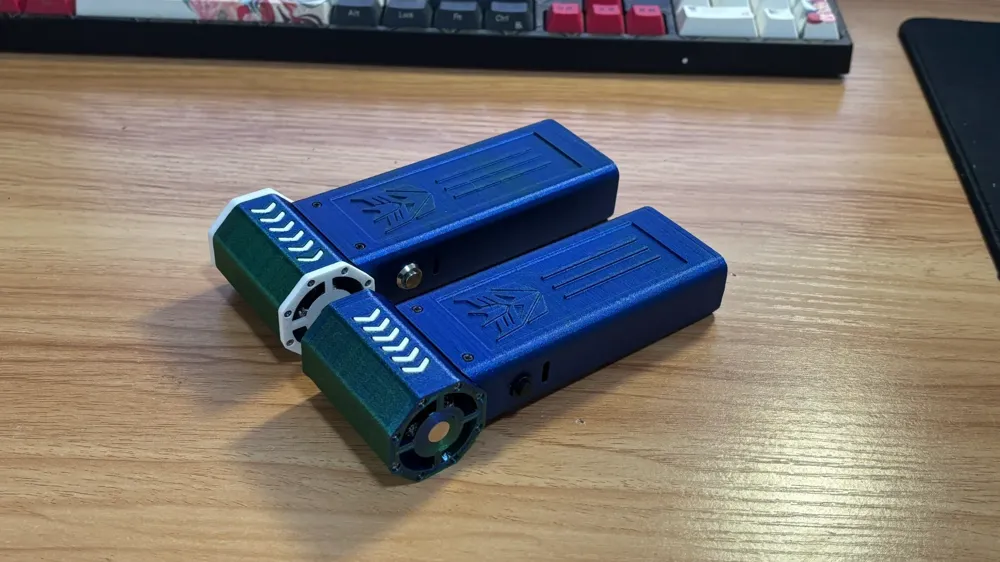

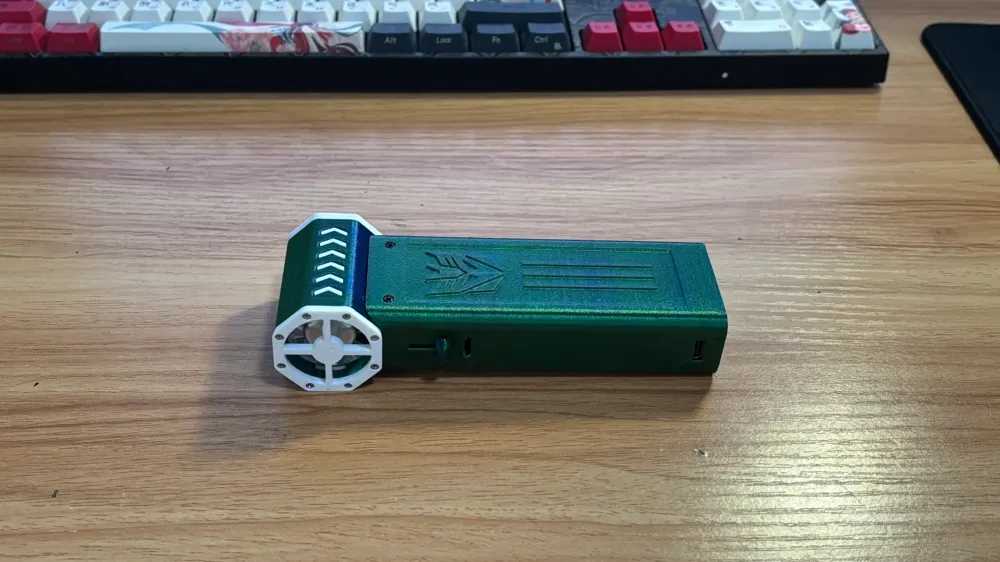

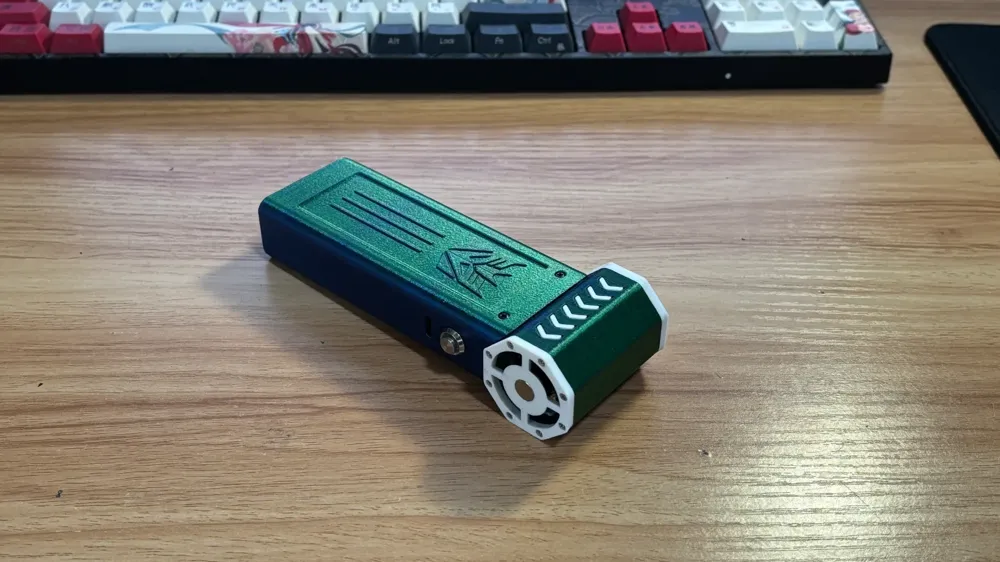

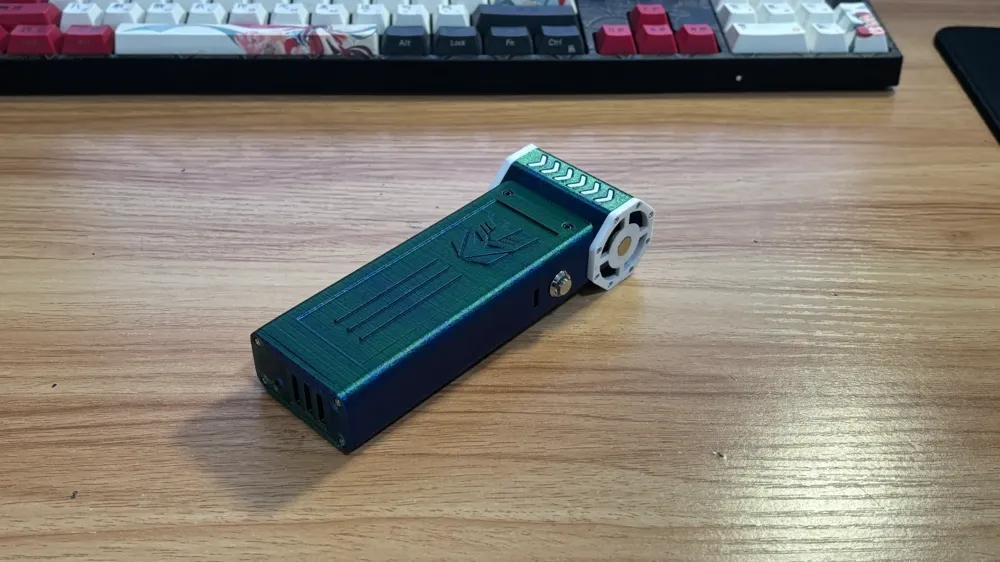

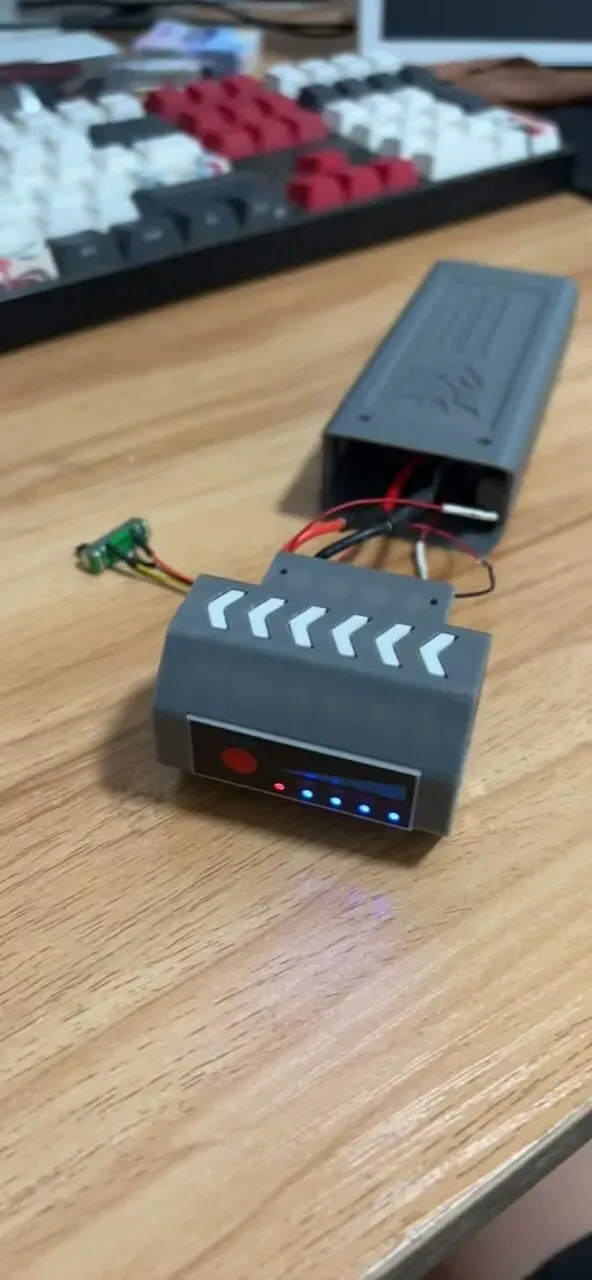

This is a high-performance DIY fan with a compact design, ideal for 3D printing enthusiasts seeking an engaging electromechanical integration project.

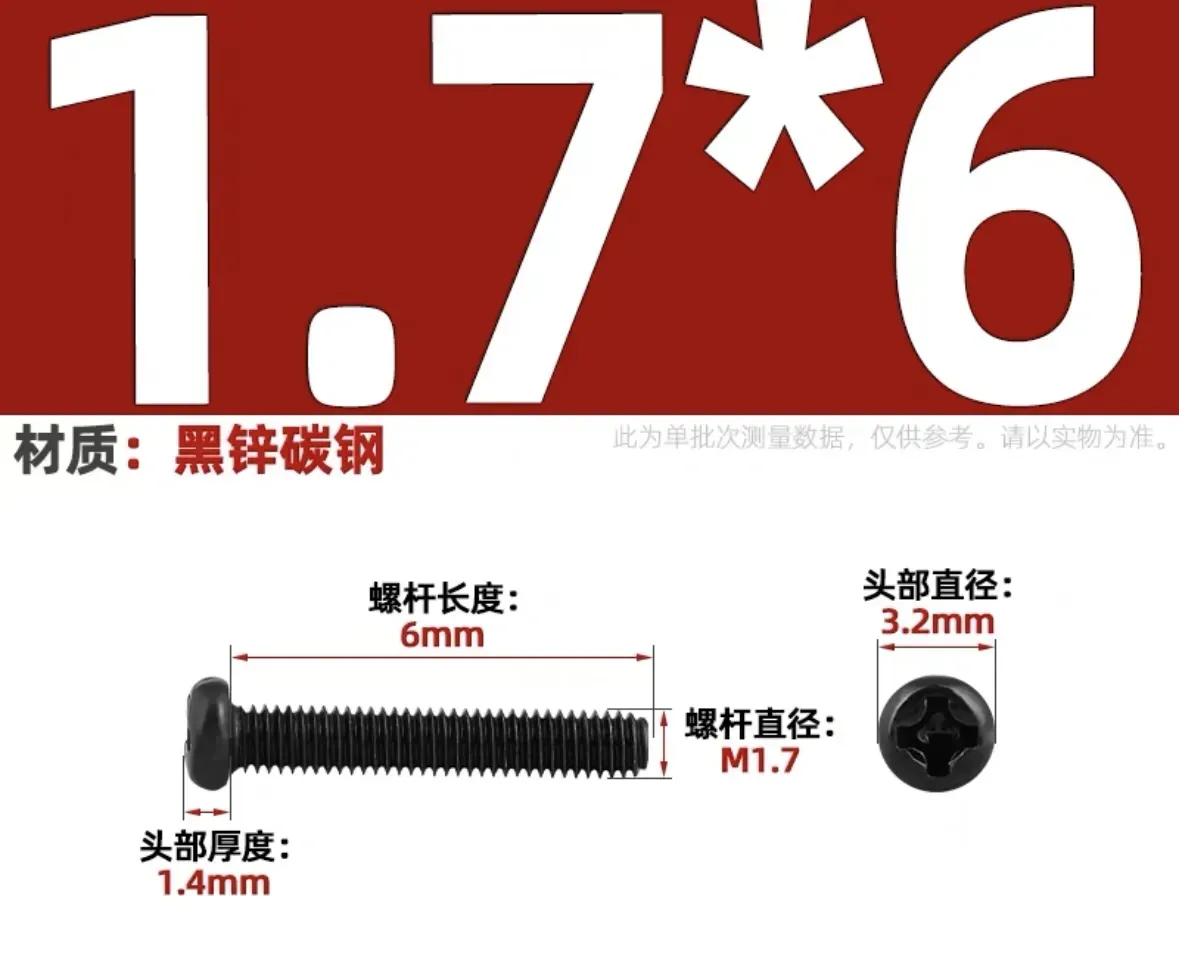

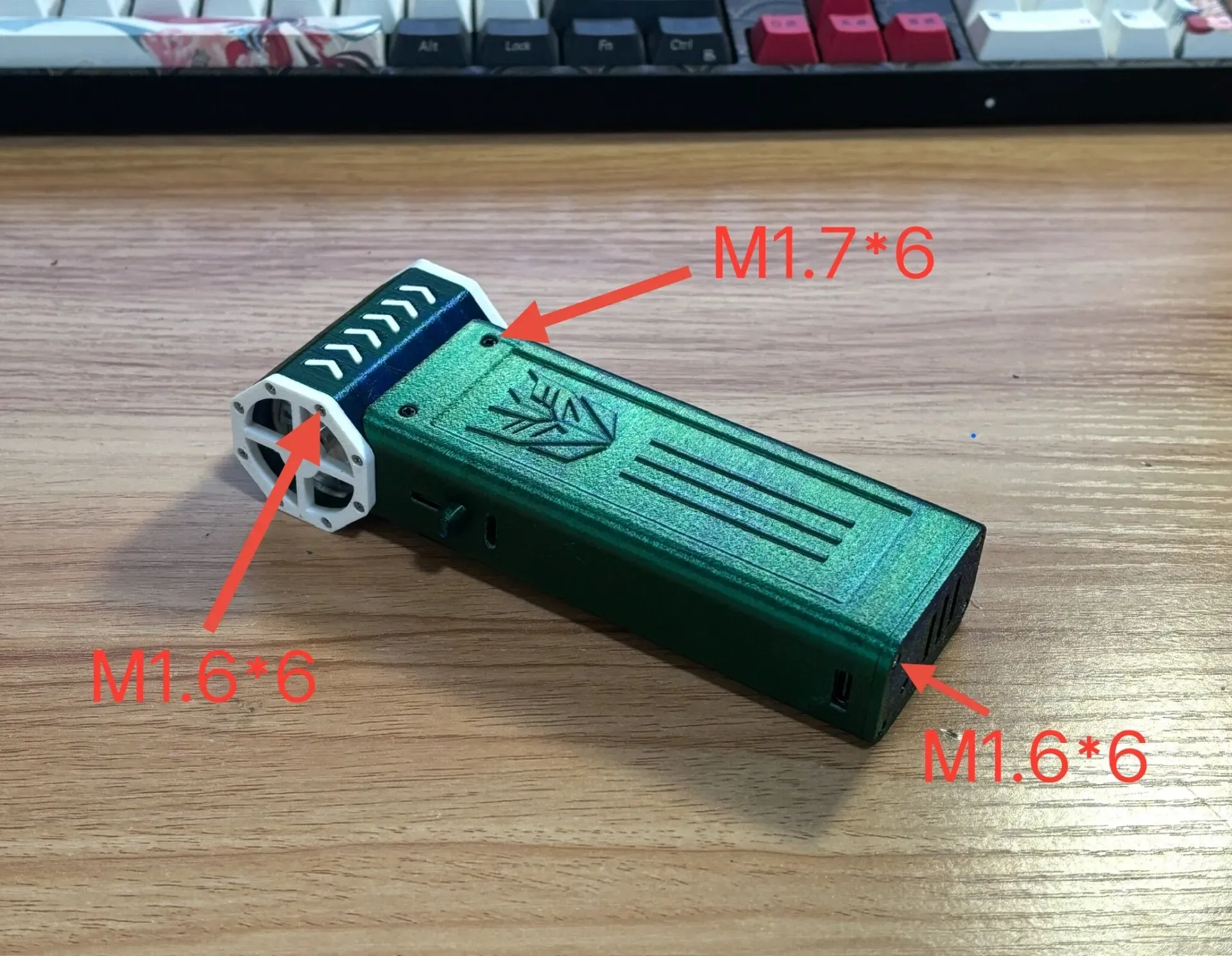

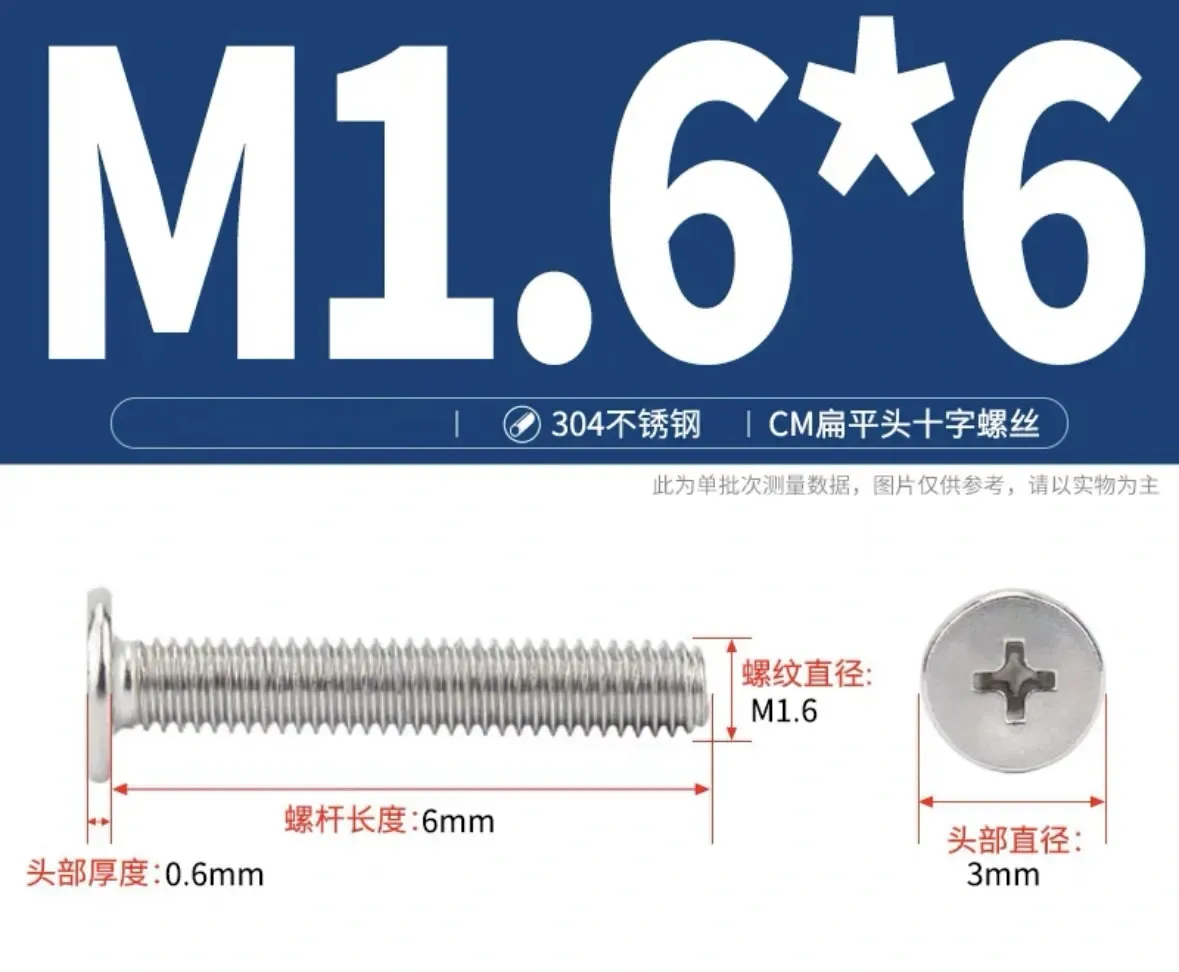

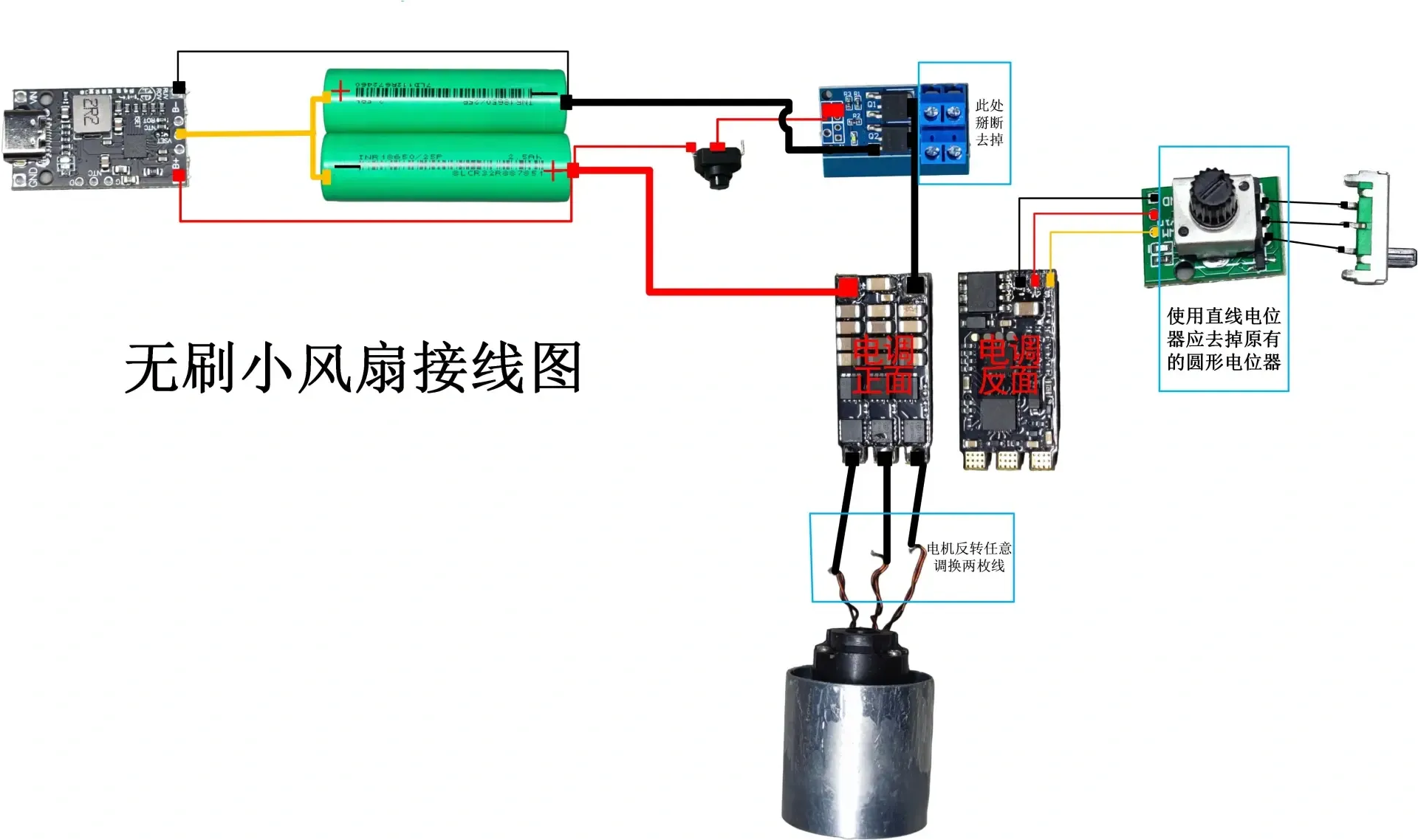

Core Components:

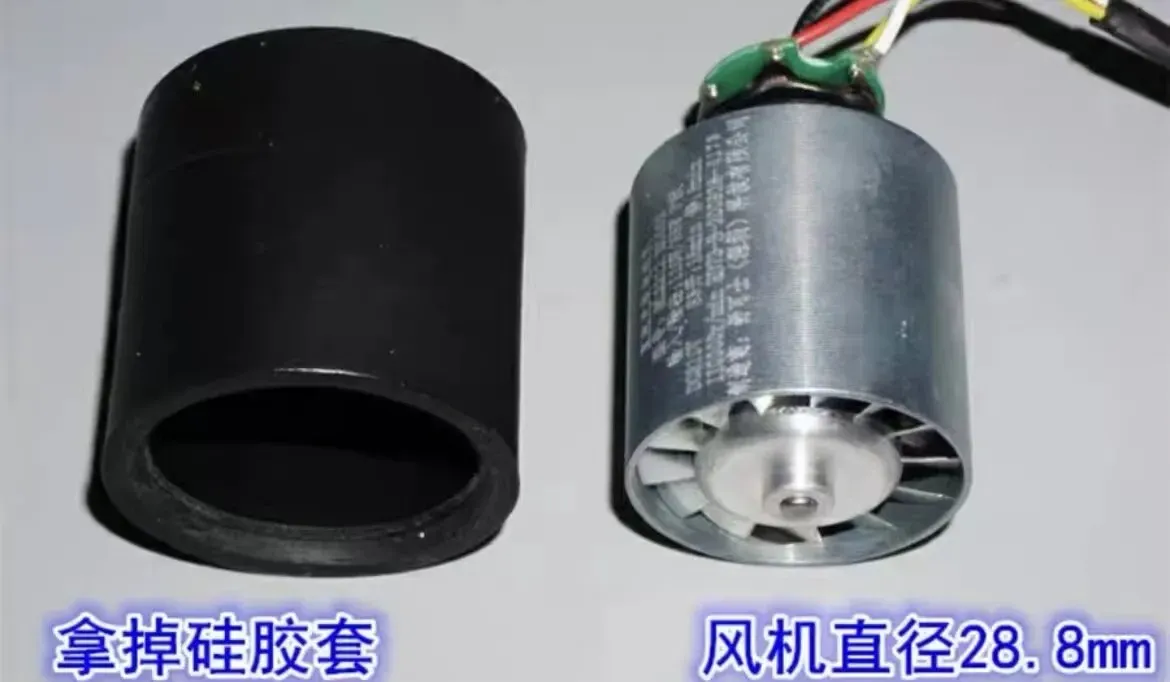

- Motor: 29mm diameter brushless motor
- Battery Bay: Supports 2 × 21700 lithium-ion batteries (compartment width approximately 43mm)
- Magnets: Circular 8×3mm magnets

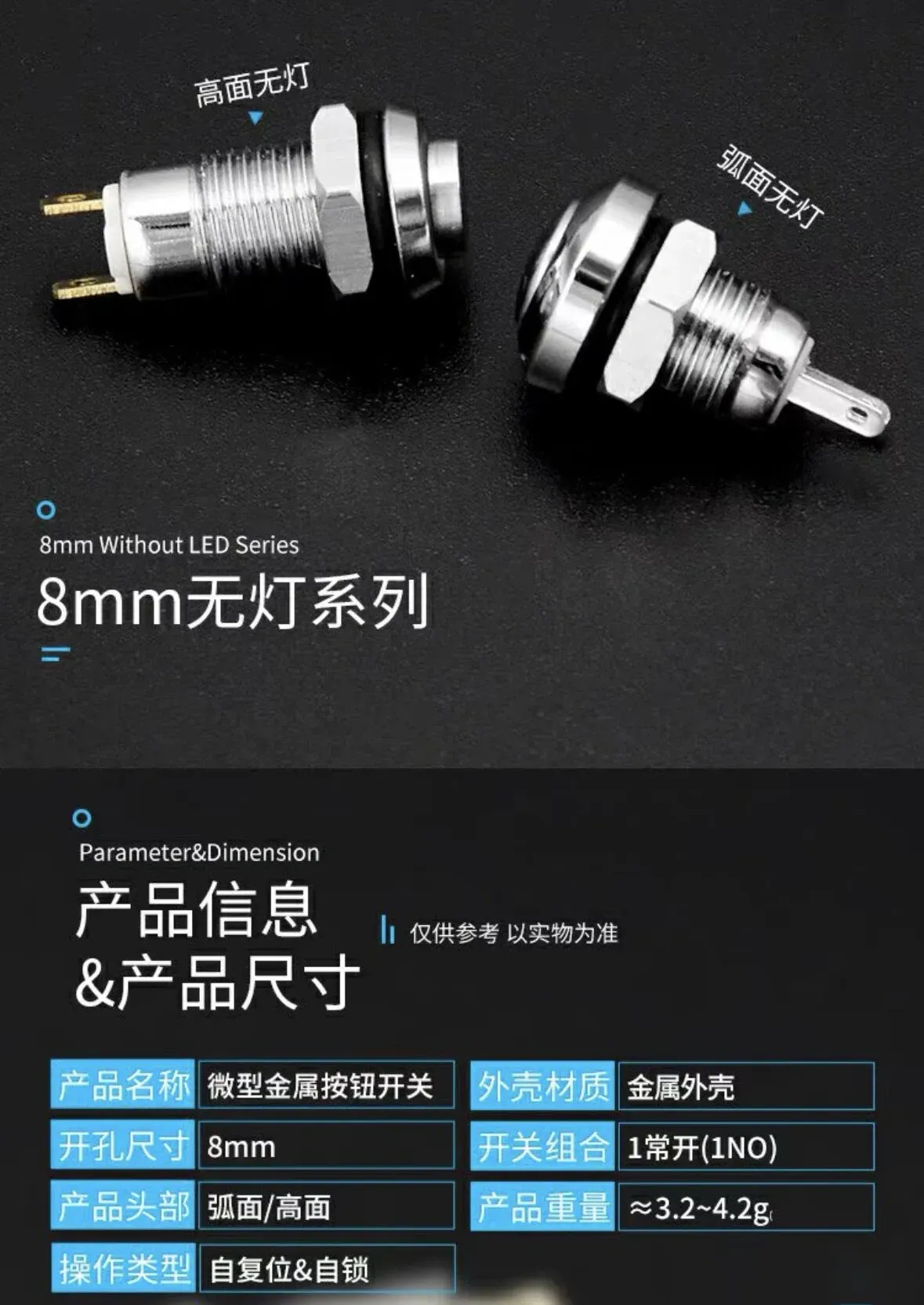

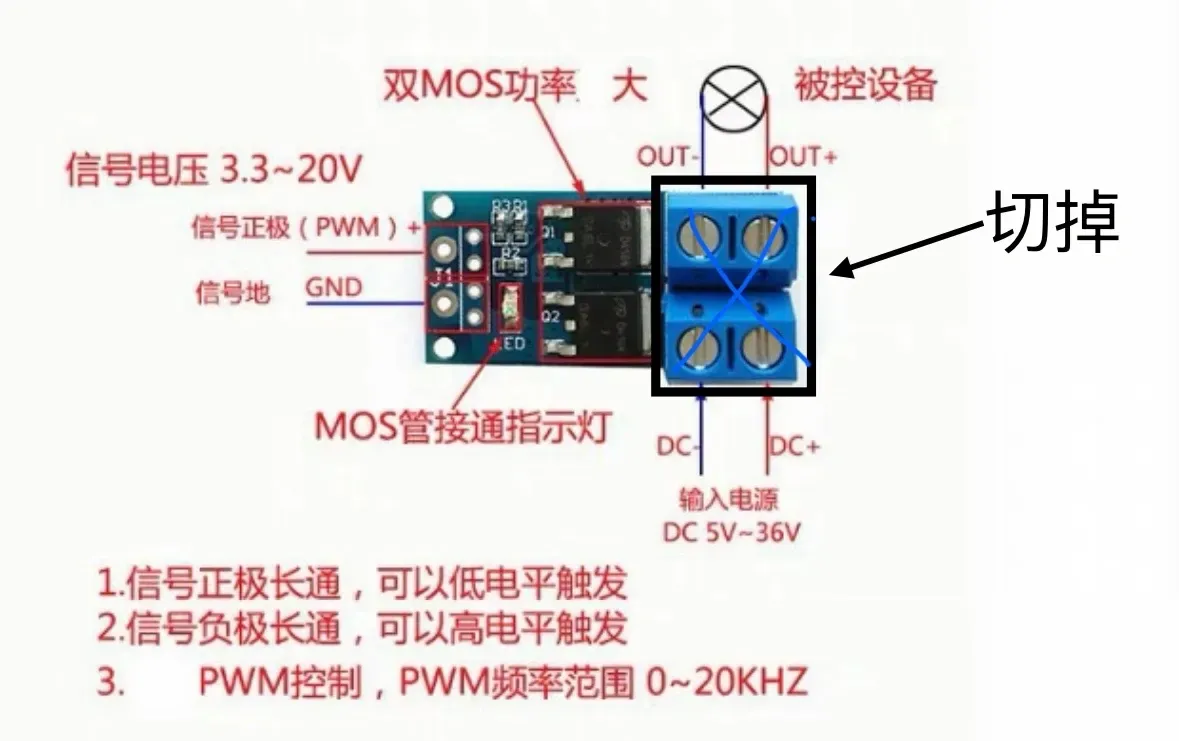

- Switch: 12V metal latching switch (see attached diagram for specifications)

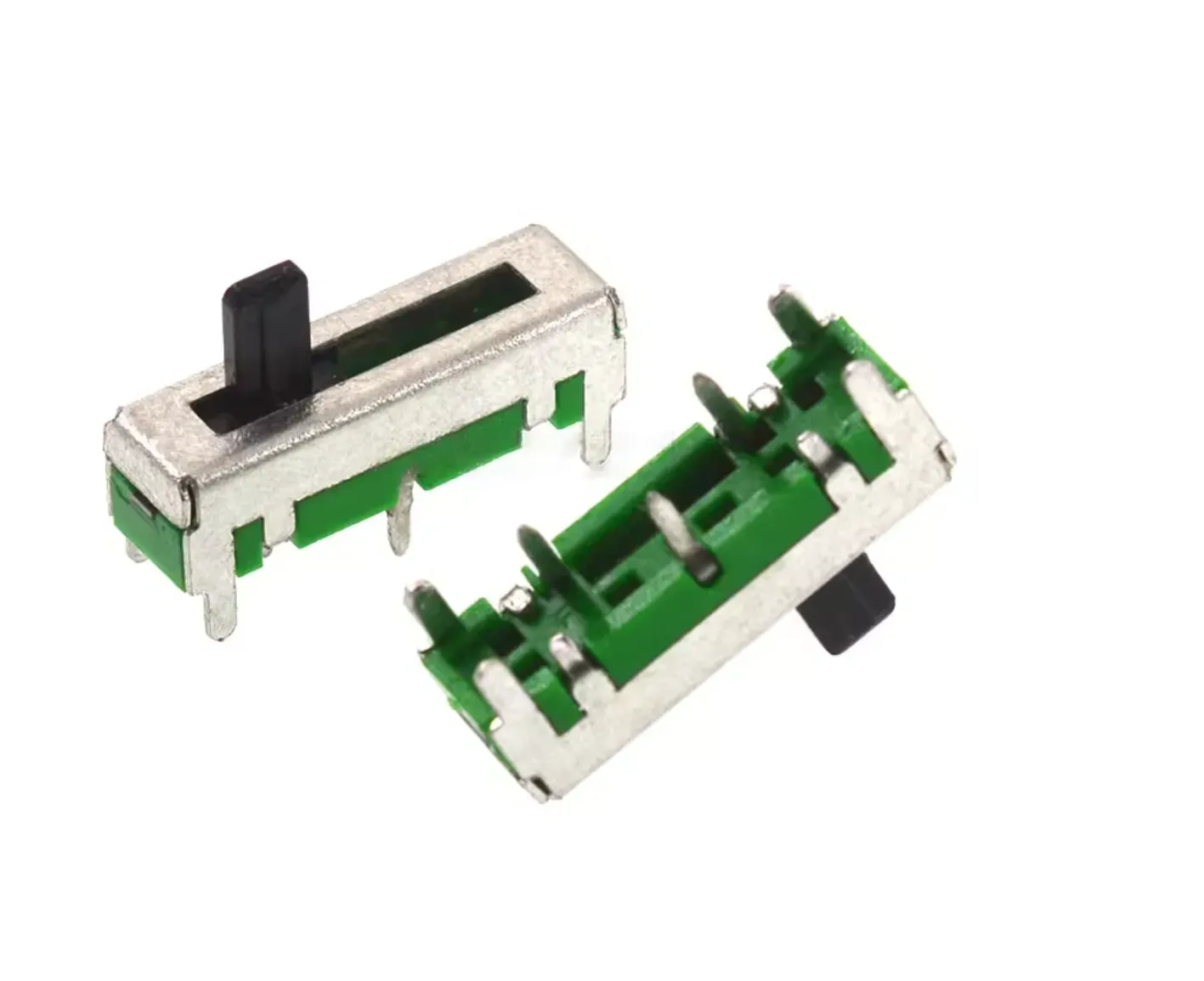

- Speed Controller: Linear potentiometer, 10K (B103)

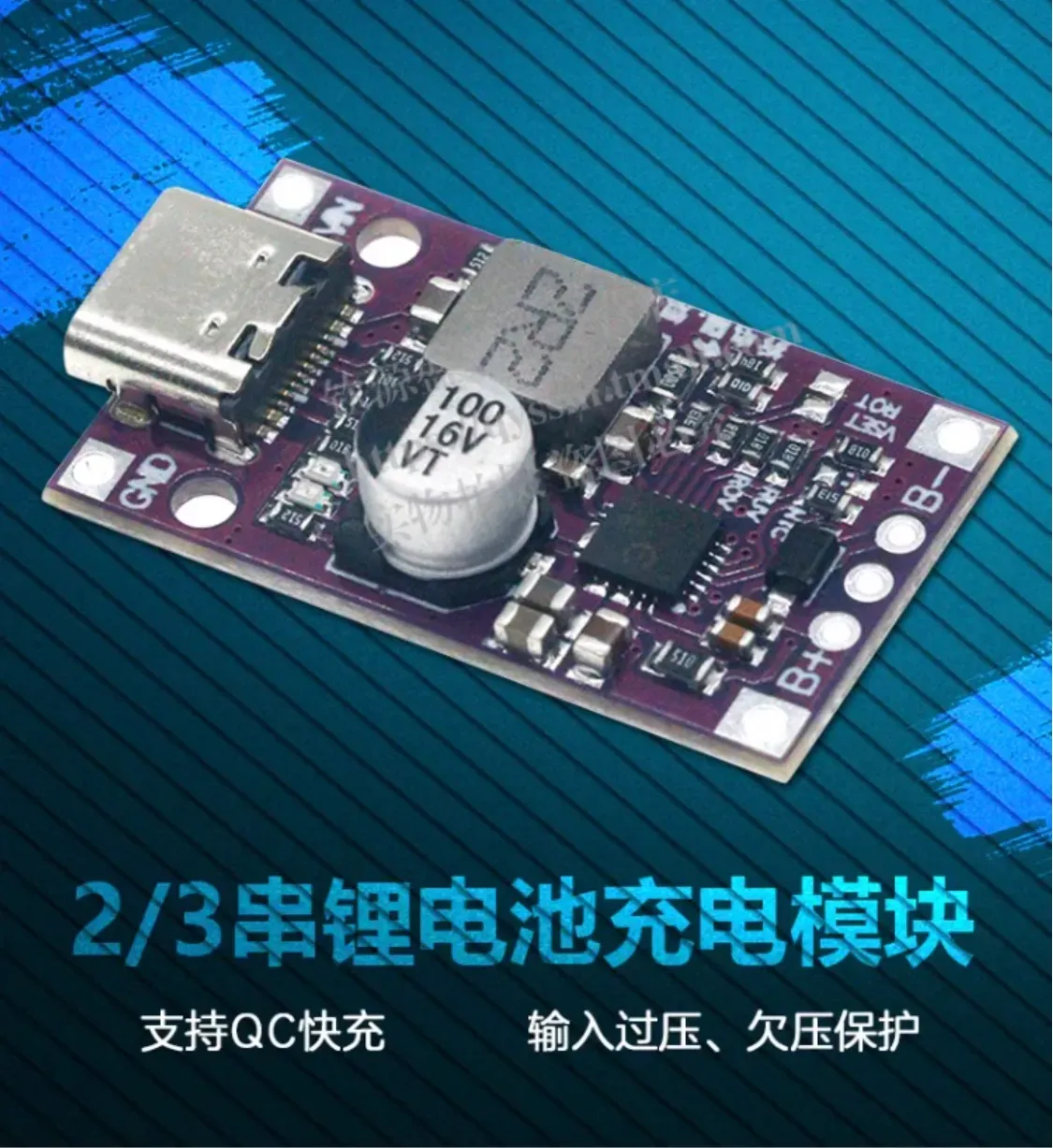

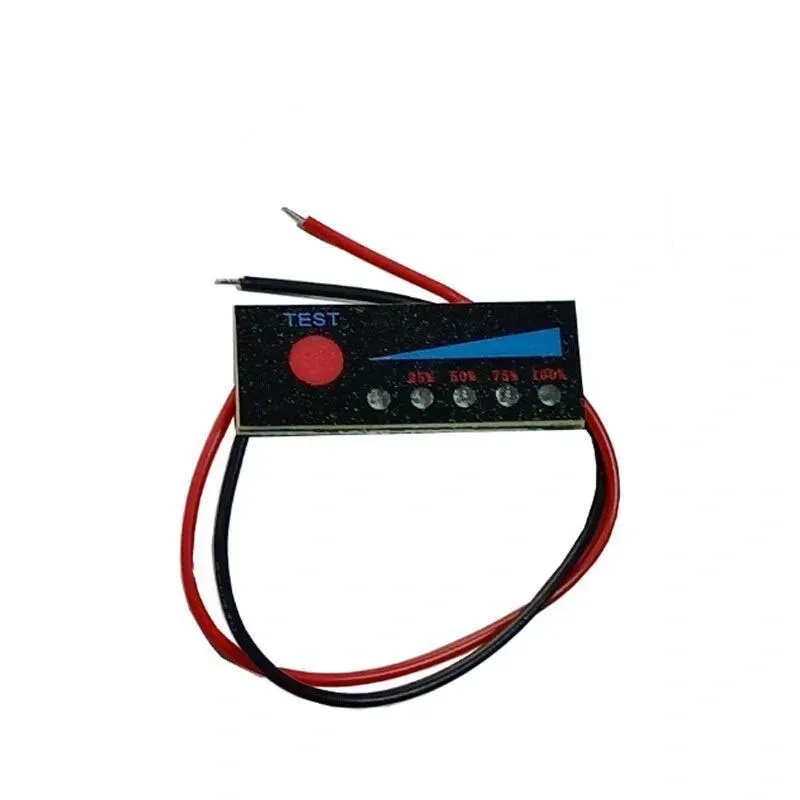

- Power Management: 2–3S lithium-ion battery charging module (see attached diagram for specifications)

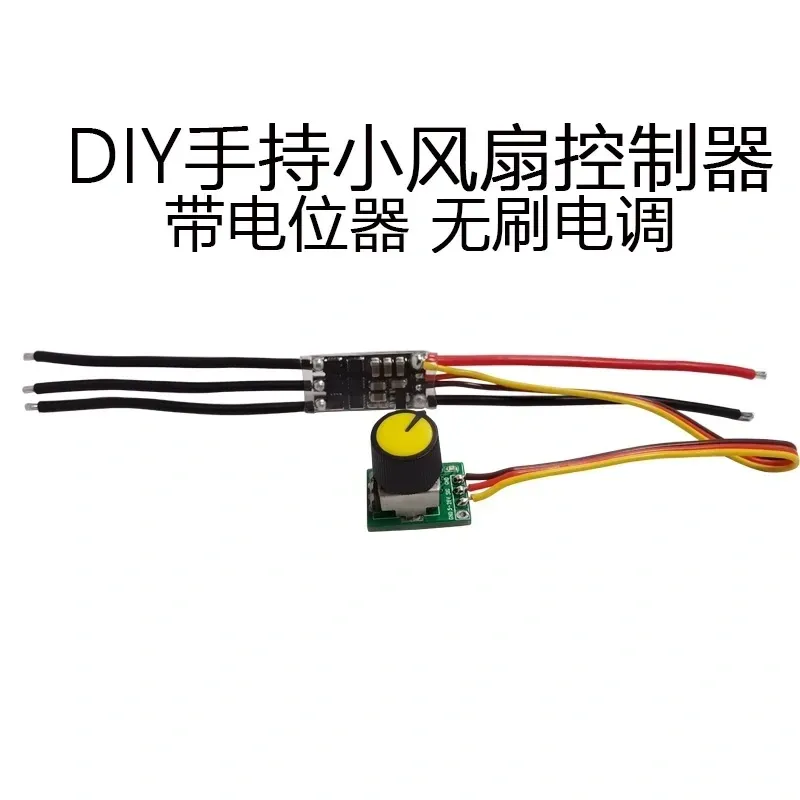

- ESC: 2–3S 30A brushless motor electronic speed controller
Printing Instructions:
- The included .3mf file is for reference only; adjust parameters based on your filament type (ABS, PETG, etc.)
- The sample in the video showcases a fuzzy surface finish (applied only to the external shell; the motor housing interior remains smooth)
- Print layer height is set to 0.1mm; detail mode is recommended for superior visual and structural integrity
⚠️ Caution: This project involves high-speed rotating components; exercise caution during operation and avoid direct contact with the spinning blades.
