Handrail Joint - Connect Rails with 42 mm Diameter

What it is:

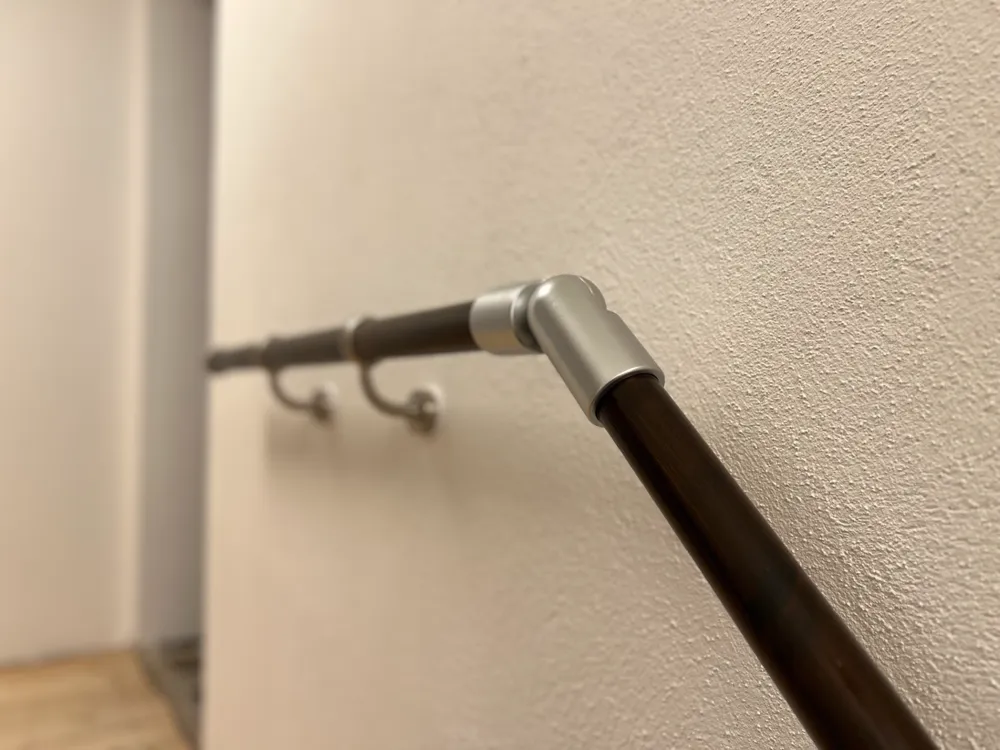

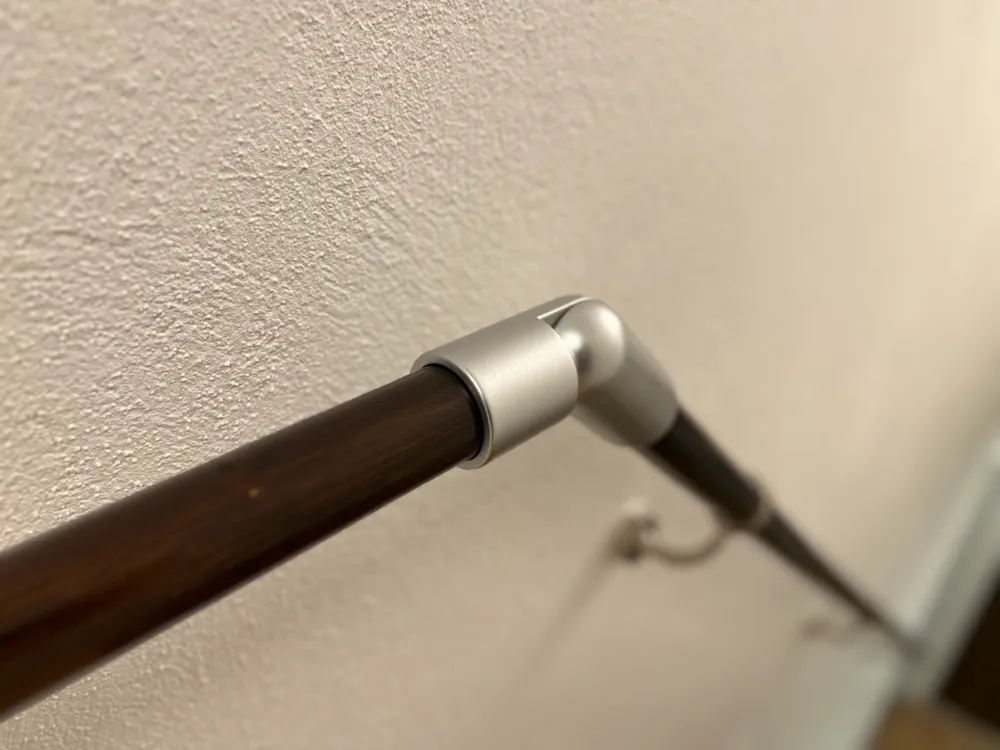

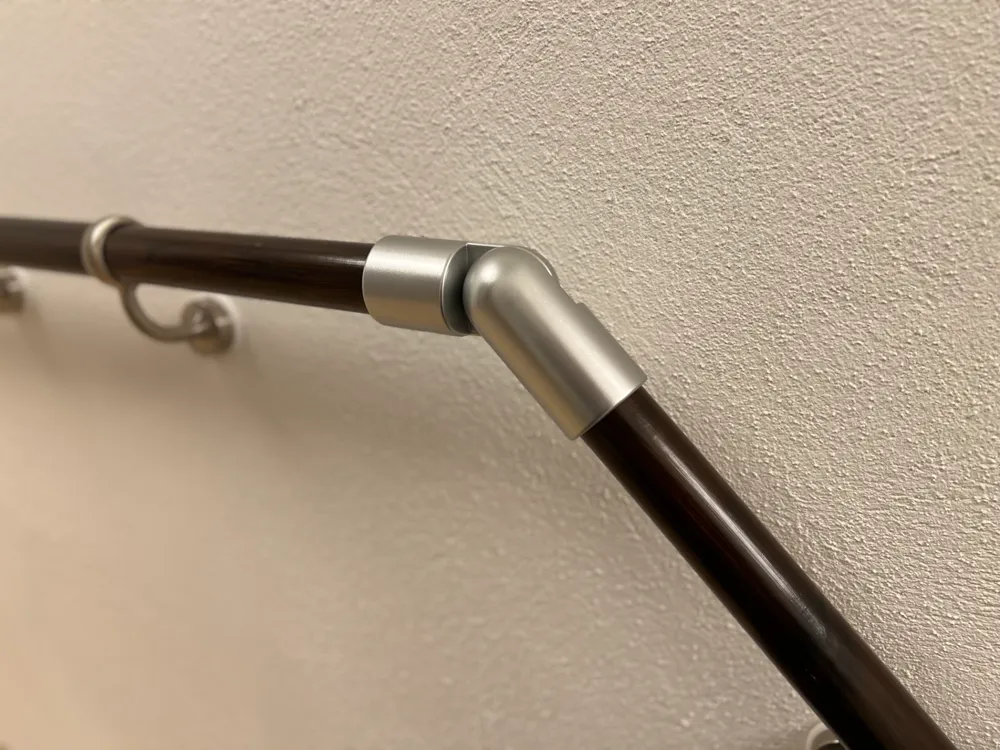

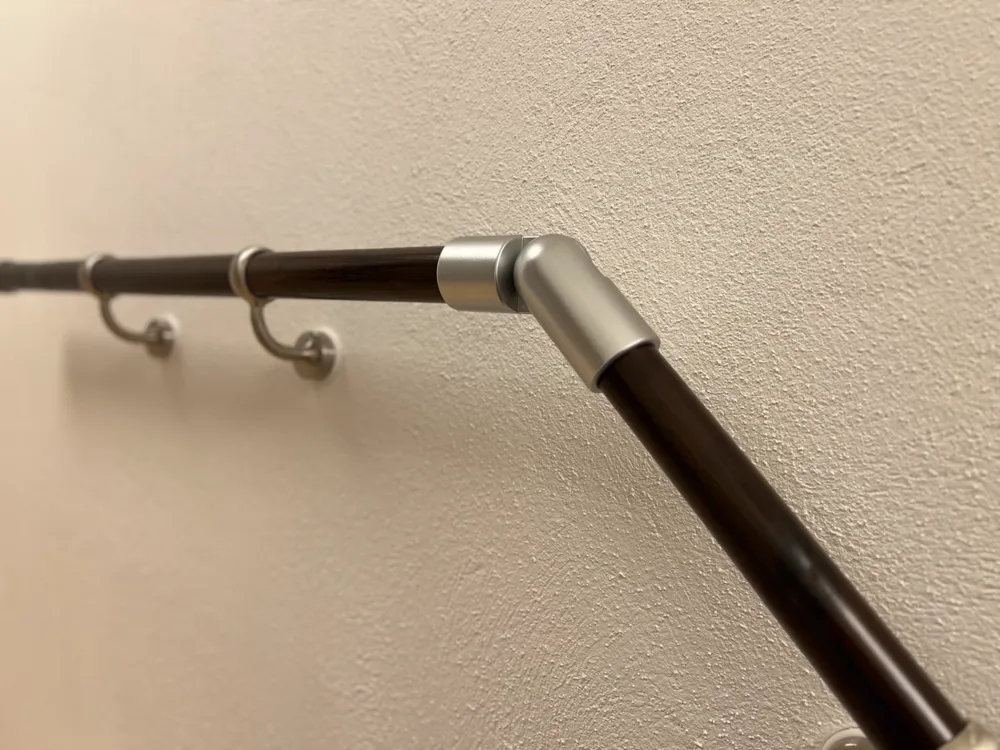

My house lacked a handrail. Unfortunately, I couldn't find a suitable joint at any hardware store. The ones available online were extremely expensive. So I designed one myself. It fits all handrails with a diameter of up to 42.2 mm. It doesn't matter if, like me, it's made of wood, aluminum or stainless steel. You can simply scale the model slightly to get your diameter. The angle is freely adjustable through the central axis.

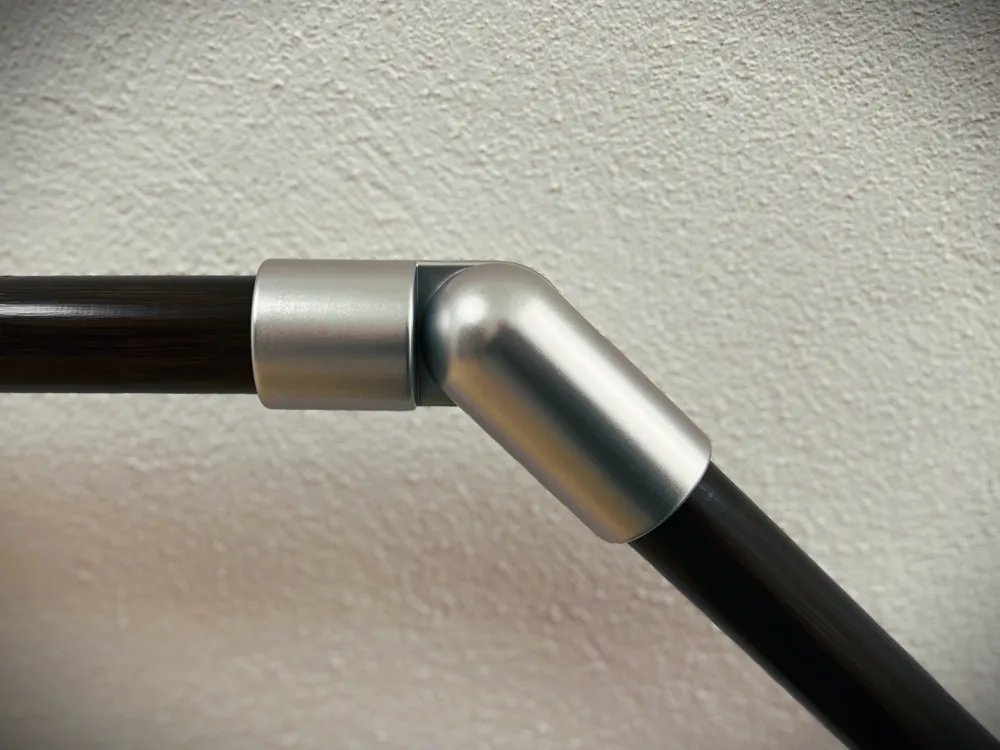

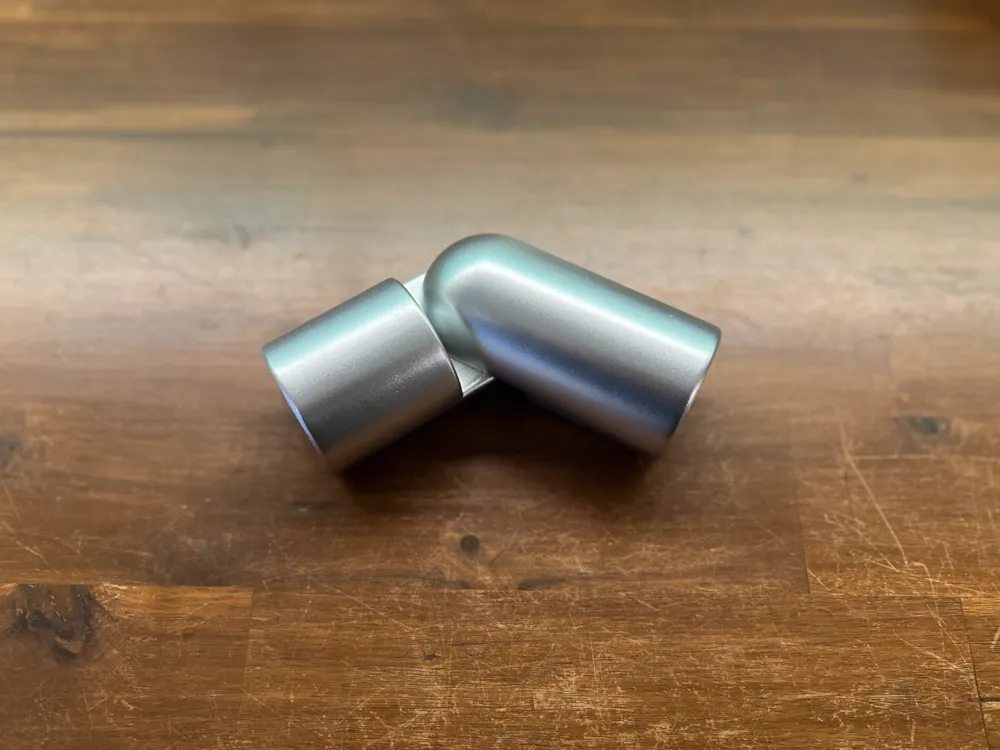

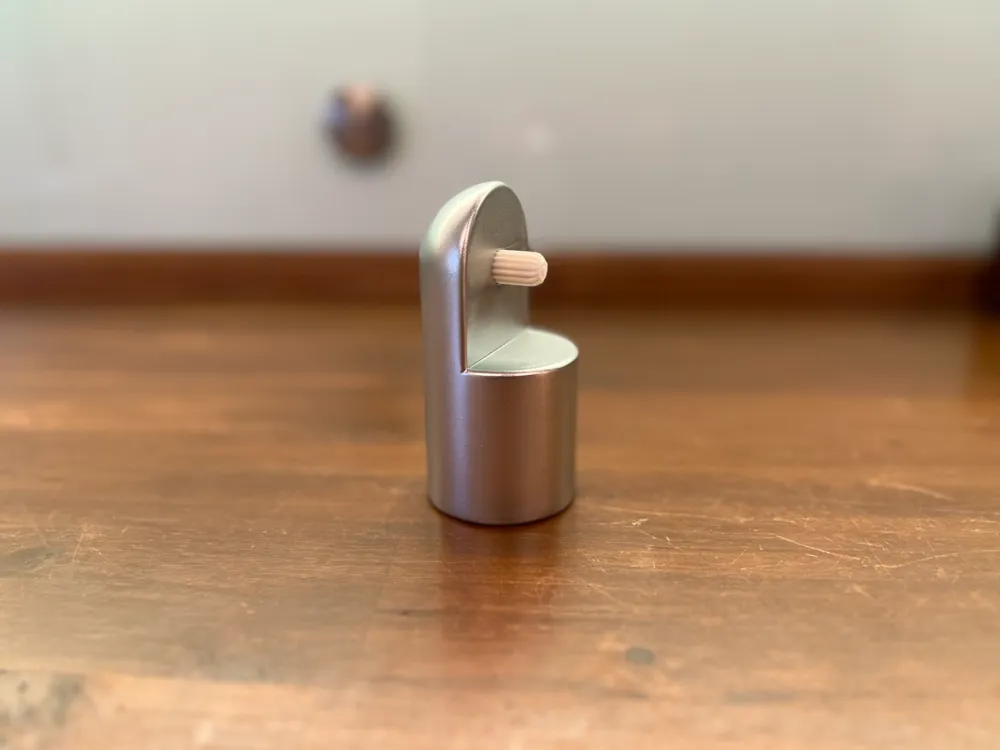

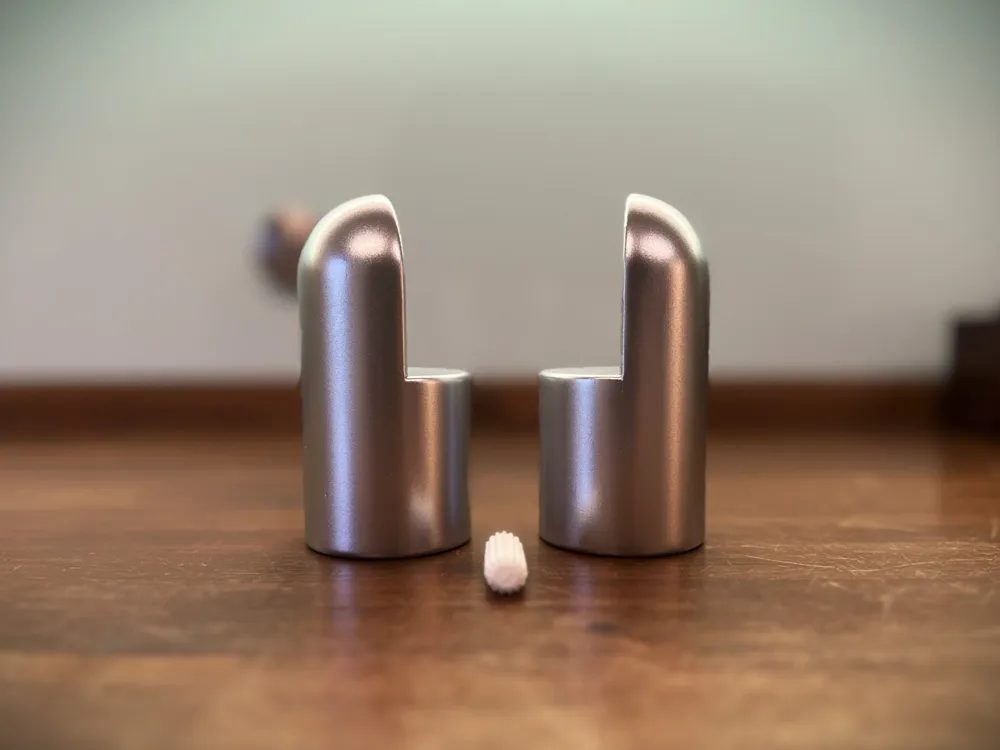

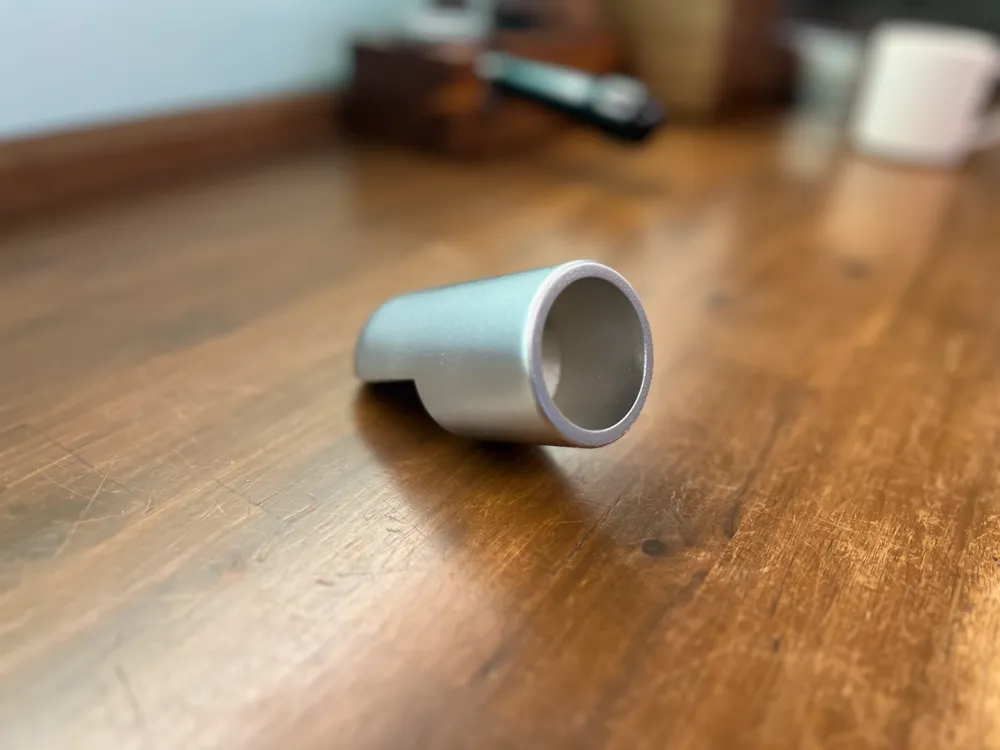

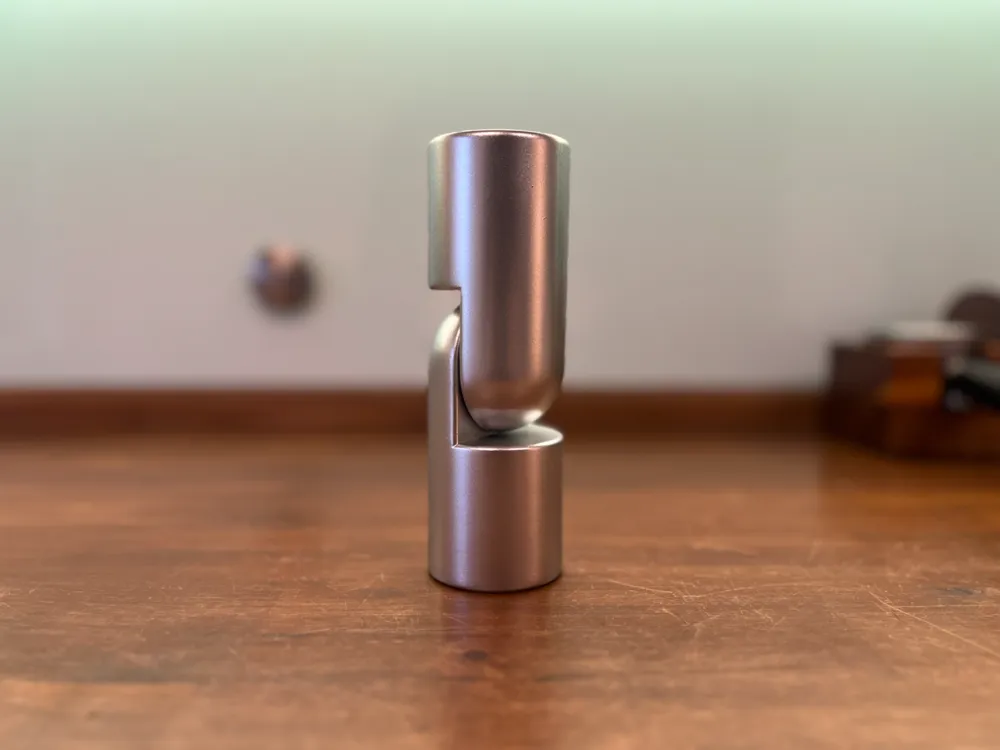

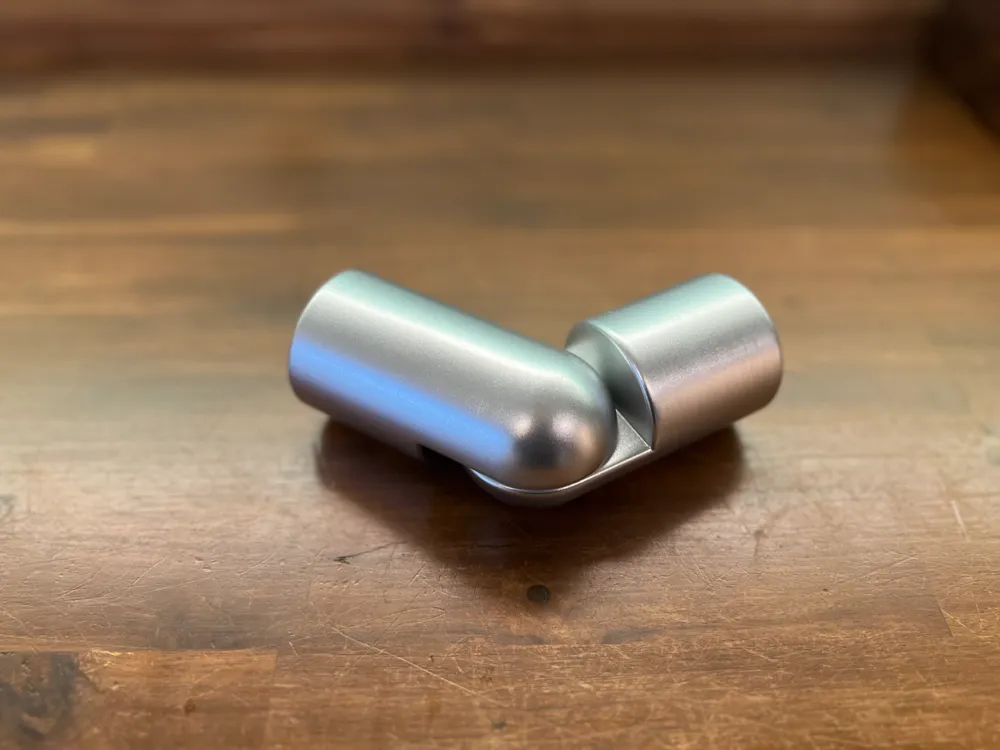

The model in the photo was painted after printing. The 3mf file was provided with variable layer height, so all overhangs and curves can be printed perfectly and without support. The bolt is separate to avoid any printing problems.

Important data:

• Universal joint for (almost) all handrails
• Perfect for diameters around 42 mm
• Angle is infinitely adjustable
• fast and easy printing without support

Here you will also find two ready-made profiles, one for all "large" printers from Bambu Lab and one specifically for the A1 mini.

Available print profiles:

• Bambu Lab X1 Series, P1 Series and A1 with 0.4 mm nozzle
• Bambu Lab A1 Mini with 0.4 mm nozzle

The filaments and paints used in the photos can be found here:

• Filament: ELEGOO PLA Matte White (Amazon Affiliate-Link)
• Primer / Filler: DUPLI-COLOR Filler Beige (Amazon Affiliate-Link)
• Silver Paint: DUPLI-COLOR AUTO COLOR Silver Metallic (Amazon Affiliate-Link)
