Description

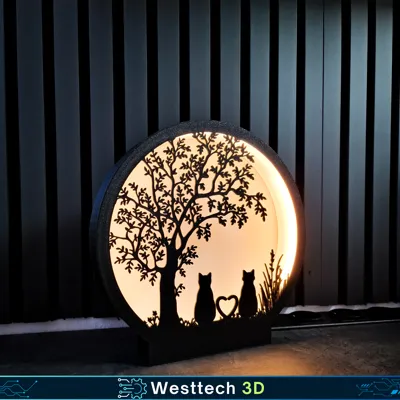

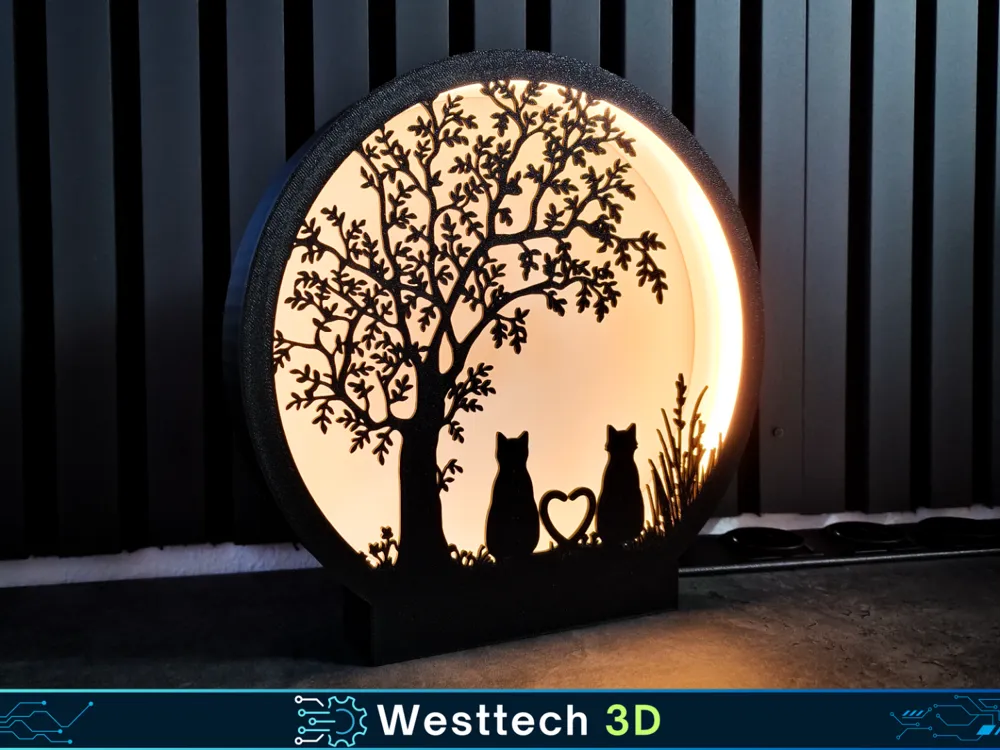

Cat Lamp – Stylish & Easy to Self-Print
Here you'll find a stylish lamp that you can easily print yourself – perfect for an atmospheric ambiance at home.
Two versions are available to you:
🧷 Version 1: Glued
🔩 Version 2: Screwed
______________________________________
🛠️ Recommended Print Settings:
🔲 Main Part
- Optimal Layer Height: 0.16mm for fine details
- Time-Saving Alternative: up to max 0.20mm
🪵 Back Panel with Diffuser
- Recommended: 0.20mm
- Maximum: 0.24mm
- This ensures a particularly soft, pleasant light – ideal for a cozy atmosphere.
💡 Note on the Back Panel:
- The back panel is intentionally a bit looser, as I glue it before shipping
If you want a tighter fit, you can enlarge the back panel in the slicer by 0.5% to 1% – simply experiment to see what works best for you!
🔧 Details for the Glued Version
- LED Holder: This should be secured with some plastic adhesive.

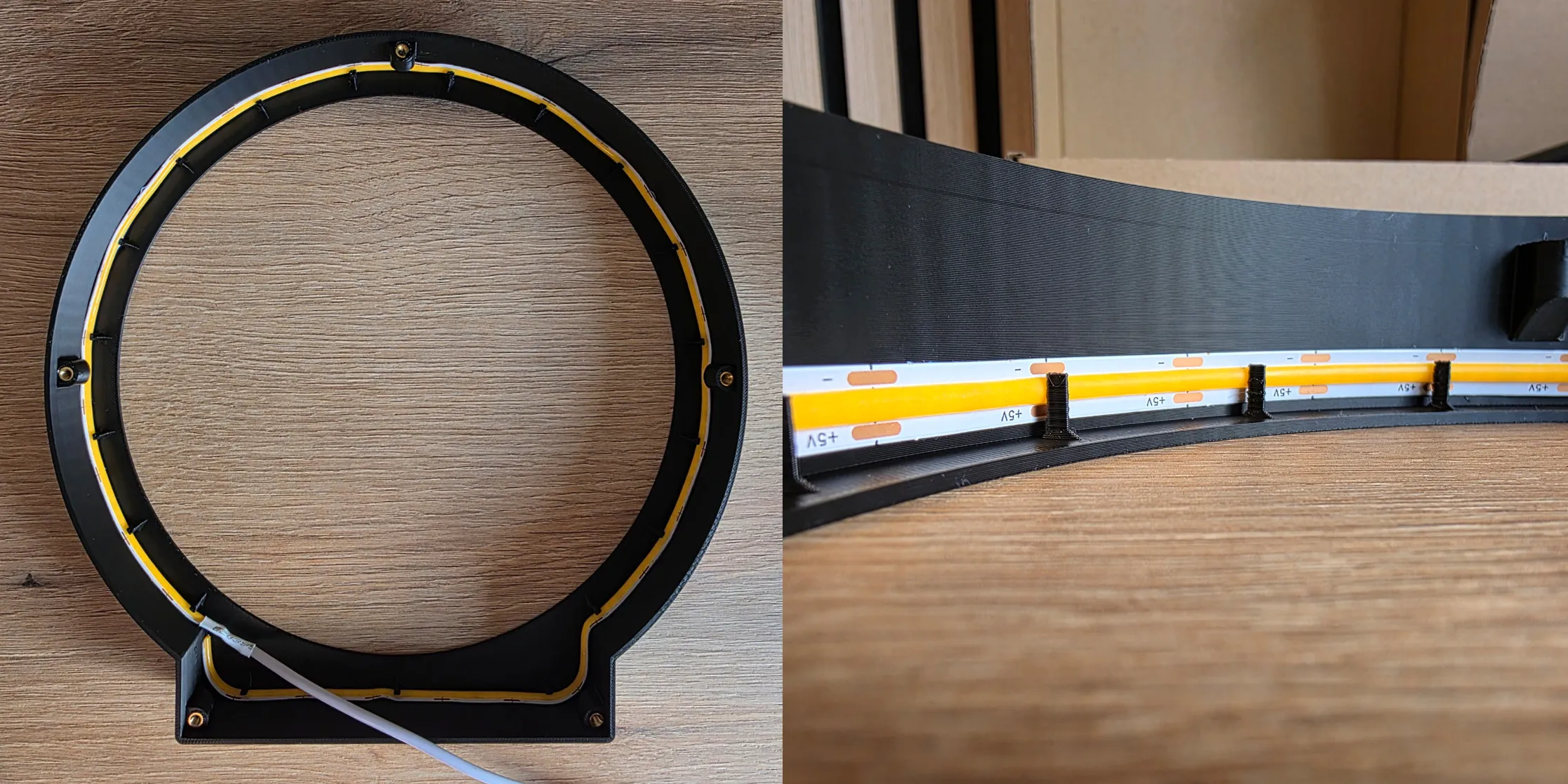

- LED Strip: Simply insert – they usually hold well due to the adhesive surface on the back

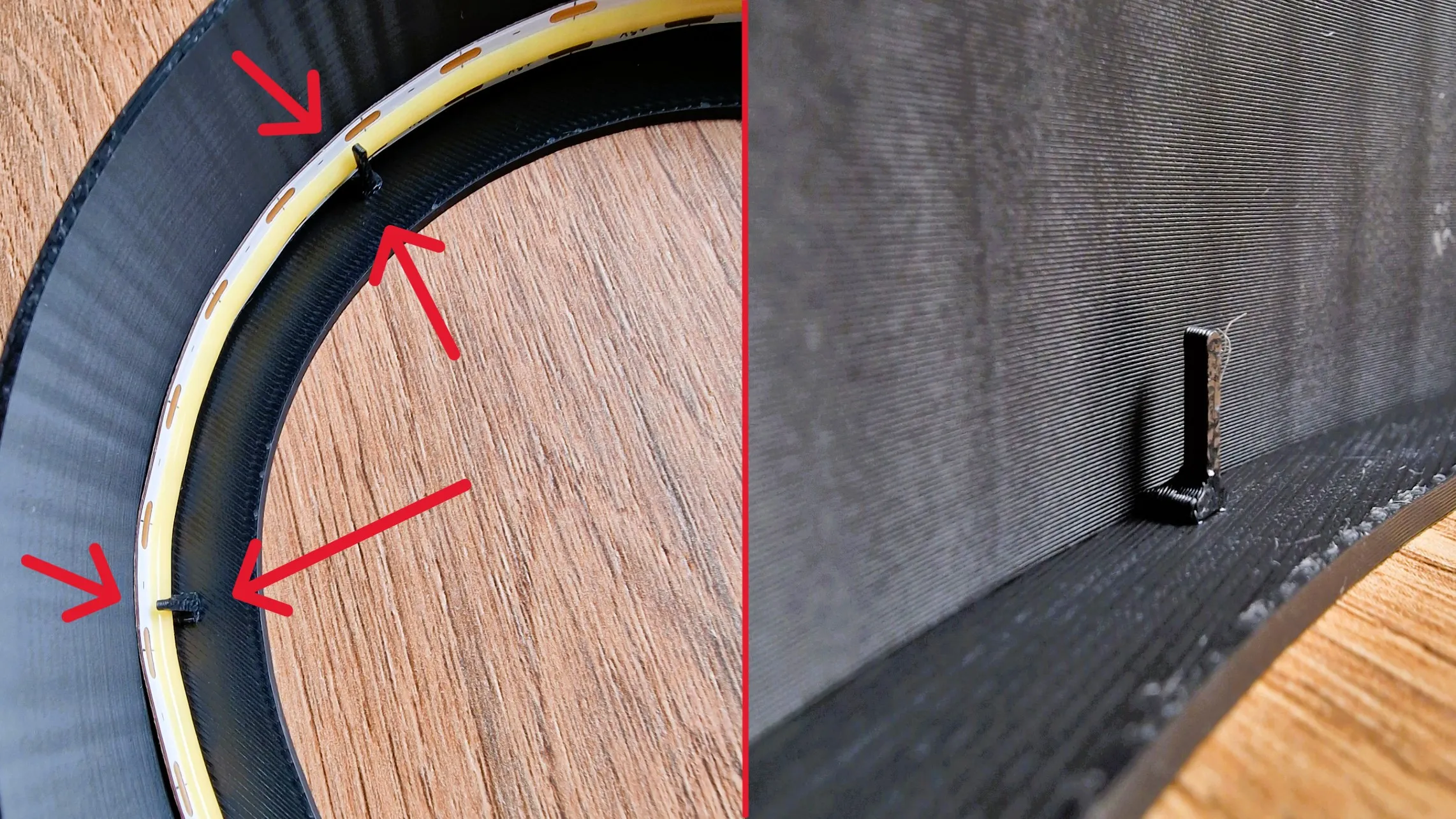

The printed support prevents the strips from detaching when heated (e.g., by COB LEDs). Recommended LED Strip Length: at least 74 cm
🔩 Details for the Screwed Version 🔩🪛

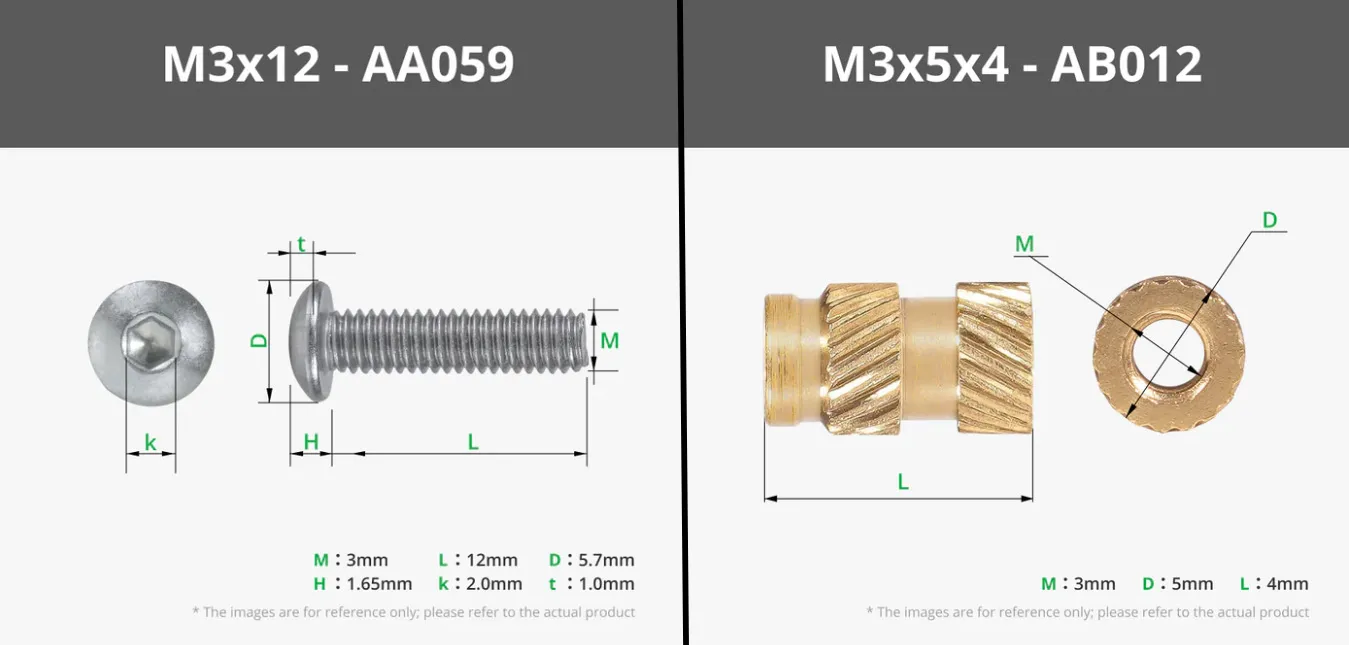

- Required Accessories:

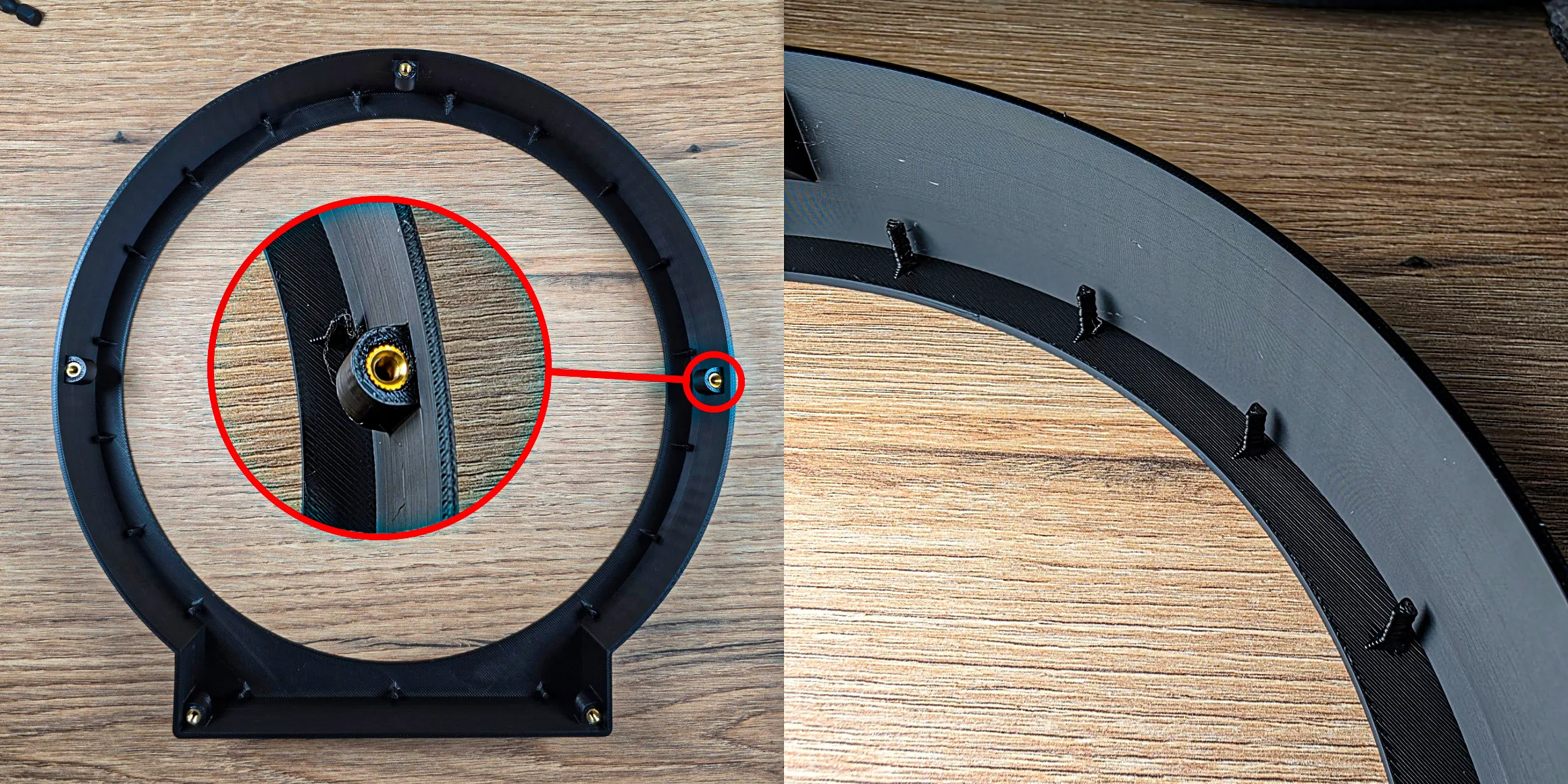

- 5x M3x6 Heat Set Inserts
- 5x M3x12 Screws

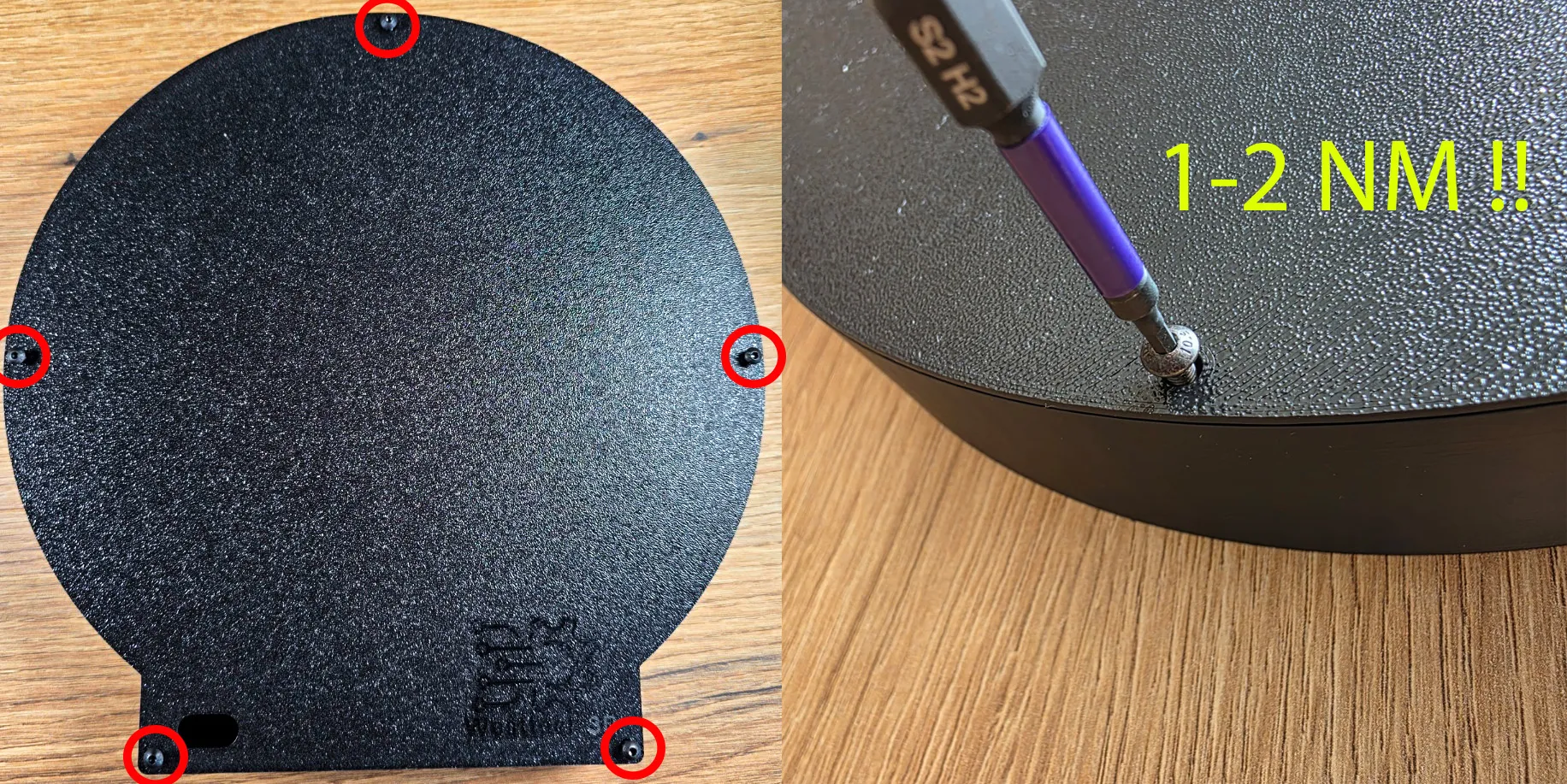

- 🔧 Tip: Please do not overtighten the screws to avoid damage.
I wish you much joy with printing and crafting! If you have questions or want to share your result, I look forward to your feedback!
Happy Printing!
