DeWalt DCB115 Wall-Mount - Shelf
Print Profile(1)
Description

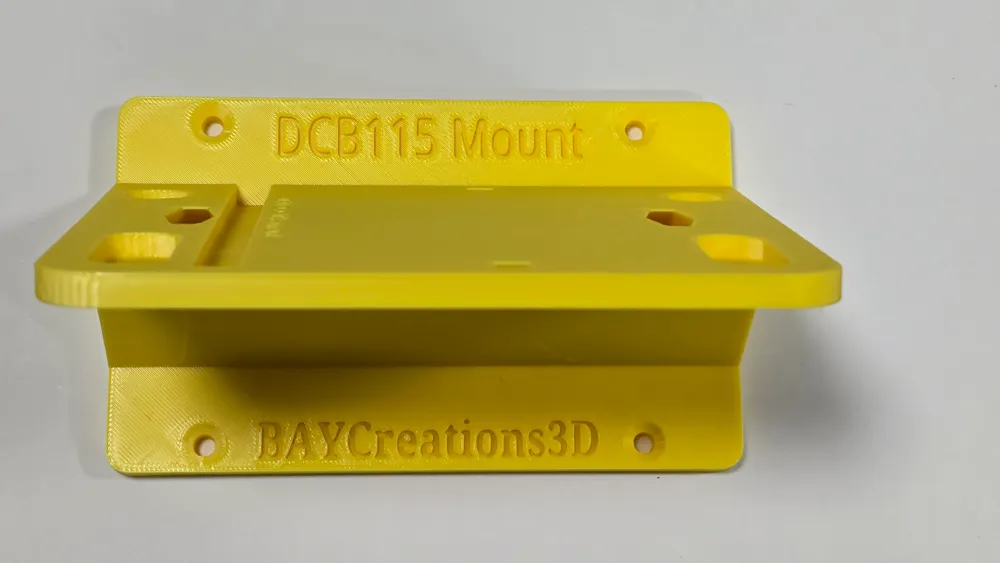

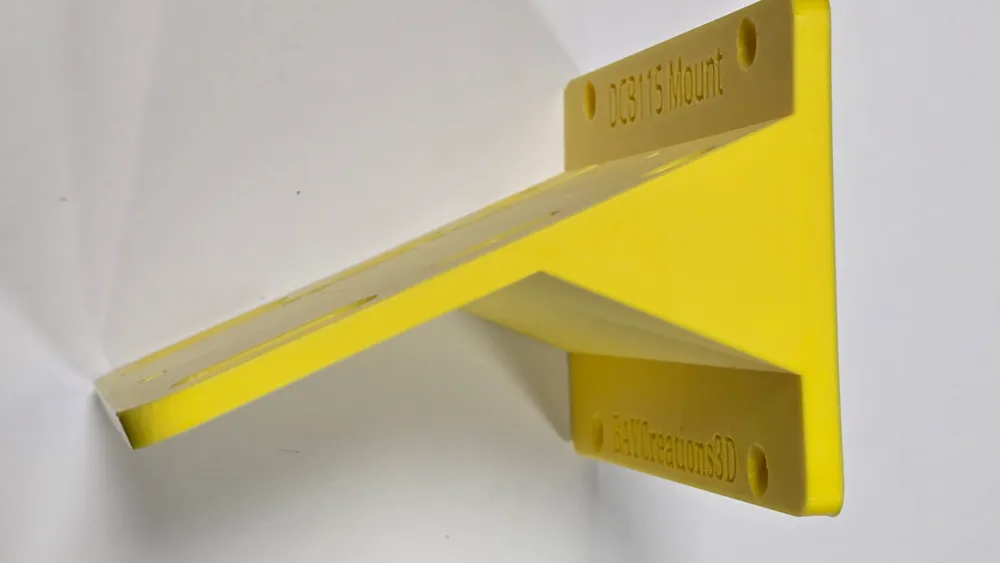

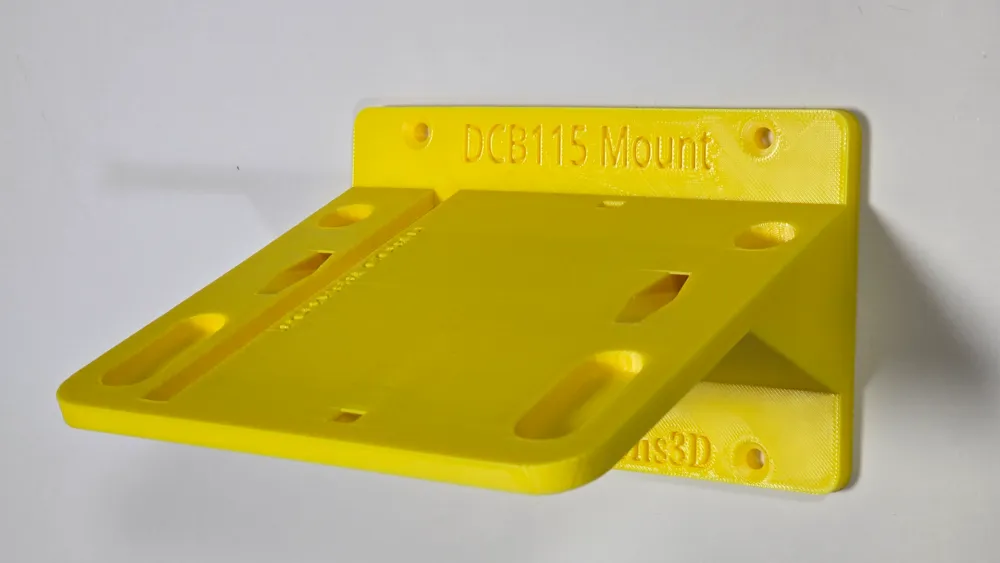

DeWalt DCB115 Charger Wall Mount Shelf

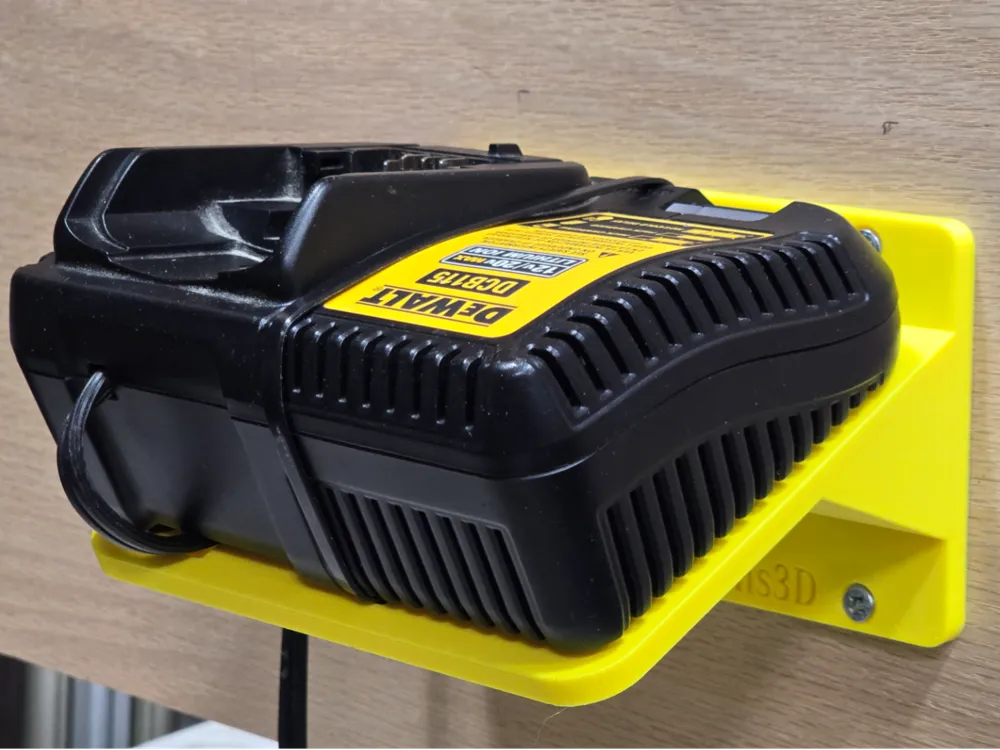

Creates a Shelf to hold your DeWalt DCB115 Charger with the battery approximately level and positioned to slide the battery in and out from the front.

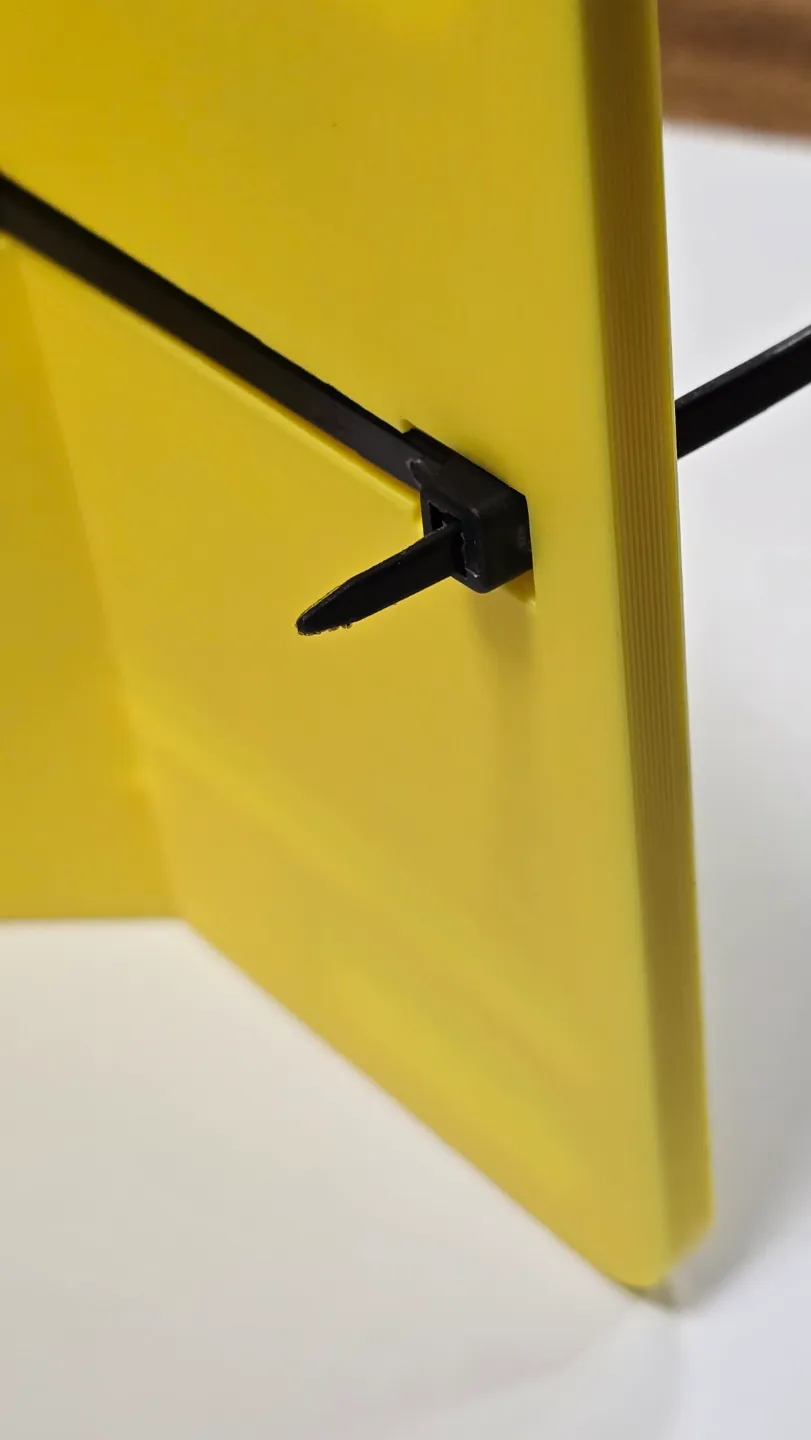

The model includes 4 mounting screw holes (#8 flat-head wood screws), two hexagonal nut holes sized to allow a #8 bolt to enter from the back and engage a nut, and channel an 16" or longer zip-tie to hold the charger in place and hide the head of the zip-tie for a clean appearance. It is optional to use the zip-tie but if you decide not to use the zip-tie, you will probably need to use 2 hands to remove the battery from the charger. Using the zip-tie allows single-handed insertion and removal of the battery from the charger.

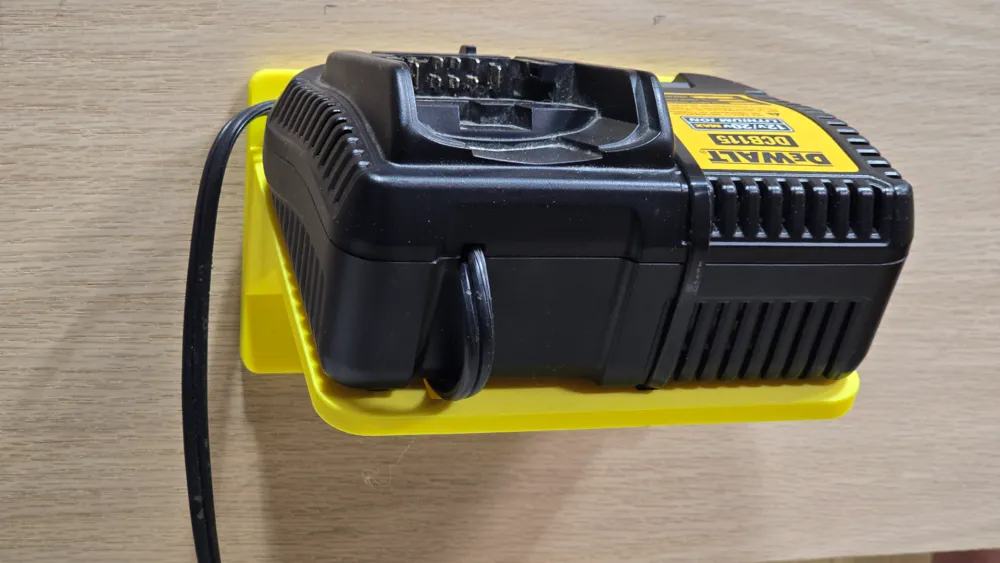

It also includes a channel to route the cord from the front, under the charger, to the back of the mount so that the cord can be routed along the wall instead of hanging in space.
I created this mount because I couldn't find a mount that held the charger like a shelf and allowed the battery to be slid into the mount from the front, not the back. I tried mounting the charger flat against the wall and didn't like it as well as simply sliding the batter in and out from the front.
Note that this mount is designed specifically for the DCB115 charger and will not fit most other DeWalt chargers. Look for my other models for other DeWalt charger models.
