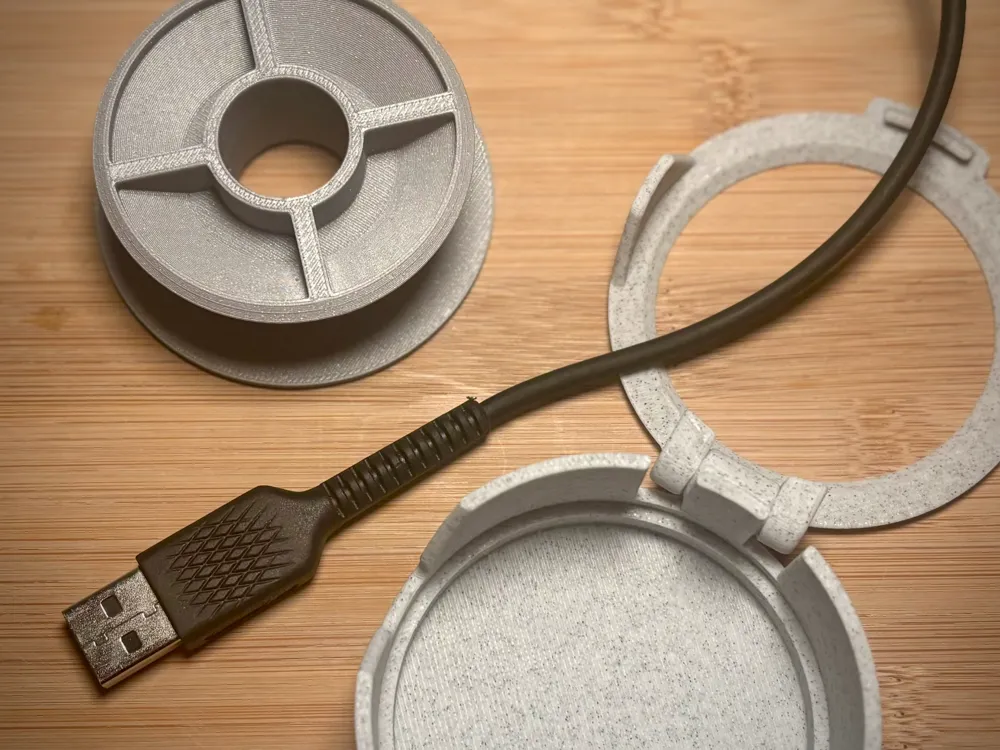

Have you ever needed to wind only one-side of a cable and the other side had to remain fixed? The solution is here! A cable organizer that consists of only two parts and no supports! 😍

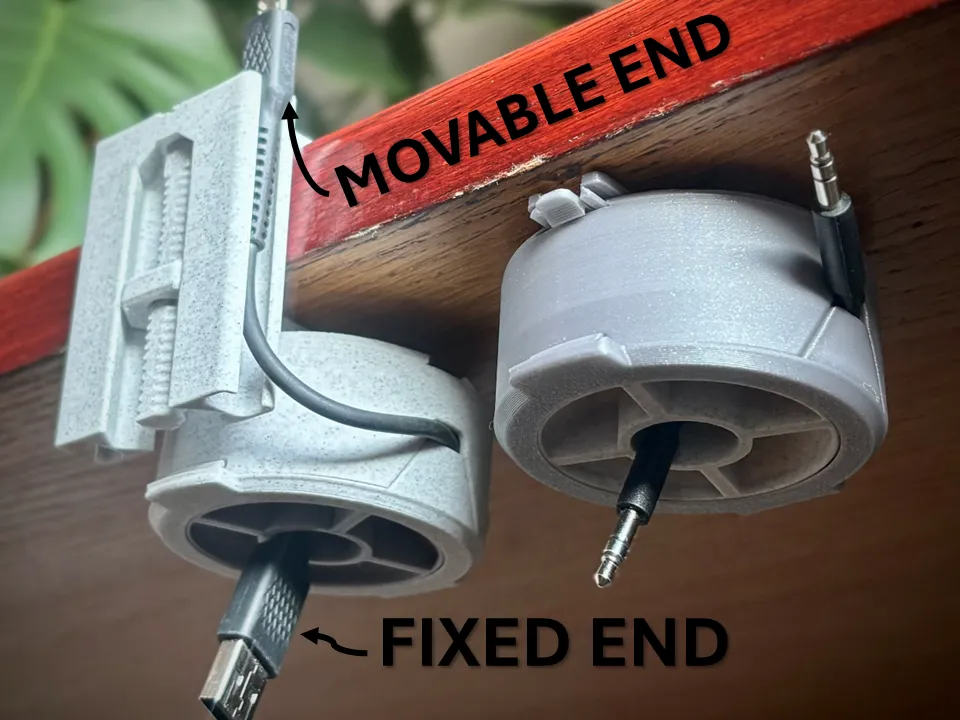

New Version Under desk Cable Organizer - One-Sided Winding V2.0

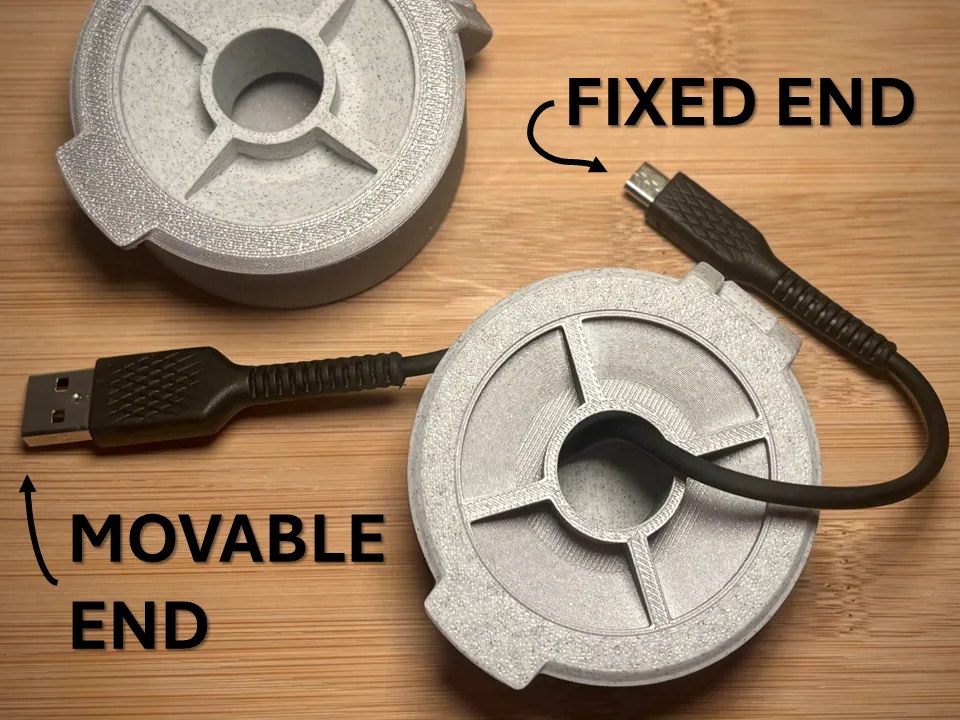

You can adjust the fixed length according to your needs!
The maximum cable diameter for the smaller version is 4.5 mm and the maximum length is 2 m (the length depends on the cable diameter).
The maximum cable diameter for the larger version is 6 mm and the maximum length is 4 m (length depends on cable diameter).
❗Always wind the required length first and then plug the cable into the device❗ The cable rotates on the fixed side and there is a risk of damage to the cable.

👉Assembly instruction

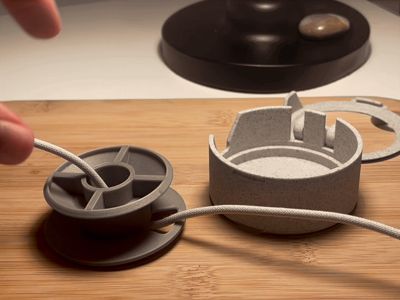

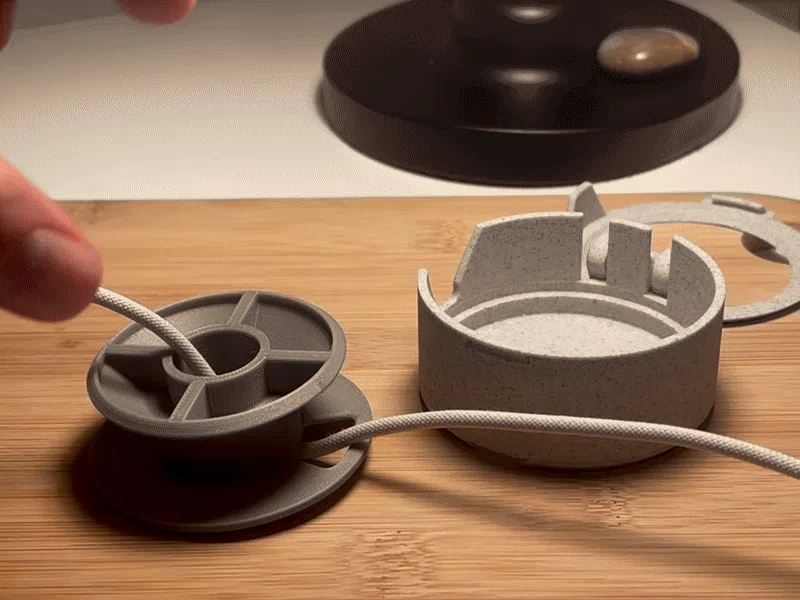

Insert the cable through the spool and adjust the required fixed length.

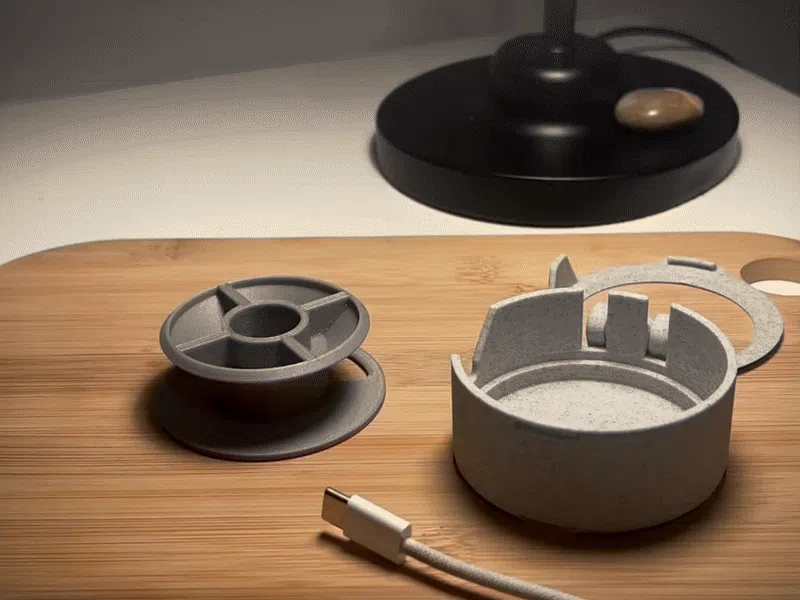

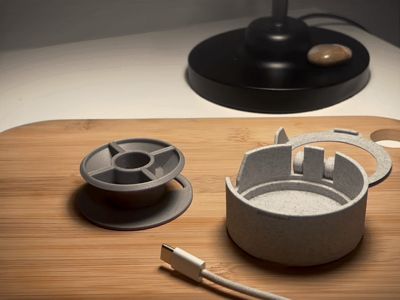

2. Insert the spool into the case and wind up the cable.
