Grid Wall Hanger Clip

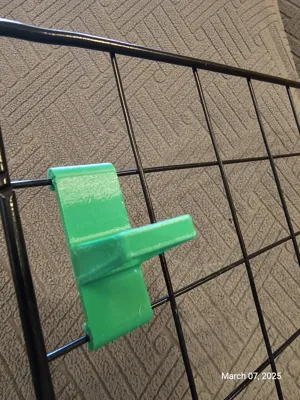

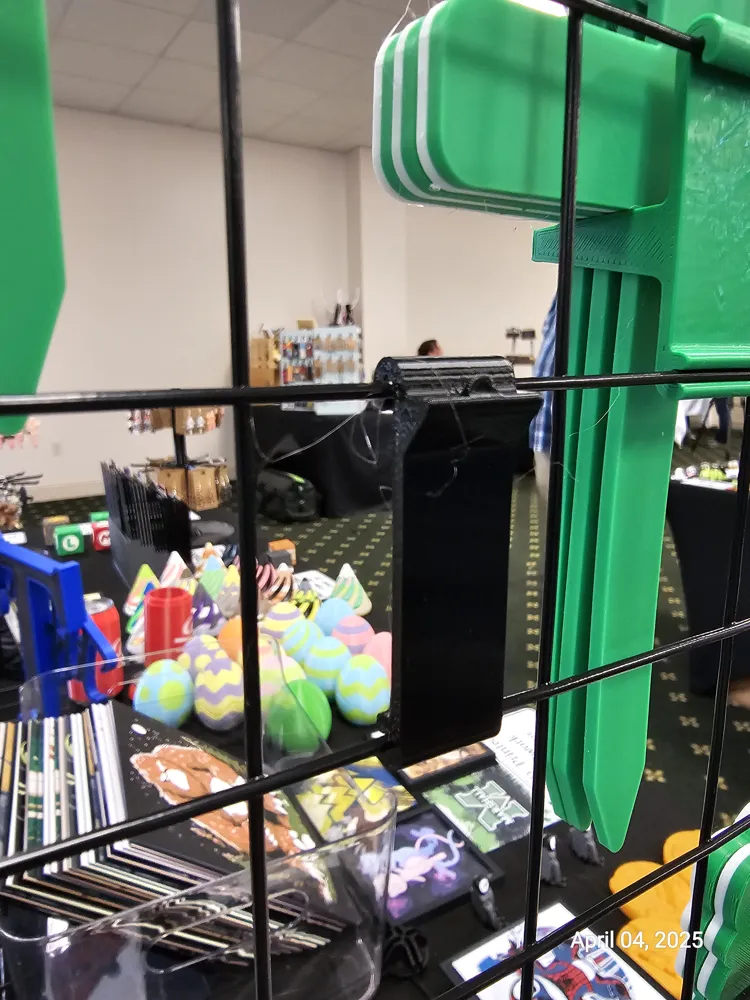

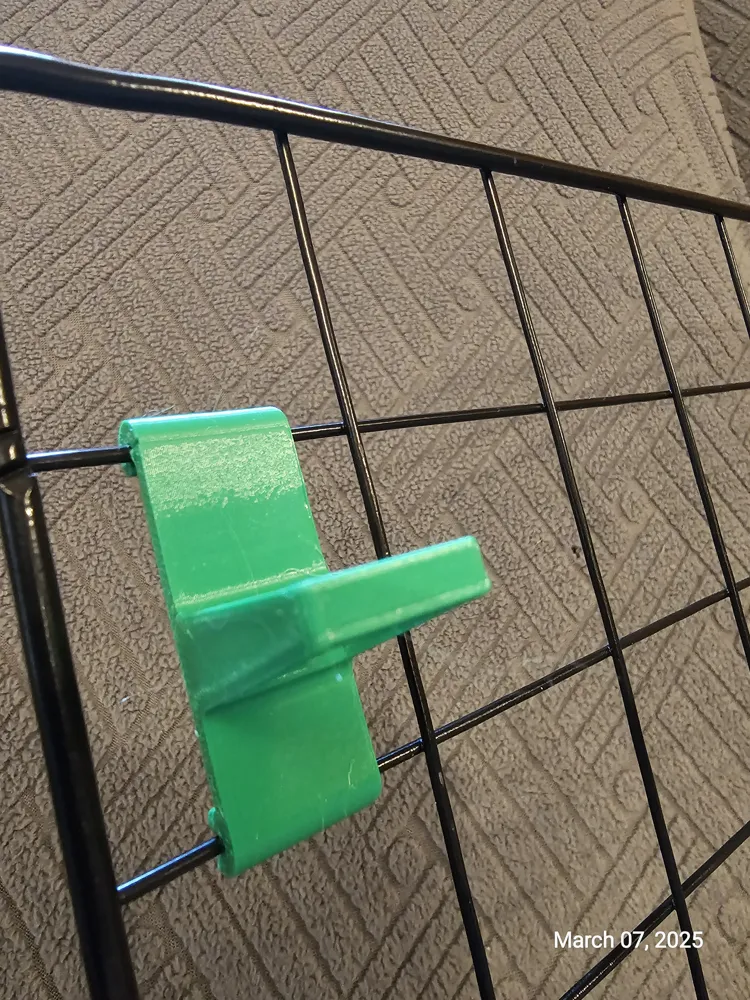

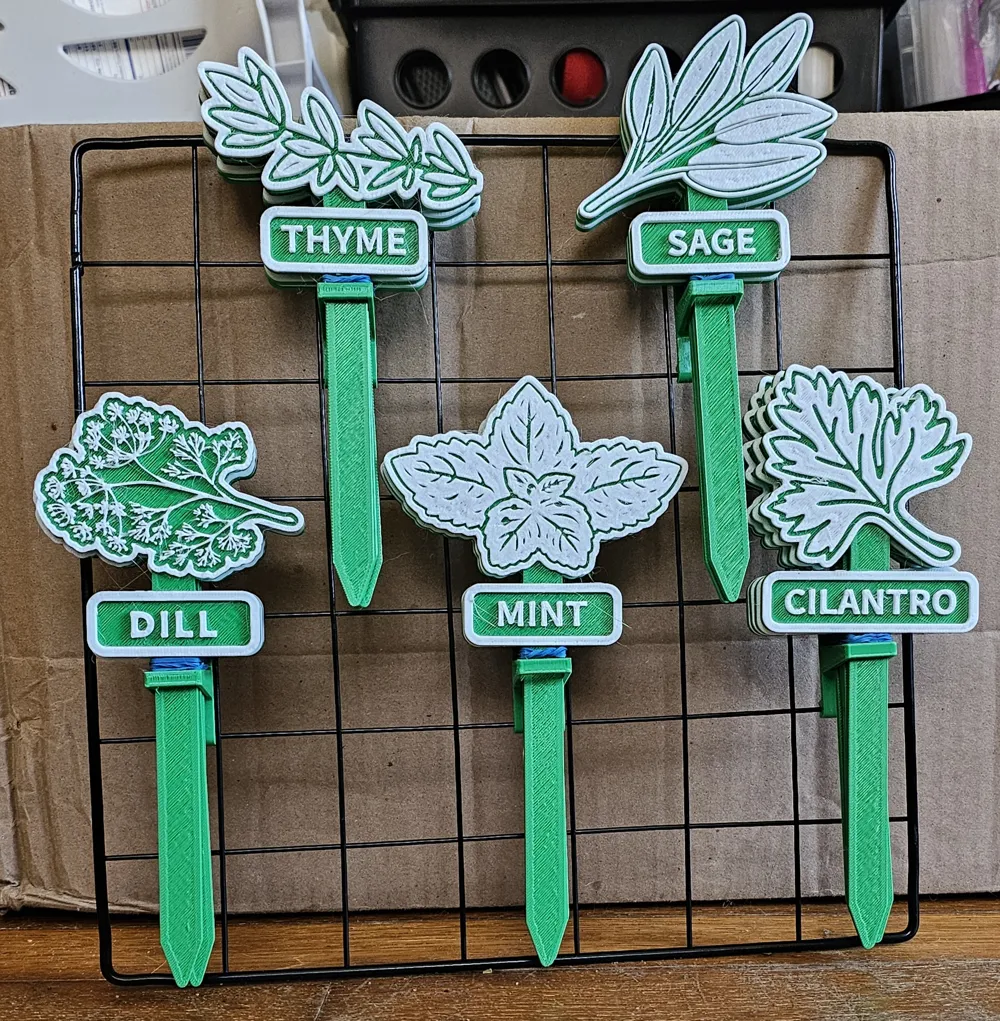

UPDATE 03/31/25 - Added a clip that has a holder for Double J Design's Garden Stakes to display at shows on a grid wall.  There is a normal garden stake clip, and one with built-in supports.  If you use the built-in support or regular supports, be careful removing them as the end of the clip could break.  The garden stake clip can hold a max of 4 stakes without being too tight simply because that's the amount of most of the stakes that can fit on a P1S buildplate.

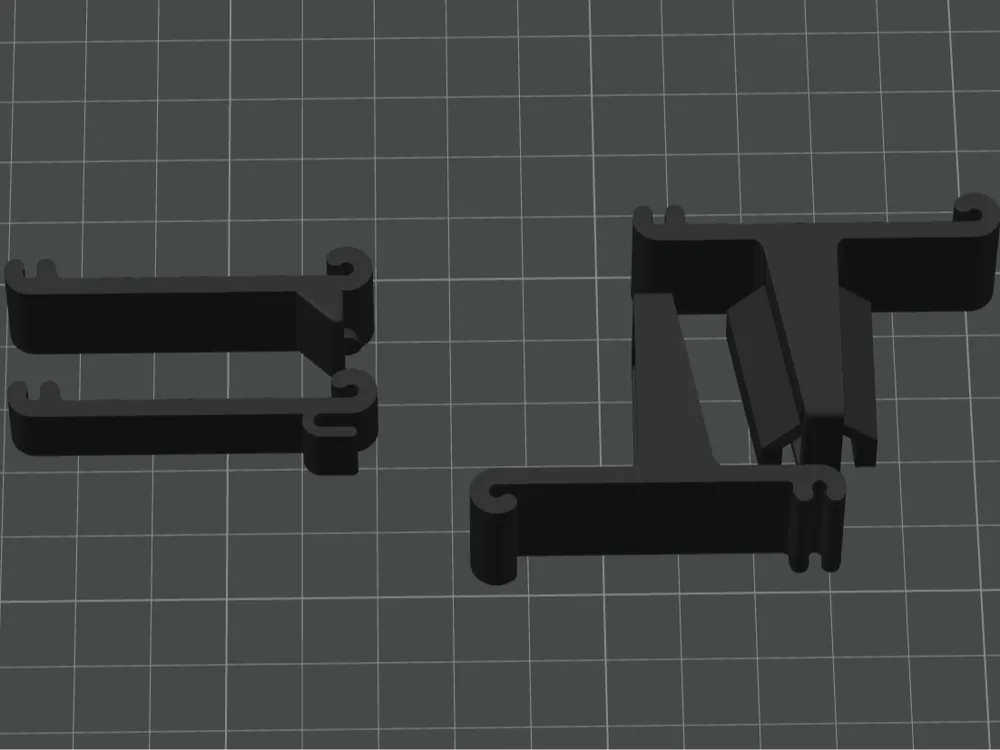

Also removed the horizontal clip from the .3MF as I had redesigned the vertical one to have the hanger part at the top, so there was no need for the horizontal part anymore (it is still available as an .STL download, it's just not in the .3MF anymore).  All versions were printed in PETG since they would be put up and taken down frequently.

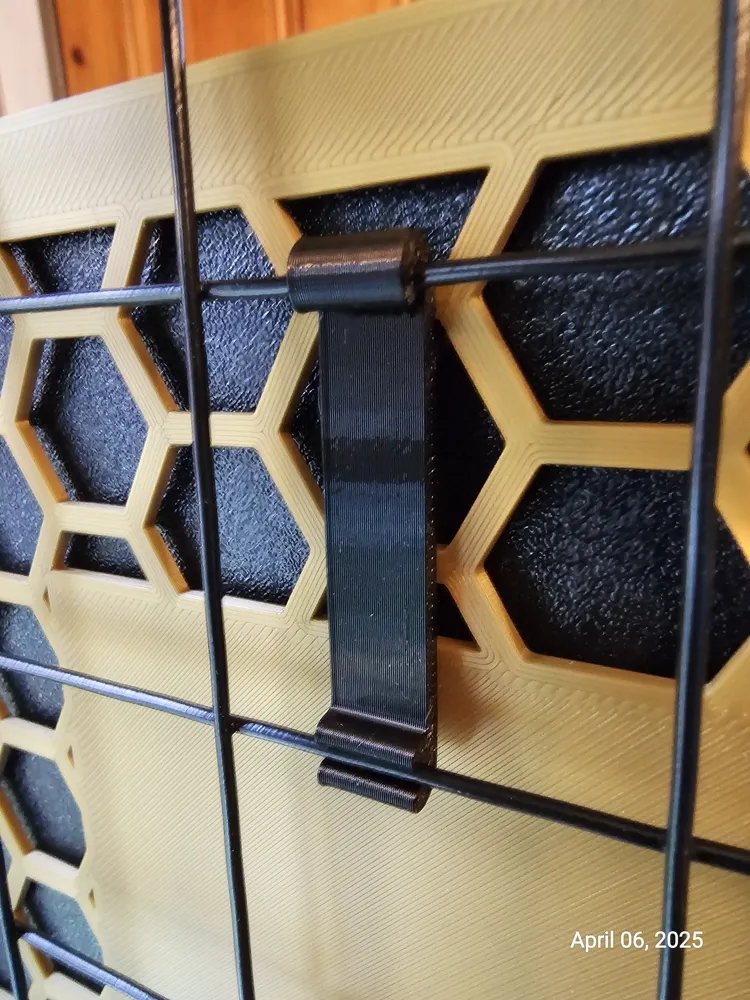

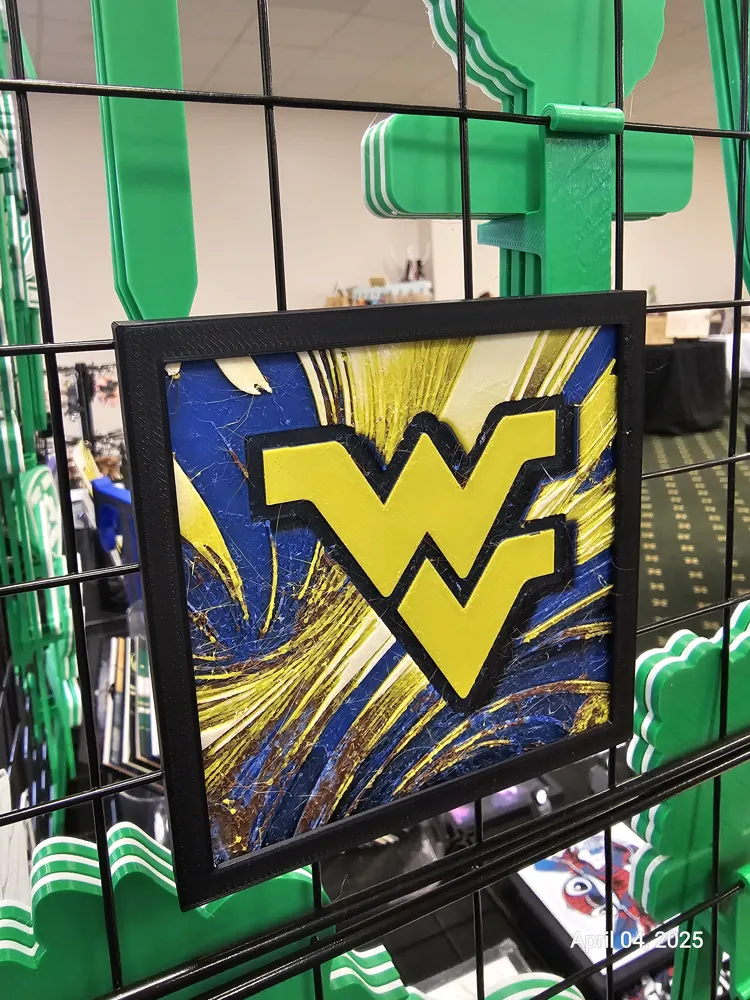

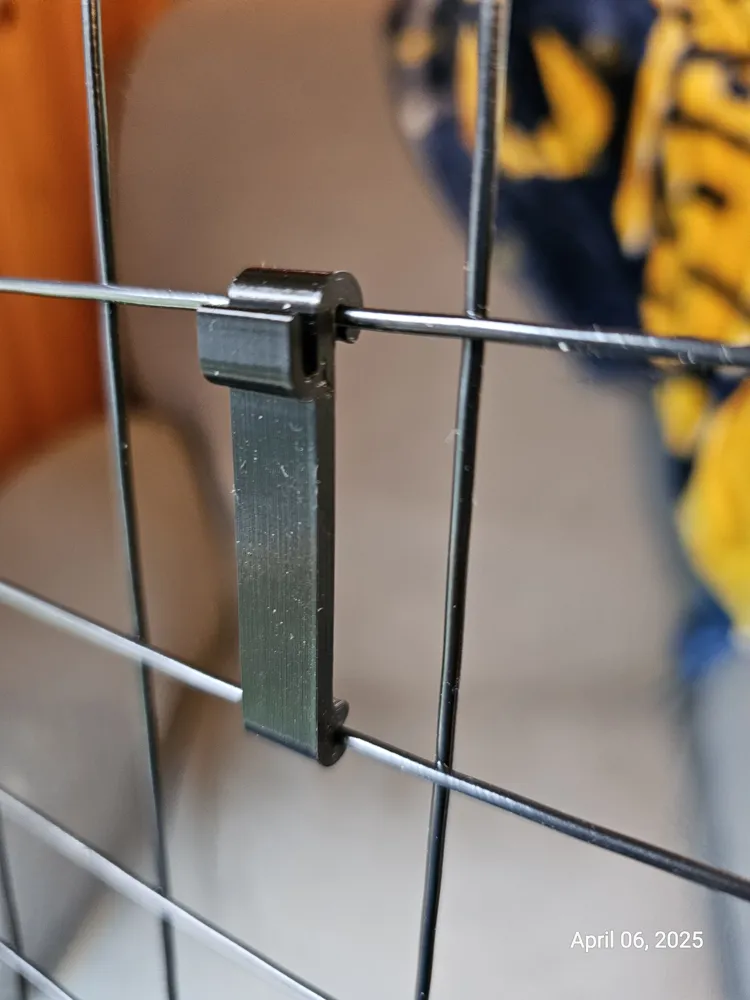

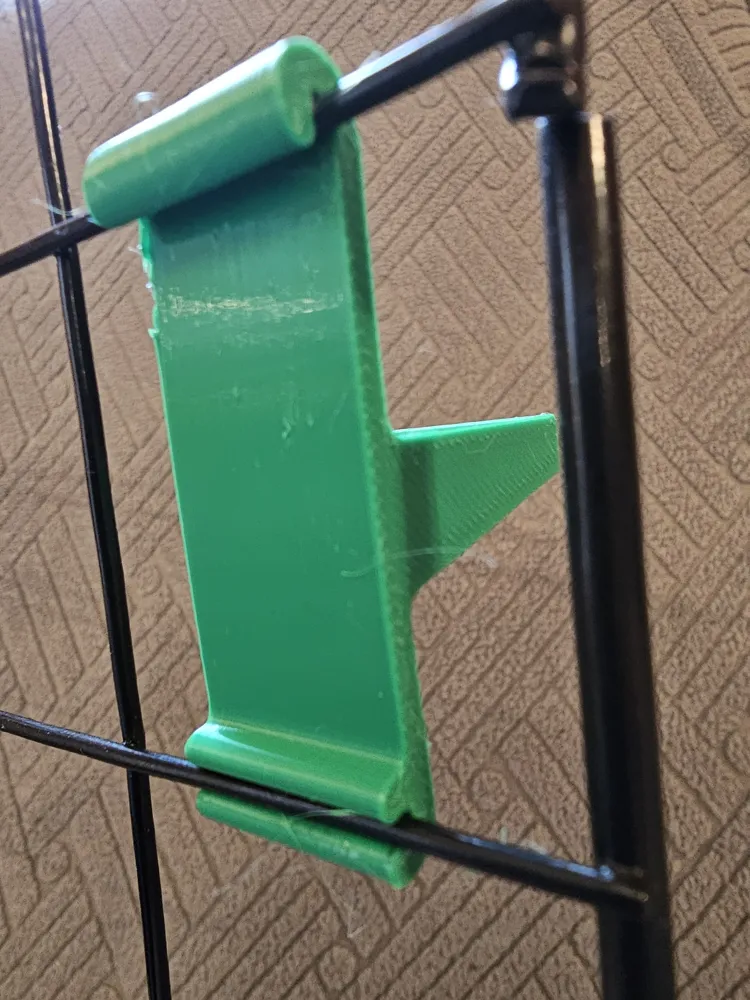

UPDATE 01/06/25 - after using the originals in a couple different events, I noticed that the clips wouldn't stay clipped as well as originally anticipated.  Using @Canadian_Gamer's idea of adding the hook, I redesigned the vertical clip to have a hook on one end and a clip on the other.  One version has the hanger for @Canadian_Gamer's displate for multipanels, and the other version has the mount for a framed hueforge using @Canadian_Gamer's Friction Fit Slim frames (version 3 Slim and Fancy can be found here, and version 3 Slim and Square can be found here)

UPDATE 11/11/24 - Added a horizontal clip

This was created to hang @CanadianGamer's Hueforge prints using the slim version of the friction fit frames to display on grid walls during sales events. It snaps onto the thin wire grids with a 2" spacing and a wire size of 1.8mm. The test print was done in PLA, but PETG should work as well. It was printed at 0.16mm layer height on a 0.4mm nozzle, 15% rectilinear infill.  This was tested on the C&A Home Wire Cube Storage from Amazon.  If this clip doesn't work for the brand you have, I recommend using the remix from Canadian Gamer, which can be found here - https://makerworld.com/en/models/783130#profileId-720506.
