Bill of Materials
List other parts
- M3x20 hexagon socket screws x 4:
- M3 nut x 4:
Description

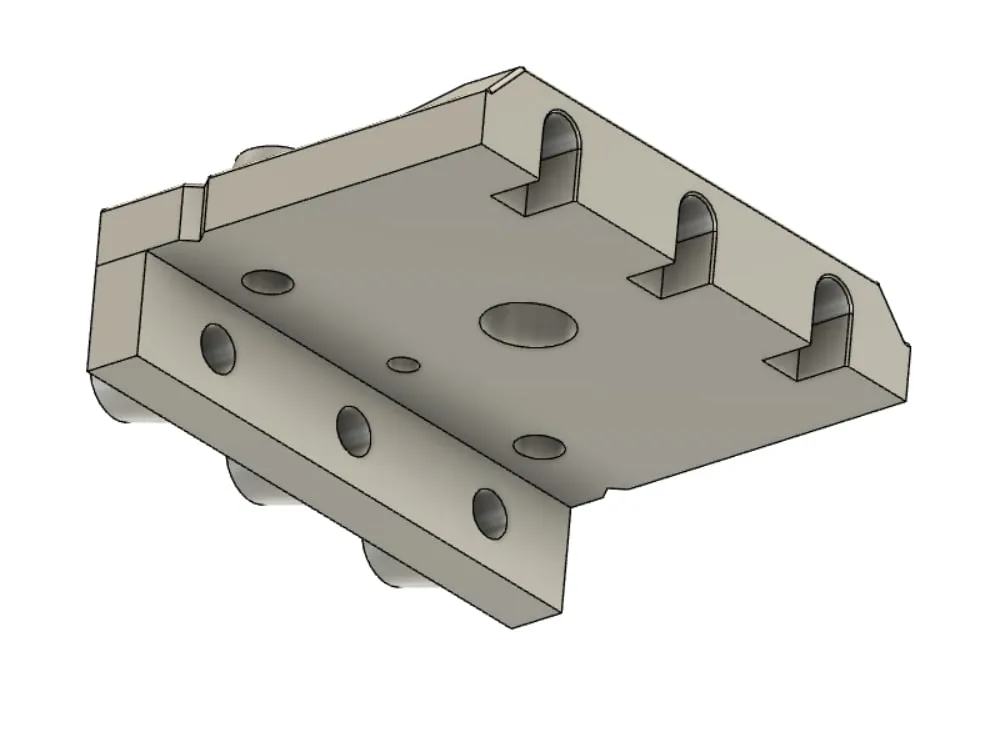

A drilling jig for 18mm wood panels.
This allows the holes for furniture connections to be made very easily and precisely.

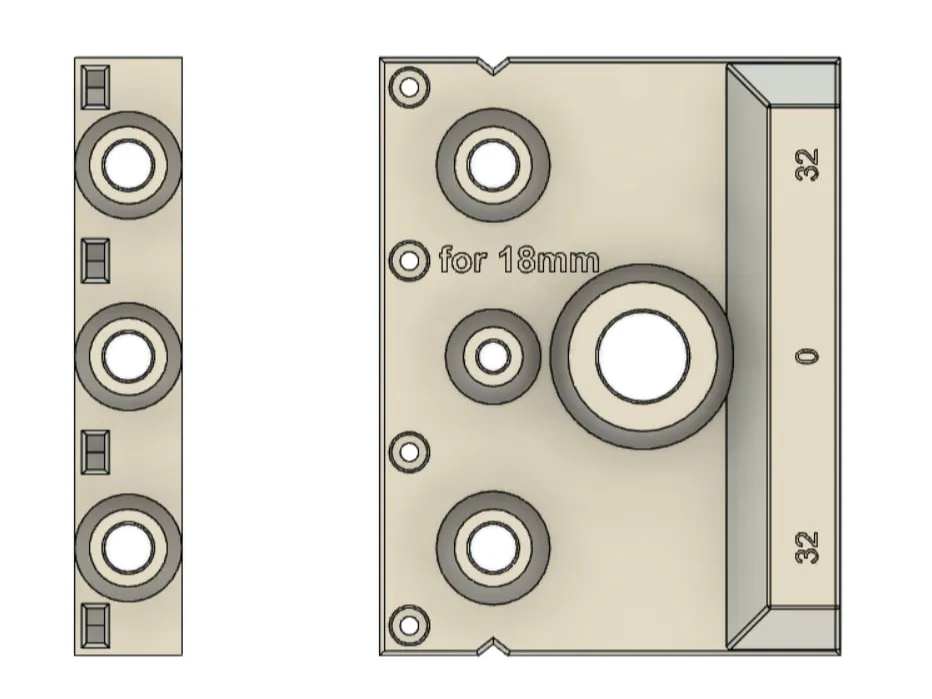

The side stop is for 3x 8mm holes, centered for the connector and left and right each for 8mm wooden dowels.
On the top side there is a 5mm hole in the middle for the connector and 8mm holes on the left and right side for the wooden dowel. In addition in 34mm distance for a 15mm hole for the eccentric.
Very easy to print without support.

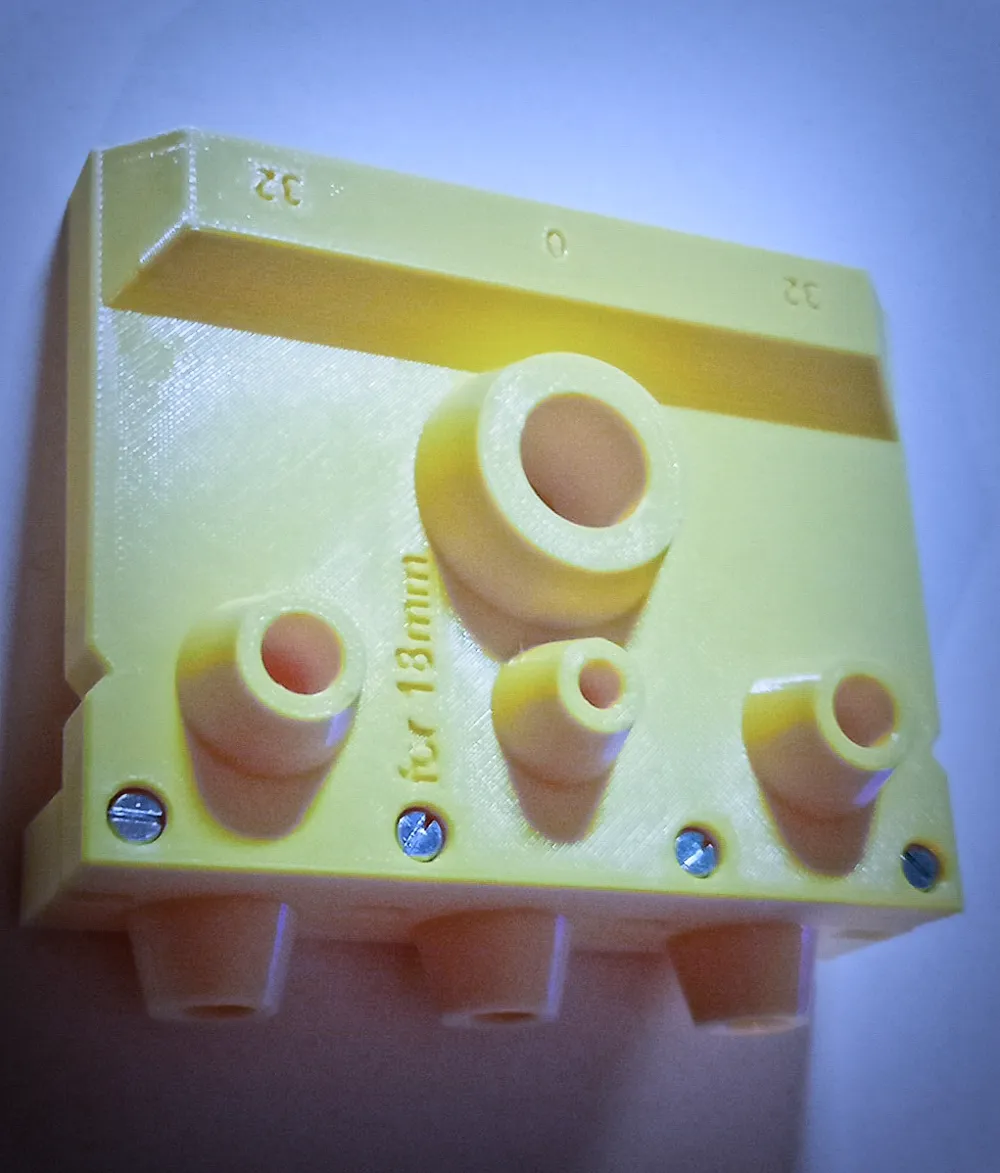

I printed mine in ABS, but PLA should also work
- 4x M3x20 hexagon socket screws
- 4x M3 nut
