S7-1500 CPU RAIL
IP Report
Print Profile(1)
0.2mm layer, 4 walls, 25% infill
Designer
1.4 h
1 plate
Open in Bambu Studio
Boost
5
22
3
3
36
17
Released
Description

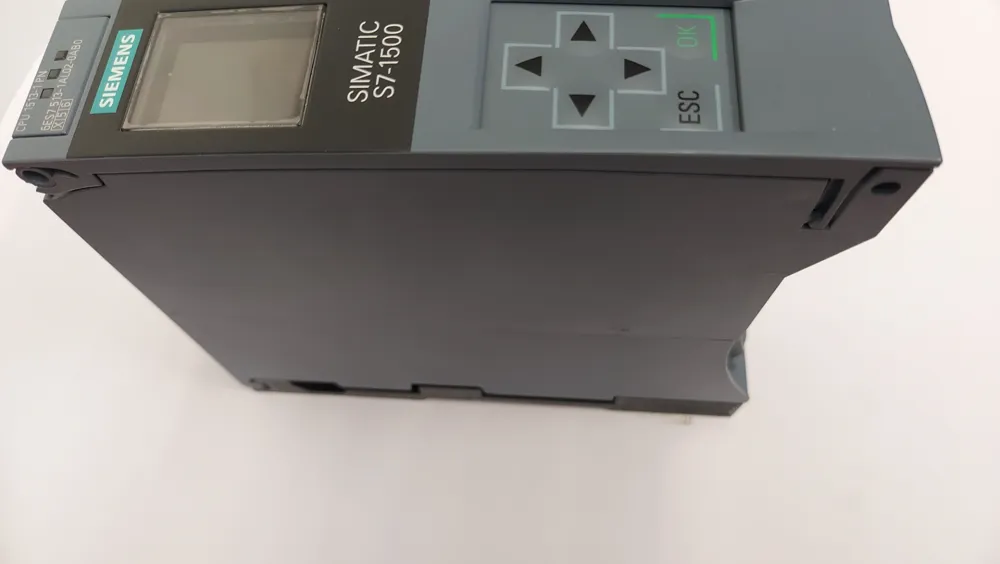

This is standalone rail to fit your s7-1500 on control cabinet without din rail,
the design is really tailored to specific purpose but can be used widely as well.

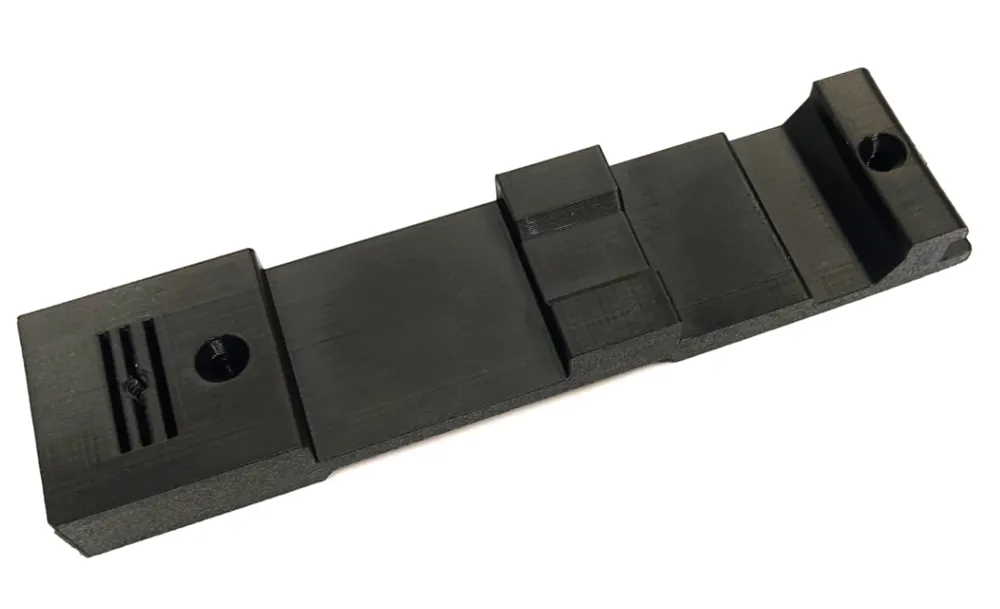

- The rail has been designed to be fixed with screws

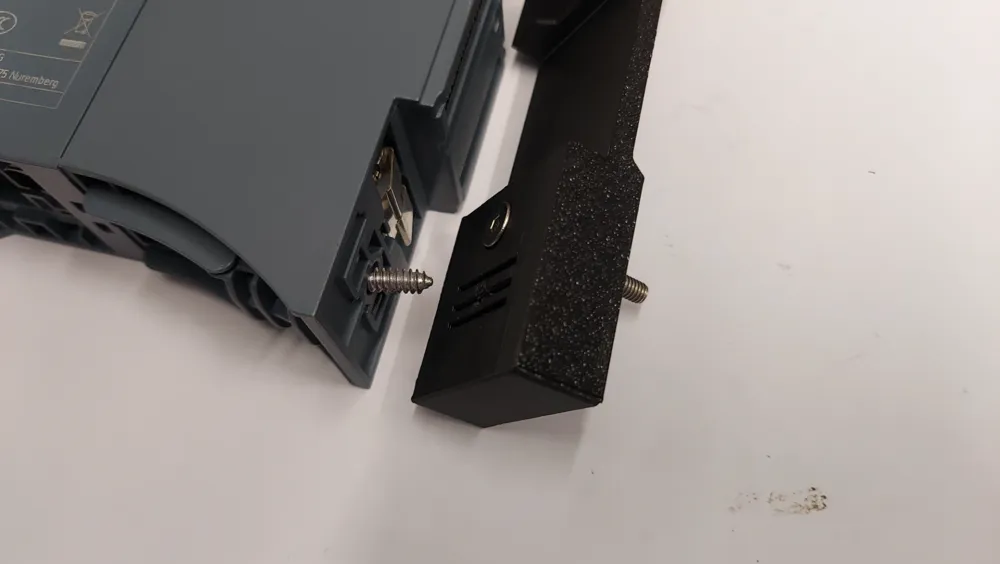

- Screws have been placed ina way that ground connection of PLC will be maintened as in the original alu rail
- The rail has been designed for single module CPU, where you don't havve additional local modules
- The cover isolate unused bus connections, so you will avoid shord circuit
- The holding
