Thule Chariot aditional wheels v2
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
3.4 h
1 plate
Open in Bambu Studio
Boost
6
31
0
1
11
2
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- wheel x 2: up to 150 mm diameter with bearings, shaft size 6mm
- M6 bolt 45mm x 2:
- M6 nut x 2:
- M6 washer x 4:
- zip tie x 4: must fit to hole 8x2 mm
Description

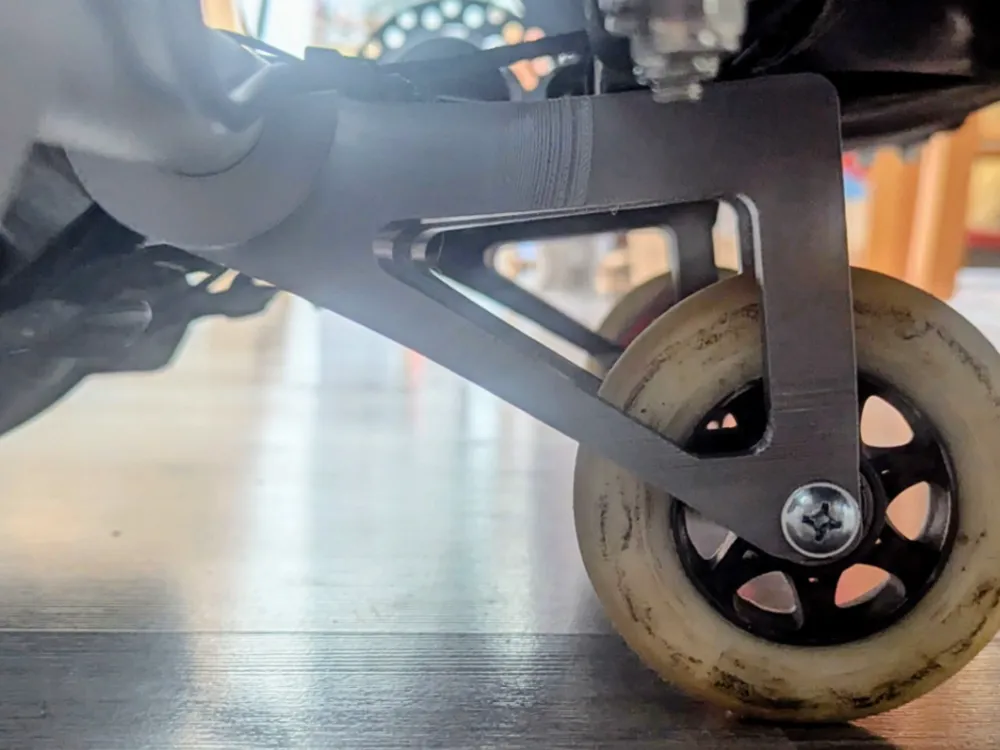

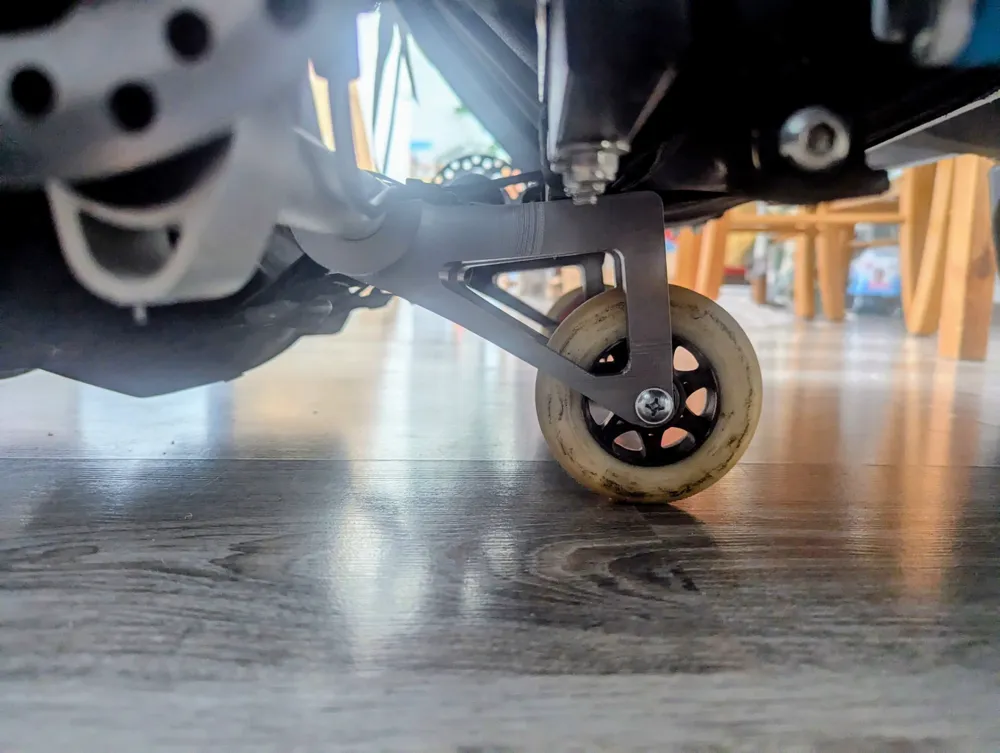

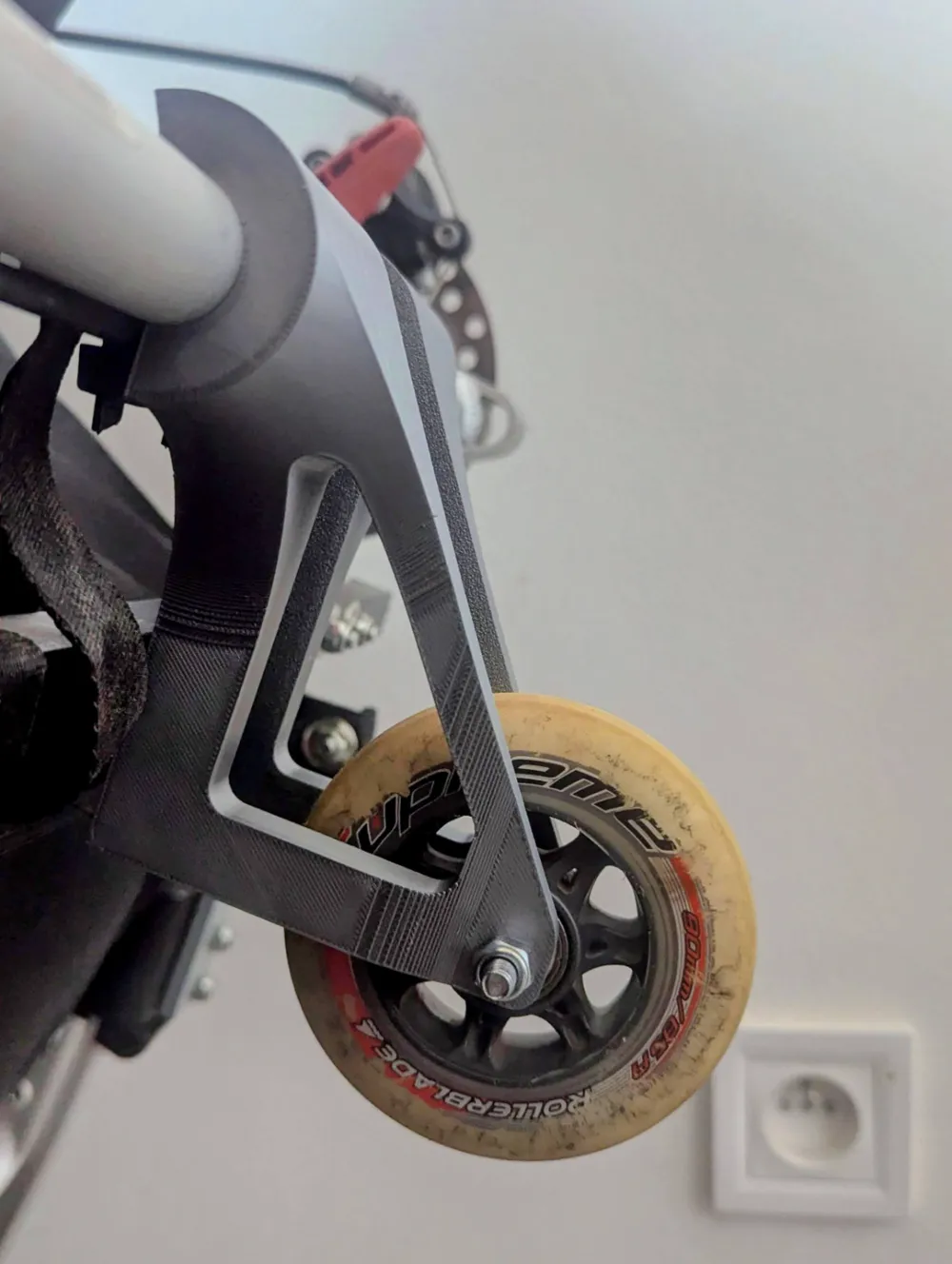

Better beefier version of remixed model.
Solving:

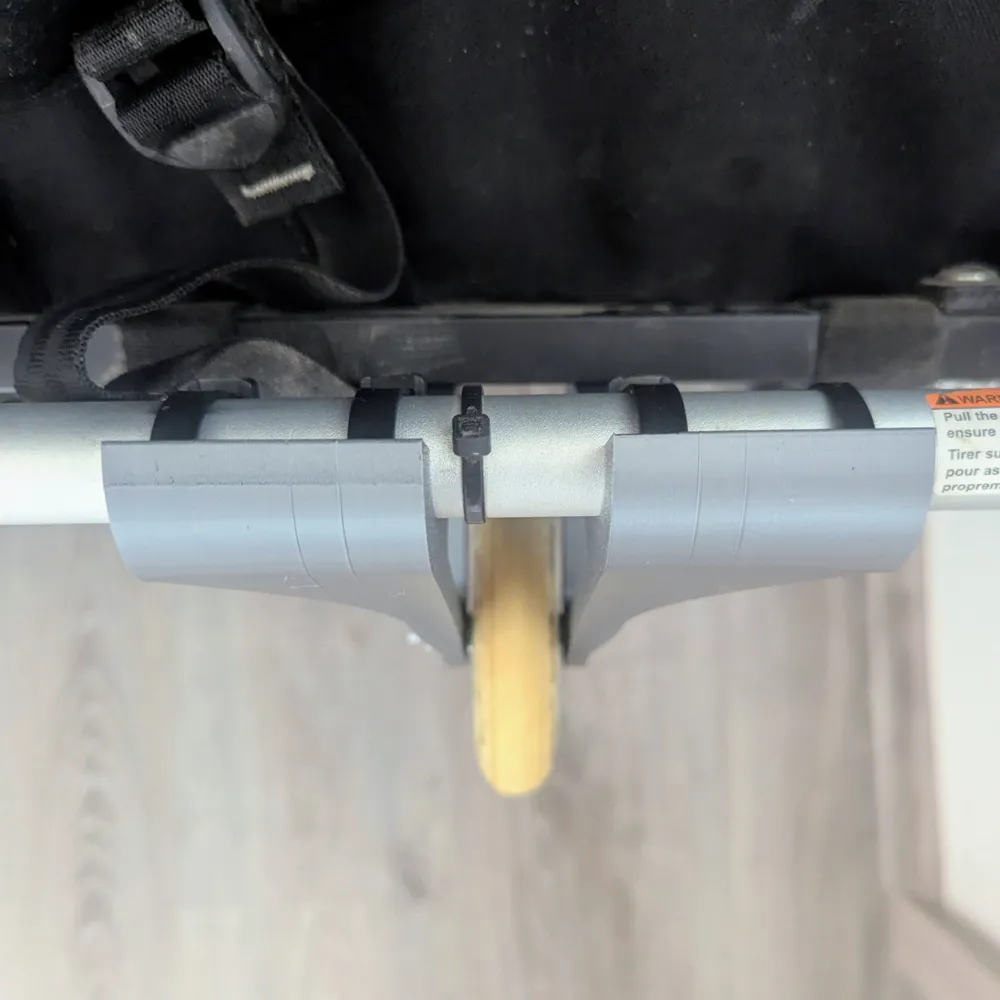

- bigger holes for zip ties
- ziptie holes all around
- thicker mounting surface
- higher (previous model did not have enough clearance)
- can mount bigger wheels (up to 150mm)
In addition to the 3D-printed parts, you’ll need (inline) wheels with bearings, M6 bolts, nuts, washers, and zip ties.
