Ming Yang 50ed Electric Focus Bracket
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2 h
1 plate
Open in Bambu Studio
Boost
1
8
0
0
7
1
Released
Bill of Materials
List other parts
- 同步带138MXL/B173MXL-6宽 x 1:
- M4*8内六角螺丝 x 1:
- 1.2*40*60mm不锈钢片 x 1:
Description
Content has been automatically translated.

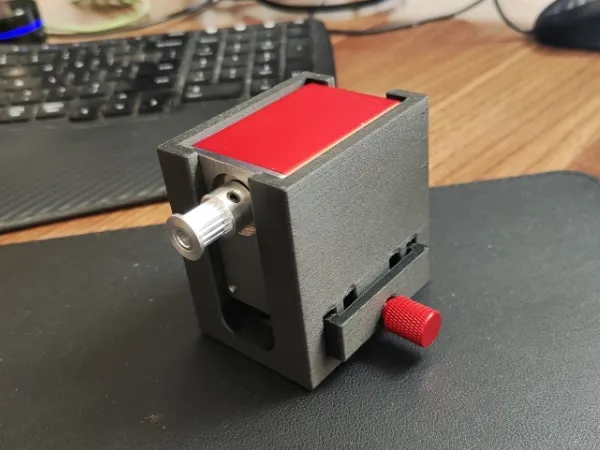

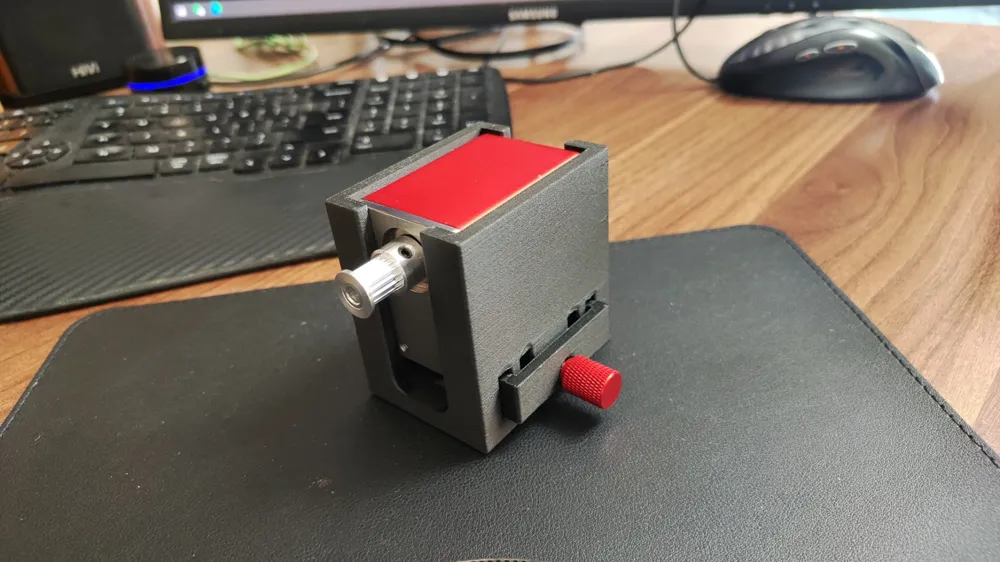

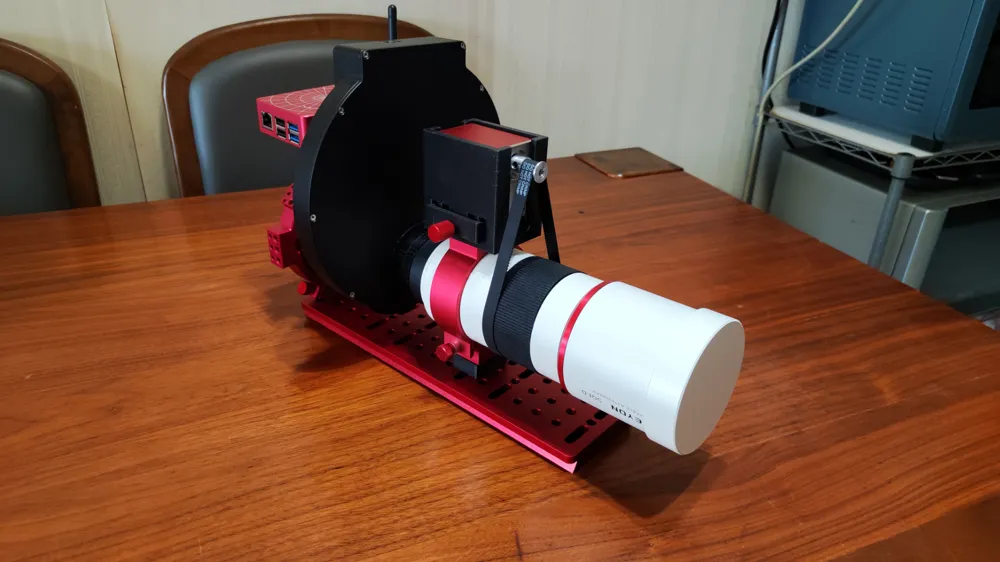

Install the 3D printed electronic focuser constraint frame on the handle base of the Mingyang 50ed telescope clamp, using thumb screws and an inclined platform to tension the synchronous wheel, to achieve precise focusing of the astronomical telescope

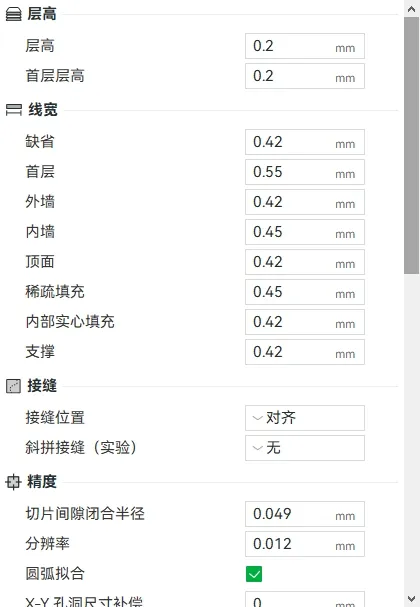

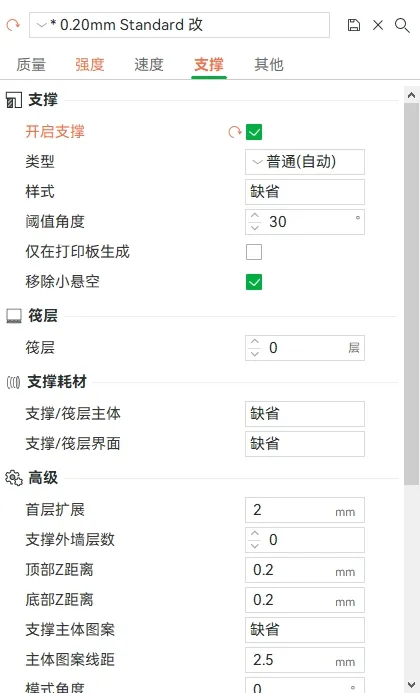

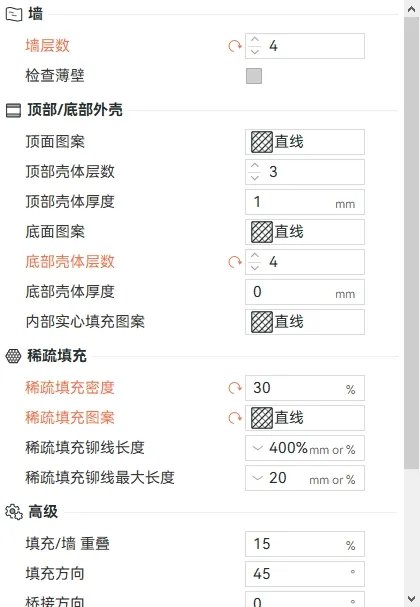

The goal for setting printing parameters should be to improve model strength, and for specific parameters, refer to the images below

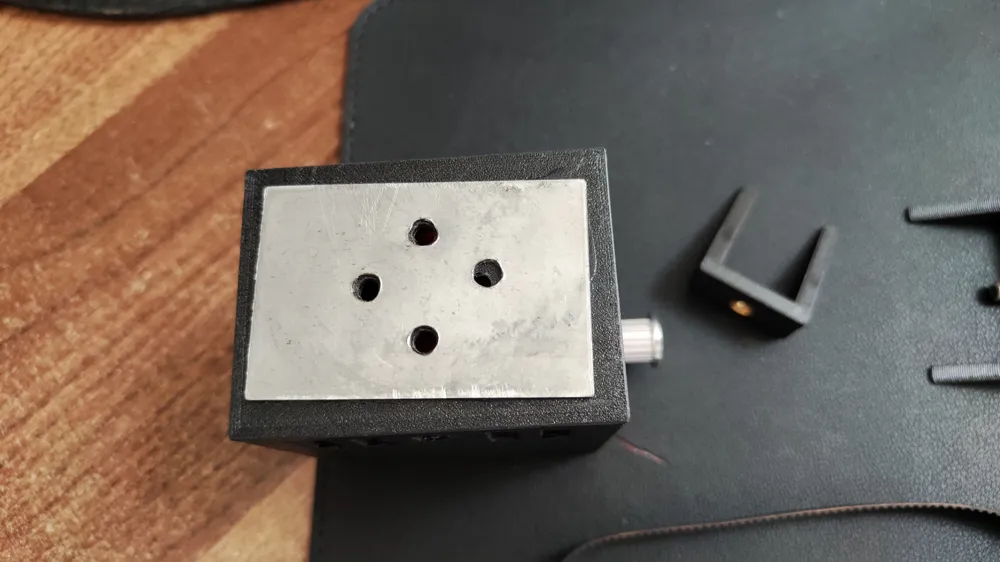

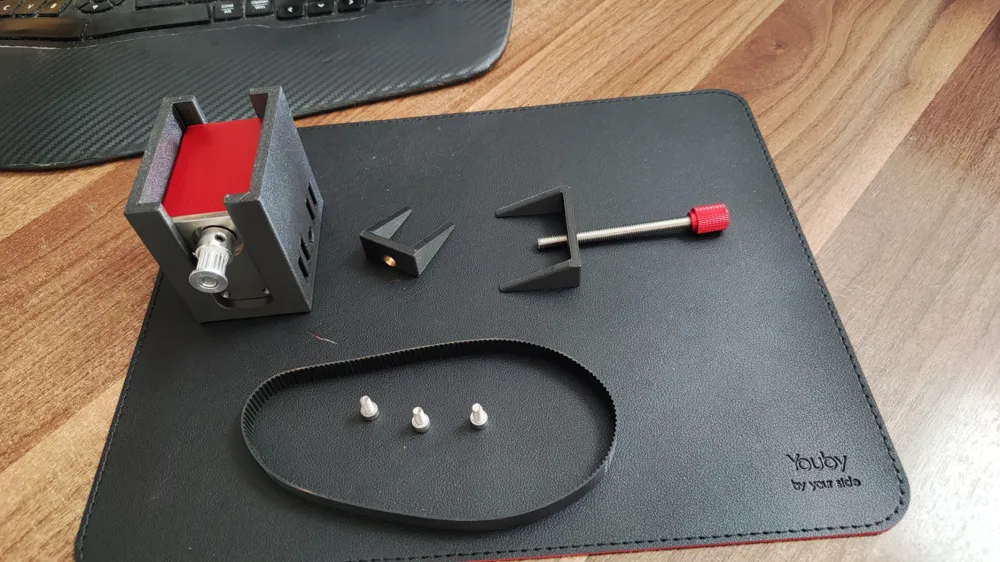

Other accessories: M60*70 thumb screw, M6*5*8 heat-set insert, MXL synchronous pulley with 7mm tooth width and 5mm inner bore, synchronous belt 138MXL/B173MXL-6 wide, M4*8 hex socket screw, 1.2*40*60mm stainless steel plate (drill holes according to the base mounting screw positions)
