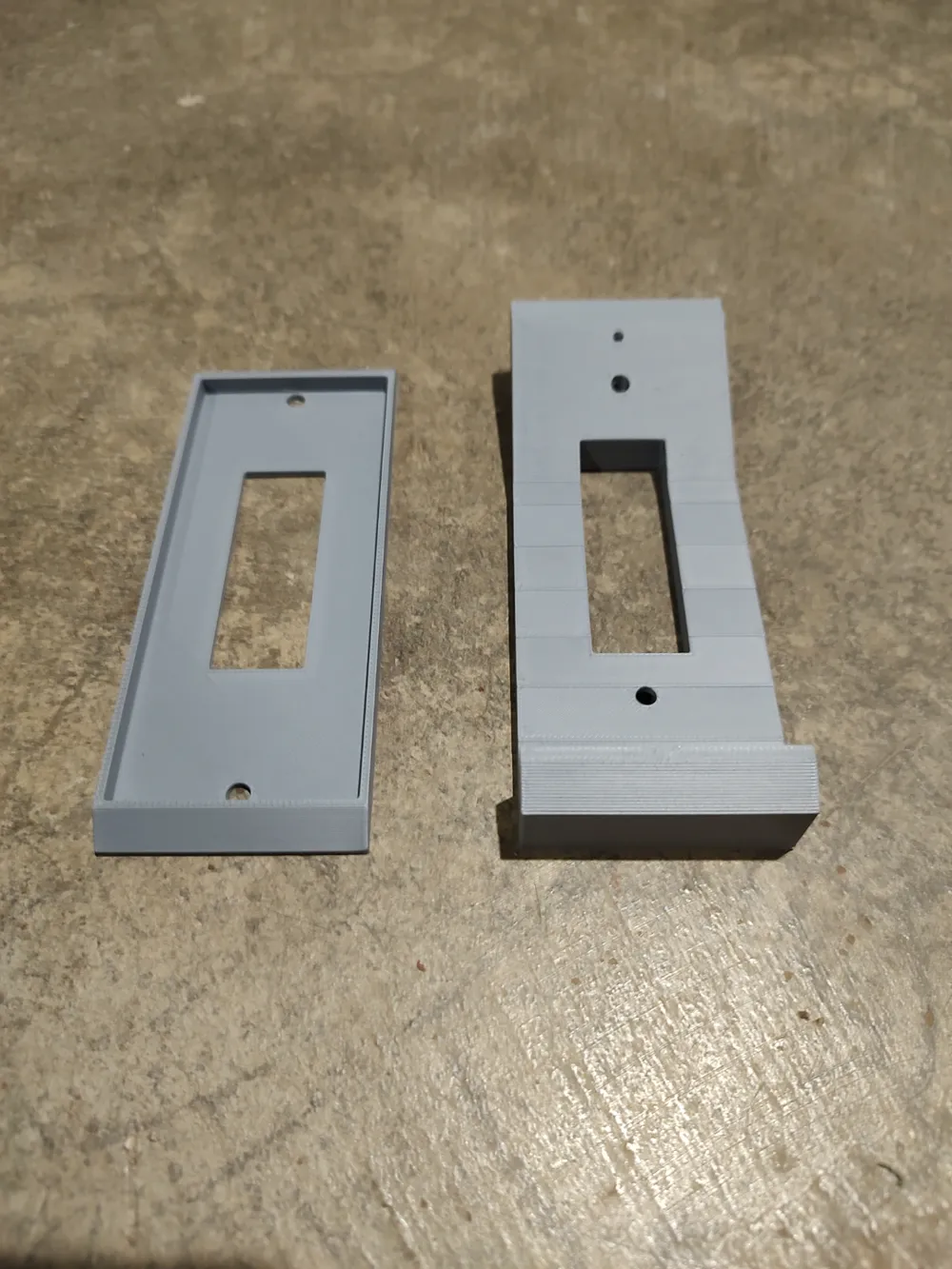

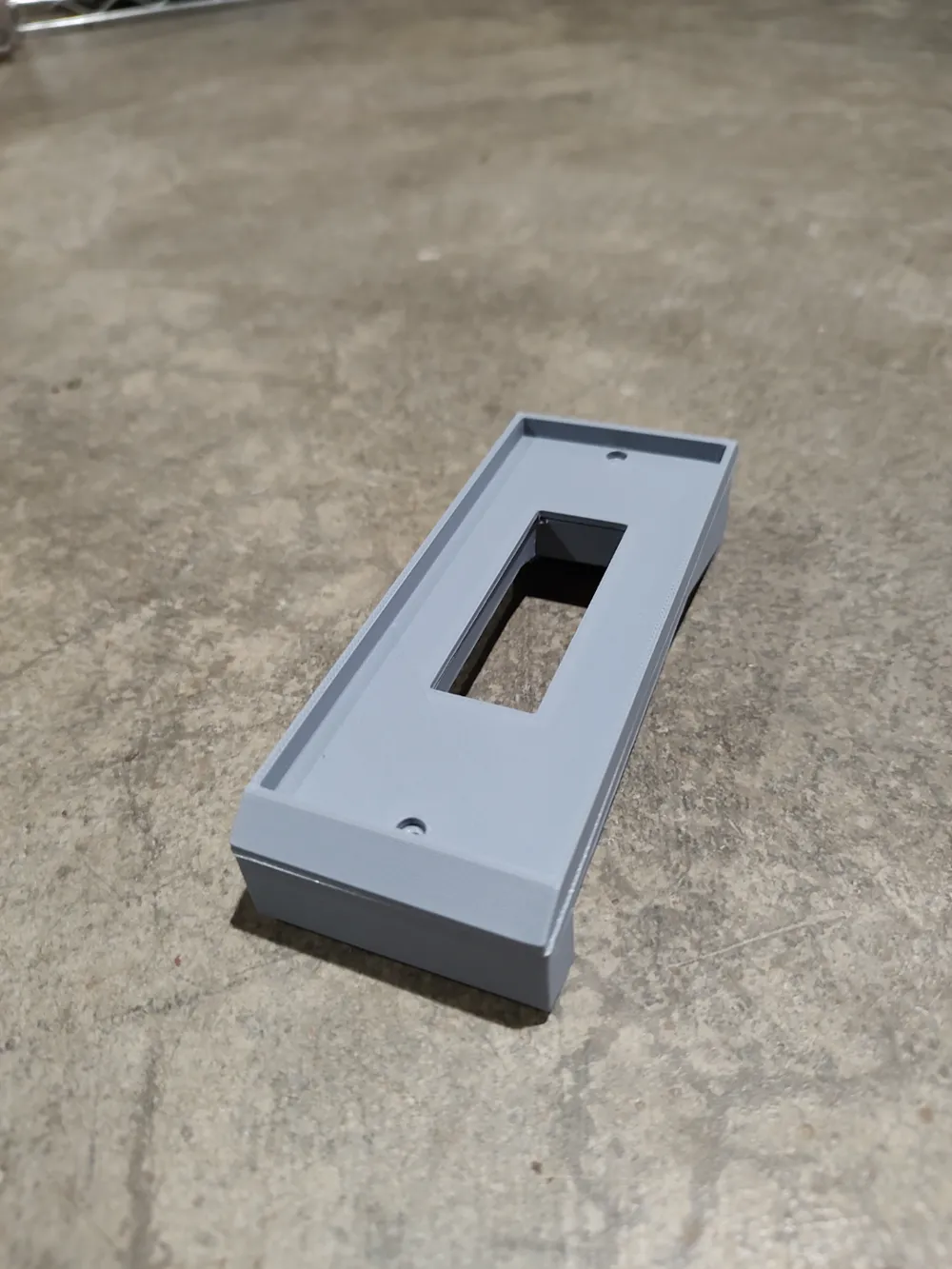

Two piece Mount for fixing Ring Video Doorbell Wired to wall with 4 1/2 inch Dutch lap Vinyl Siding. Can be printed in different colors to customize your doorbell. This uses the mounting screws that came with the doorbell and a couple basic screws. A modifier was added around the doorbell mounting holes to increase infill in that area since the mounting screws will cut threads into the hole.

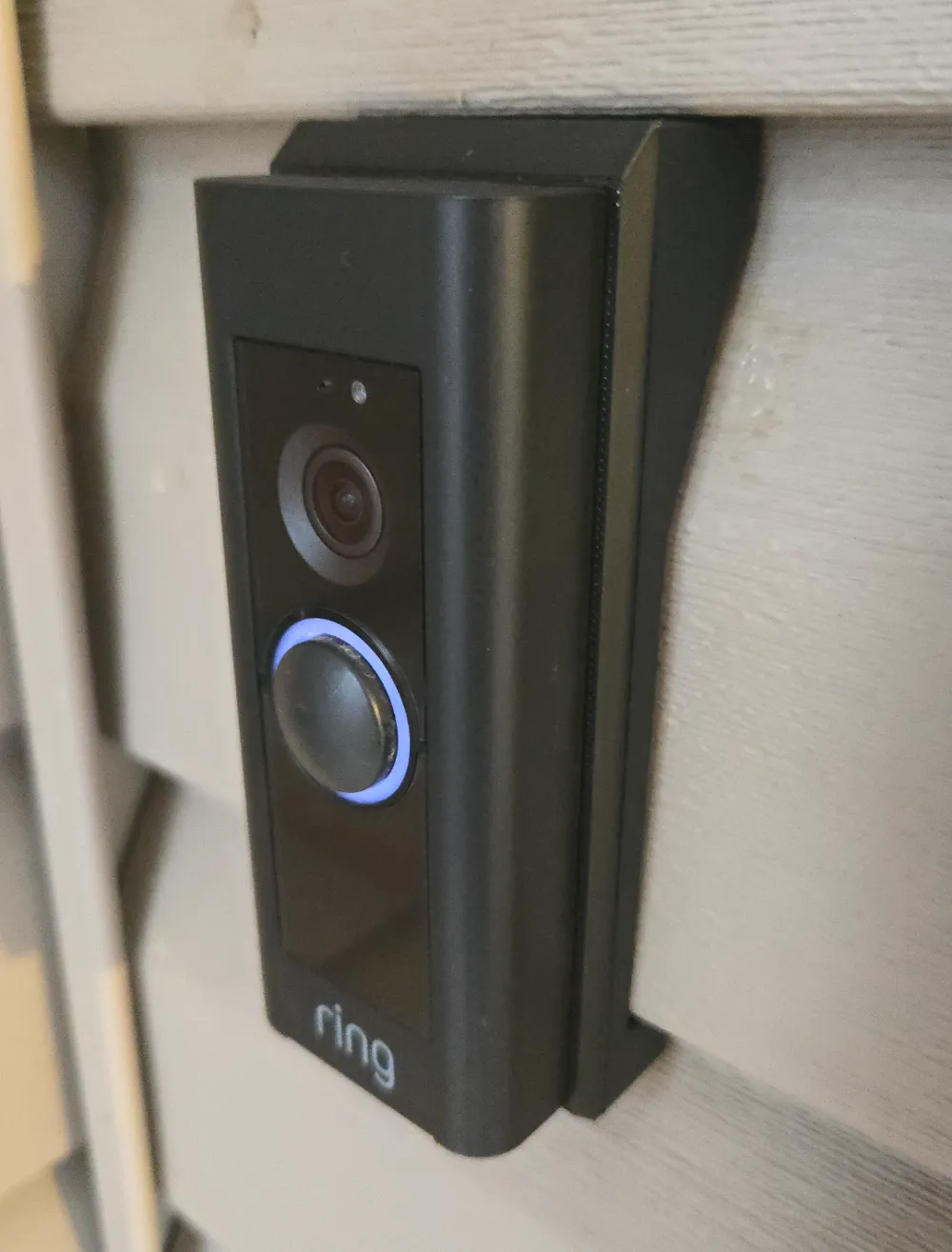

To install, feed wiring through the opening and mount the base to the wall with (2) basic screws. Align the trim piece with the doorbell and mount to the base with the (2) mounting screws provided with the doorbell. This was only printed with PLA on an A1 Mini for testing printability although it should probably be printed in PETG. Message with any suggested changes, always open to improvement.
I would like to give credit to @Snorg for helping me develop the shape and printing some test pieces for me.
