EV Charge Plug Holder (Type 2)
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 25% infill - extra sturdy screw holes
Designer
4.4 h
1 plate
Open in Bambu Studio
Boost
64
222
45
31
473
309
Released
Description

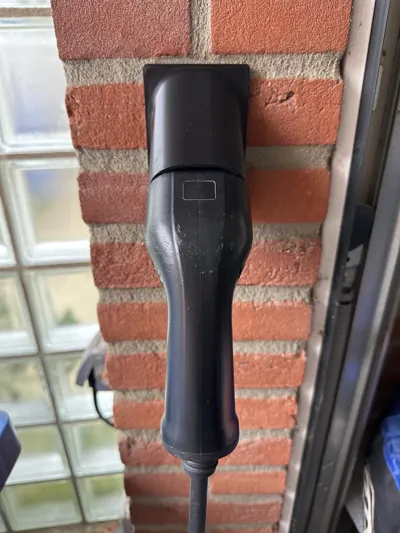

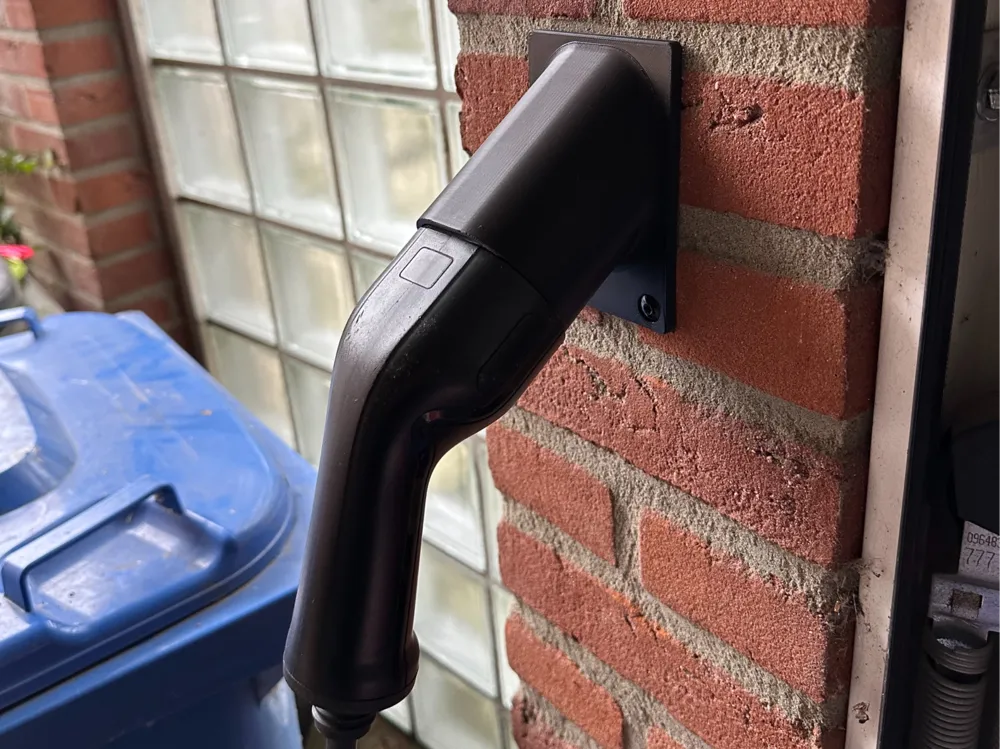

Tired of your EV Charge Plug lying around on the floor? This EV Charge Plug Holder is the solution you need!
I designed this holder to learn CAD and incorporate useful features from other models into one convenient print:

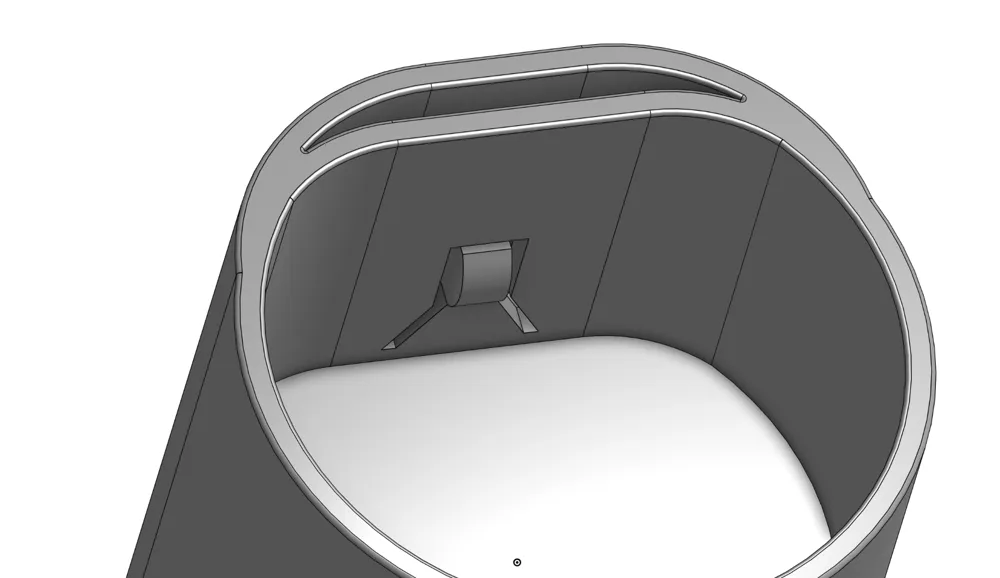

- Secure Clip: An internal clip holds the plug firmly in place, preventing it from slipping out.
- Enhanced Stability: An extra inner wall adds extra sturdiness and stability.

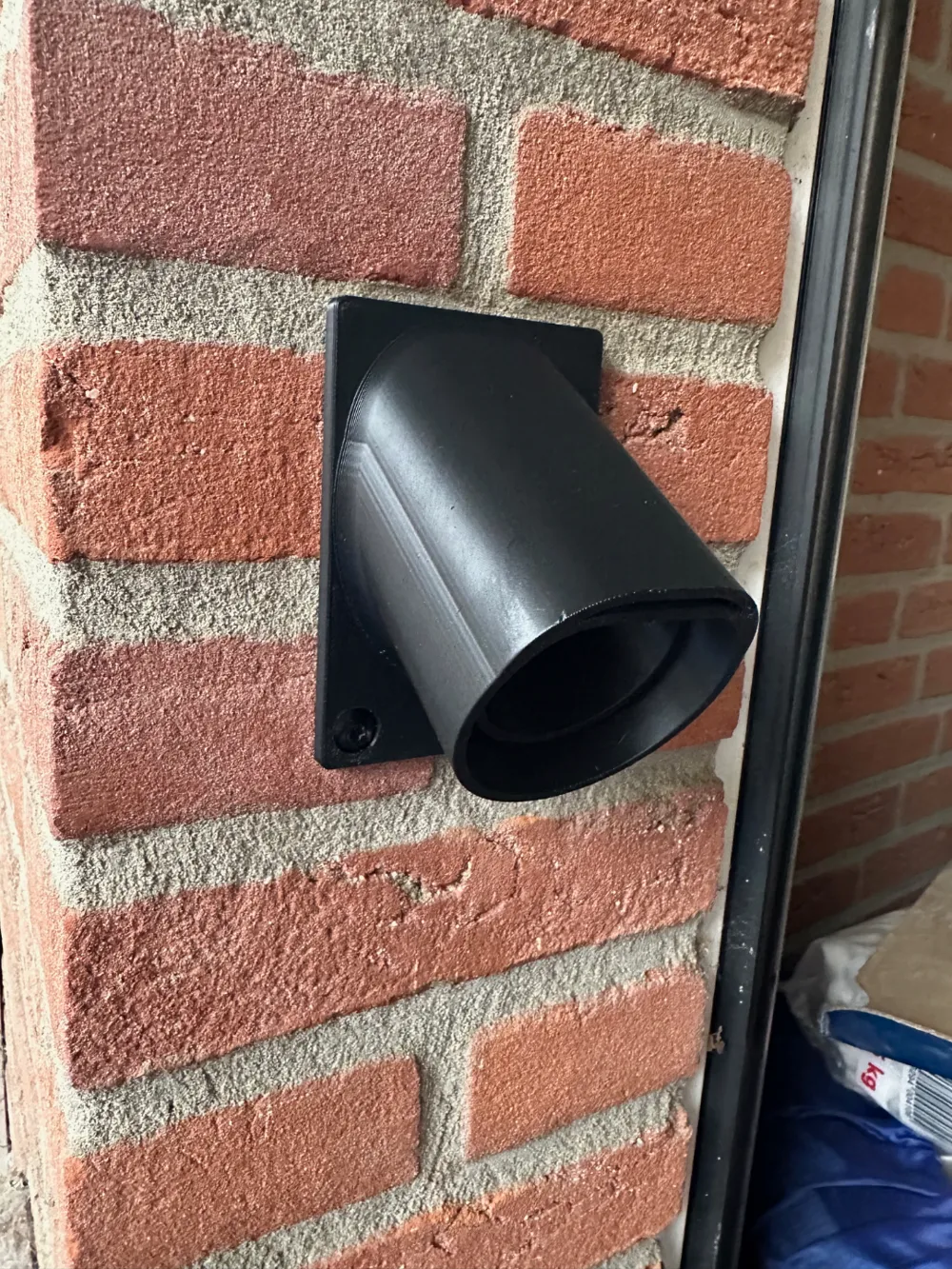

- Minimalistic appearance: A hidden screw hole at the back means only two screws are visible.
I used Bambu Labs PETG HF (Black) for this print, but any outdoor-proof filament should work (tolerances may vary with different materials). To mount the holder, I used three 4.8x38mm screws with a 12mm flat head. The screw holes accommodate screws up to 5mm. For best results, drill the hole for the middle (hidden) screw first, attach the holder, and then mark the positions for the other two screws.
