MT32 Pi Hat Box v2

MT32 Pi Hat Box - Compact Enclosure for the MT32 Pi MIDI Hat Project

This is a custom-designed box for the MT32 Pi MIDI Hat, an open-source project replicating the legendary Roland MT-32 MIDI synthesizer. This project clones the Roland MT-32 using a separate board that connects to a Raspberry Pi, specifically the Raspberry Pi 3 Model A+ for its compact size.

Key Features

• Perfectly shaped to fit all ports of both the MT32 Pi Hat board and the Raspberry Pi.
• Secure assembly without the need for screws or glue; all parts snap together seamlessly to hold the circuit firmly in place.

Design and Print Details

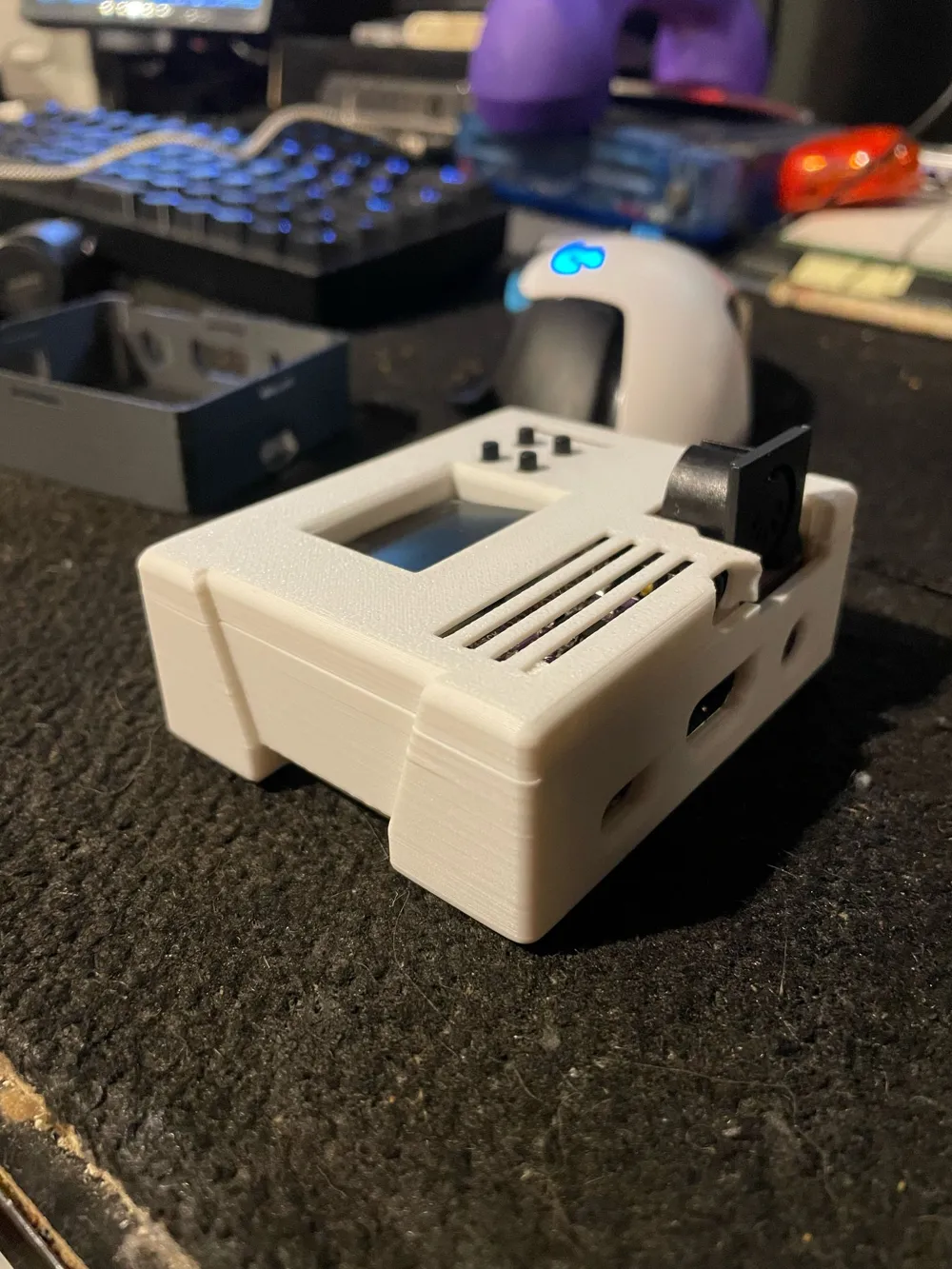

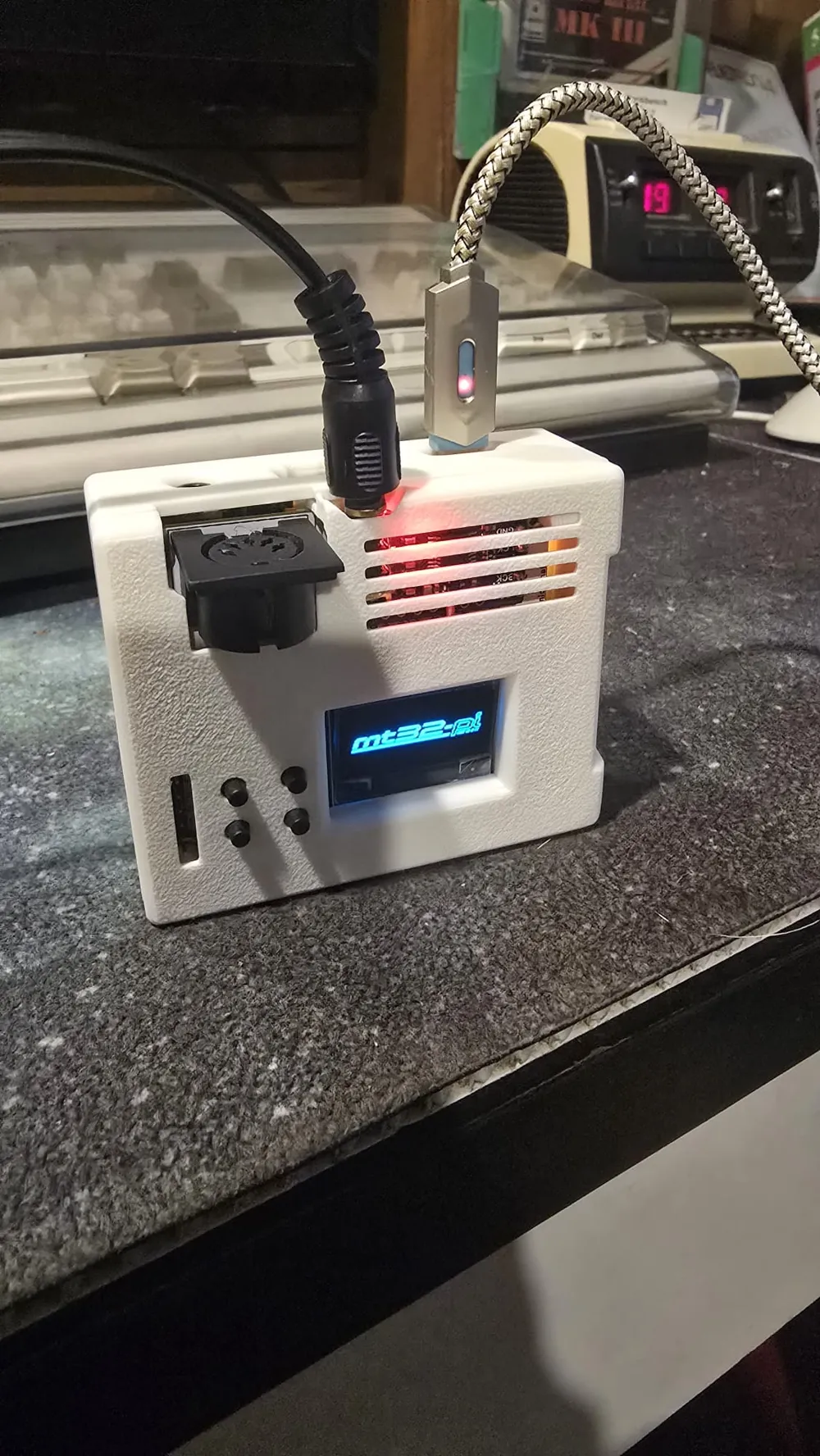

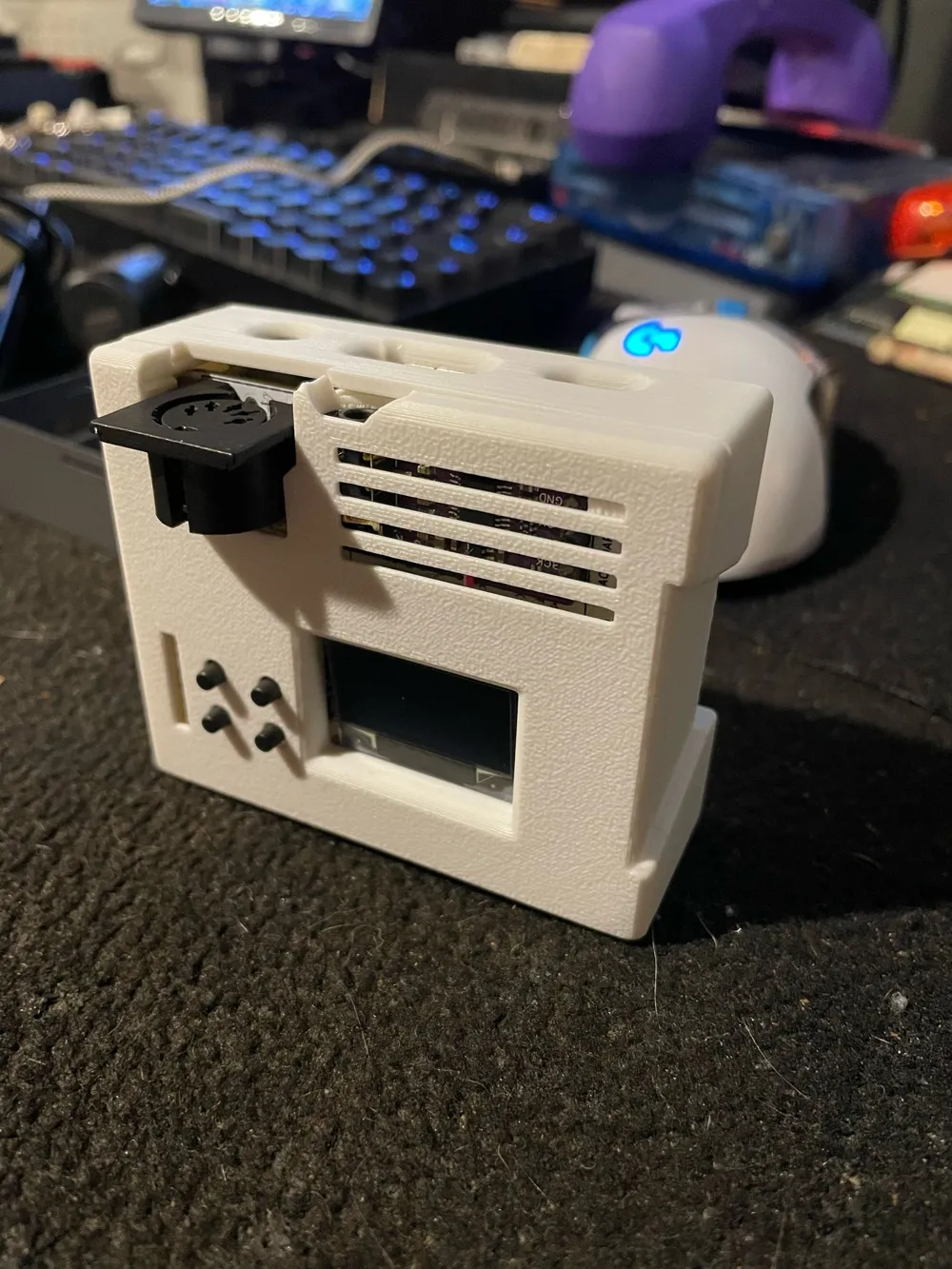

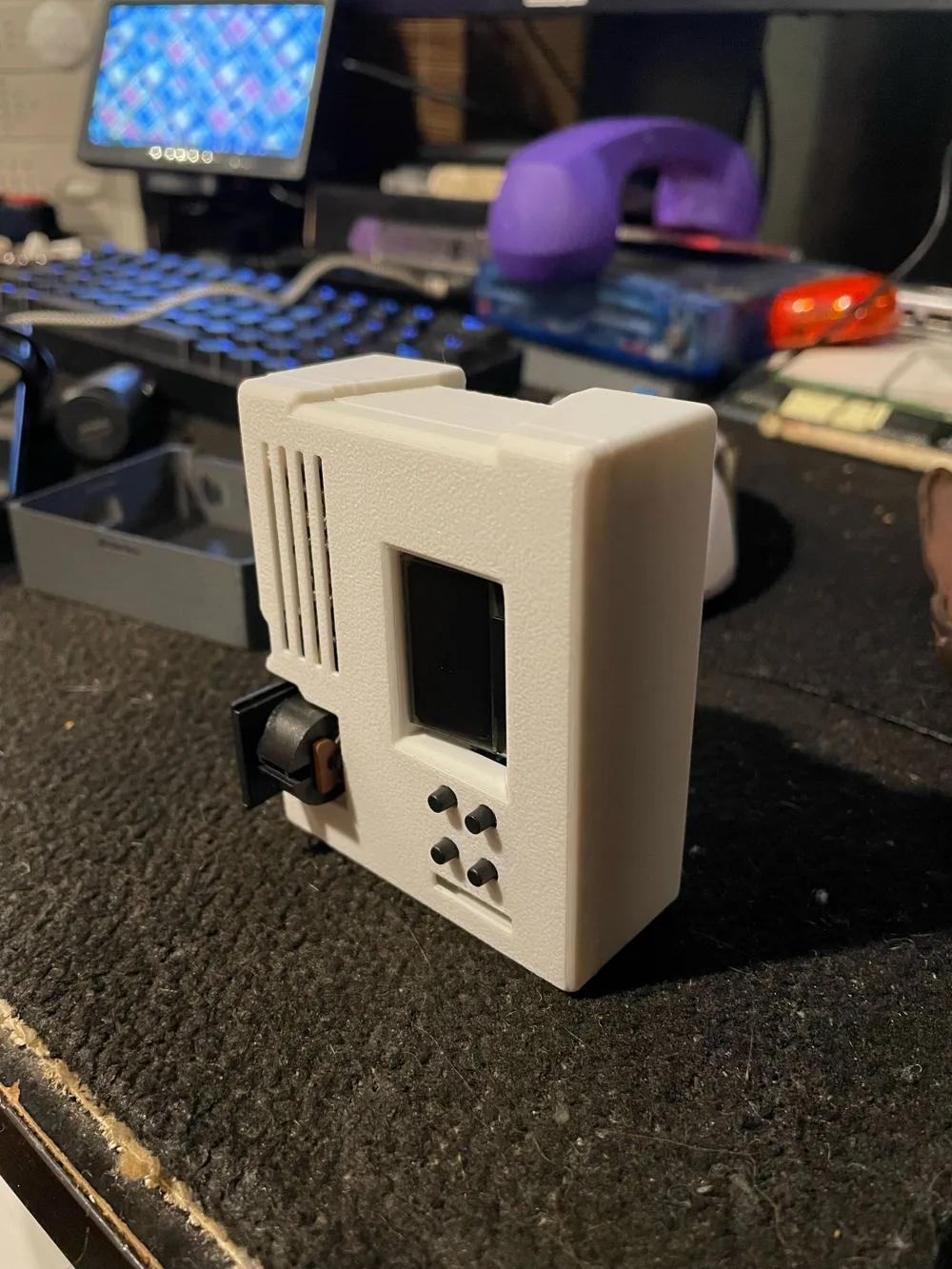

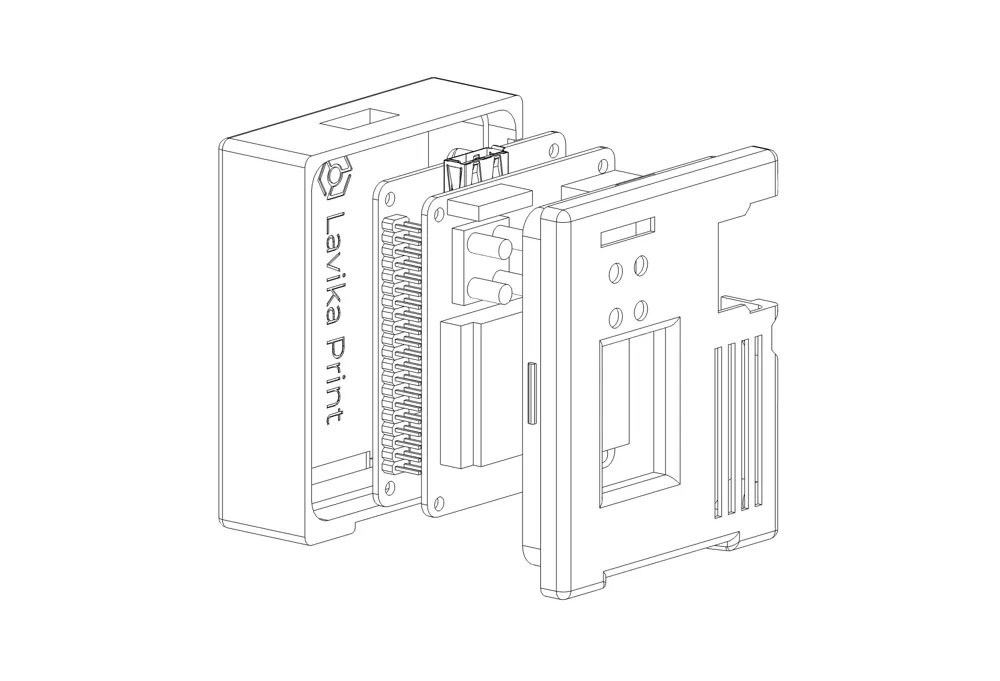

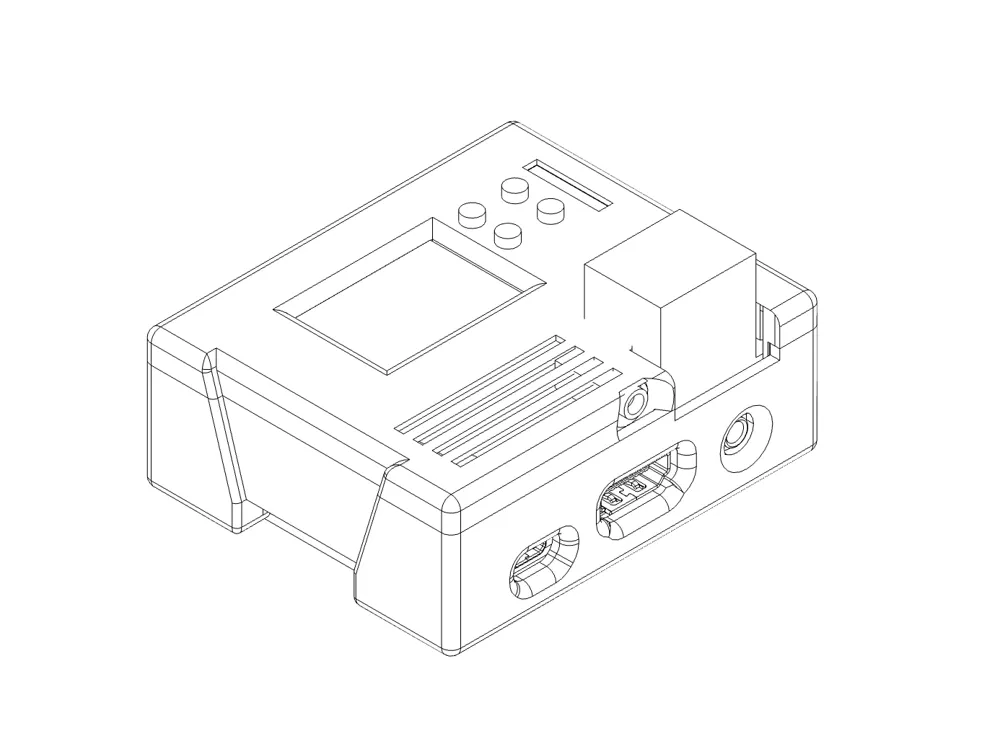

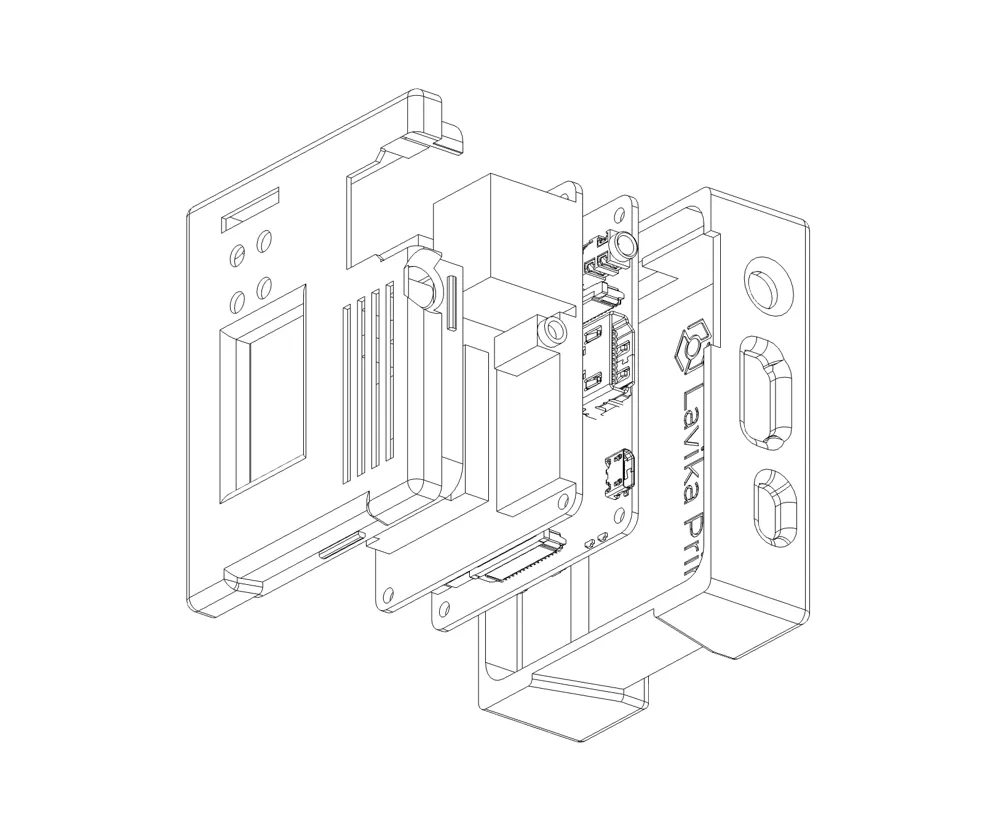

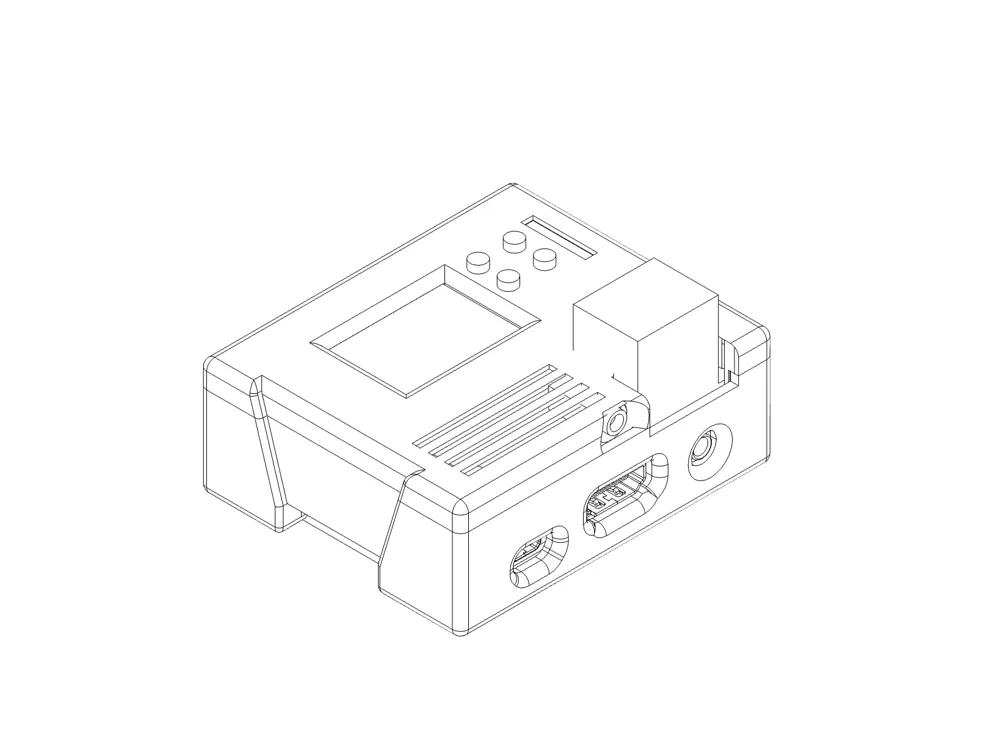

The box consists of two parts: a cover (with "MT32" printed on it) and a base, designed to securely house both circuit boards. In the reference image, you can see representations of the internal circuits to illustrate how the components fit together.

Material and Print Recommendations

• Material: PLA is suitable for this print, but PETG can be used for increased durability.
• Wall Thickness: Varies from 1.5mm to 2mm. Full infill is recommended as the parts are primarily thin walls, minimizing the need for extra infill.
• Printer Setup: The model is prepared in a 3mf file format, optimized for a Bambulab A1 printer.
• Supports: Tree supports are recommended only on critical points, such as the shaped port cutouts, to enhance print quality.

Assembly Instructions

The parts simply snap together thanks to a specially designed clip system, allowing for quick and easy assembly without any additional tools or materials.

Update: Enhancements in Version 2

In this updated version of the MT32 Pi Hat Box, several improvements have been implemented to enhance both functionality and user experience:

• Enhanced Design: The overall structure has been refined for improved aesthetics and usability.
• Increased Wall Thickness: Walls have been thickened to 2mm, providing greater durability and strength.
• Improved Closure Mechanism: The snap-fit system has been redesigned to ensure a more secure and reliable assembly without the need for screws or glue.
• Expanded Port Accommodations:
  • Audio Jack: Additional space has been allocated around the audio jack area to facilitate easier access and compatibility with various cable sizes.
  • SD Card Slot: The SD card slot area has been enlarged, allowing for more convenient insertion and removal of the SD card.

These updates aim to provide a more robust and user-friendly enclosure for the MT32 Pi MIDI Hat, enhancing both protection and accessibility.

License

This is an original design that supports the GPL3 project MT32 Pi MIDI Hat.
To maintain the same freedom, the design is shared under GPL3, with a restriction on commercial use.
