Short, dual color, 0.2mm layer, 3 walls, 15% infill

Designer

25 min

1 plate

Open in Bambu Studio

Boost

Released

Bill of Materials

List other parts

JMS583_Adapter x 1: https://aliexpress.com/item/1005006150650345.html

Description

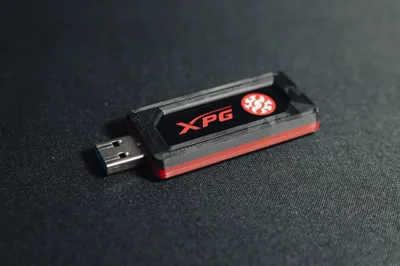

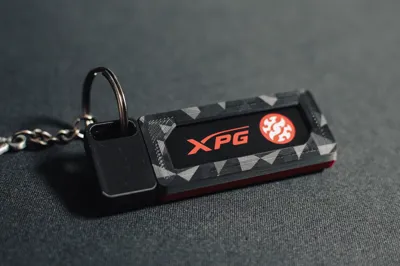

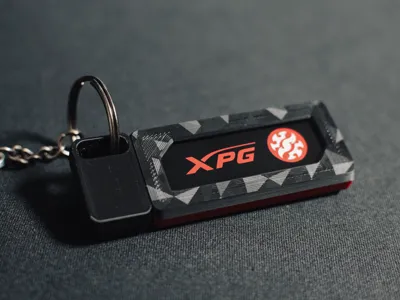

Transform your M.2 SSD into a portable USB drive with this custom-designed enclosure! Based on a budget-friendly adapter (JMS583), this case allows you to house an M.2 SSD in a compact, sleek form factor that resembles a regular flash drive.

The adapter can be bought on Aliexpress - https://aliexpress.com/item/1005006150650345.html

Two versions are available:

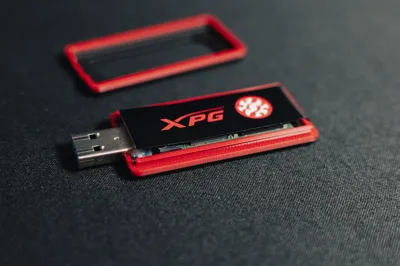

Full Enclosure: Fits the entire adapter and M.2 SSD, making it perfect for easy assembly with no modifications required.

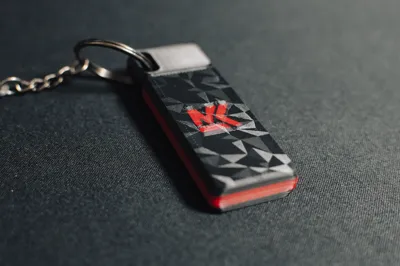

Shortened Enclosure (for 2242 SSDs): Designed for ultra-compact builds, this version is compatible with 2242 or smaller SSDs. Please note: it requires cutting the PCB on the adapter to fit, so proceed at your own risk. Carefully trim the board to avoid damage.

Both enclosures are straightforward to print and assemble, making your M.2 SSD more portable and convenient. Perfect for those looking to get more from their storage hardware without spending a fortune.
