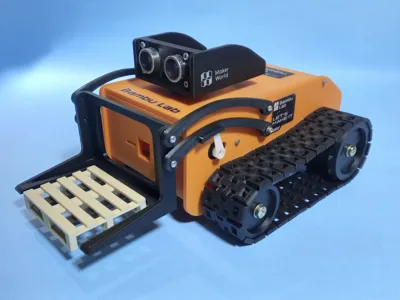

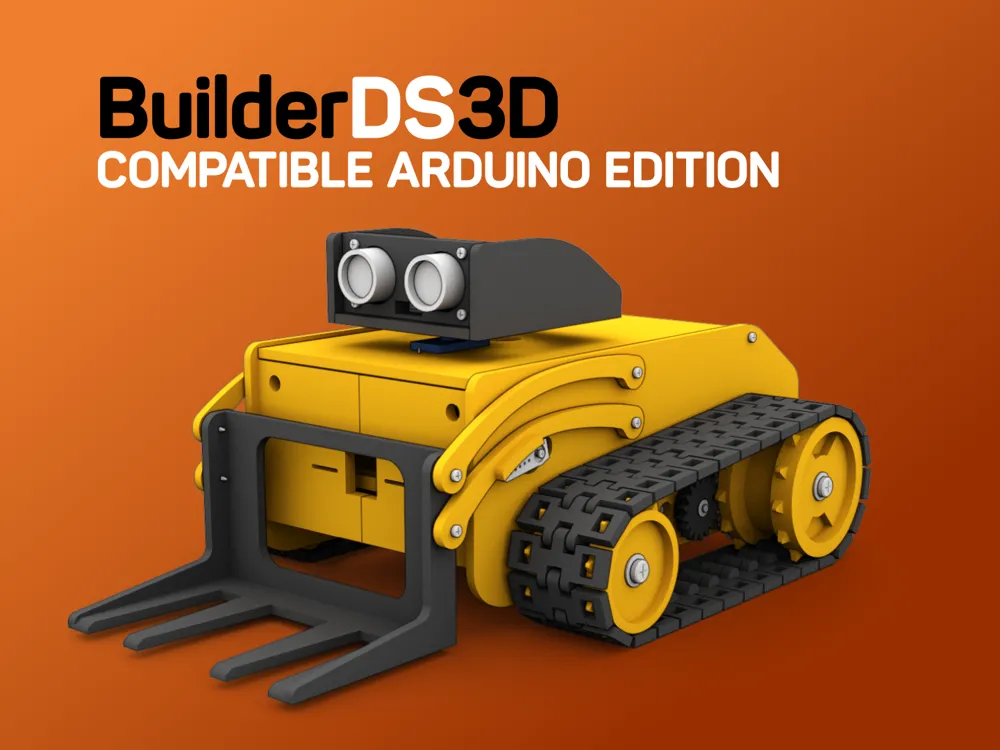

TRACK ROBOT Builder3D WITH FRONTAL GRIPPER
Print Profile(1)
Bill of Materials
- TT DC Motors (Yellow Motors) 1:48 x 2:
- Two Motors mini H-Bridge (L9110s or L298N) x 1:
- HC-SR04 sensor x 1:
- 18650 Battery and holder x 2:
- Arduino Nano + Standard Shield x 1:
- Capacitor 470uF 16v x 1:
- Mini ON / OFF switch 15x10.5mm x 1:
- Bluetooth HC-05 x 1:
- Jumpers x 1:
Description
Boost Me (for free)
Did you like it? Give me a boost!
Membership
Thanks for exploring my models! If you’d like to produce and sell my prints, consider joining to support my work. Click to learn more about licensing options!

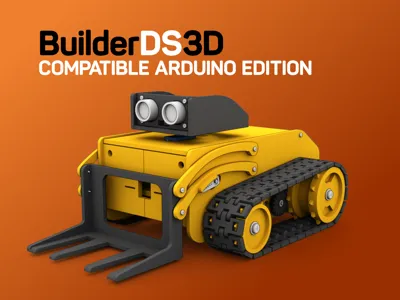

TRACK ROBOT Builder3D WITH FRONTAL GRIPPER FOR 3D PRINTING
BONUS: EBOOK FROM ZERO TO ROBOT
● Exclusive design
● Compatible with Arduino or similar boards
● Ideal for children to develop mechanical and robotics skills
● Easy to build and assemble
● 3D print PLA structure
● Screw fixing system
● Uses 2x TT DC yellow motors
● HC-SR04 sensor
● 1x Starndar 9g servo for head

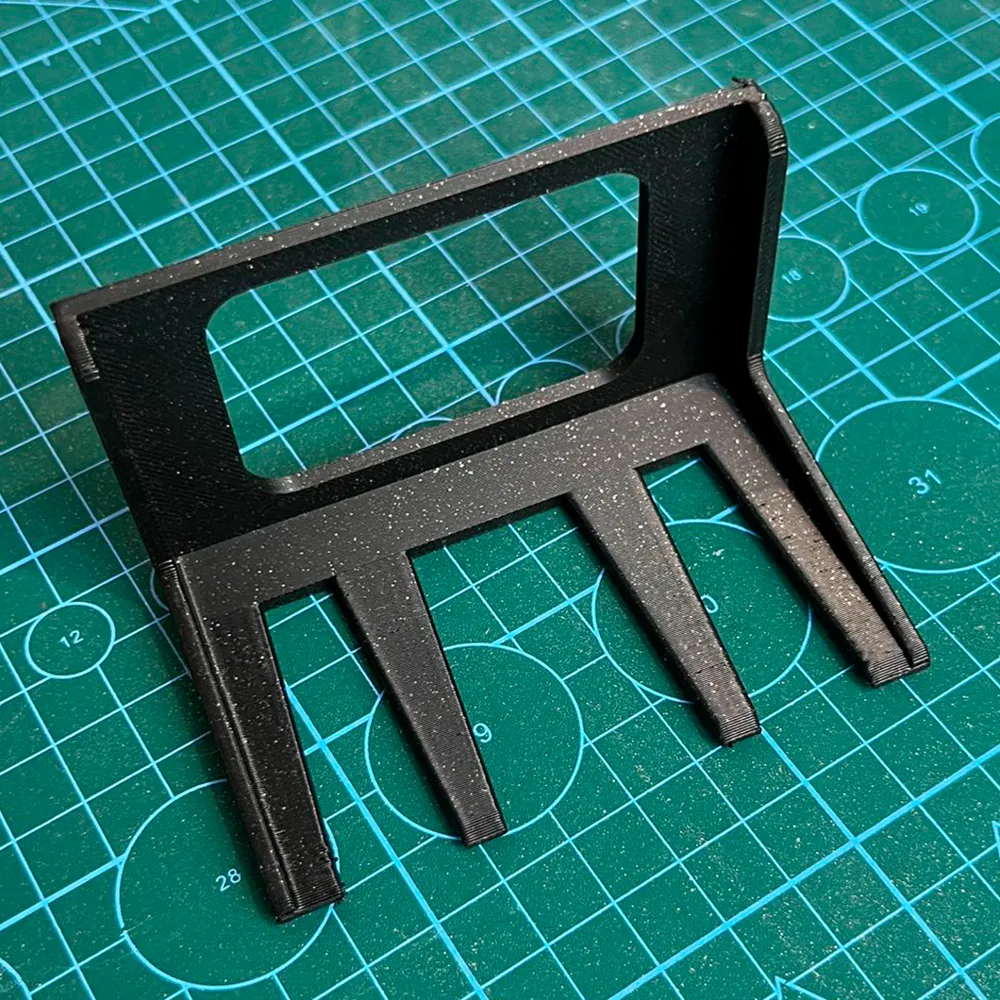

● Frontal cargo transport gripper
● Starndar 9g servo for gripper
● Control via Arduino Nano + Shield recommended
DESCRIPTION

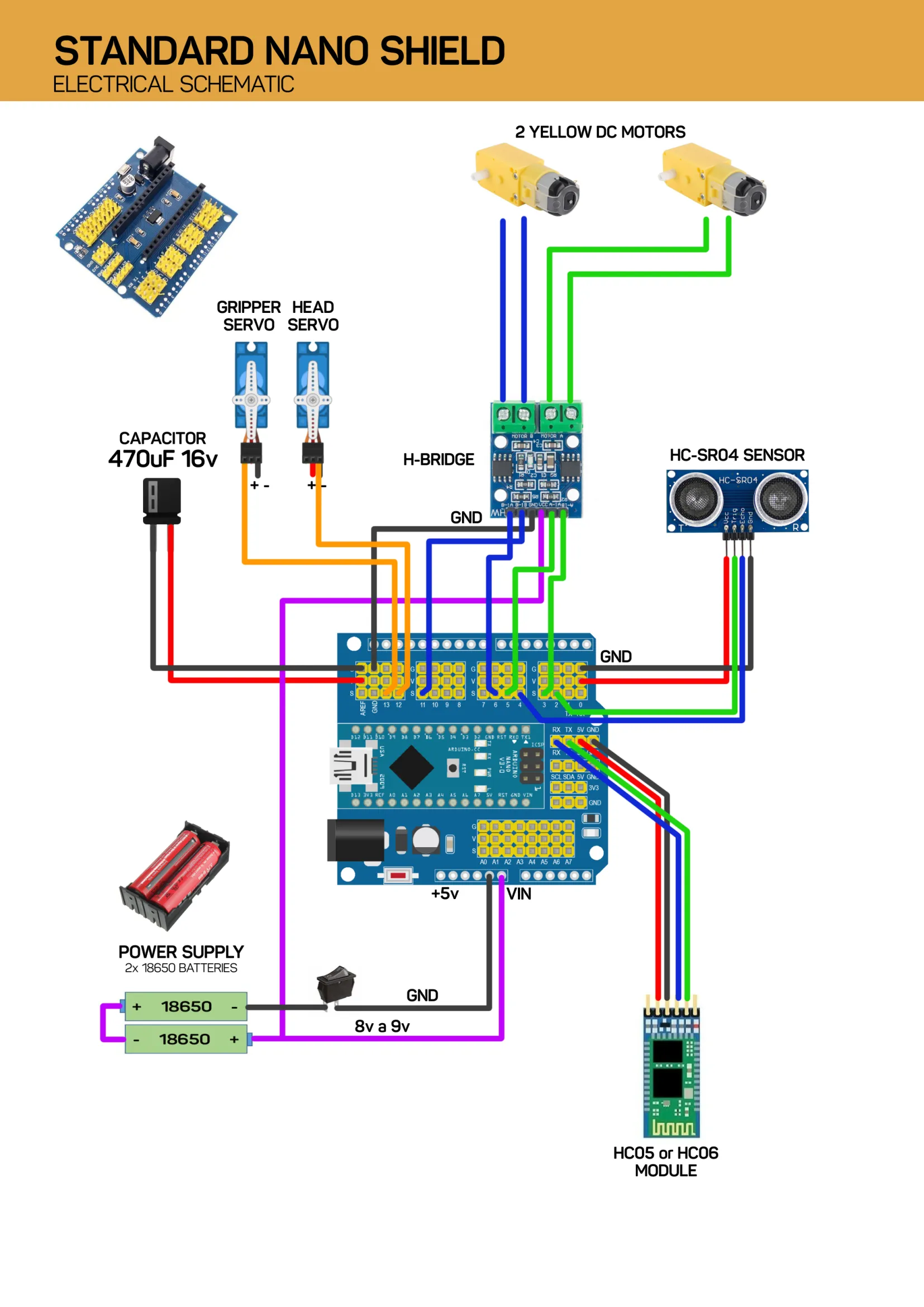

Builder3D is a tracked robot kit to be activated and controlled by Arduino. All parts can be made using 3D printing and fixed with screws. Comes with assembly manual, connection diagram and control code via Bluetooth app.
COMPONENTS NEEDED FOR ASSEMBLY
● 2 x TT DC Motors (Yellow Motors)
● 1 x Two Motors mini H-Bridge
● 1 x HC-SR04 sensor
● 2 Servos 9g (180 degree)
● 2 x 18650 Battery and holder
● Arduino Nano + Standard Shield
● Jumpers
● 1 x Capacitor 470uF 16v
● Mini ON / OFF switch
● Bluetooth HC-05
