Anycubic Kobra 3/Max/S1Combo - 5 Port Input Hub V2

German description below

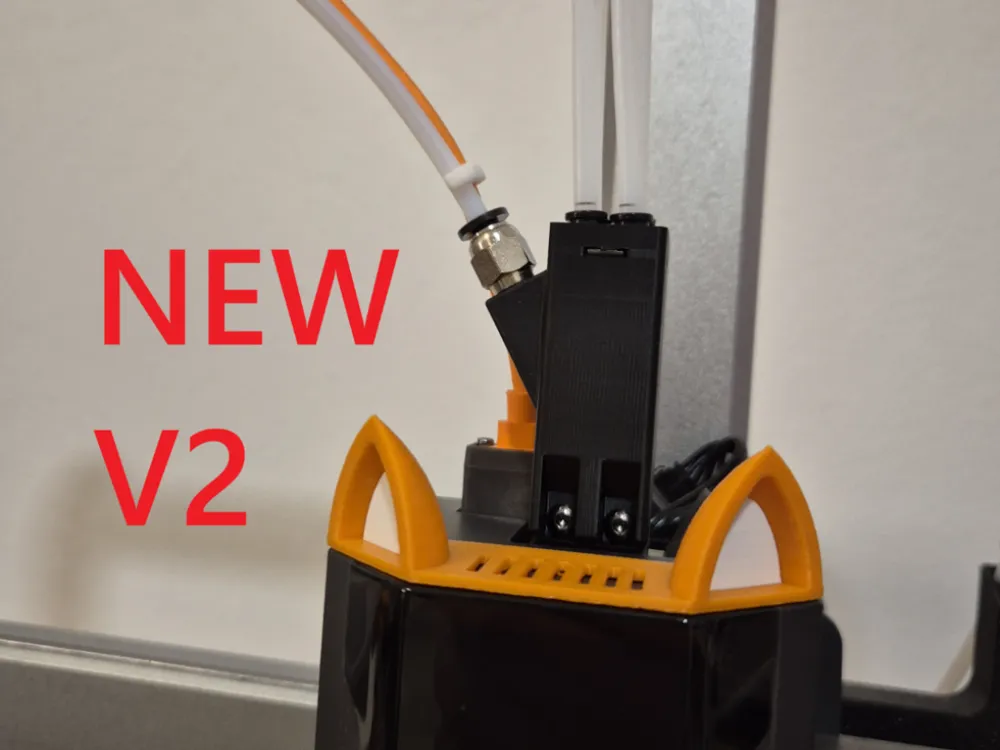

V2:

VERSION 2 IS HERE! FINALLY!
I apologize for taking so long I really don't know why I avoided it so much Anyway thank you for your patience and the numerous downloads :)

V2 replaces the whole hub instead of extending it like V1
It comes in 2 forms One is like the last version 1.1 which doesn't require any additional hardware (the v2 files) and the second form is designed for a PC4-M6 tube connector so the tube can't slip out anymore (the v2 (PC4-M6) files)
I also added the inverted files for both forms as I realized it's required to fit on the Kobra 3 Max

I recommend printing it with the Arachne wall generator and 0.16mm or lower layer thickness for the details
However I also tested it with 0.2mm and a classic wall generator and it also worked out for me PLA or PETG doesn't matter Both work great No supports needed I didn't even need a brim

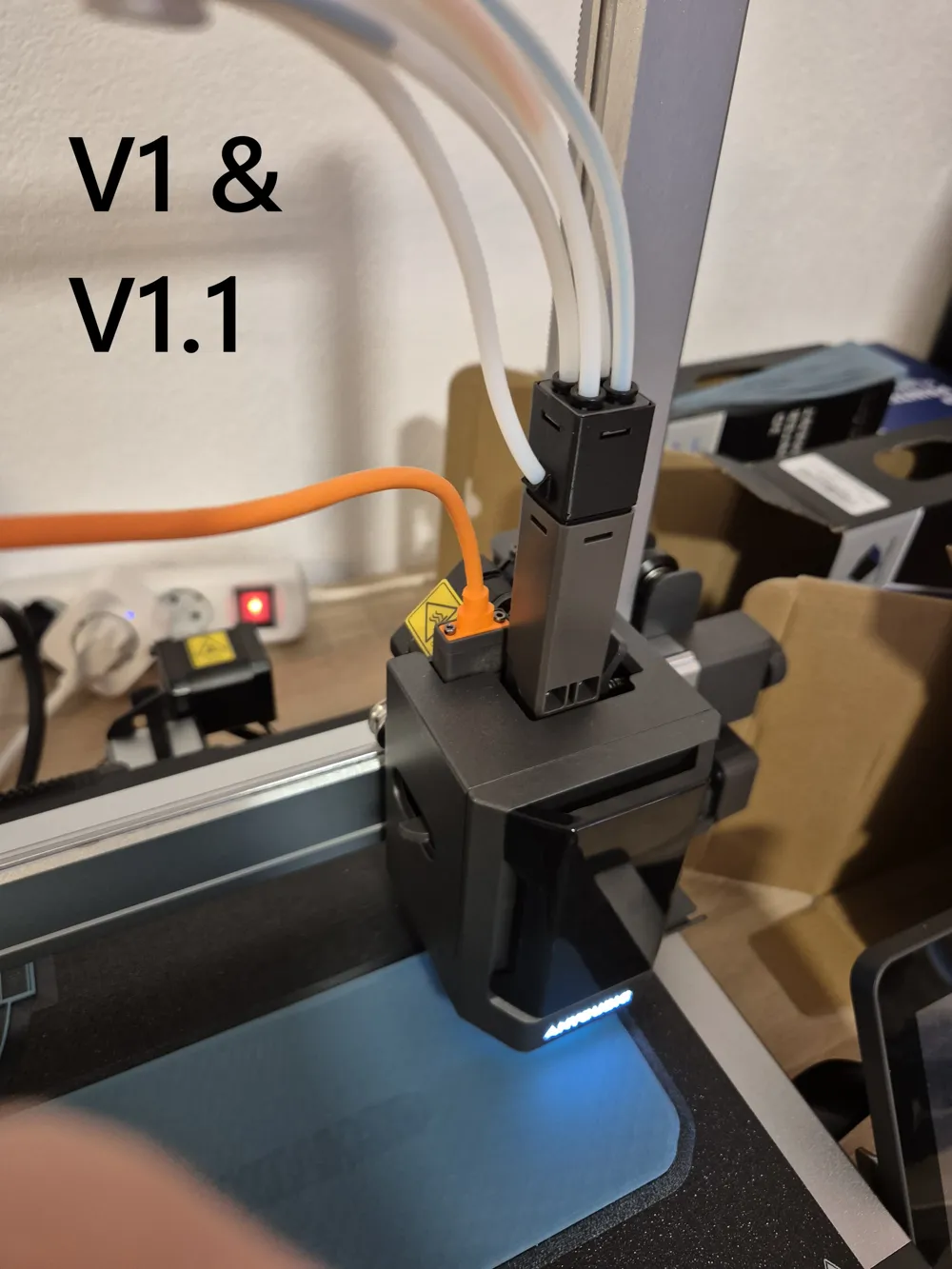

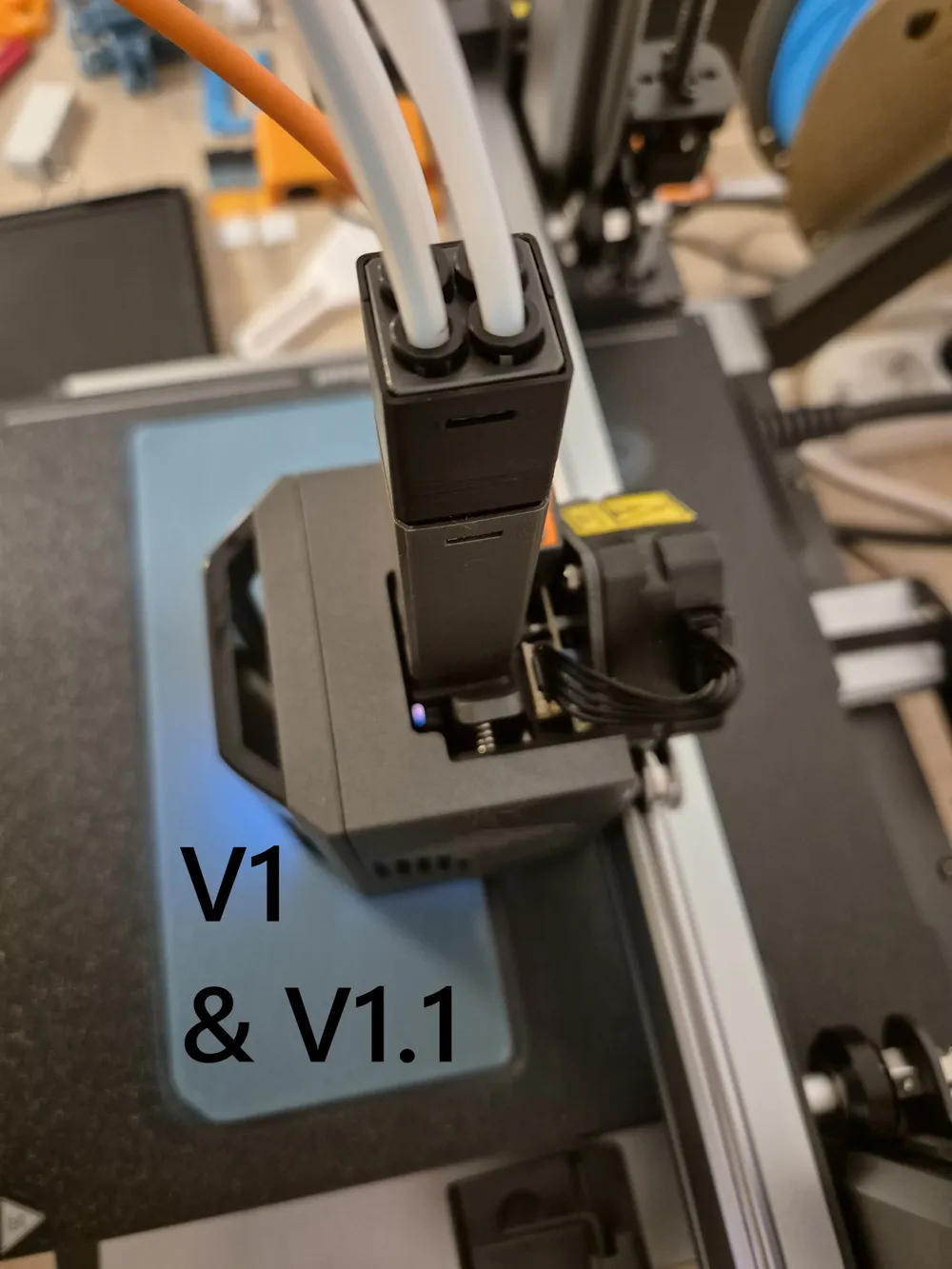

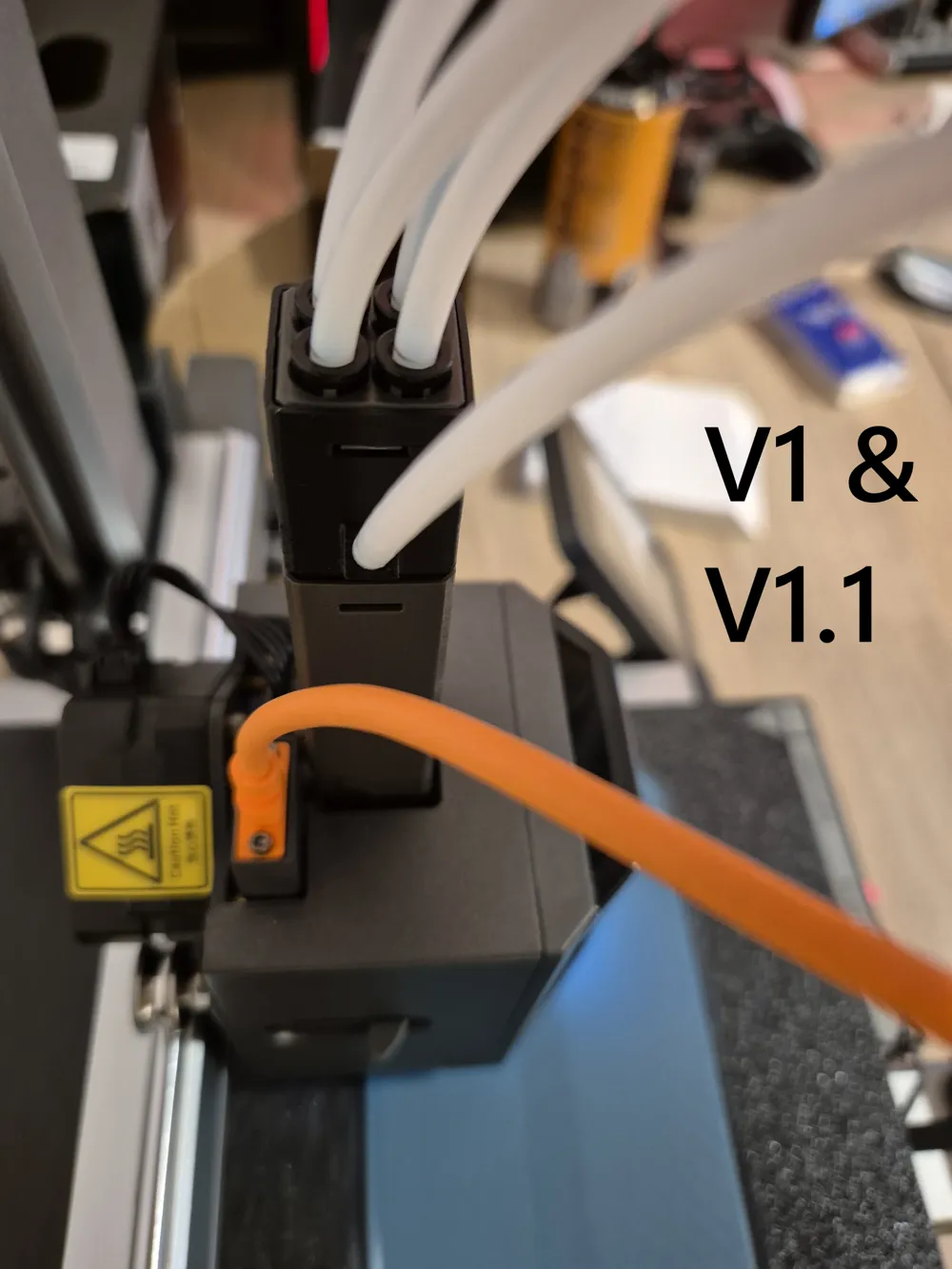

V1.1:

It was pointed out to me that the model was slightly tilted which created a step when slicing This has now been fixed

Original description:

I was annoyed by switching the tubes every time I wanted to use the spool holder on the printer instead of the ACE PRO So I designed something myself to keep all 5 tubes connected at all times
(Only for V1.1: I recommend a layer thickness of 0.16mm ("QUALITY" in the Anycubic Slicer) I can't guarantee the part will fit with another thickness because I haven't tried it)

It is NOT possible to print with 5 colors with this part!
It just makes it easier to switch between the ACE PRO and the spool holder on the printer
