Multi-Sensor Enclosure for ESP32/ESPHome
Print Profile(1)
Description

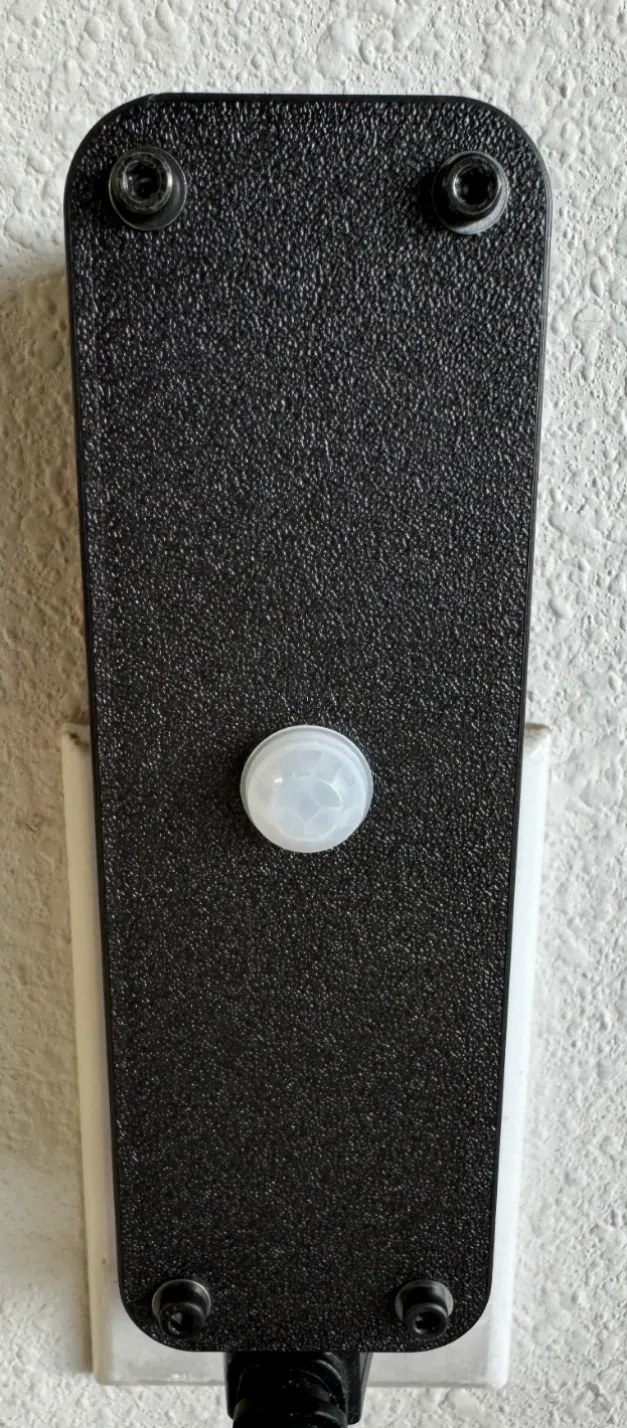

This is my very custom multi-sensor enclosure for my ESPHome / Home Assistant setup.

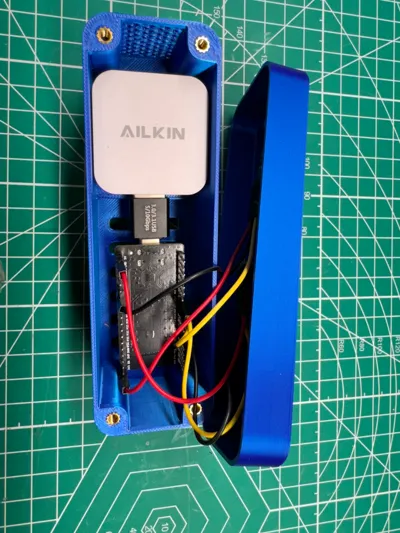

Parts:
USB Wall Plug / Charger (USA): https://www.amazon.com/dp/B07TB5W6Y6?ref=ppx_yo2ov_dt_b_fed_asin_title

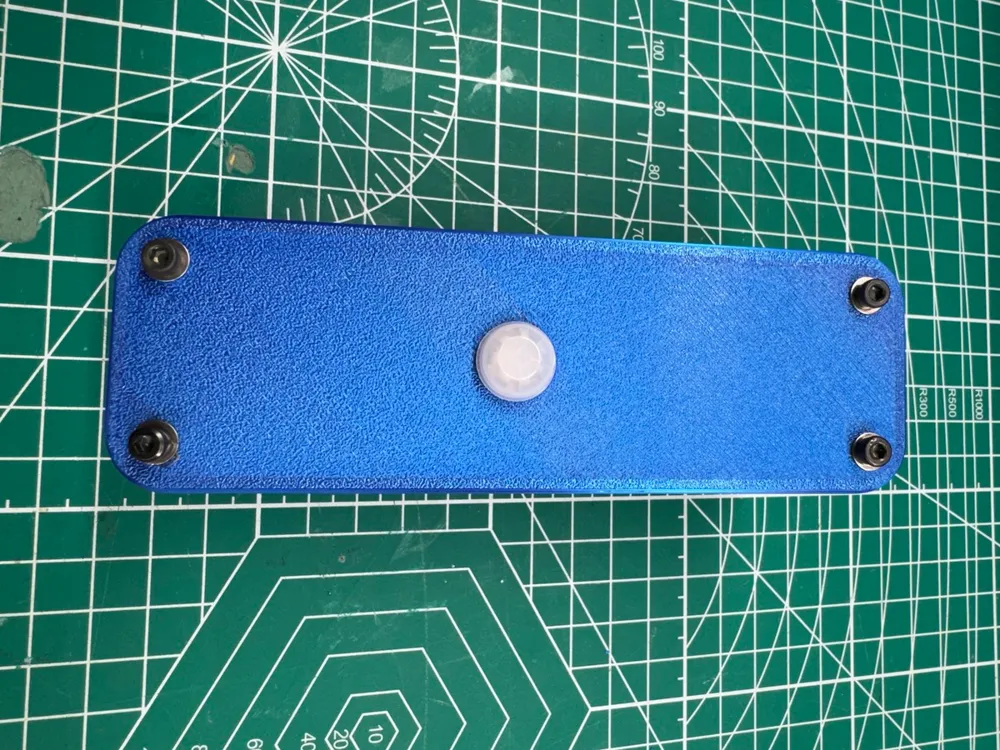

AM312 PIR Motion Sensor: https://www.amazon.com/dp/B07RT7MK7C?ref=ppx_yo2ov_dt_b_fed_asin_title
USB-A Male to USB-C Male Adapter: https://www.amazon.com/dp/B0DGKKYW81?ref=ppx_yo2ov_dt_b_fed_asin_title
Dupont Terminal Block: https://www.amazon.com/dp/B08G1D97YY?ref=ppx_yo2ov_dt_b_fed_asin_title

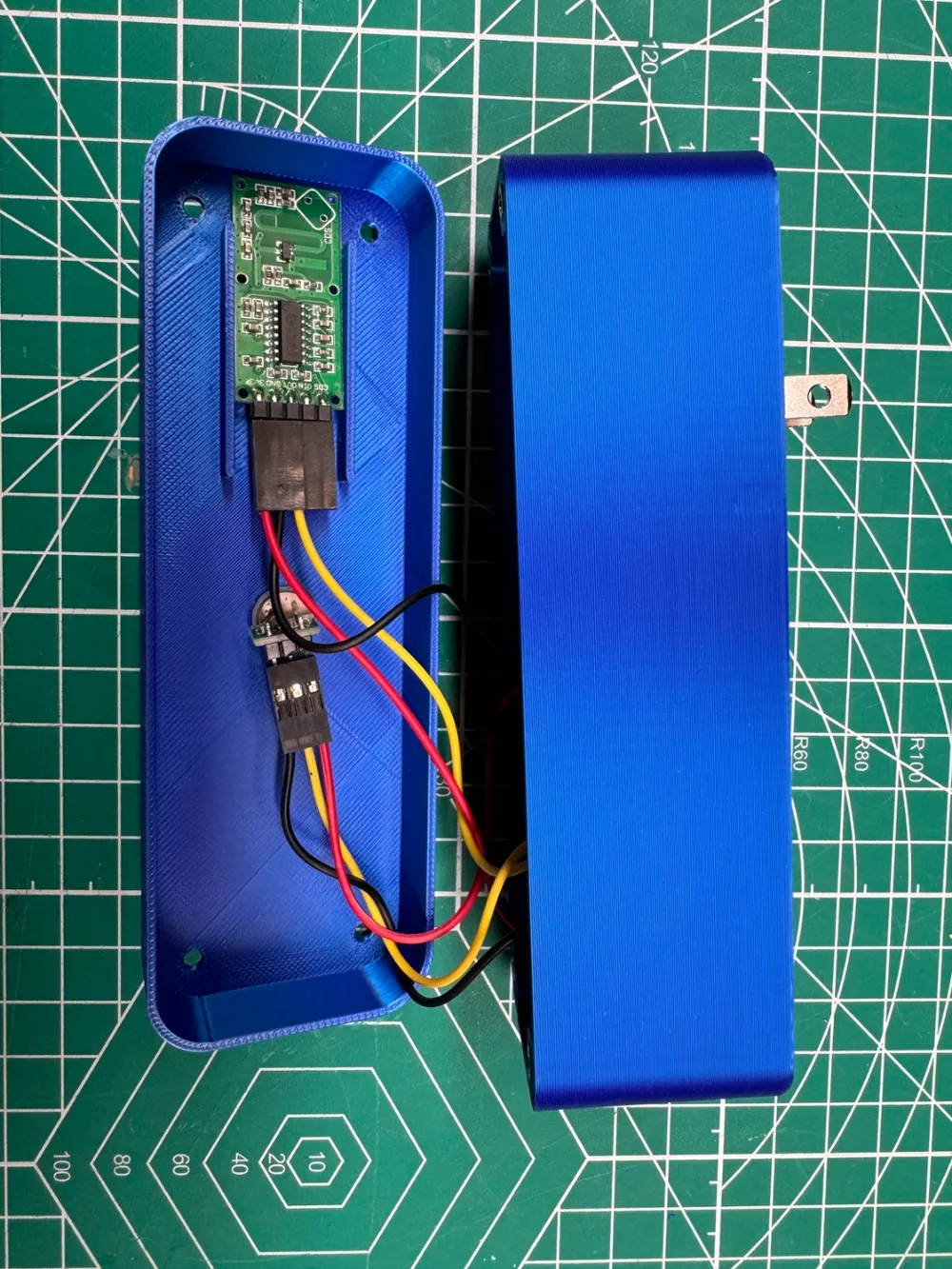

HiletGo RCWL-0516 Radar Motion Detector: https://www.amazon.com/gp/product/B082KRTKYC/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
BME280 Temp/Humidity/Pressure Sensor: https://www.amazon.com/gp/product/B0CLCRF1QS/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
HiletGo ESP WROOM 32: https://www.amazon.com/dp/B0CNYK7WT2?ref=ppx_yo2ov_dt_b_fed_asin_title
M3x5.7 Threaded Inserts: https://www.amazon.com/gp/product/B08BCRZZS3/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
M3x6 Bolts with Washers
Notes:

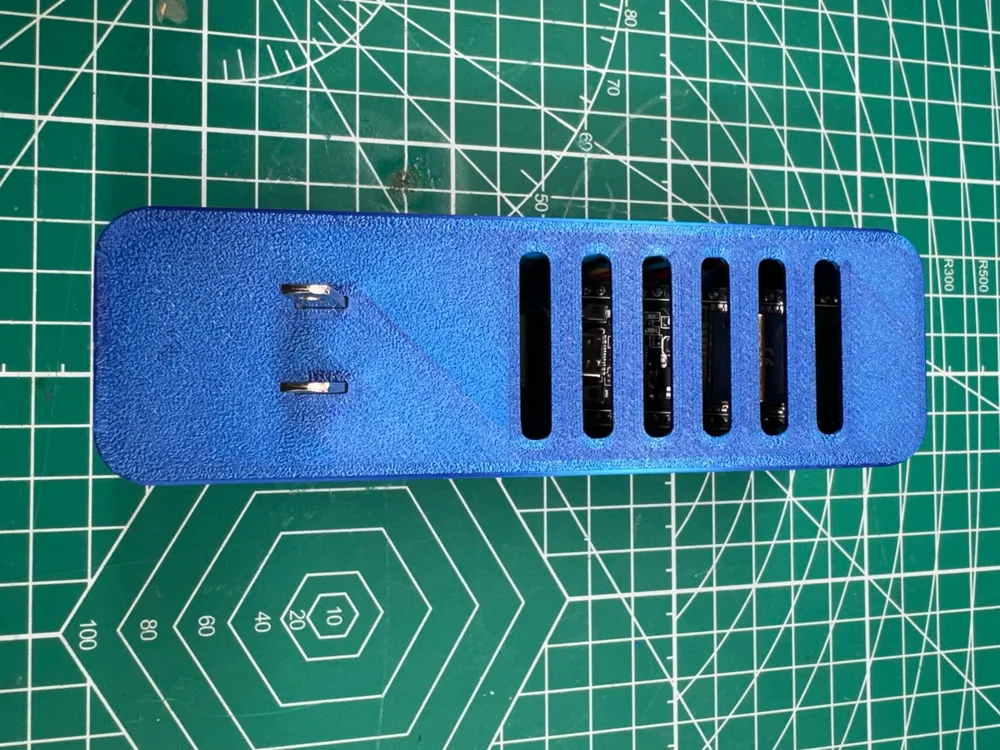

It specifically design for this wall plug and the fit is very tight.
The ESPHome/Home Assistant setup and programming is left as an exercise for the reader :-)
Any temperature sensor should work (BME280, DHT11, DHT22, SHCT3, etc.)
