18th-24th Scale RC Crawler Course-Set 1_Obstacles
Print Profile(1)
Bill of Materials
- M3x8MM-Screws x 20: Can,be,8-12mm
Description
Hey everyone! I hope y'all are doin well.
If you haven't noticed yet, I've recently gotten back into the hobby of RC cars and trucks. My latest addition has been a Traxxas TRX4M crawler.

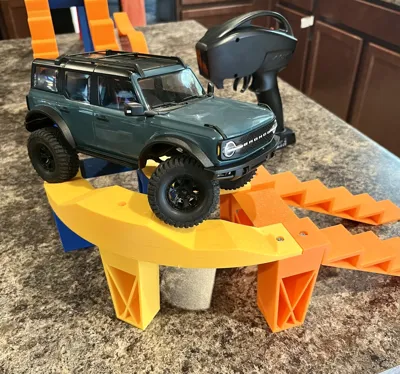

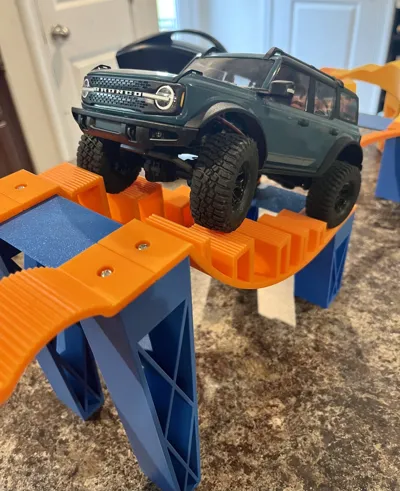

I wasted no time in designing/ printing some fun obstacle course pieces. This one isn't too challenging but making it around the 90D turn has proven to be the most difficult section.
I've had a blast on this project and I'm already working on a second course. So I'm going to make this set free to the public and also publish it to my Patreon page.
Every course set I design from here on out will be made exclusively available on Patreon for paid members only. Link Directly Below:
patreon.com/kprintz3d
Compatible with most 1/24 and 1/18 crawlers like the Traxxas TRX4M, Axial SCX24, and FMS FCX24.
This one prints pretty simple:
0.2mm layers(All)
3 walls
10 Top/Bottom Layers( Really adds rigidity and durability to the parts)
10-15% Gyroid Infill(Infill Combination Enabled)
All pieces can be assembled with M3 screws anywhere from 8-12mm. Use washers for best result. Do not over tighten. If you do strip a hole, you can attempt using a M3.5 screw or a similar size screw in a wood screw style. You'll need 20 screws and washers.

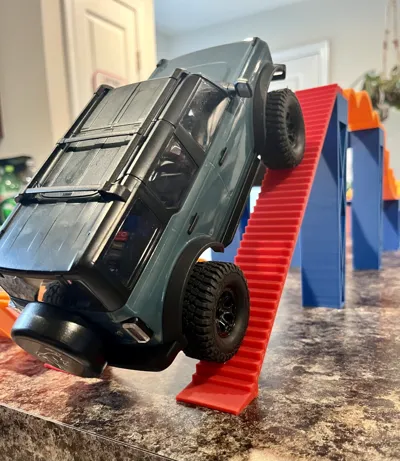

I'm including a 3MF for the whole kit set up for a Bambu P1P. It includes some near vert ramps that my stock truck could not climb with the body attached. They go in place of the red 45D ramp shown in the pictures.
And of course I'm also including all the STL files and some renders of it assembled from various angles.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
