Description

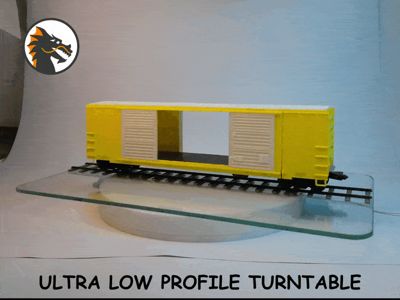

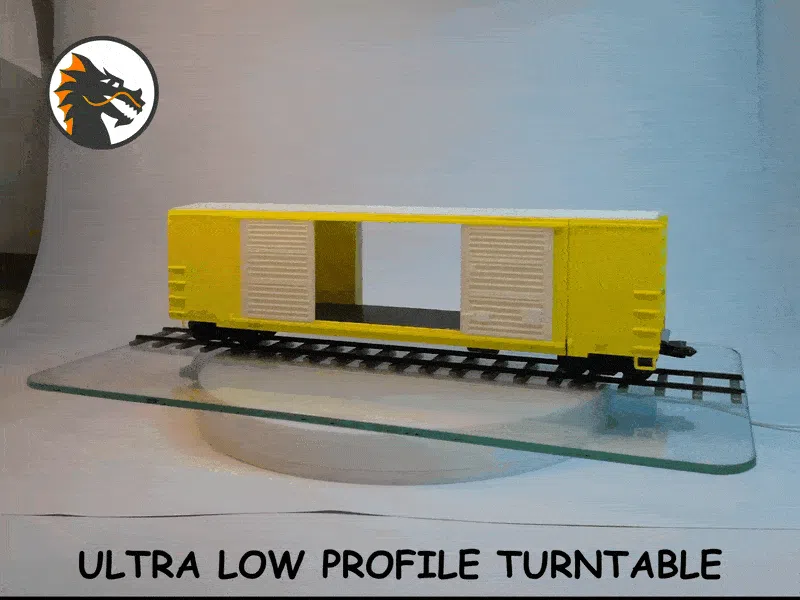

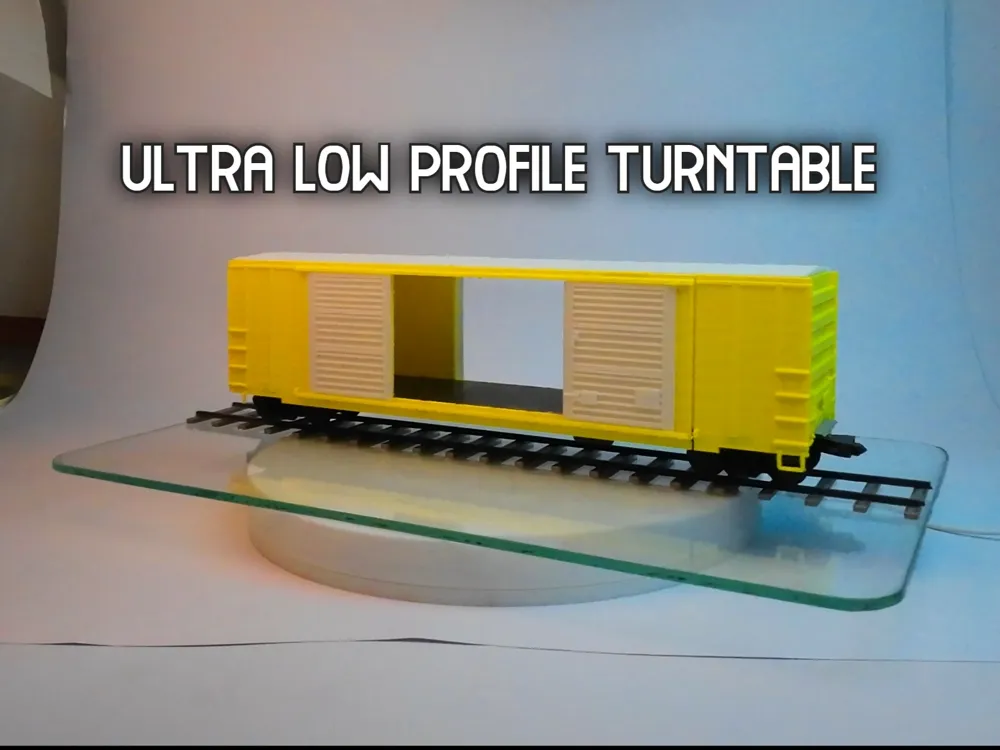

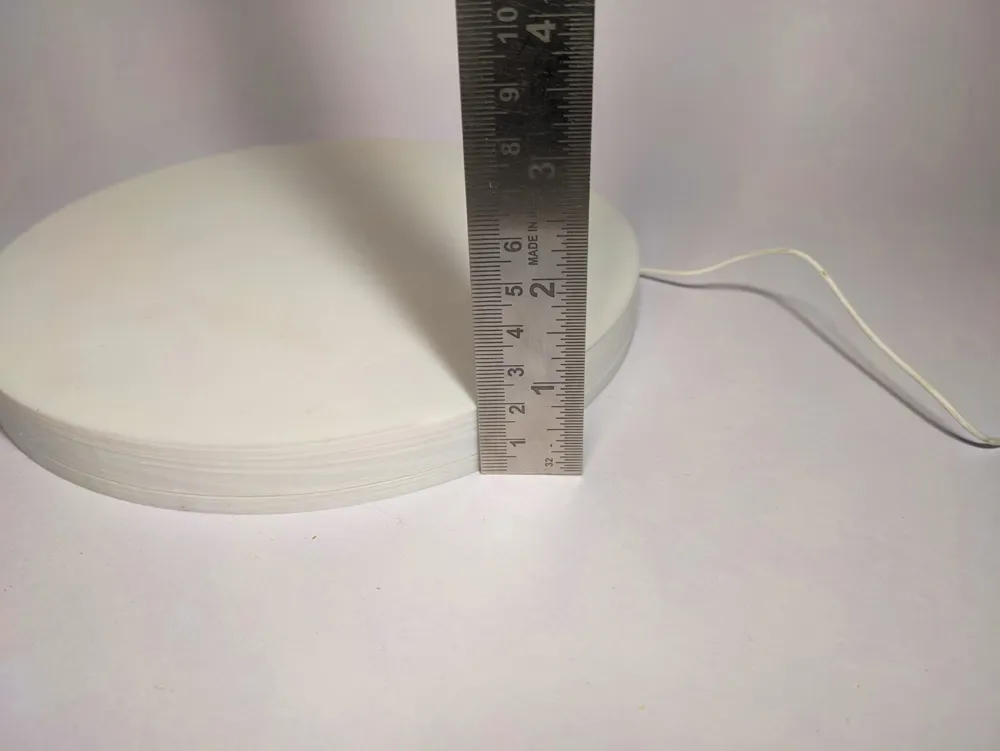

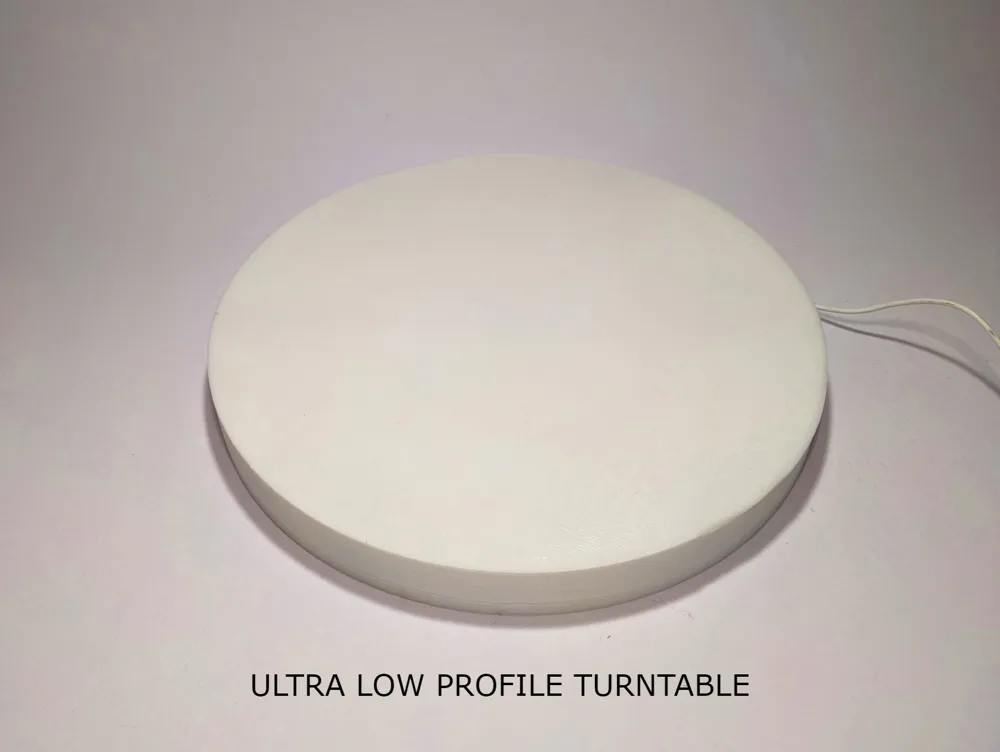

Low Profile Turn Table with height of only 20mm

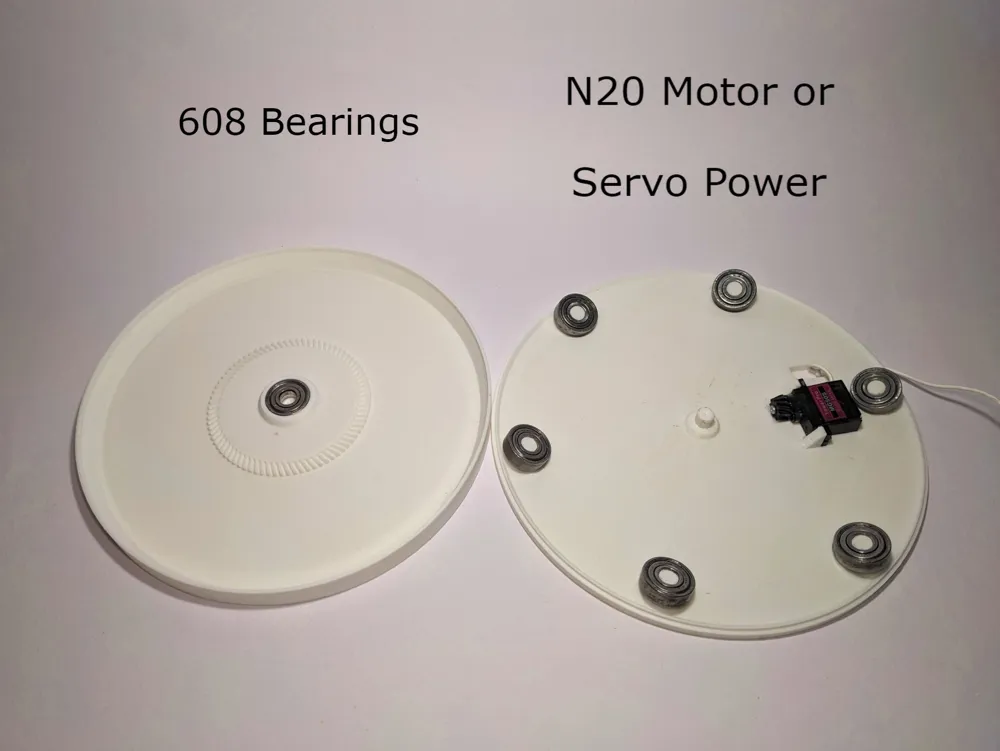

There are two power options, N20 motor and servo motor
Hardware:
N20 Version:
- N20 motor 100rpm
- M2 12mm screw (X2)
- 608 baring (X7)
Servo Version:
- Servo motor
- M2 6mm screw (X2)
- 608 baring (X7)
You can use only 4 bearings if you need light loads.
If you are opting for the servo option, you need to modify it for 360deg rotation. We used a servo with a damaged circuit.
