Gridfinity base for IKEA Kallax Drawer Inserts

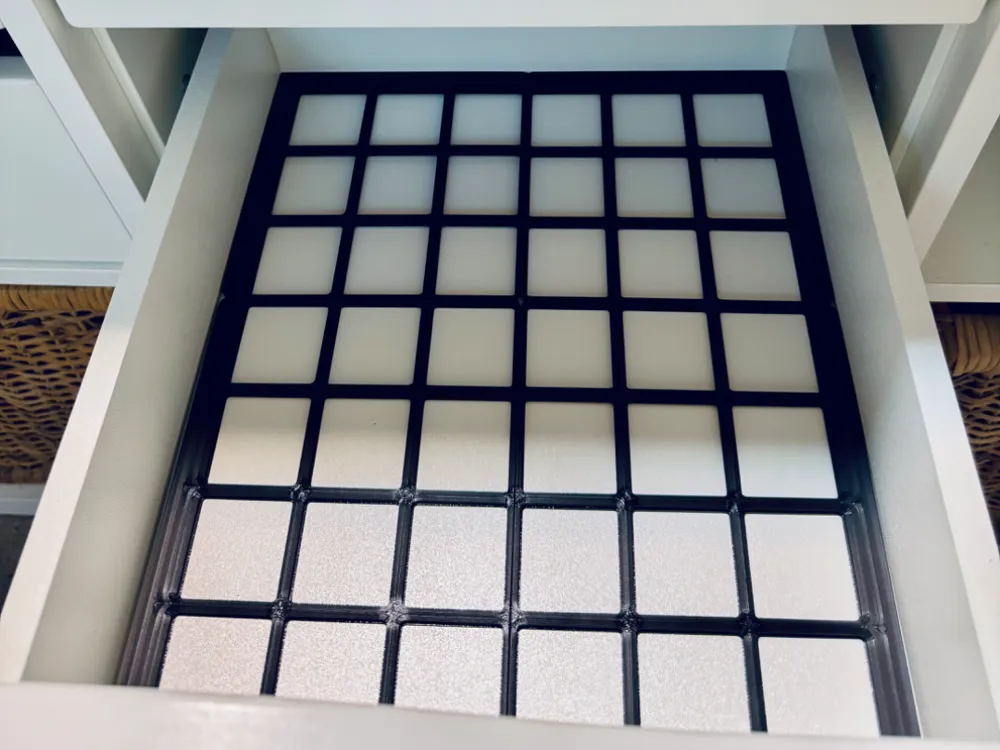

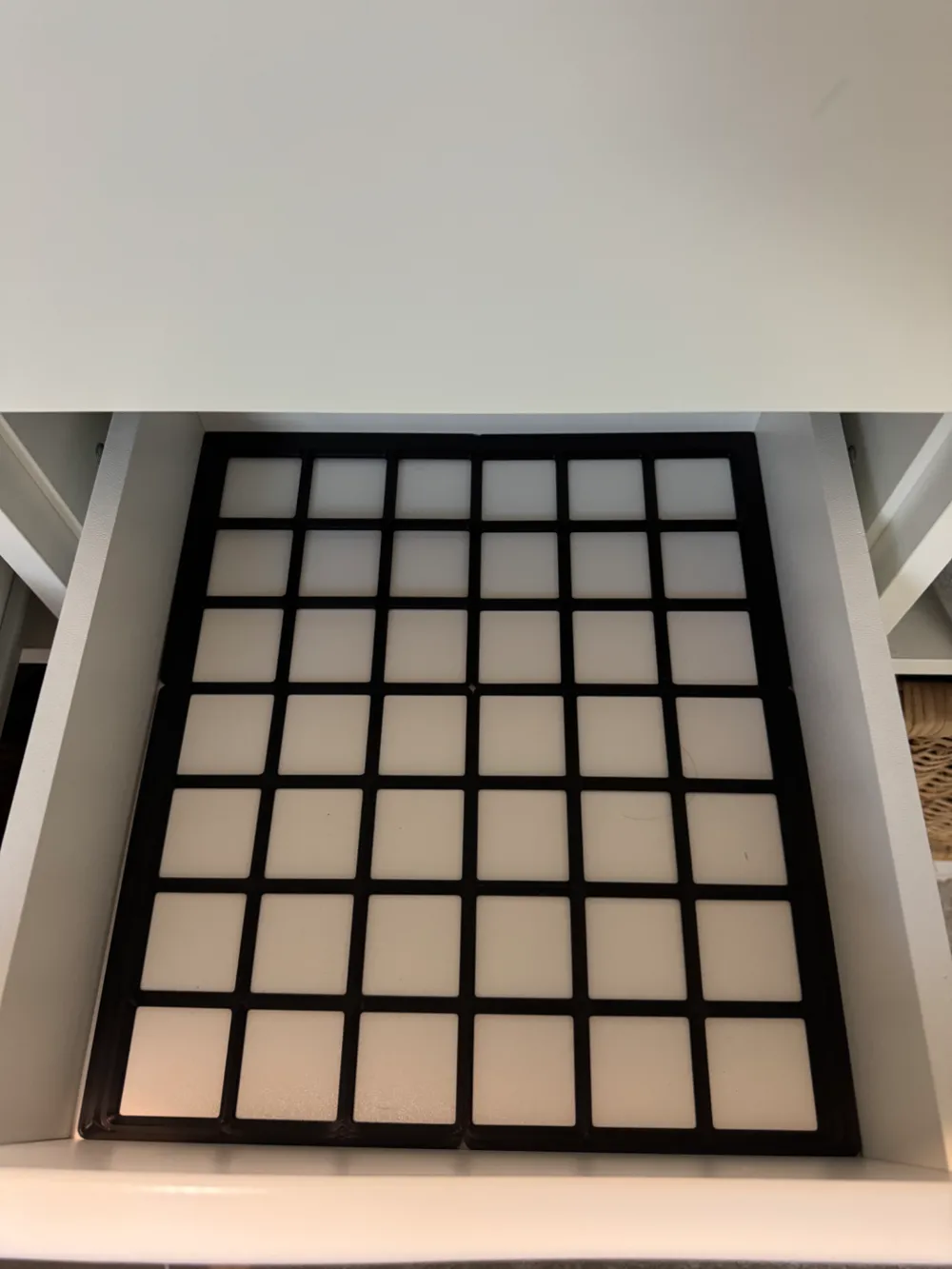

Designed using the Fusion 360 plugin. It's a 7x6 grid with extra padding to sit nice and snug.

Boost Me (for free)

Comment & Rating (220)

@ElCapi

Print Profile

0.2mm layer, 2 walls, 15% infill

Fit perfectly in my Ikea drawer. Printed fine on A1 with elegoo PLA+.
