P1/X1 AMS机甲风干燥盒

Now updated for AMS2 PRO: AMS2 PRO Mech-Style Desiccant Box from PCH3D - MakerWorld

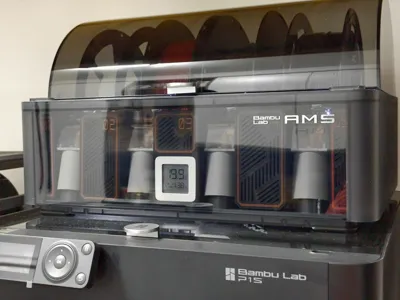

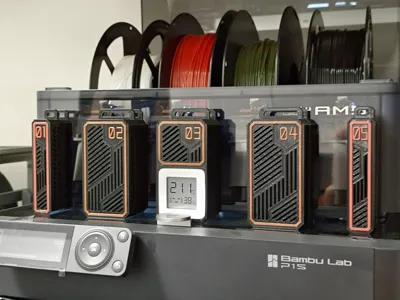

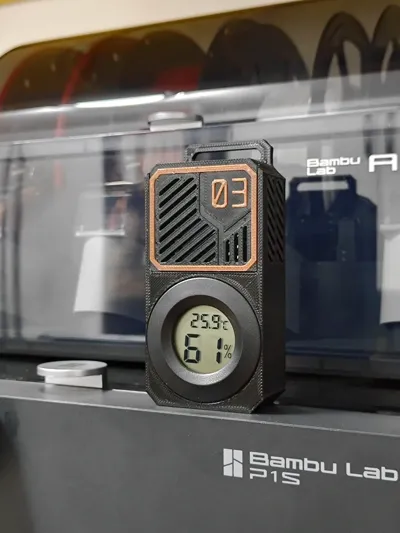

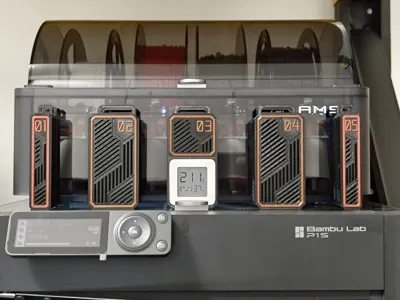

A mech-style desiccant box for the P1/X1 series, compatible with Xiaomi Thermometer 2 and circular thermometers

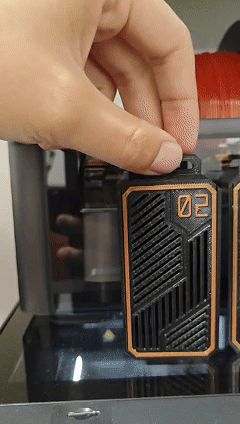

Its greatest advantage is that the spool does not need to be removed for access and storage, and the top features a handle for convenient desiccant replacement

The sliding opening is larger, eliminating the need for a funnel during desiccant replacement, and the secure latch ensures no leakage after closing

The thermometer's rear is镂空, facilitating battery replacement

It is recommended to print only the middle three boxes; the side desiccant boxes are smaller. For optimal results, print all of them

Multi-color printing requires no wiping tower and no supports

Please note:

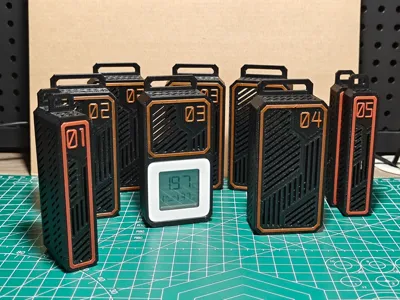

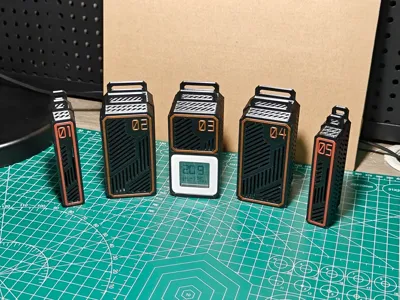

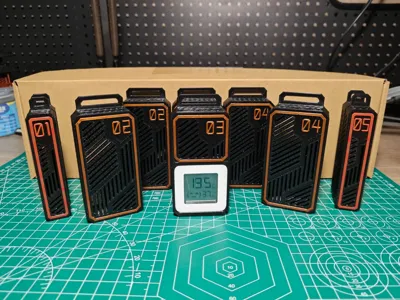

01: Each numbered box has two thicknesses (e.g., No. 1 has a thick and a thin version; Nos. 2 and 3 are the same). They are designed to stack, allowing for convenient desiccant replacement without removing the spool and maximizing space for more desiccant. When placing the desiccant boxes after printing, place the thicker ones first, then the thinner ones.

02: Surface ironing is enabled by default in the quality settings for a finer surface finish, but this increases printing time. Disable it for faster printing.

03: It is recommended to use 4A molecular sieve desiccant, which offers superior drying capabilities and is less prone to breakage. Color-changing silica gel desiccant is not recommended, as it tends to crumble over time, potentially falling out through gaps.
