VW T5 T6 Double Bench Armrest
Print Profile(1)
Bill of Materials
- Zylinderschraube x 1: M10x70
- Mutter x 1: M10
- Holzplatte x 1:
- Polster x 1:
- Bezug x 1:
Description
Boost Me (for free)
Boosting is appreciated ;)

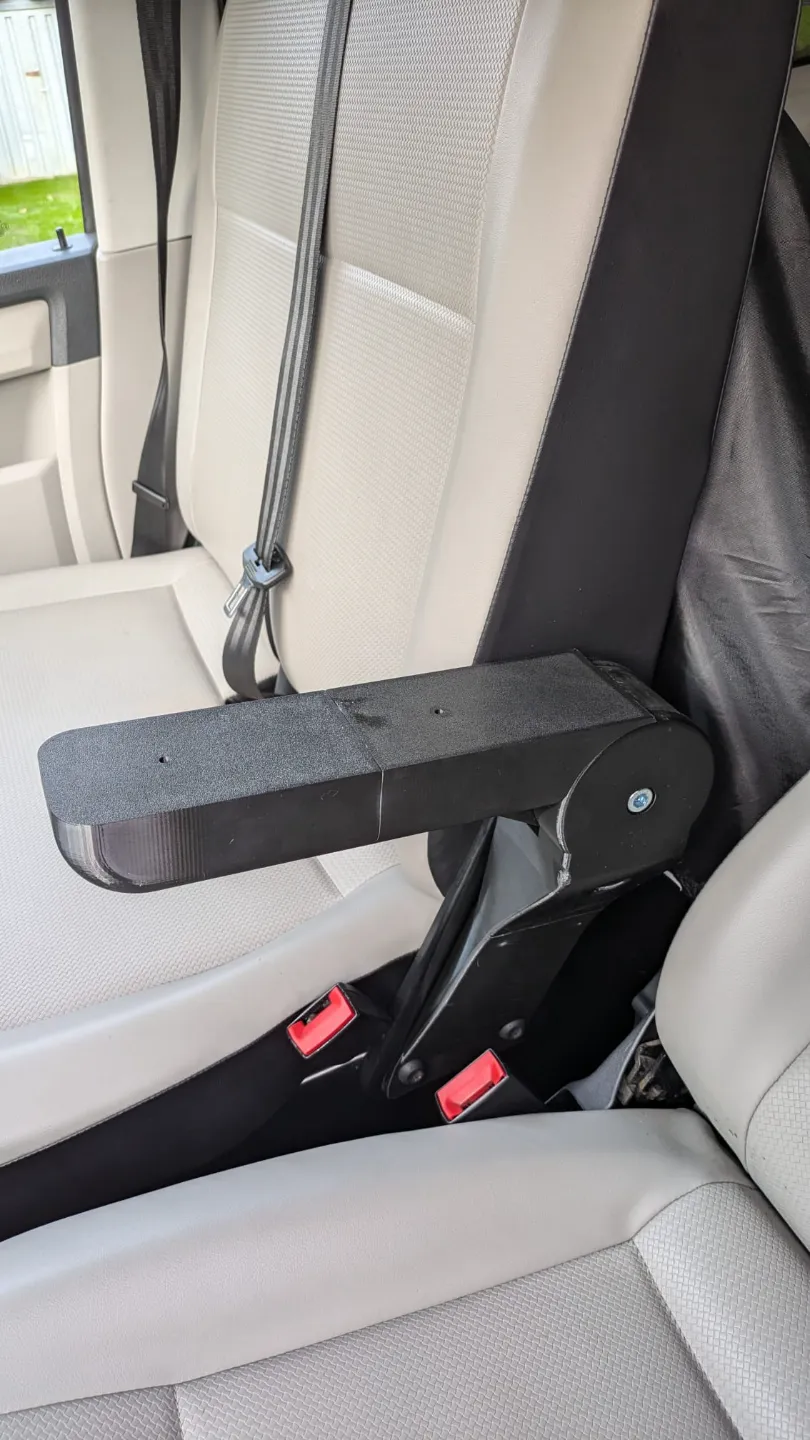

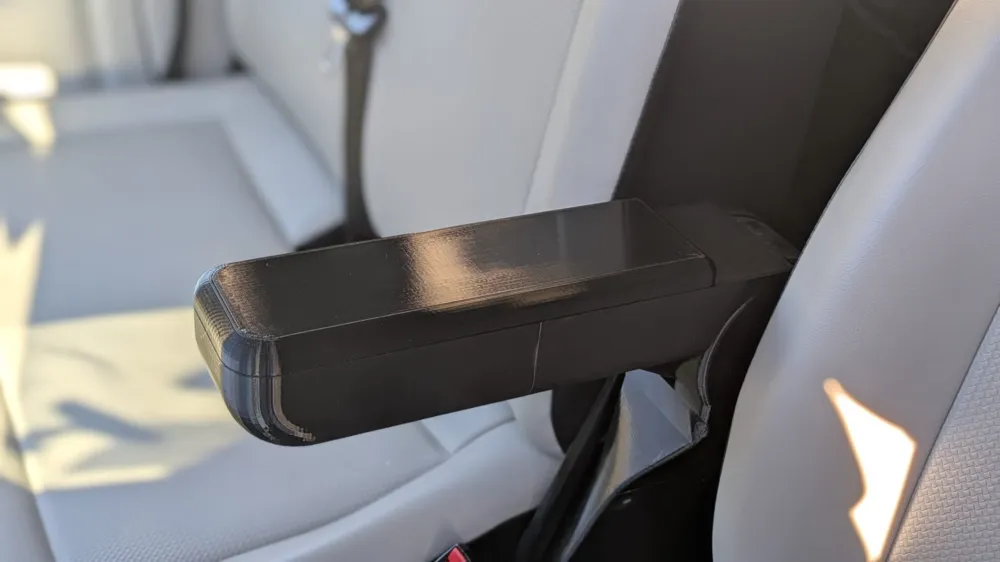

This is a center armrest for the VW T6 Transporter with a double bench seat. It attaches to the triangular plate of the double bench seat and should therefore also fit the T5.

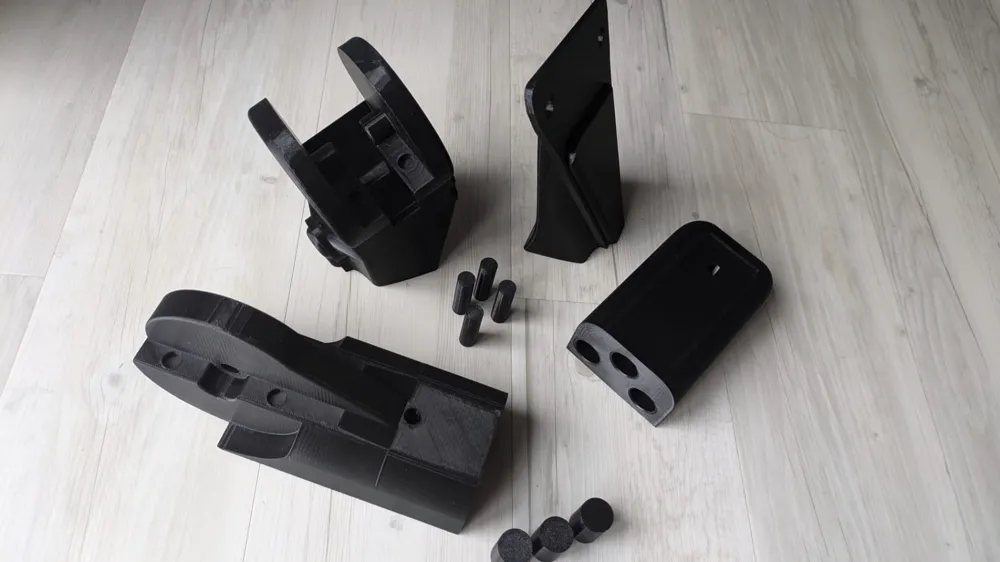

The individual parts must be glued together as they are too large for the print bed.

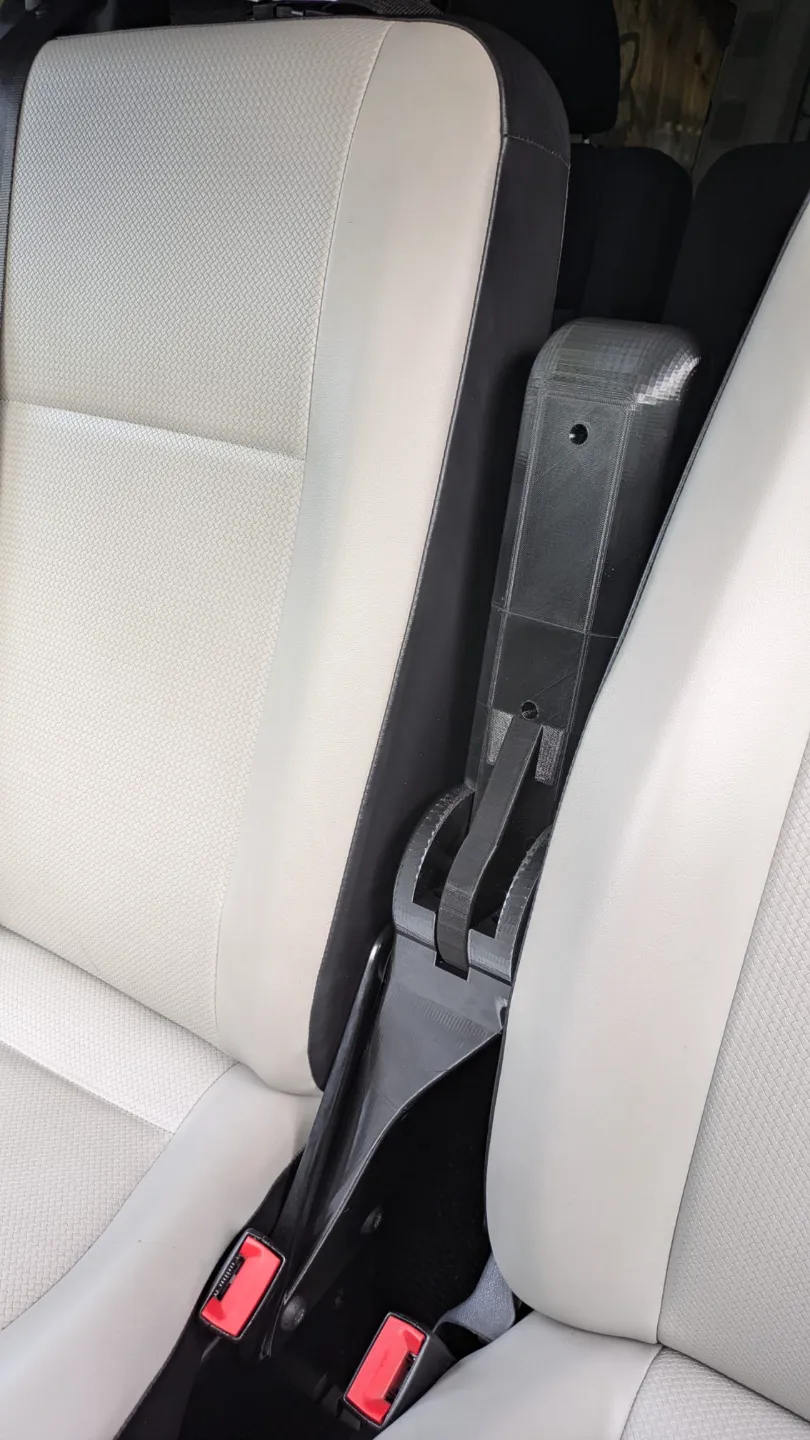

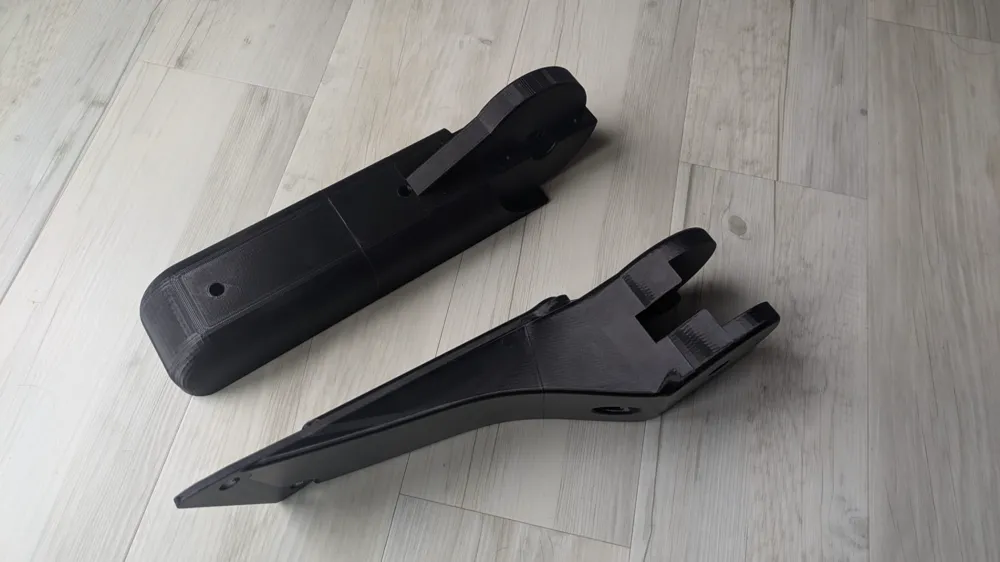

The armrest and the holder must be connected with an M10x70 screw and a self-locking nut. I have incorporated recesses for 8x3mm magnets so that the armrest is locked in the raised position. These are optional…in the two vehicles where the armrest is currently installed for testing purposes, the armrest holds even without magnets.
I used the flat plate as a template for a 9mm MDF plate, which I padded and upholstered with artificial leather. I inserted two M5 threaded inserts into the MDF plate, so that the padded plate can be screwed to the armrest from below.

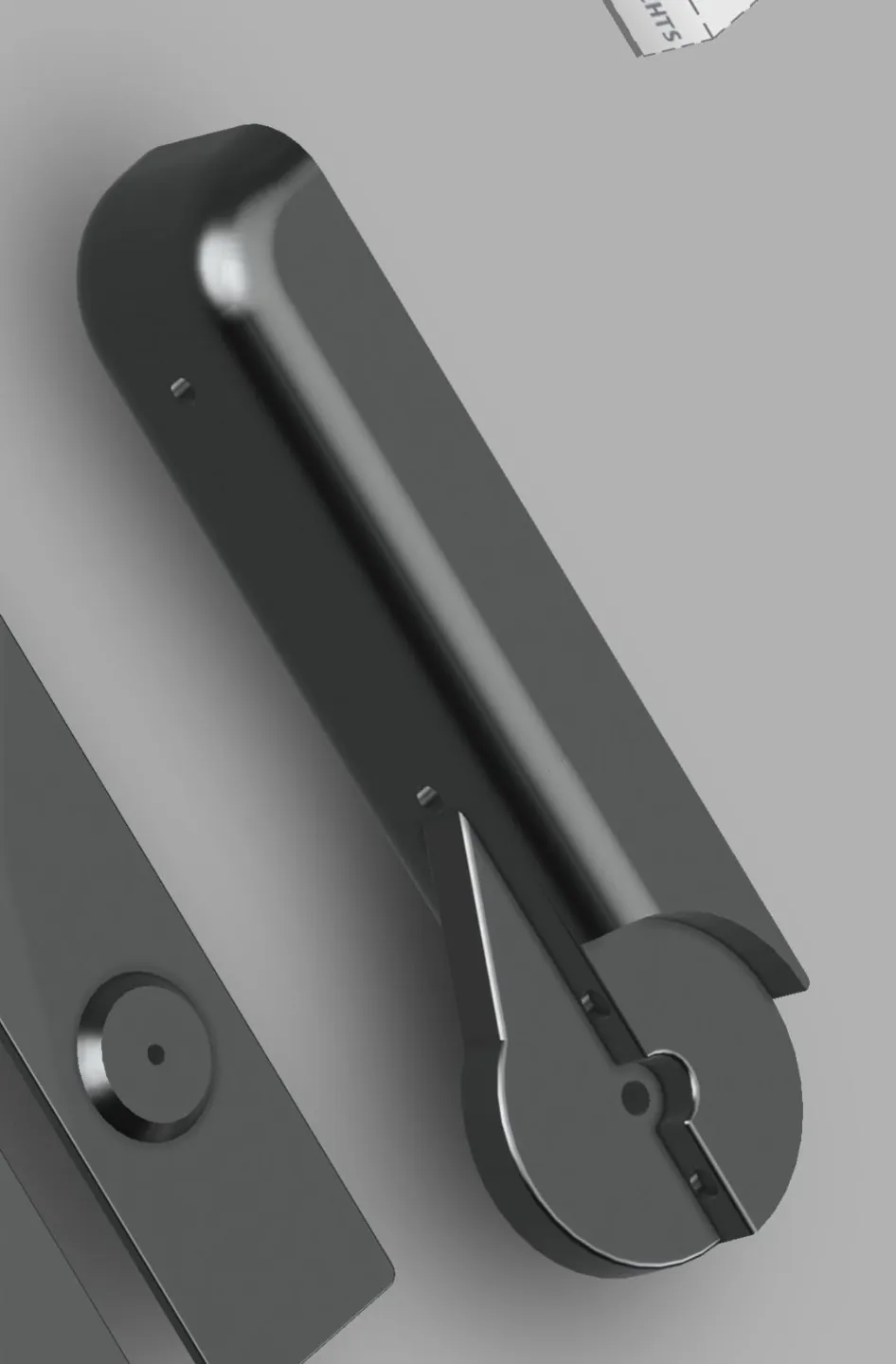

However, I have also drawn a rounded top plate that can be printed and screwed to the armrest if you don't have an upholsterer at hand.
STL file for editing now also in my uploads! Upload your printed or improved armrests here and share them!
