AMS 2-tier stand V3, V5, V6 and Vx

TLDR - This is a universal version of upper and lower brackets which work with all recent AMS 1 / 2 Pro.

For 3 or 4 AMS units, see this model.

--

My AMS which was received in an X1 combo did not match any of the versions from @RogerReid_706824's model.

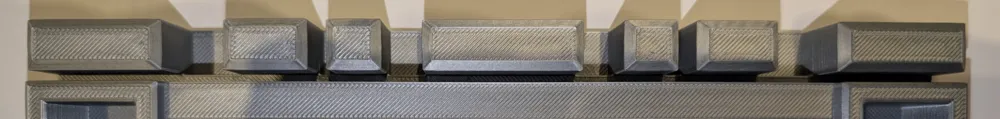

I have created a V5 AMS stand bracket. Please note these V5 brackets have a left and a right. I added another AMS in October 2024 which had only 3 pockets under the left and right side (approx. 67|83|67 mm). I am calling these V6 .

The pockets for V5 are approx. 39mm, 48mm, 46mm, 48mm and 34mm from front to back.

The pockets for V6 are approx. 67mm, 83mm, 67mm from front to back.

The pockets for Vx are approx. 72mm, 73mm, 72mm from front to back (unconfirmed as I don't have one of these).

I also increased the pocket size for the 2020 extrusion to 20.2mm. When printed on my X1 with PETG it is a good tight fit.

NEW November 2024 - Lower brackets have been modified to accept V3, V5 and V6 versions of the AMS case and are no longer directional.

Update April 2025 - Confirmed the universal V3/V5/V6 model works for the AMS 2 Pro.  I understand the AMS 2 is very slightly wider, @JeffSmith confirmed that you can stack an AMS on top of an AMS 2.

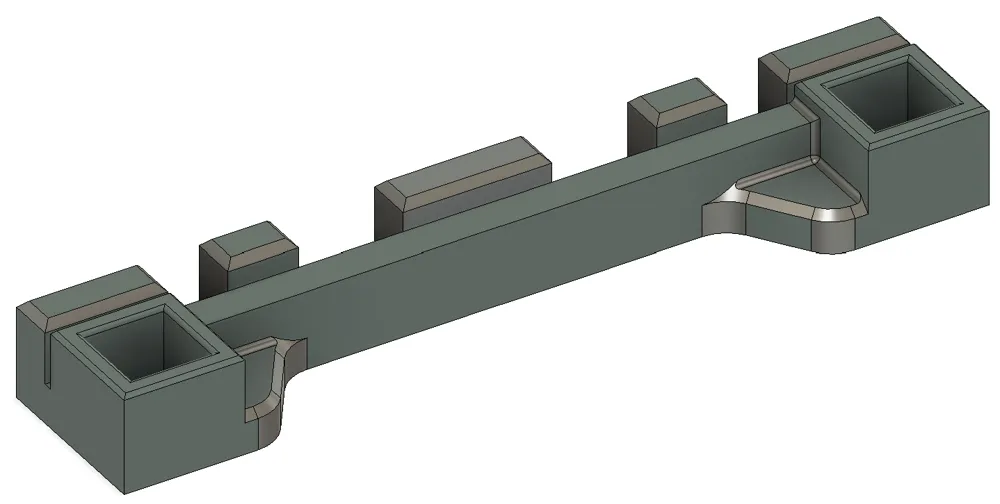

Update June 2025 - Added a version Vx for AMS 2 Pro with ~72|72|72mm (confirmed)

Update Aug 2025 - Version coming soon that has a relief for the new mounting bosses on the AMS 2 Pro

I used printer settings of 0.4mm nozzle, 0.2 layer, 4 walls, 4 top/bottom shell, 20% gyroid in PETG.
