VW Transporter T25 T3 Vanagon Dash Switch Blank

Print Profile(2)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 6 walls, 25% infill - No Hole
0.2mm layer, 6 walls, 25% infill - No Hole
Designer
15 min
1 plate
4.0(7)

0.2mm layer, 6 walls, 25% infill with 13mm hole
0.2mm layer, 6 walls, 25% infill with 13mm hole
Designer
19 min
1 plate
5.0(1)

Open in Bambu Studio
Boost
49
110
9
0
119
66
Released

Description

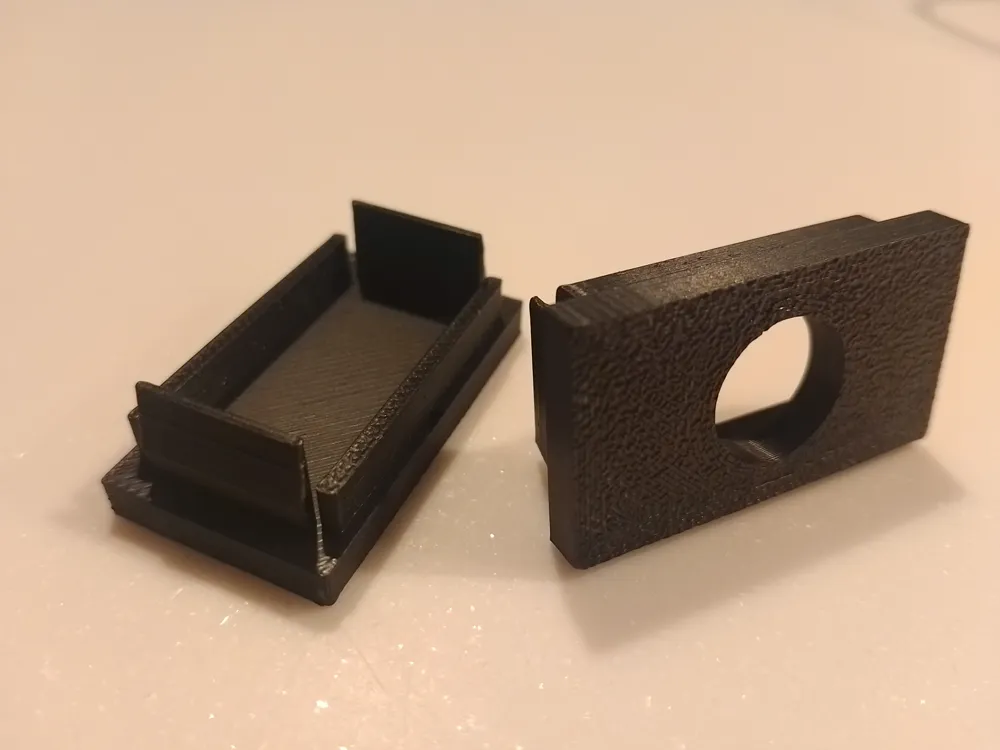

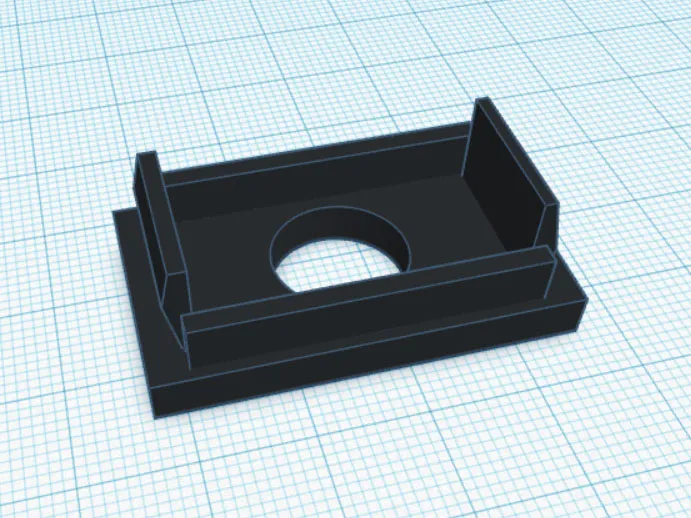

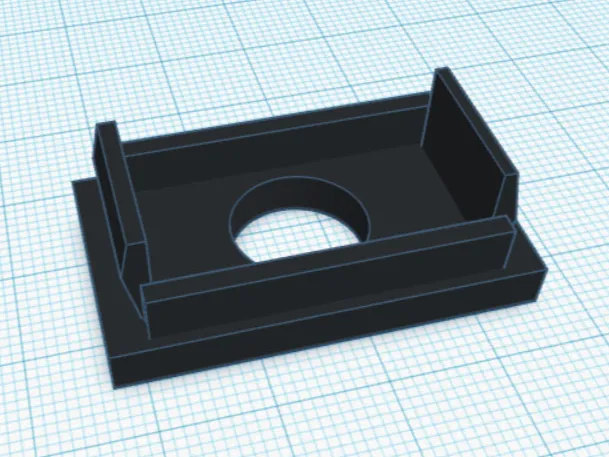

Dashboard switch blank for VW T25 Transporter (or Vanagon for those in other parts of the world), I only made it as wanted to fit a 13mm LED and didn't want to drill a hole in my original switch blank, so quickly measured and designed a replacement.

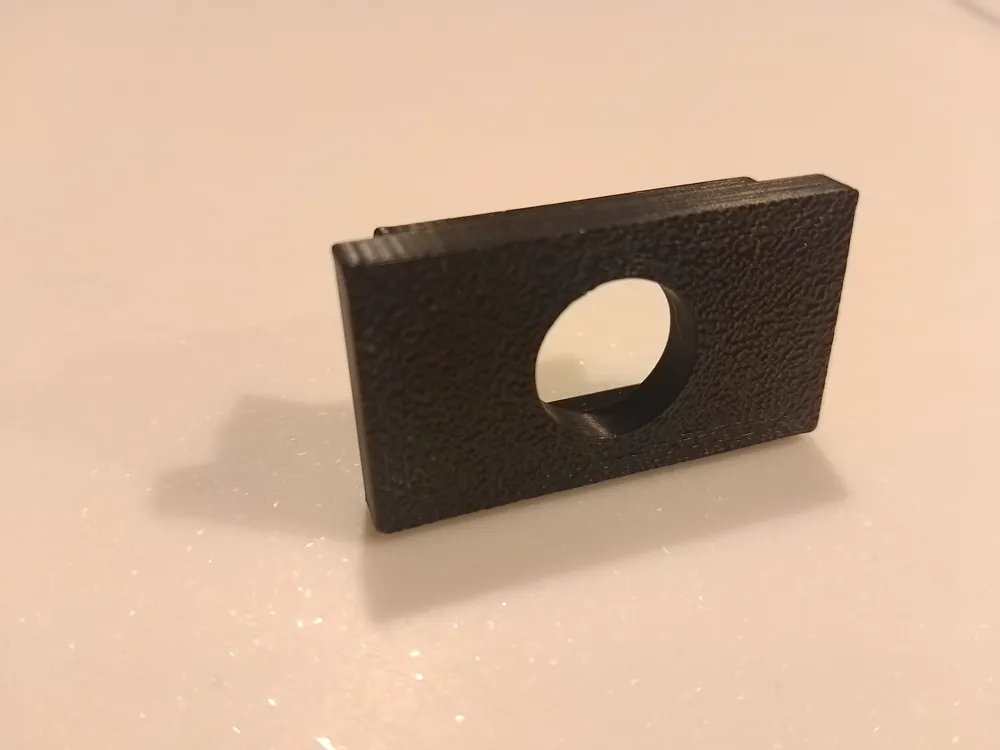

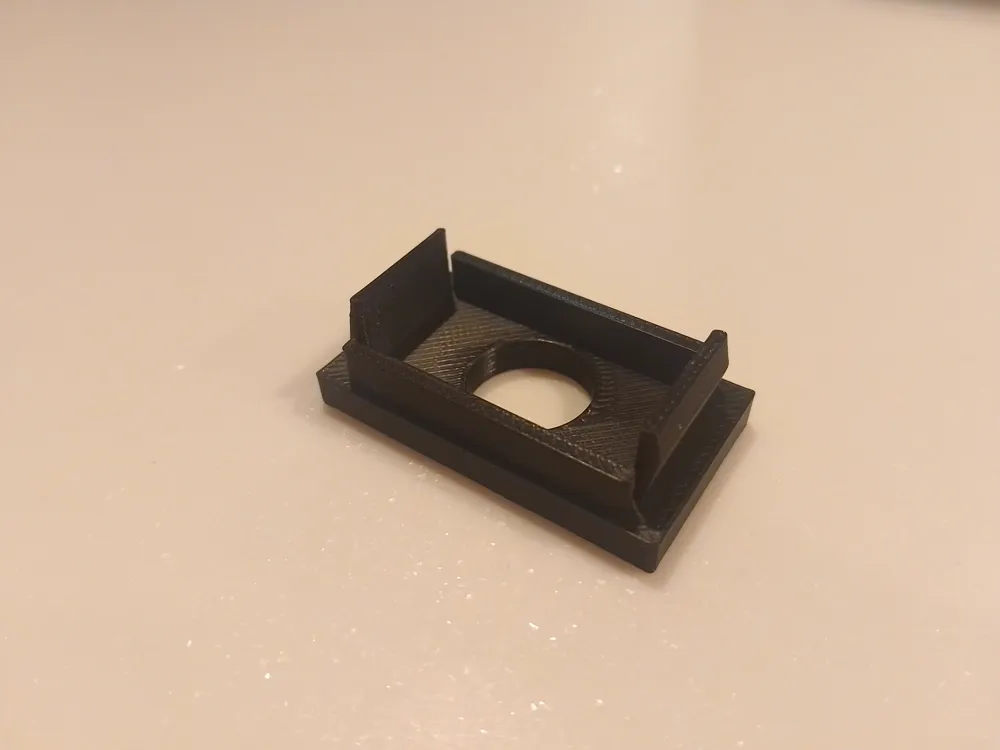

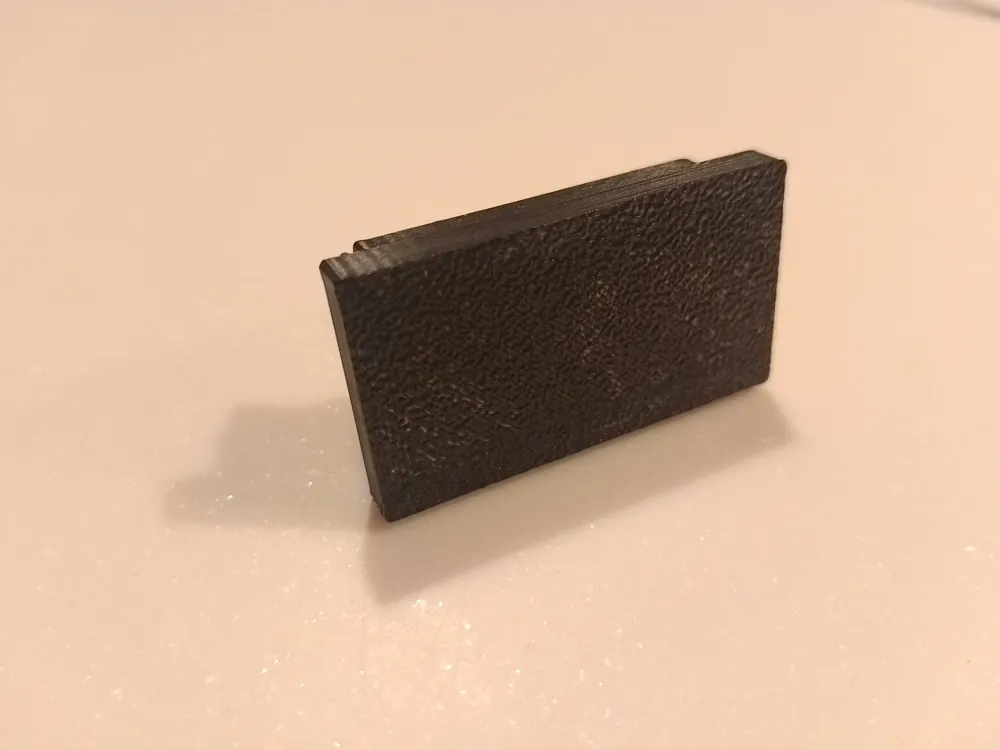

I assume people may have a switch blank missing, so have included a plain version, and one with a hole.  If anyone needs one with a different size hole I can very easily add one.



Ideally needs to be printed from something like ABS for the strength of the tabs, and to stand up to high temperatures in some climates.



This is the first thing I have designed and uploaded, so may need some help with print profiles etc.
