FR7 7-inch Cinewhoop Frame
Remixed by
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
15
22
2
0
83
0
Released
Description
Content has been automatically translated.

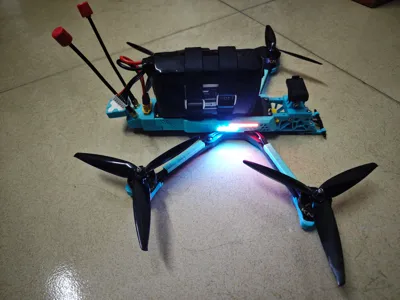

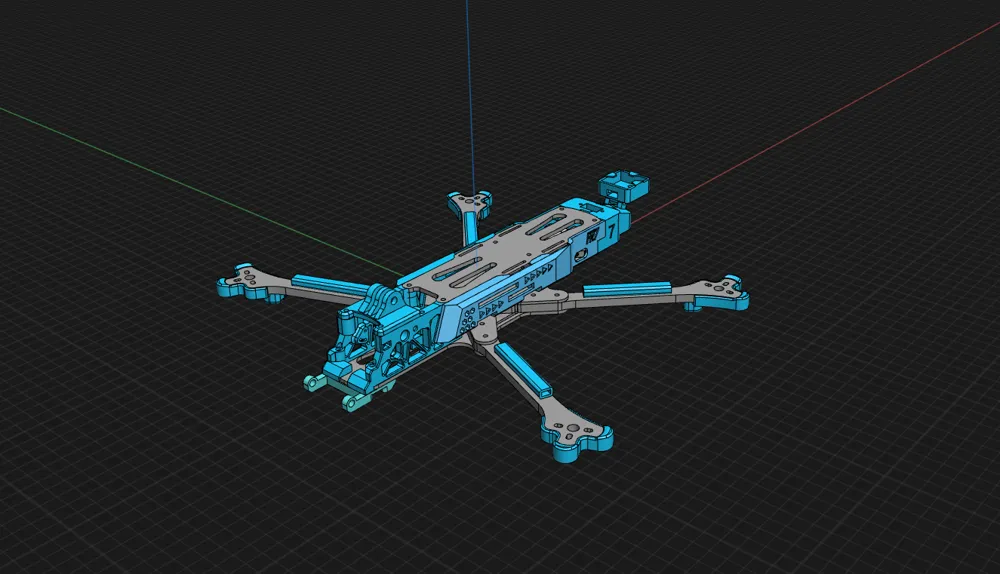

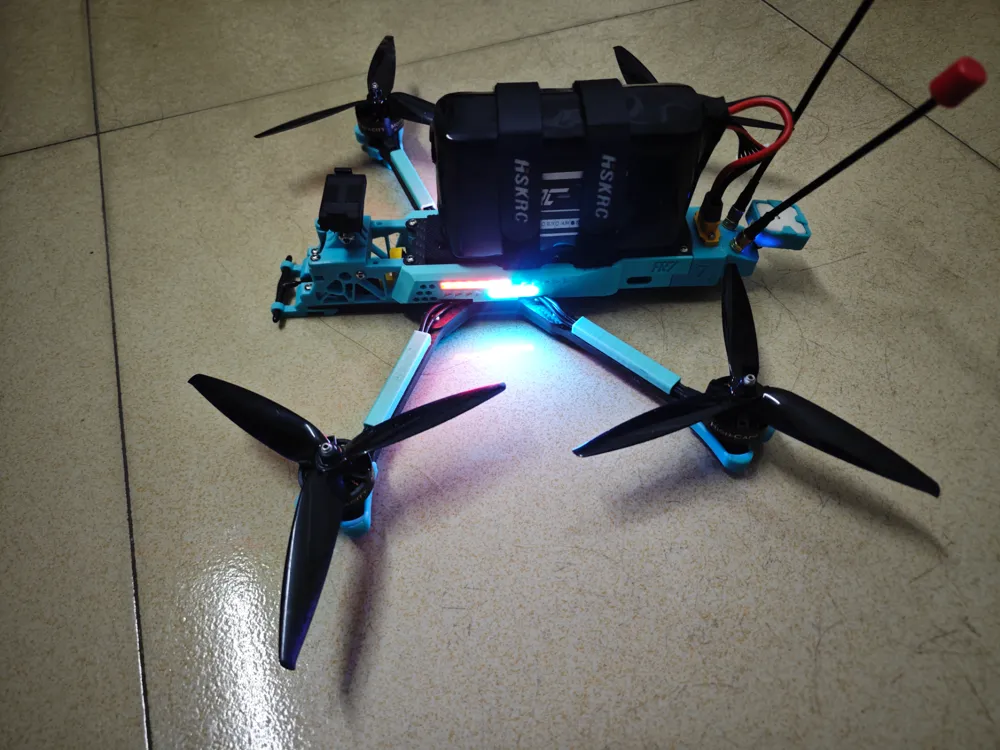

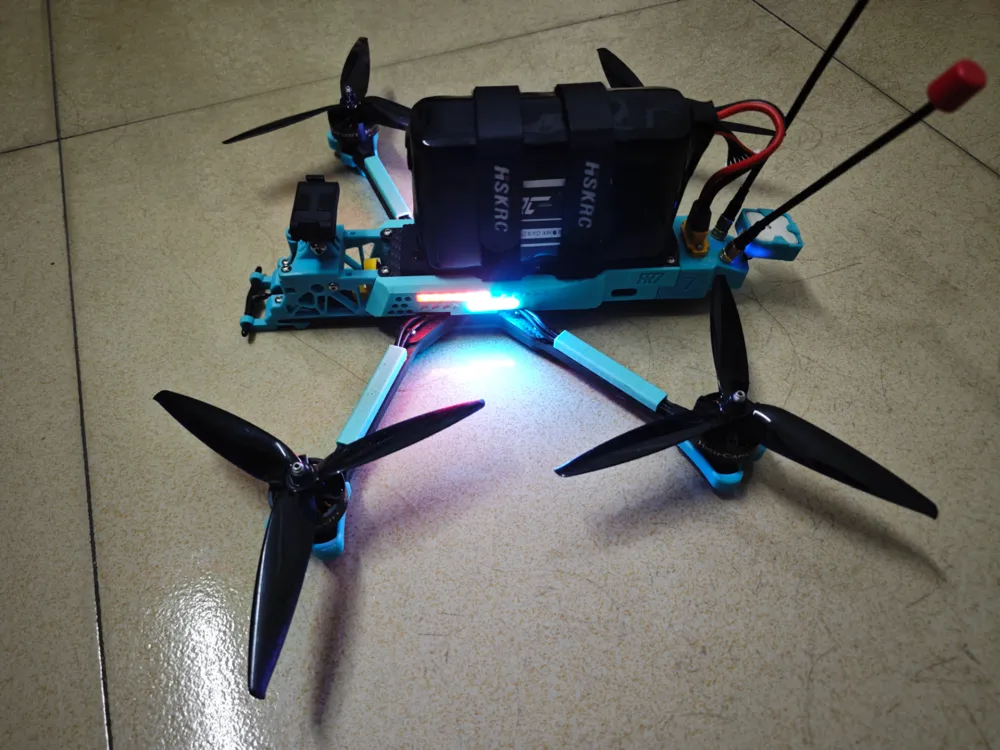

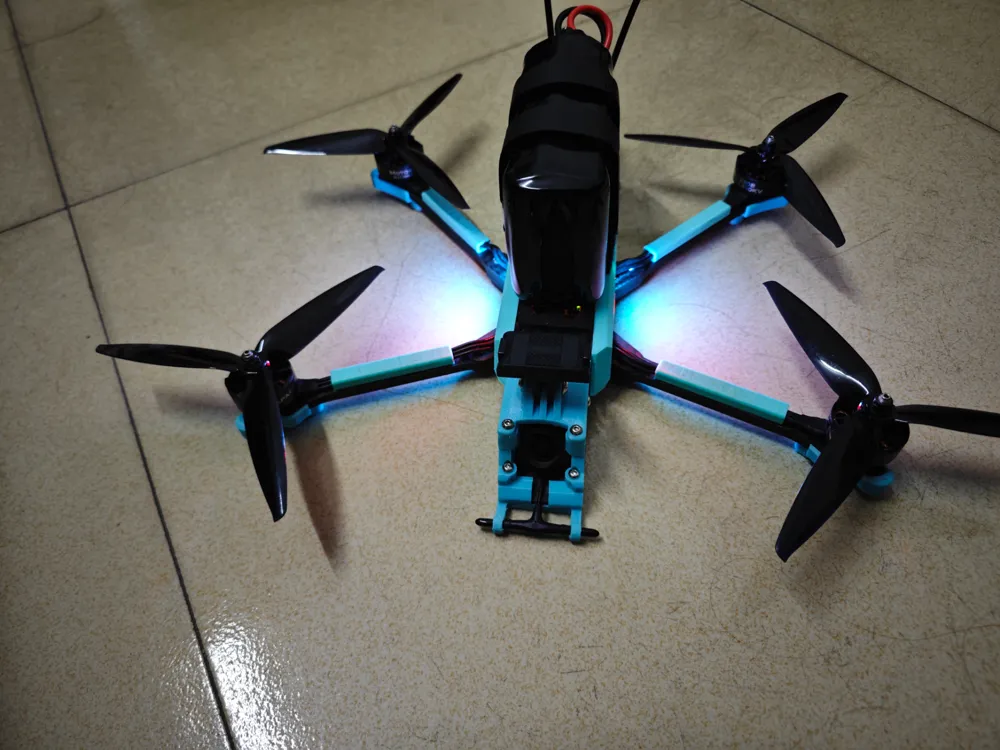

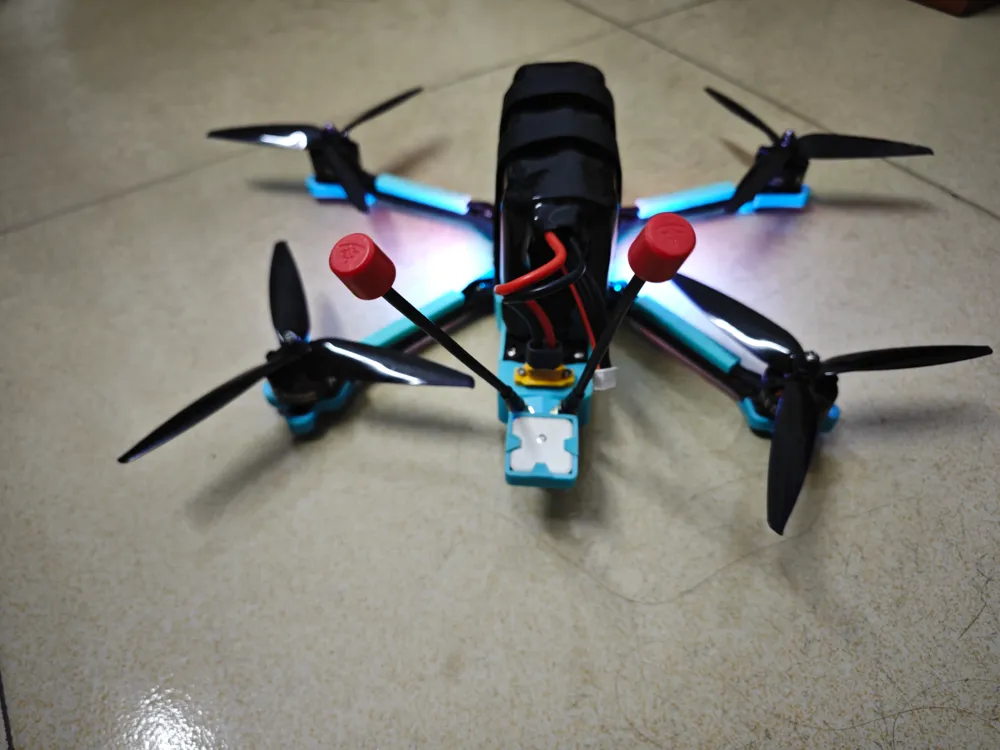

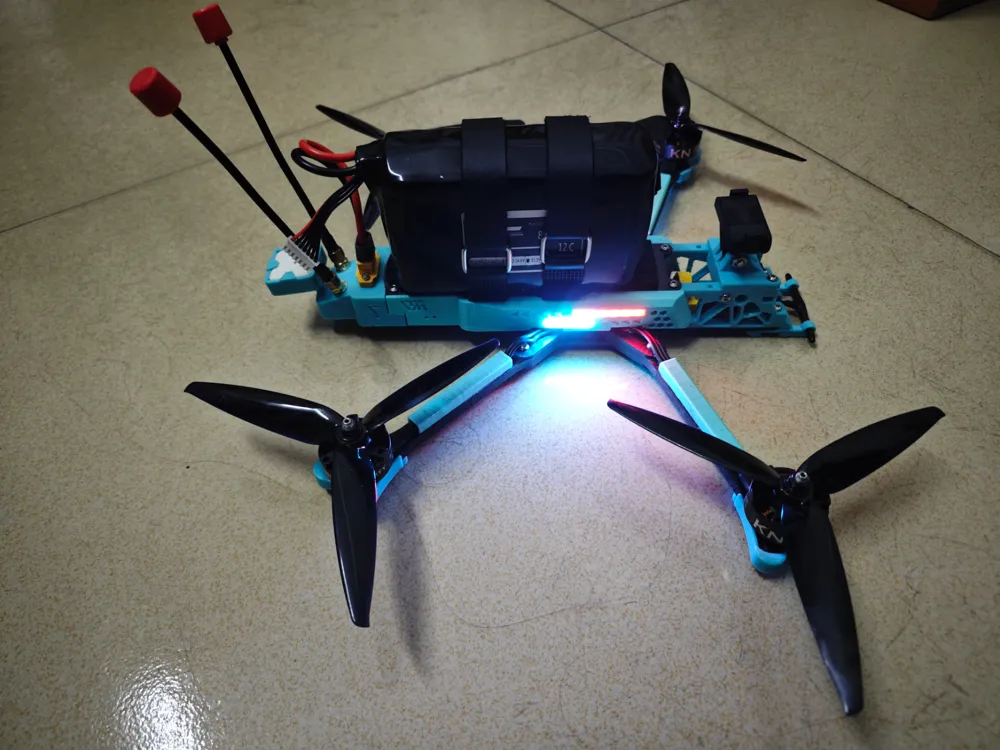

This print is redesigned based on the original FR7 v5, with the O3 transmission as the main transmission, but can be equipped with different transmissions, the camera mounting spacing needs to be adjusted accordingly, the side panels are added, the side panels can be added with a 5mm wide light strip, and a Type-C tuning port is added to the tail, with a fixed XT60E-M. The attachment contains STEP files for your convenience to modify.
1. M3*10 aluminum post (outer diameter 5mm) *2
2. M3*20 aluminum post (outer diameter 5mm) *4
3. M3*28 aluminum post (outer diameter 5mm) *3
4. M3 embedded step nut *9
5. M3 screws of different lengths, several
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
