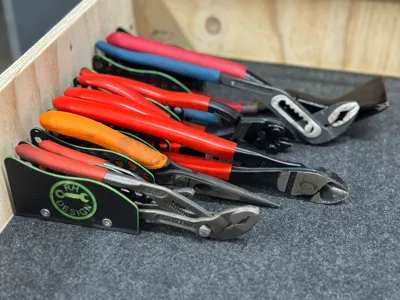

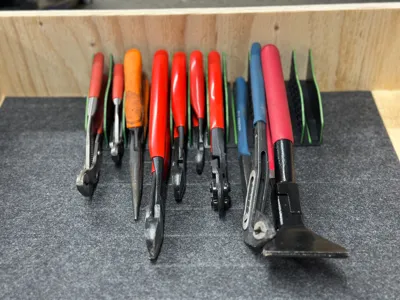

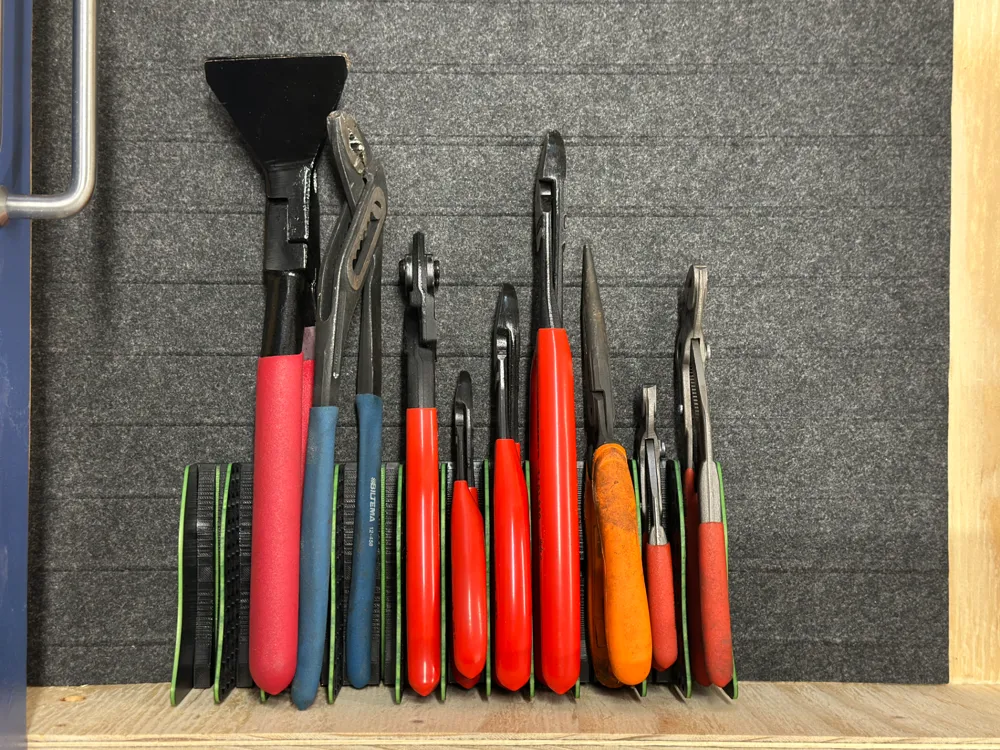

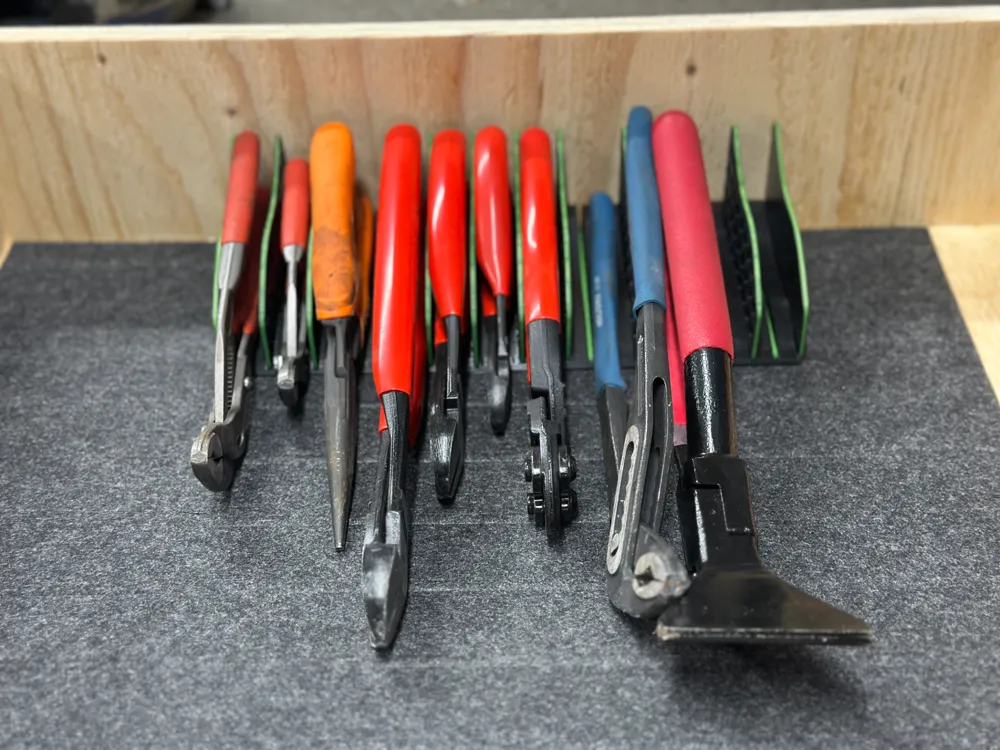

Modular organizer for pliers, cutters, and wrenches. It will fit most toolboxes.

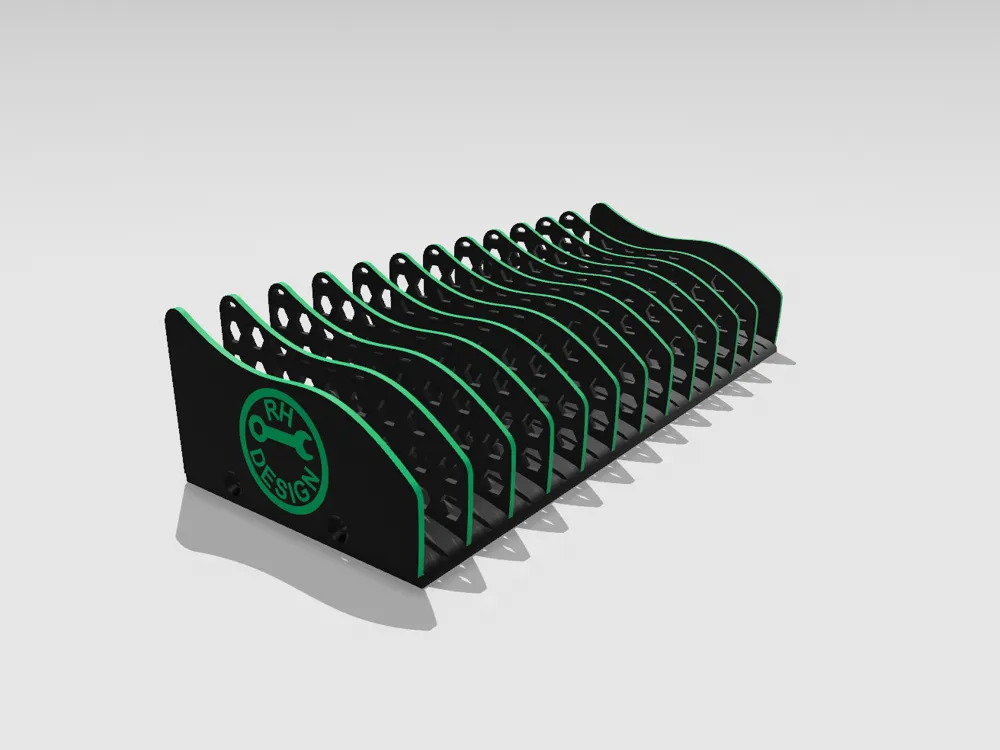

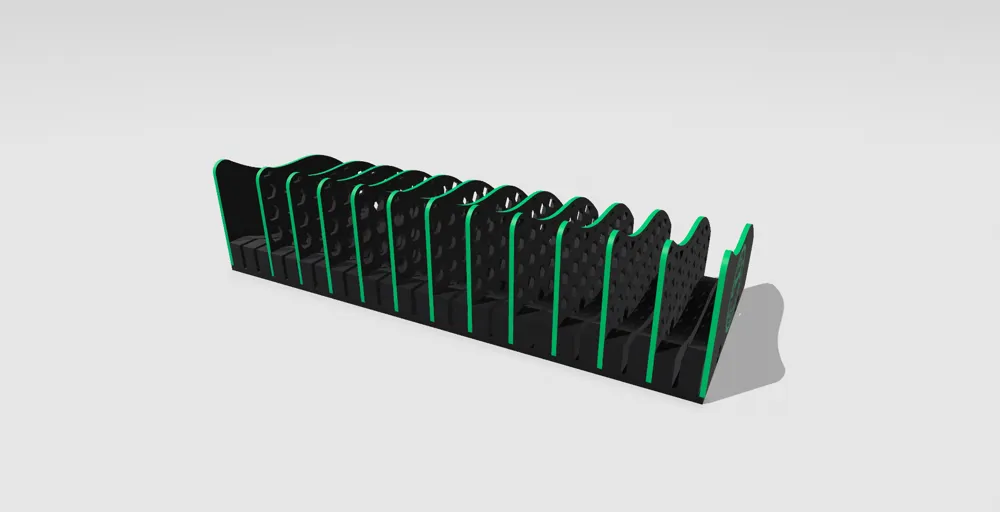

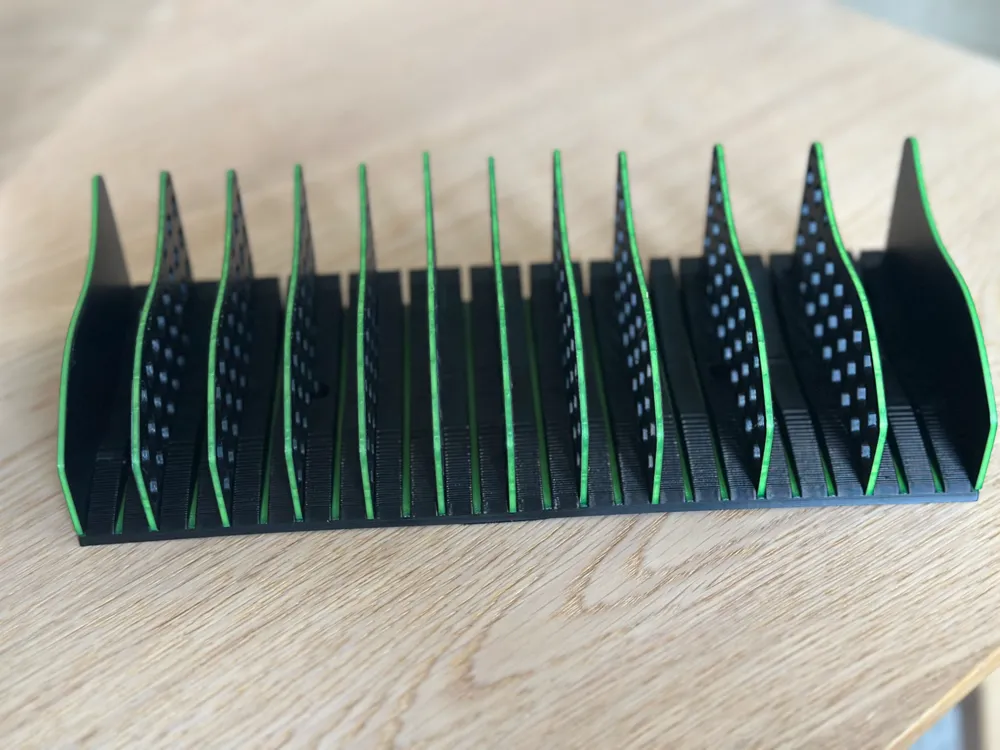

The dividers are modular, so you can adjust them to fit your tools.

In the bottom, there are four holes for magnets (10x2mm). I used these: Magenesis 52 stycken neodymmagneter skivform10x2 mm extremt kraftfulla, ca 2 kg vidhäftningskraft : Amazon.se: Industriella verktyg & produkter

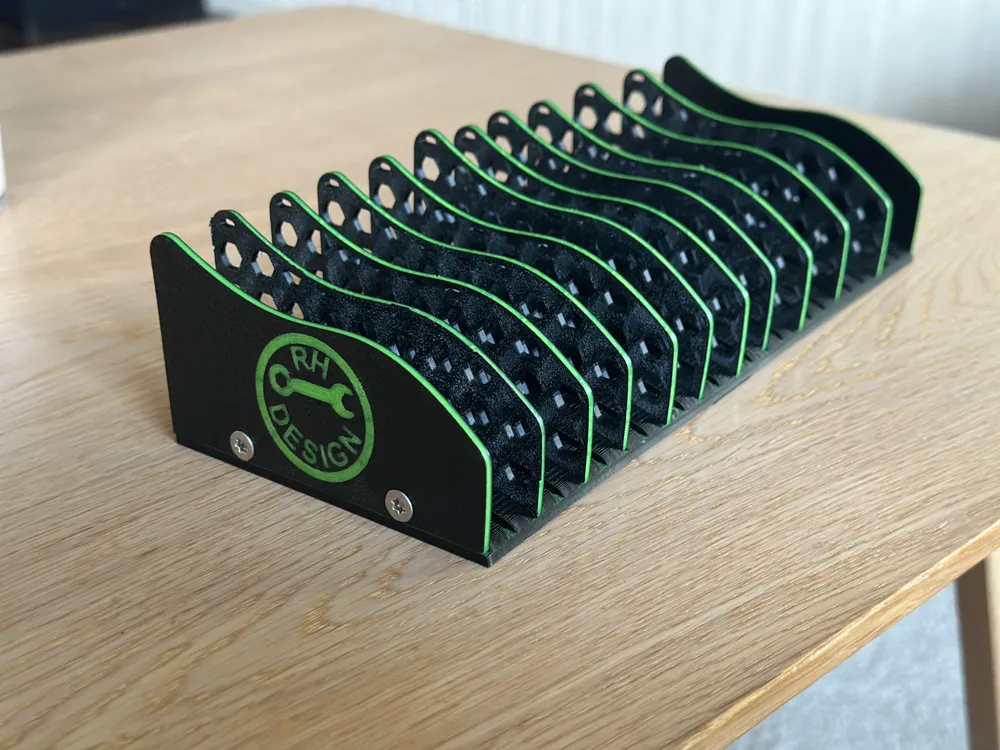

The divider at each end is mounted with two screws. See the link for dimensions: 150 stycken självgängande torxskruvar i rostfritt stål, M4 x 10 mm, försänkta torxskruvar, plommonhuvud rostfritt stål 304 träskruvar med T20-skruvmejsel, rostfria skruvar för möbler : Amazon.se: Bygg, el & verktyg

If you don't want to use screws, you can also use CA glue.

Please let me know if there is anything I should change with the model.

Comment & Rating (15)

@JdotB44

Boosted

Great for my pliers. Being modular allowed me to make the most of my space without wasting any. Fit perfectly in the HF USG side cabinet.

@user_688618340

It looks to me that it could stand to be a bit larger. Some of the pliers in the photo are not held in place very well. I think just scaling it up 30 or 40 % would go a long way.

The designer has replied

@Proson

Thx for the feedback. I agree. Im working on a uppdated version that Will be a bit larger and have better mounting for the deviders! :)

@Mechanic_Prints

It would also be nice if there was a way to connect a few of them together rather than just setting them next to each other

@Mechanic_Prints

Can you make a taller version for the walls? I have tried but it just stretches the holes and looks funny. Maybe a few options, like 125%, 140% 150% etc

@Dprins

love the look but uncertain if my drawer is tall enough. any chance you could make a slanted version?

@icrappedmypants

Print Profile

0.2mm layer, 2 walls, 15% infill, PETG

love these

@user_1737227512

Print Profile

0.2mm layer, 2 walls, 15% infill, PETG

Works great

@Jl.amend09

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill, PETG

no bad prints great work

@Mechanic_Prints

Print Profile

0.2mm layer, 2 walls, 15% infill, PETG

@user_2823341389

Print Profile

0.2mm layer, 2 walls, 15% infill, PETG
