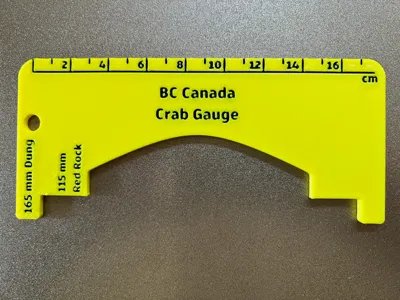

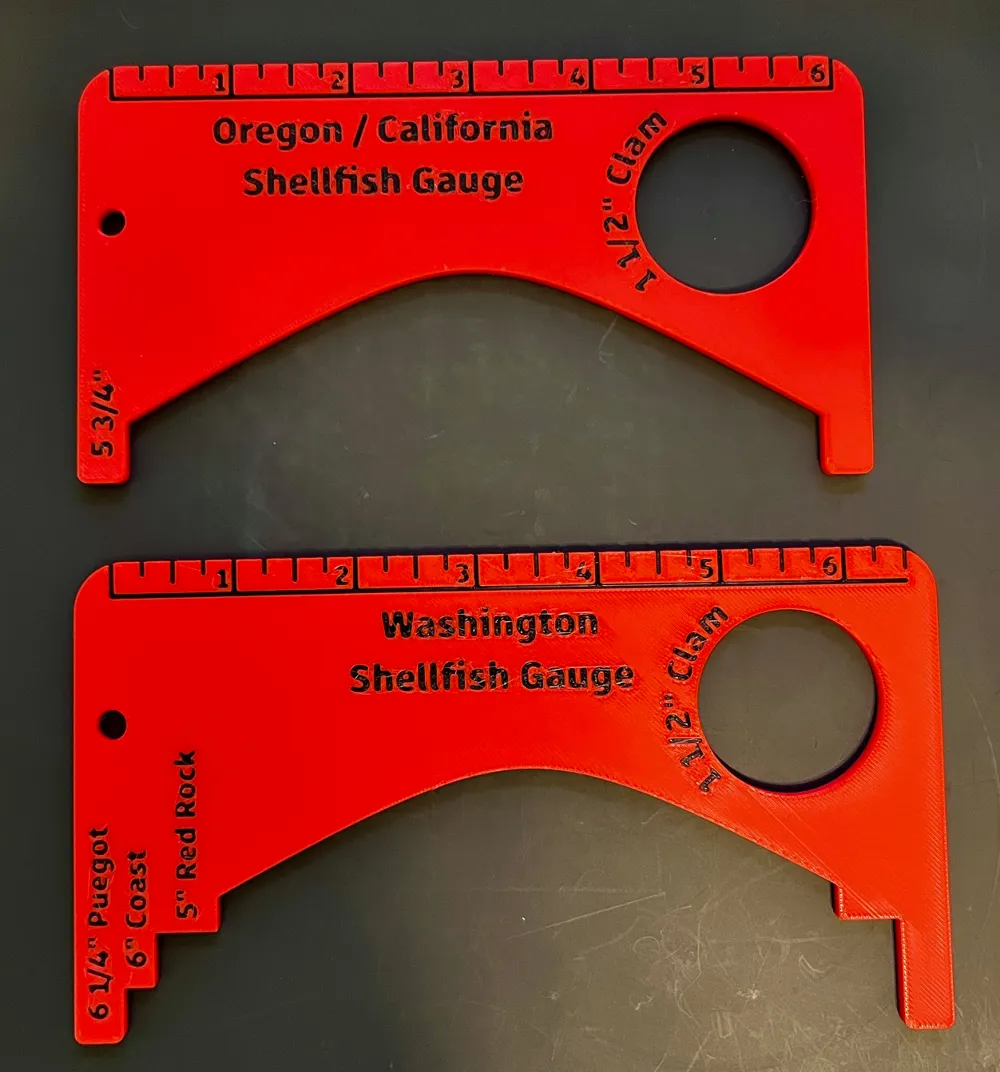

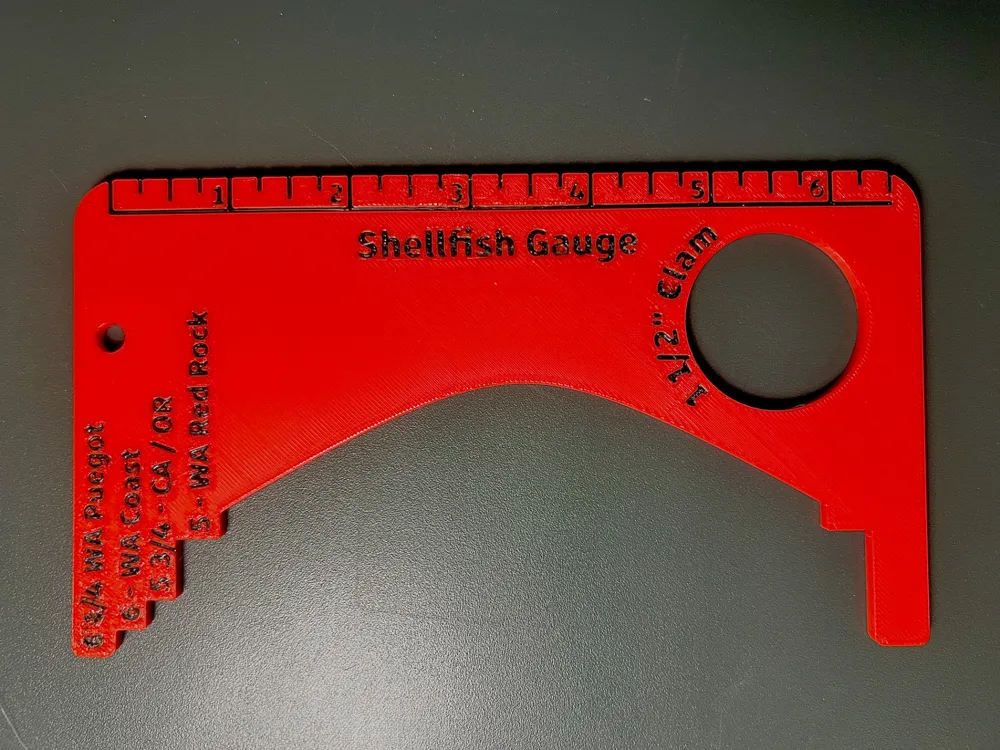

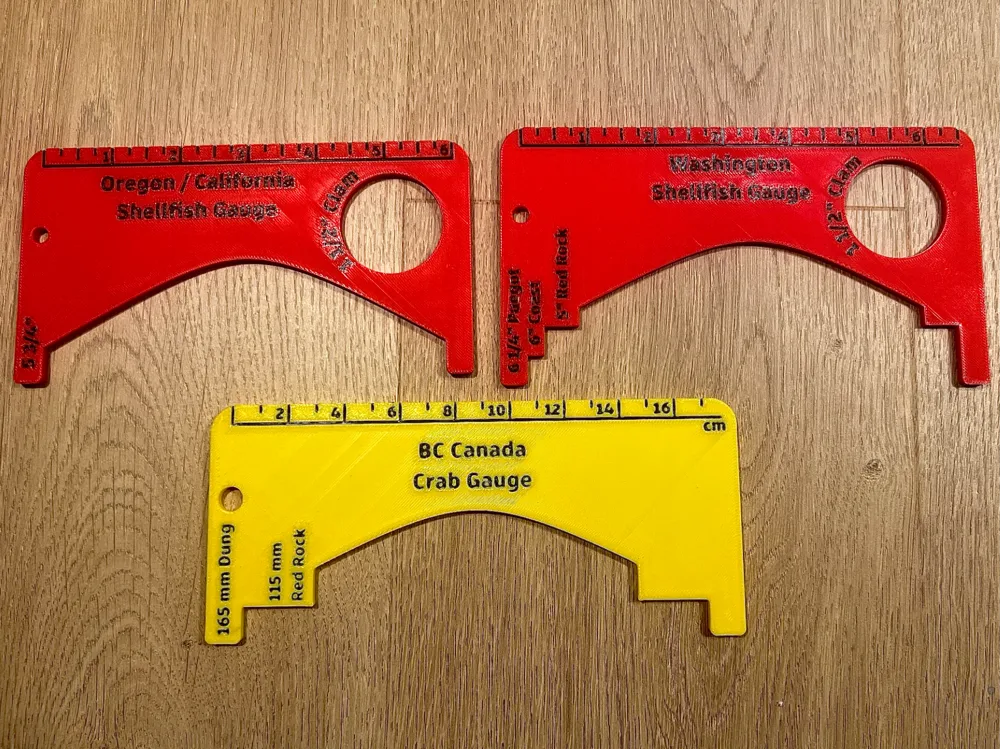

These 4 models are for Crab measurement gauges specifically used for crabbing California, Oregon, Washington or British Columbia Dungeness and Red Rock Crab. The models print without supports. I printed with a 0.2mm layer height and a 0.42mm line width. I printed mine with PLA however PETG might be a better filament to weather the ocean environment. The ruler, numbers and words are indented by 0.4 mm and can be printed as 1 (no AMS) or 2 colors with AMS. The included profile is made up of 4 plates, one for each model and has the indented numbers and letters in a second color. I also included 2 profiles for the A1 mini for OR/CA and BC gauges.

2/21/2025: Added a 1-color profile for the A1 mini for OR/CA tool. Note: other gauges are too large for the A1 mini.

2/27/2025: Added a 2-color profile for the A1 mini for OR/CA tool.

3/28/2025: Updated profile for Washington tools to correct spelling of Puget.

9/7/2025: Update the stl's for Washington tools to correct spelling of Puget. 3mf profile was previously corrected.

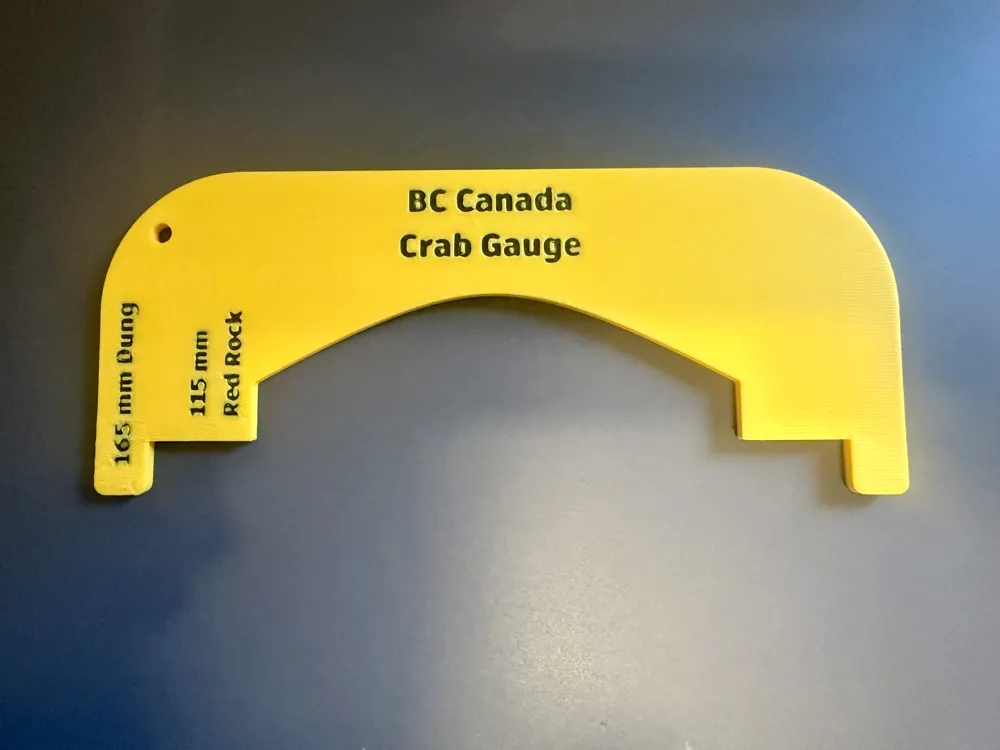

11/25/2025: By request, I added British Columbia gauges to A1 Mini profiles
