Filament Drybox | Storage Box

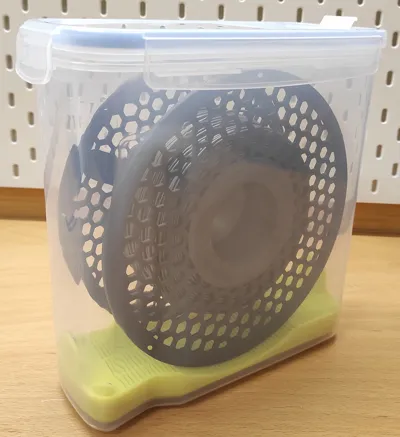

Filament Drybox using a 4L cereal box.

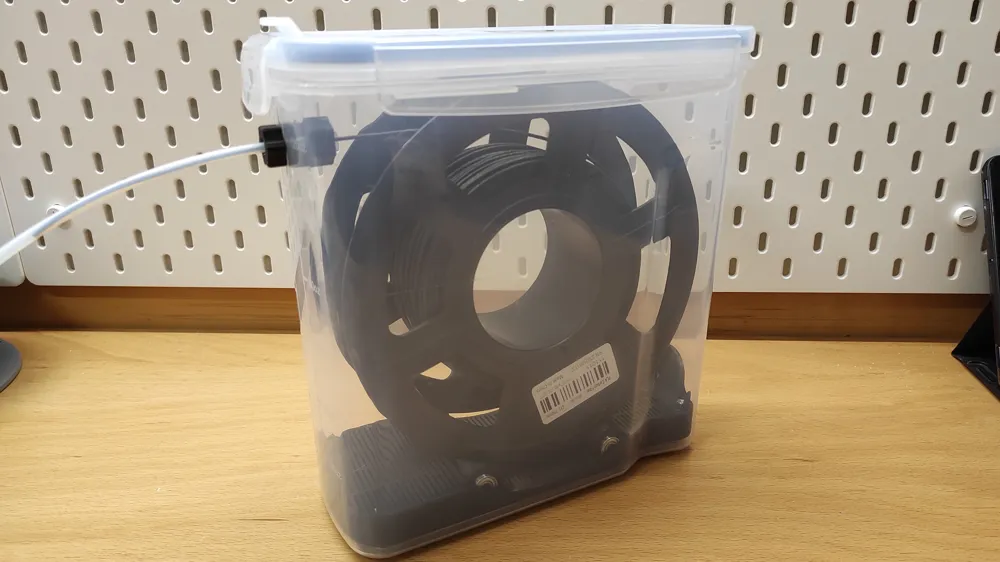

There are 2 versions. One only for storage and one you can print out from.

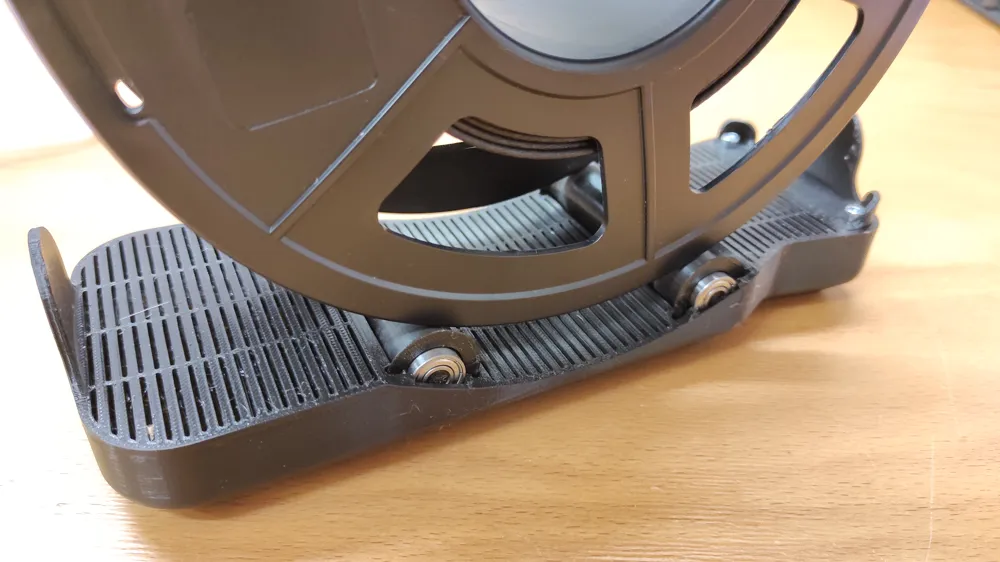

The one with rollers is limited to a spool width of ~63mm. So it only works with slim spools. You also have to drill a 10mm hole. Use the optional drill jig.

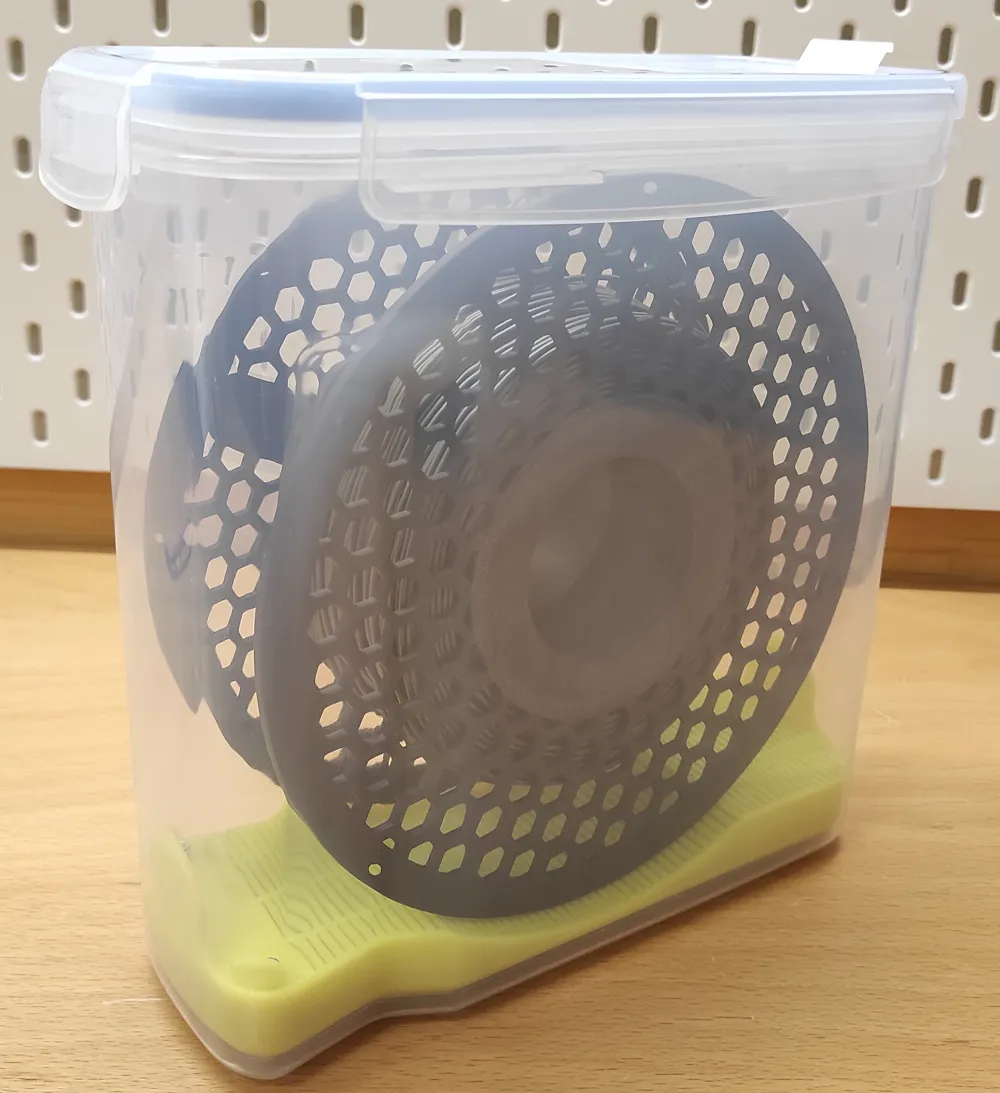

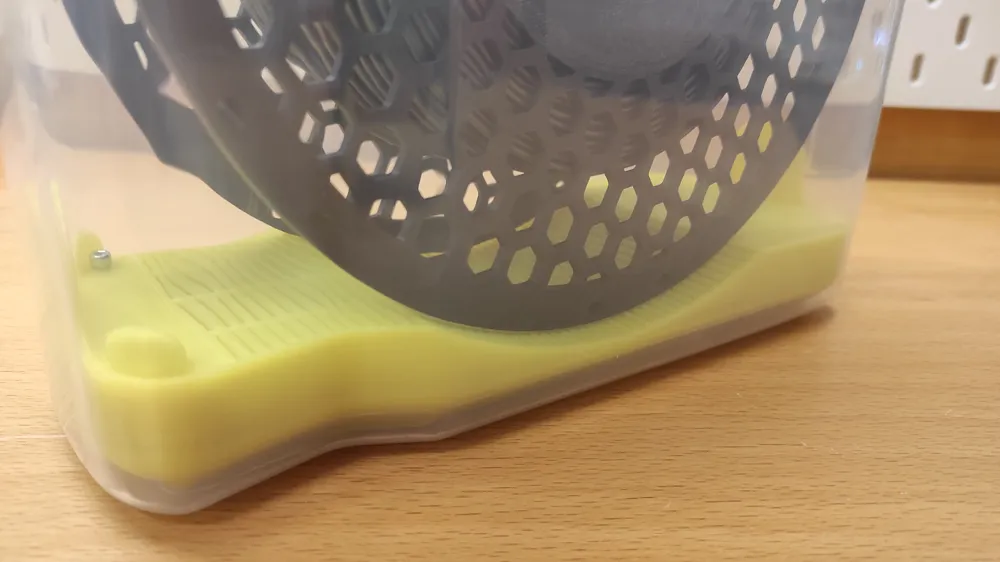

For storage all spools I own worked so far, because they don't have to rotate freely and the box does have some flex.

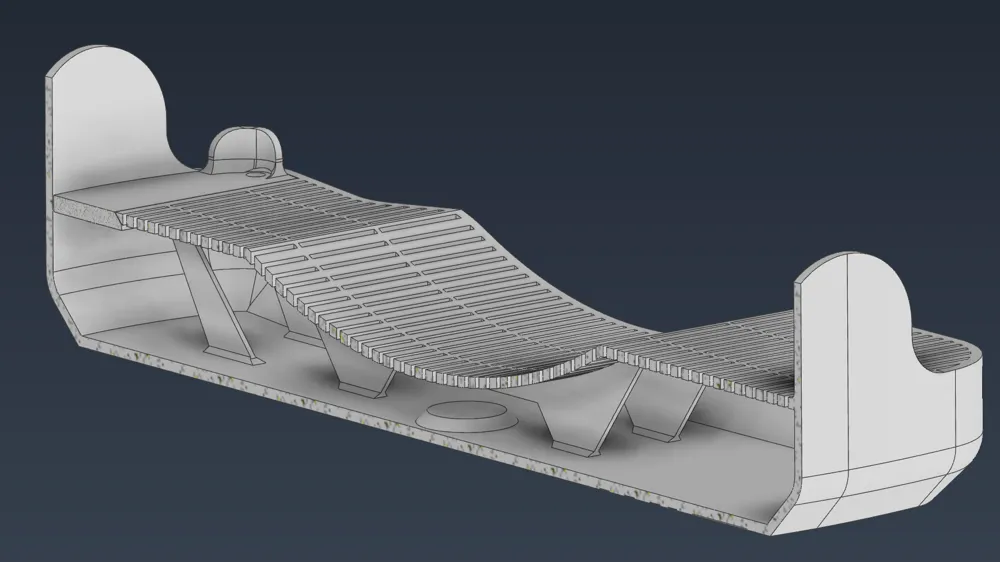

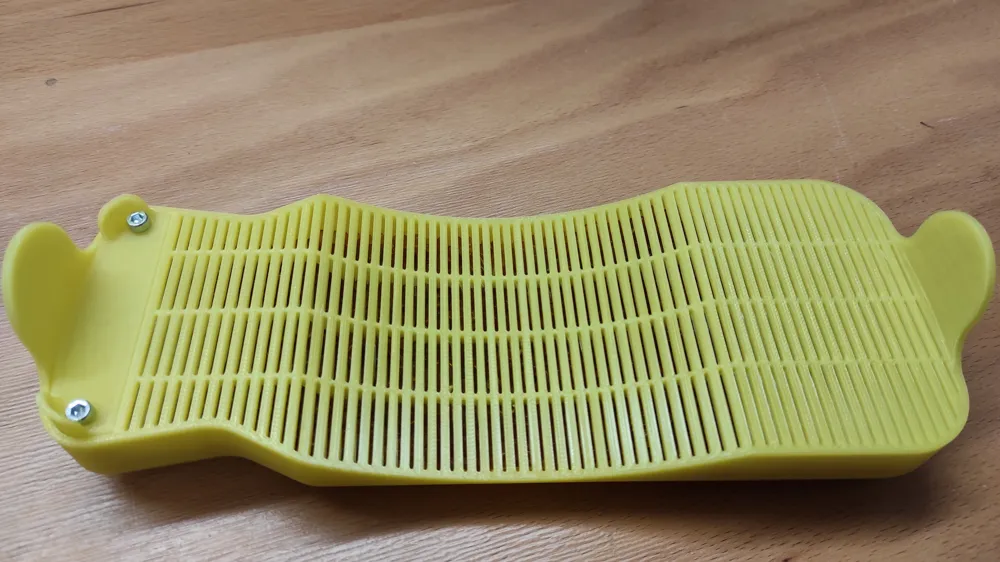

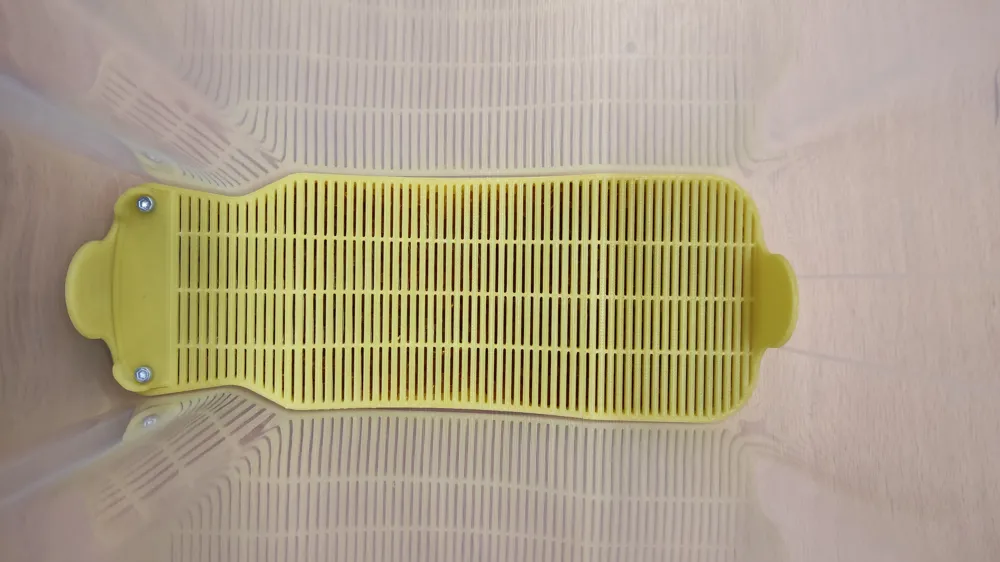

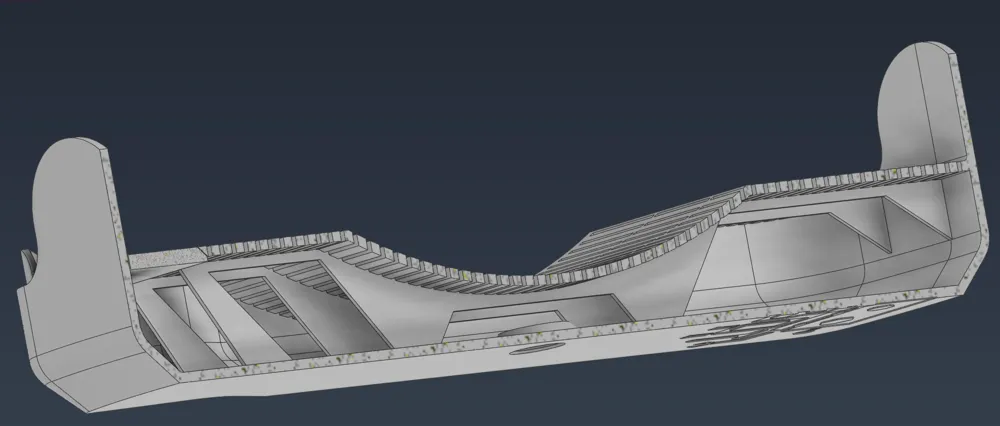

Print all files without supports and rotated as imported. Add a brim to the 2 roller. The main body is specially designed and prints with a lot of bridges.

You need:

• 1x Cereal box
• 2x Heat Insert (Voron ones)
• 2x M3x6 or M3x8
• 4x Ball Bearing 5x13x4mm (not needed for storage box)

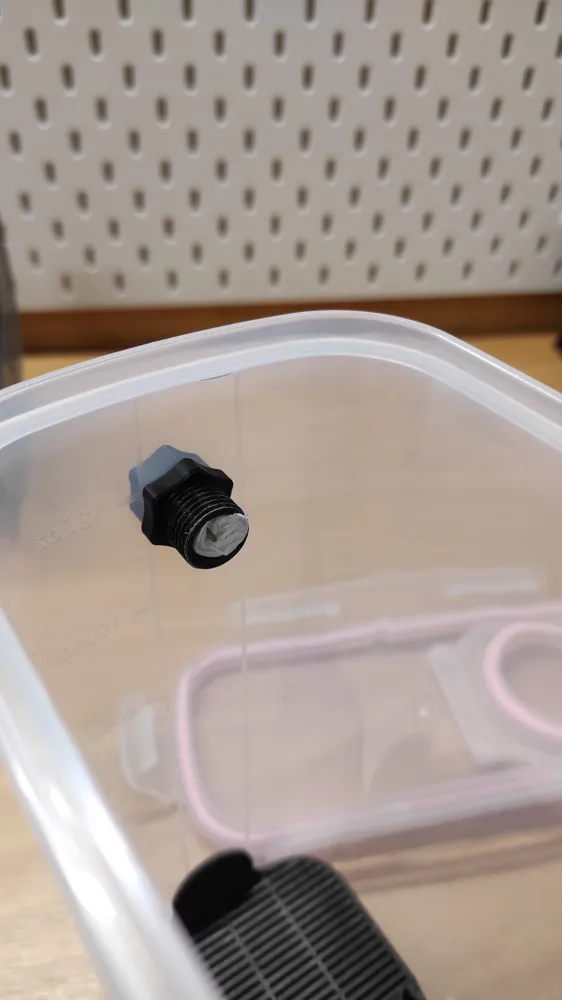

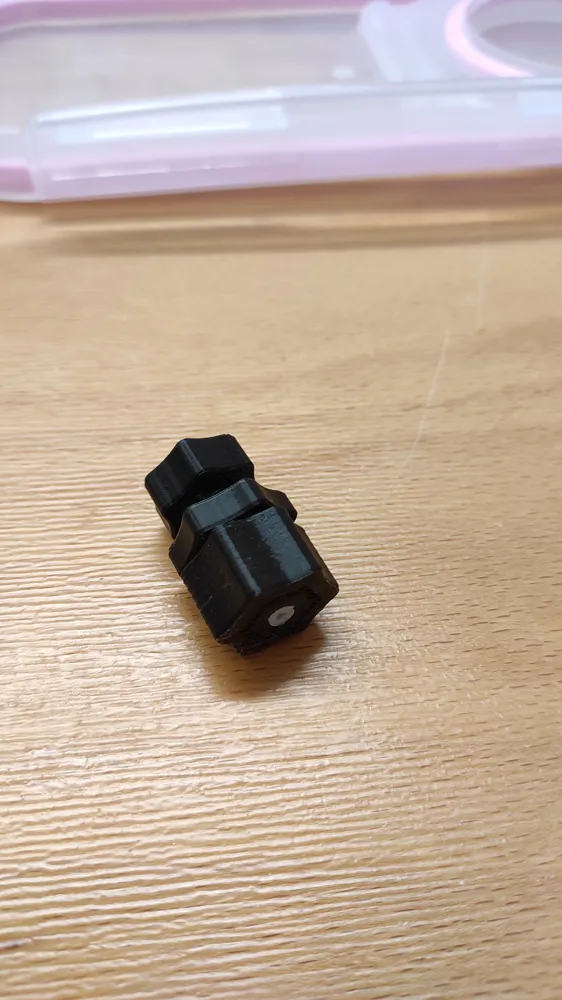

• 1x small piece 4x3 PTFE tube for outlet (not needed for storage box)
• 1x Silica gel
