Wind speed 26 meters! Holding a 4028 high-powered fan to blow a hairdryer
Print Profile(1)
Description

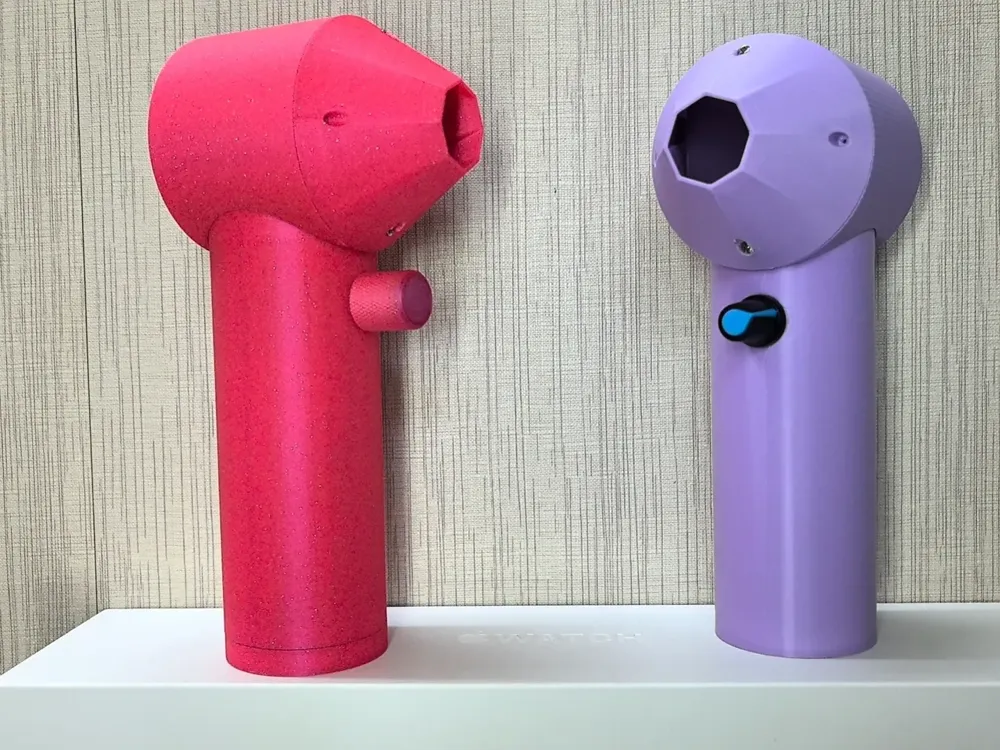

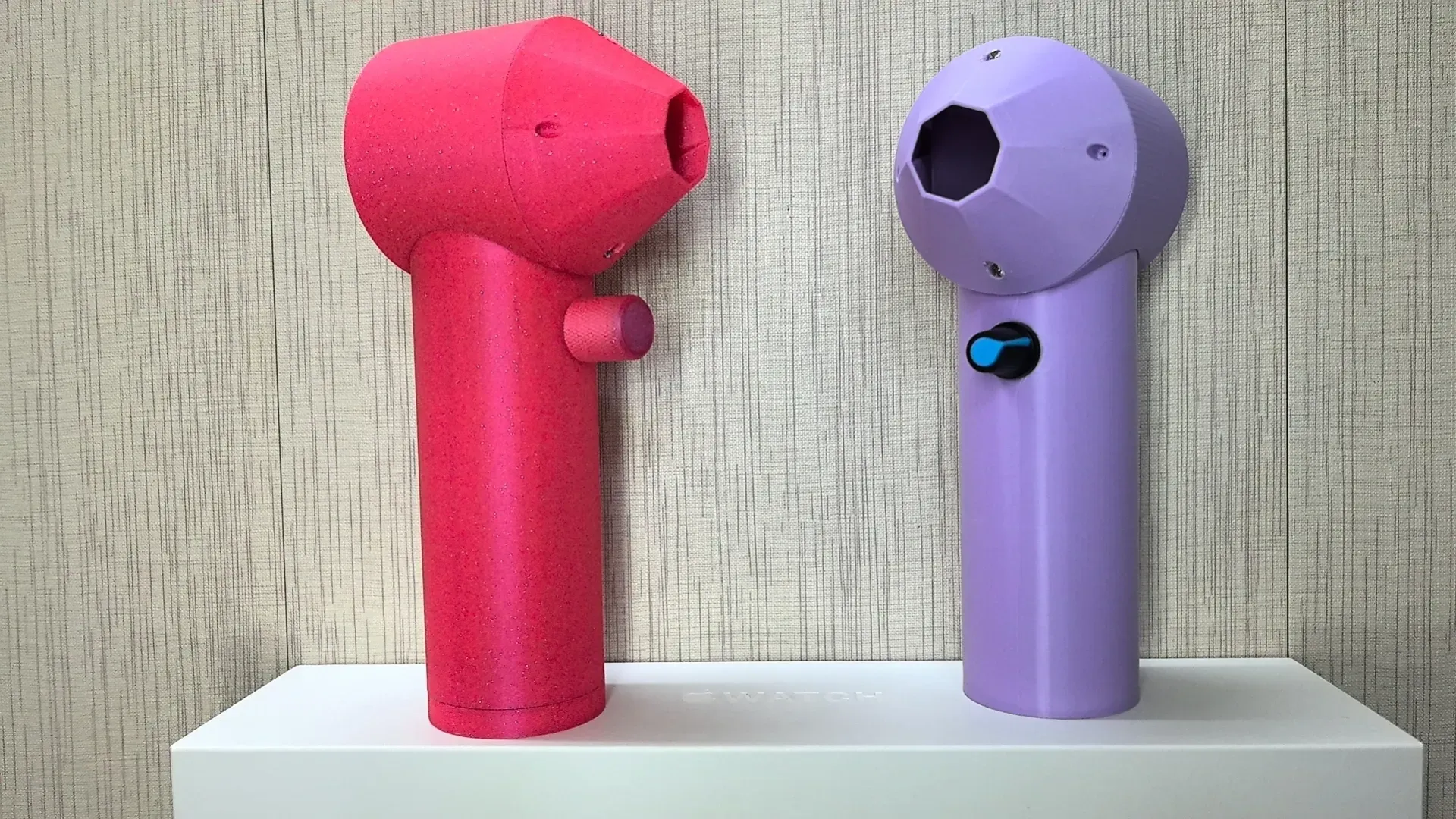

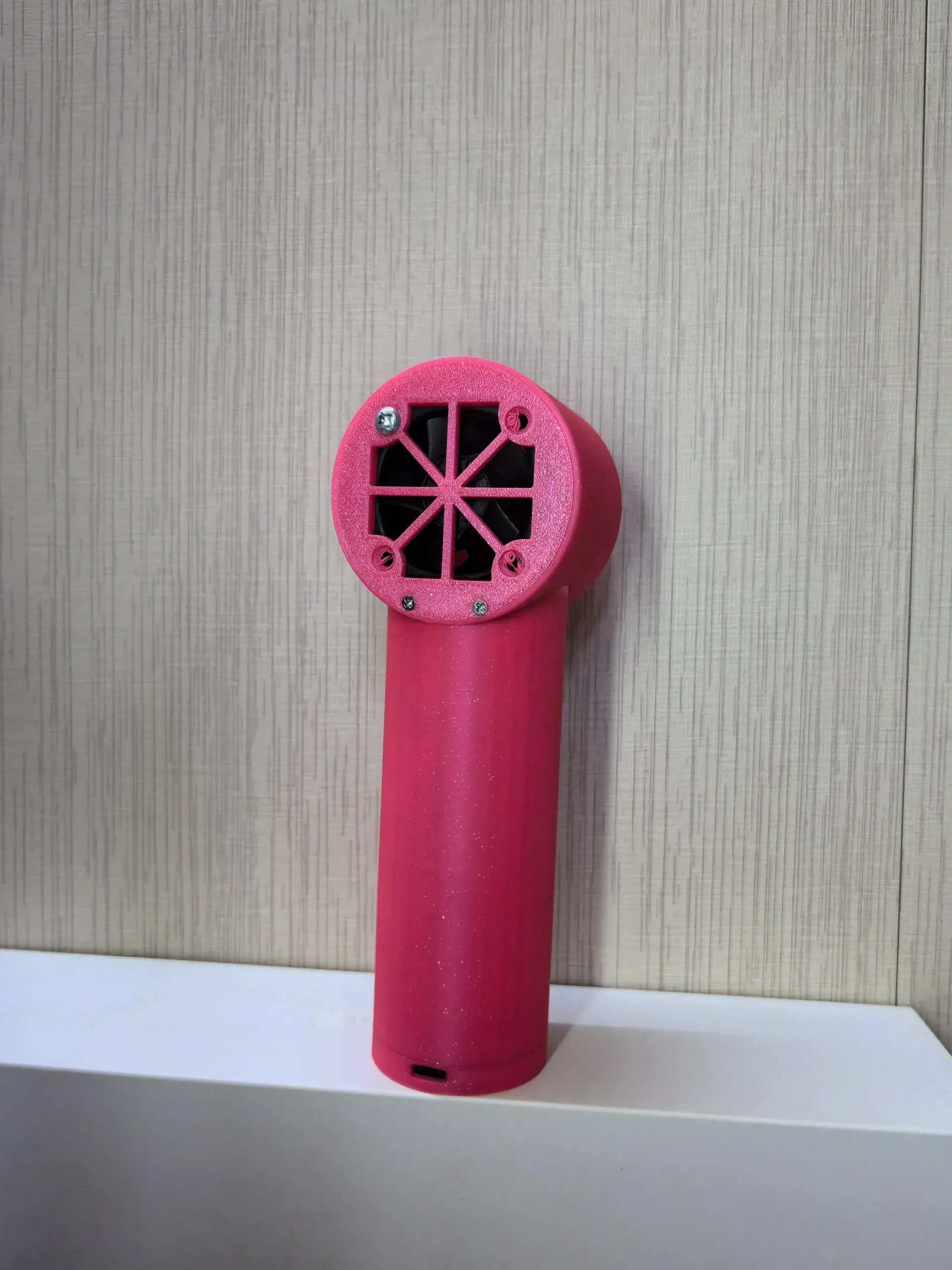

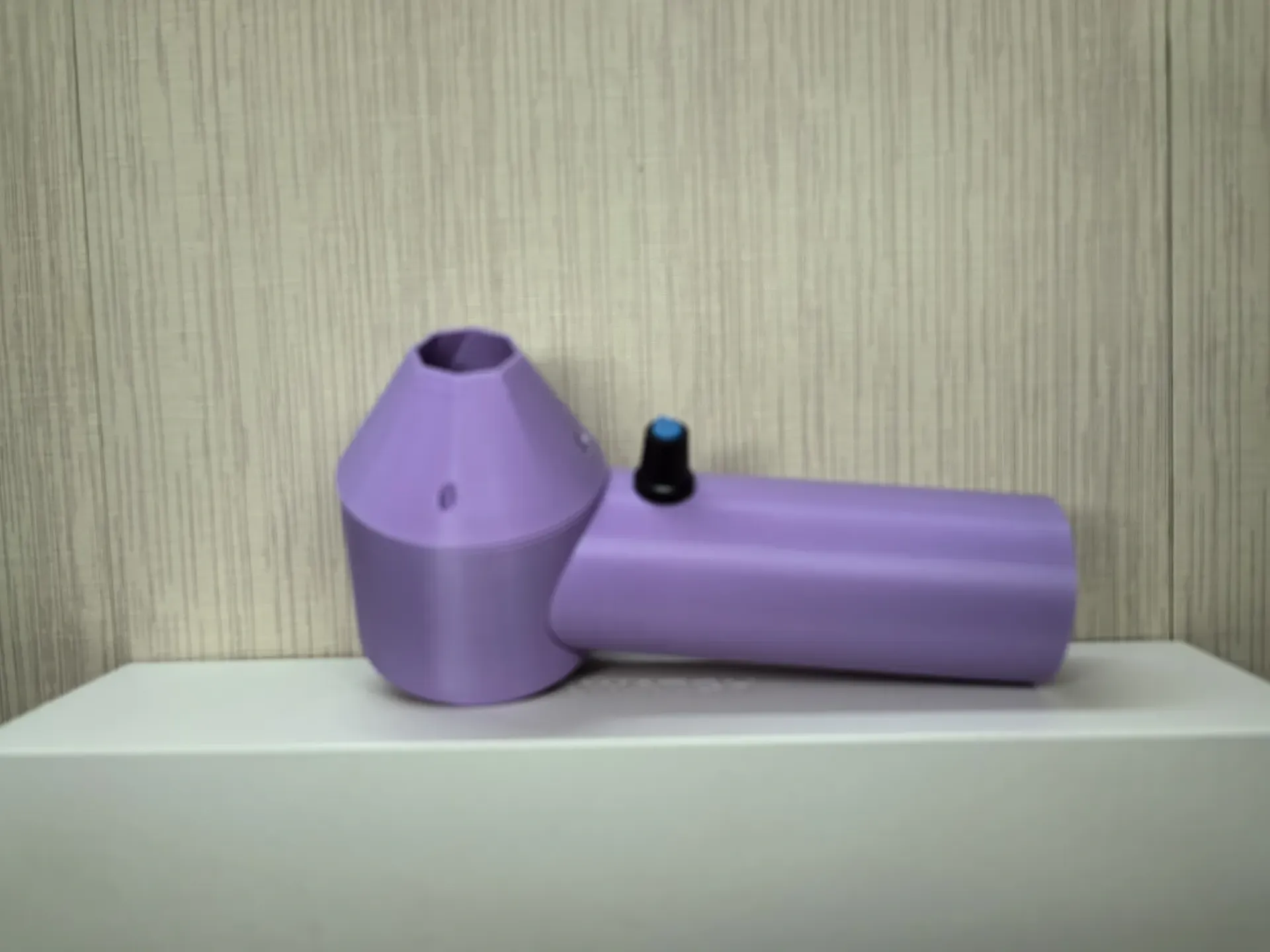

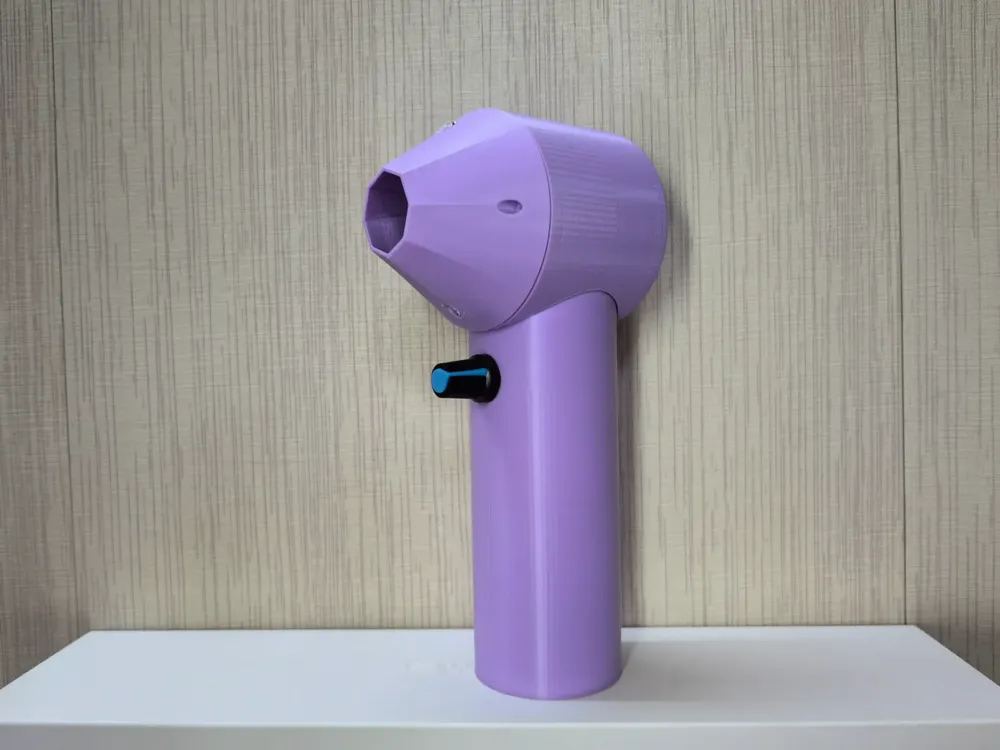

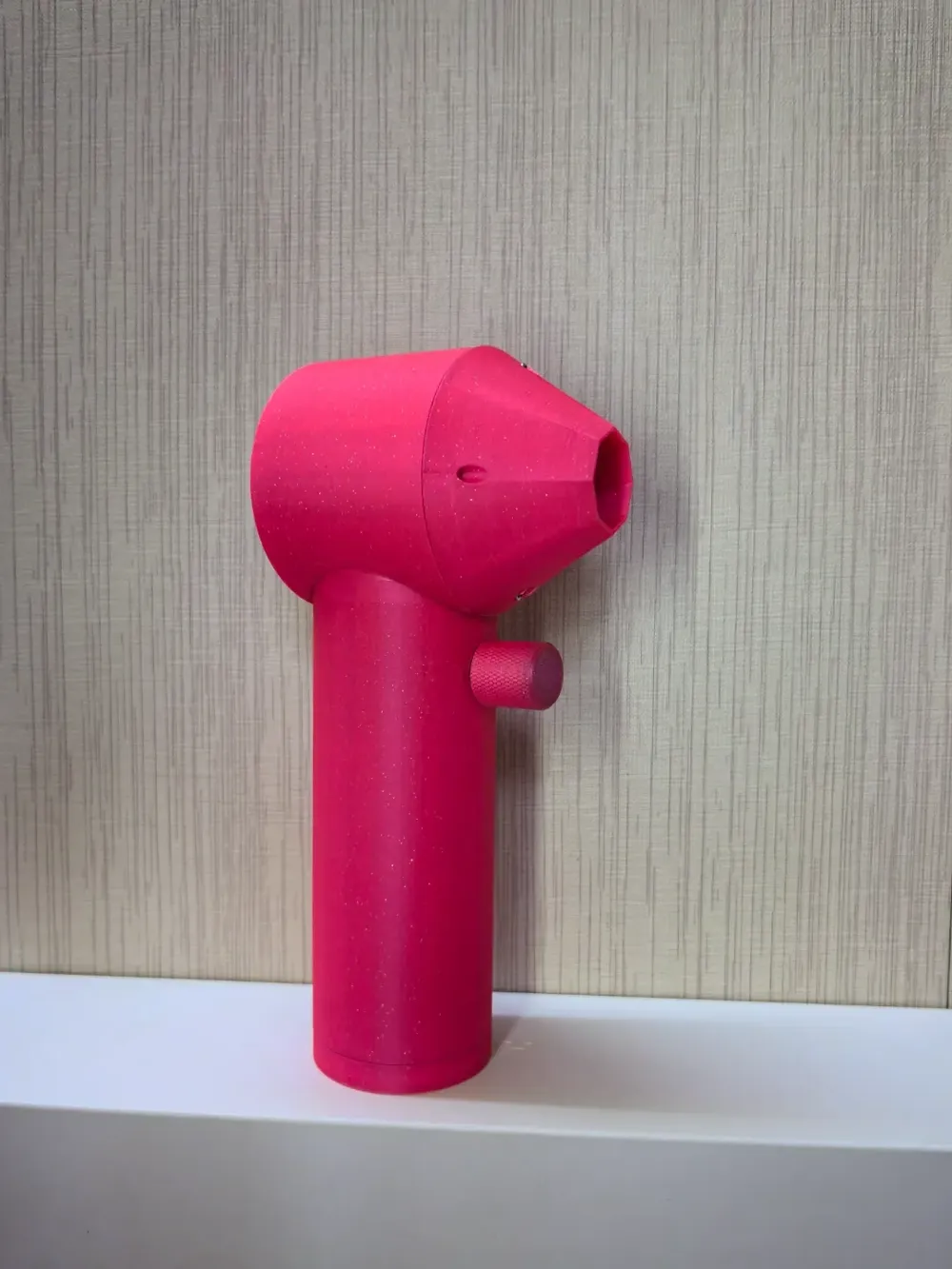

26m/s Handheld High-Velocity Fan
Previous iterations, a desktop high-velocity fan and a handheld model, both had shortcomings. The handheld fan, for instance, was excessively powerful—300W, with a mere 10-minute runtime. As a modern man, I couldn't tolerate this!

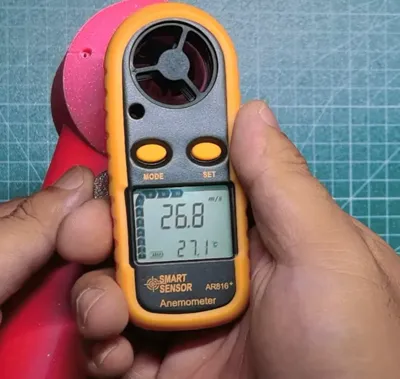

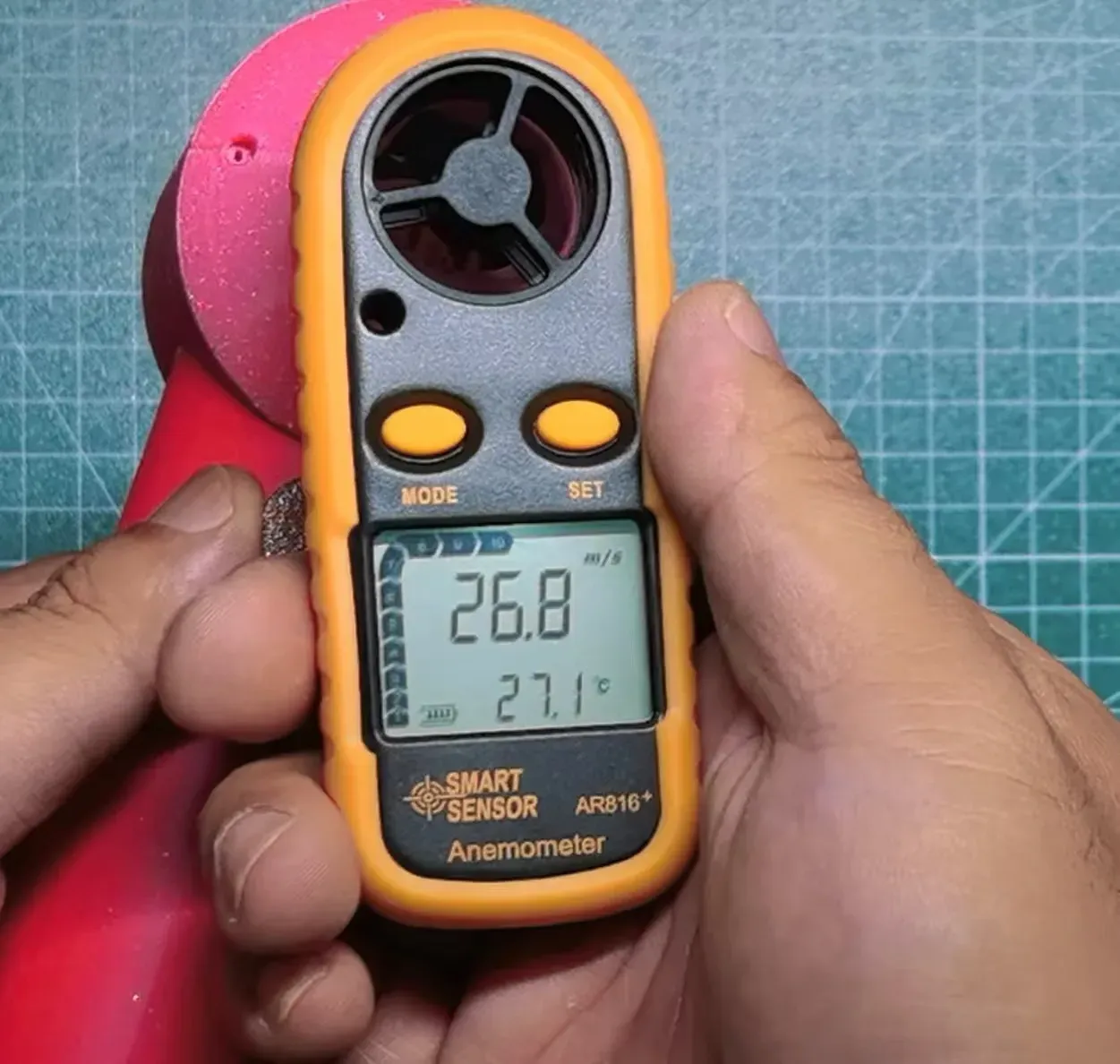

Therefore, this version utilizes a server 4028 fan. While its power is only 20W, it achieves an impressive 26m/s airspeed. Durability? It ran for a full hour before showing any signs of fatigue. Such a marvel deserves sharing!
This design was no easy feat, so please lend your support!
I. Features
High airspeed
Exceptional endurance
Aesthetically pleasing design
Portable and practical

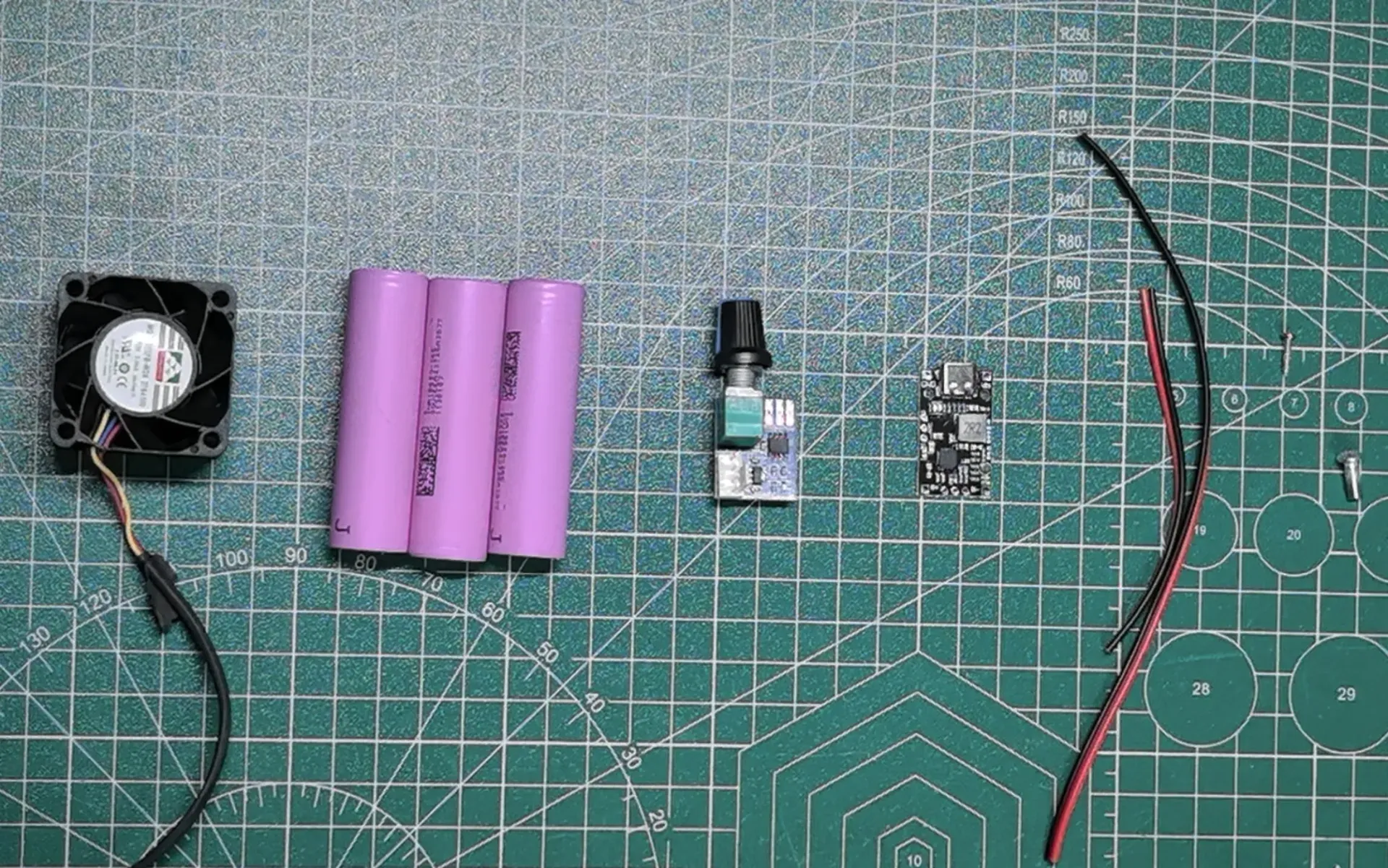

II. Bill of Materials

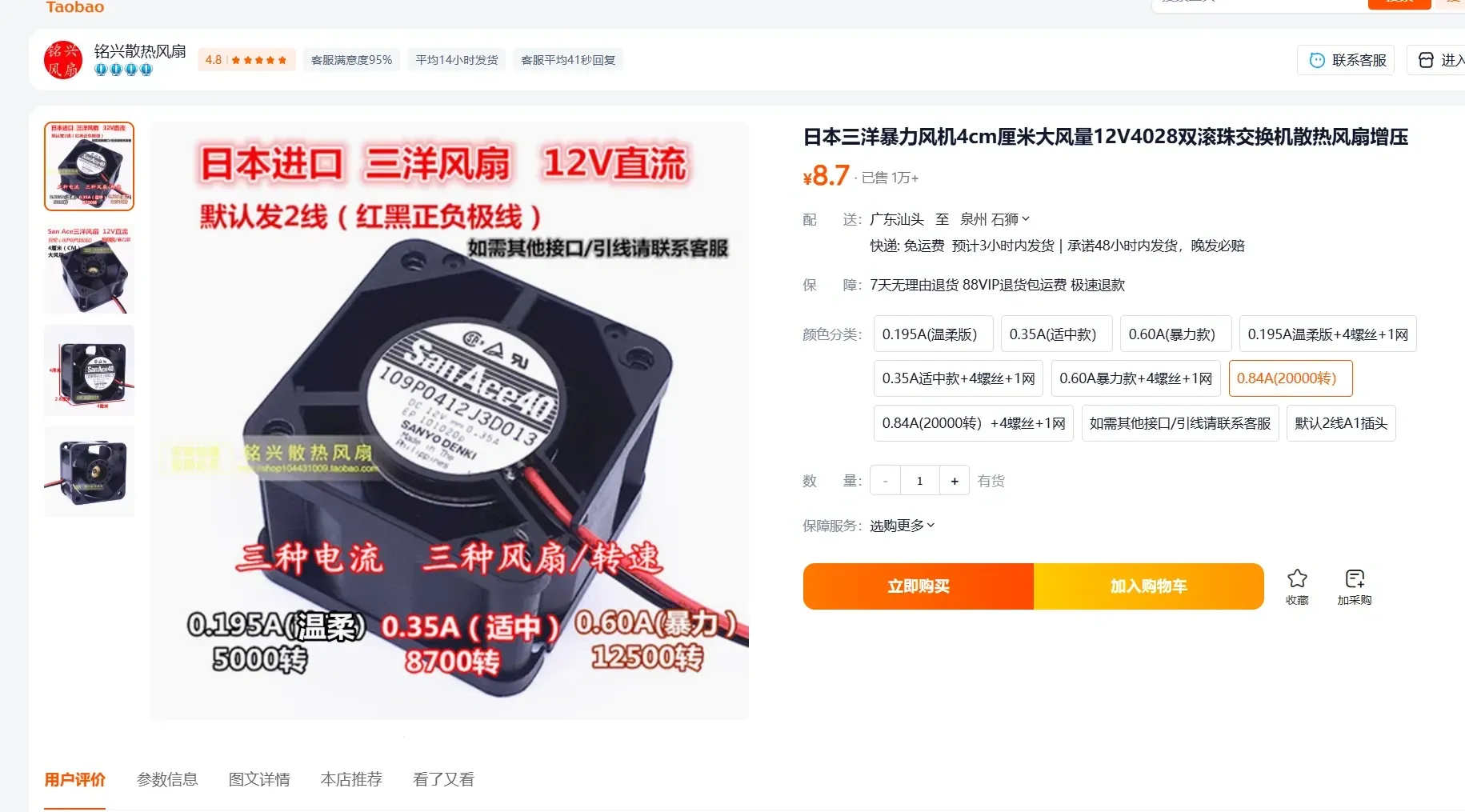

One 4028 fan, PWM 4-pin interface
Three 18650 batteries, wired in series

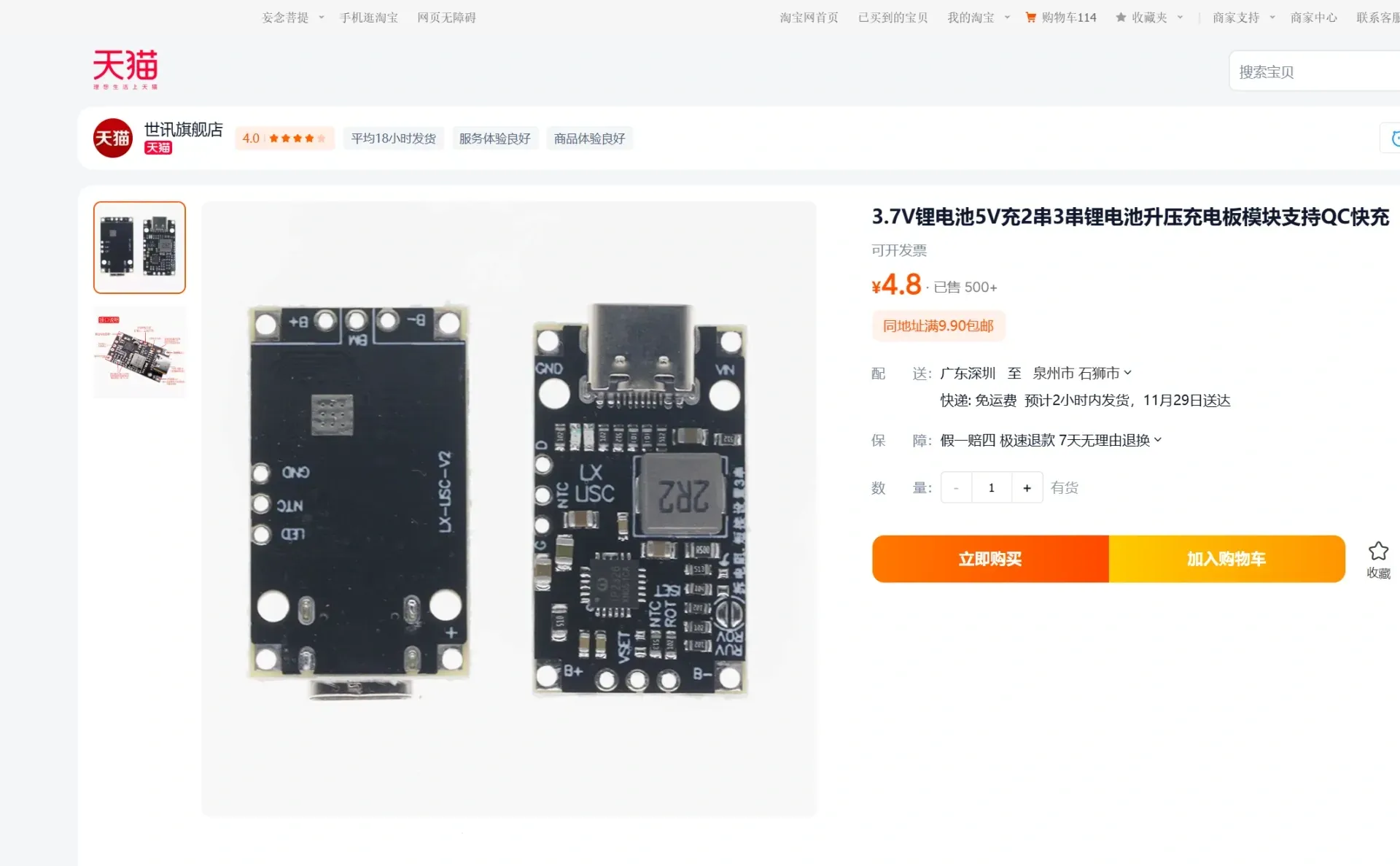

One 3S charging board

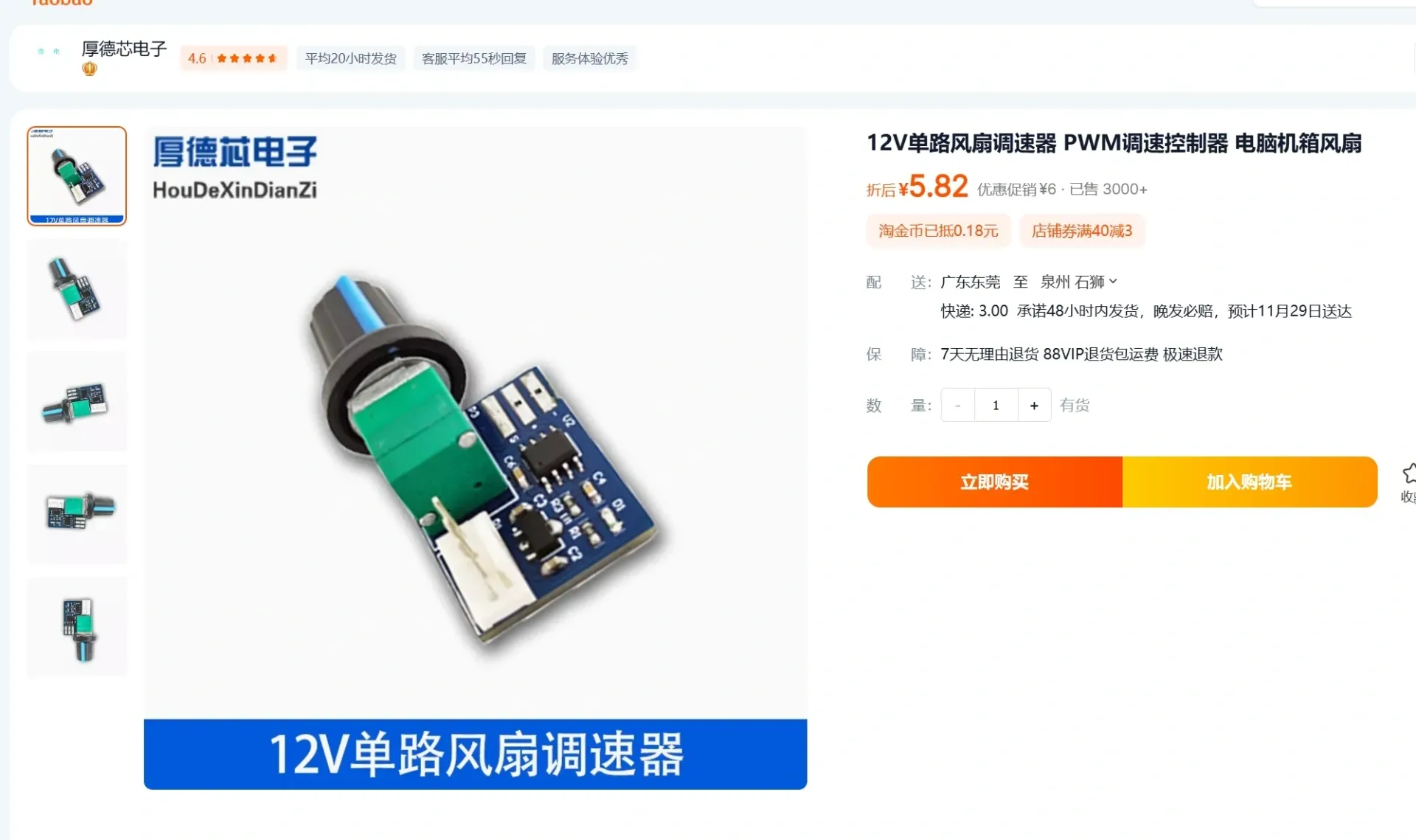

One PWM speed controller
Assorted wiring (for connecting battery, charging board, and PWM speed controller)
Several M2 screws (for securing the charging board and sleeve assembly), four M4 countersunk screws (for securing the fan)

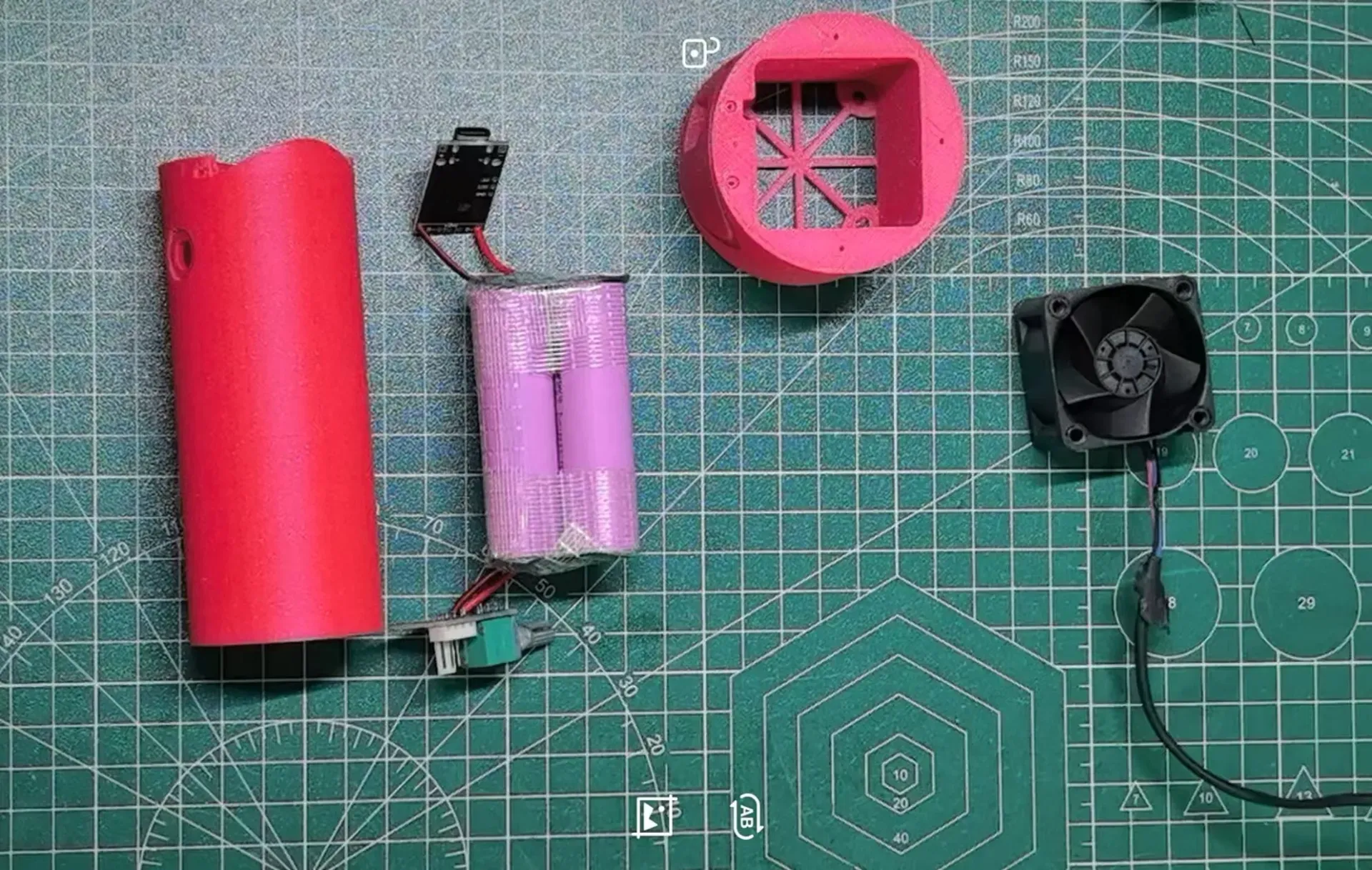

Post-Soldering Image
