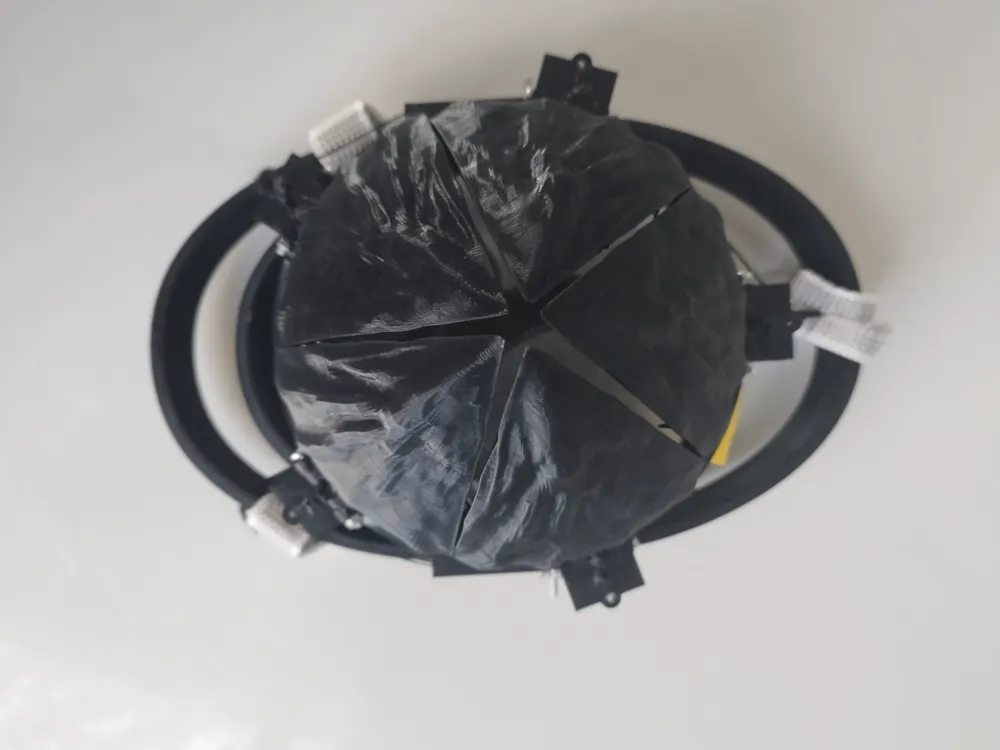

working demogorgon mask

a mask from stranger things very fun to print make and use for making it you only need 9 m3 x 30 bolts with their nuts thread, blind cord and elastic bands.

Assembly instructions

• 1 print de main body
• 2 print 5 flaps
• 3 separe the main body to the jaw mecanism that is inside of the main body

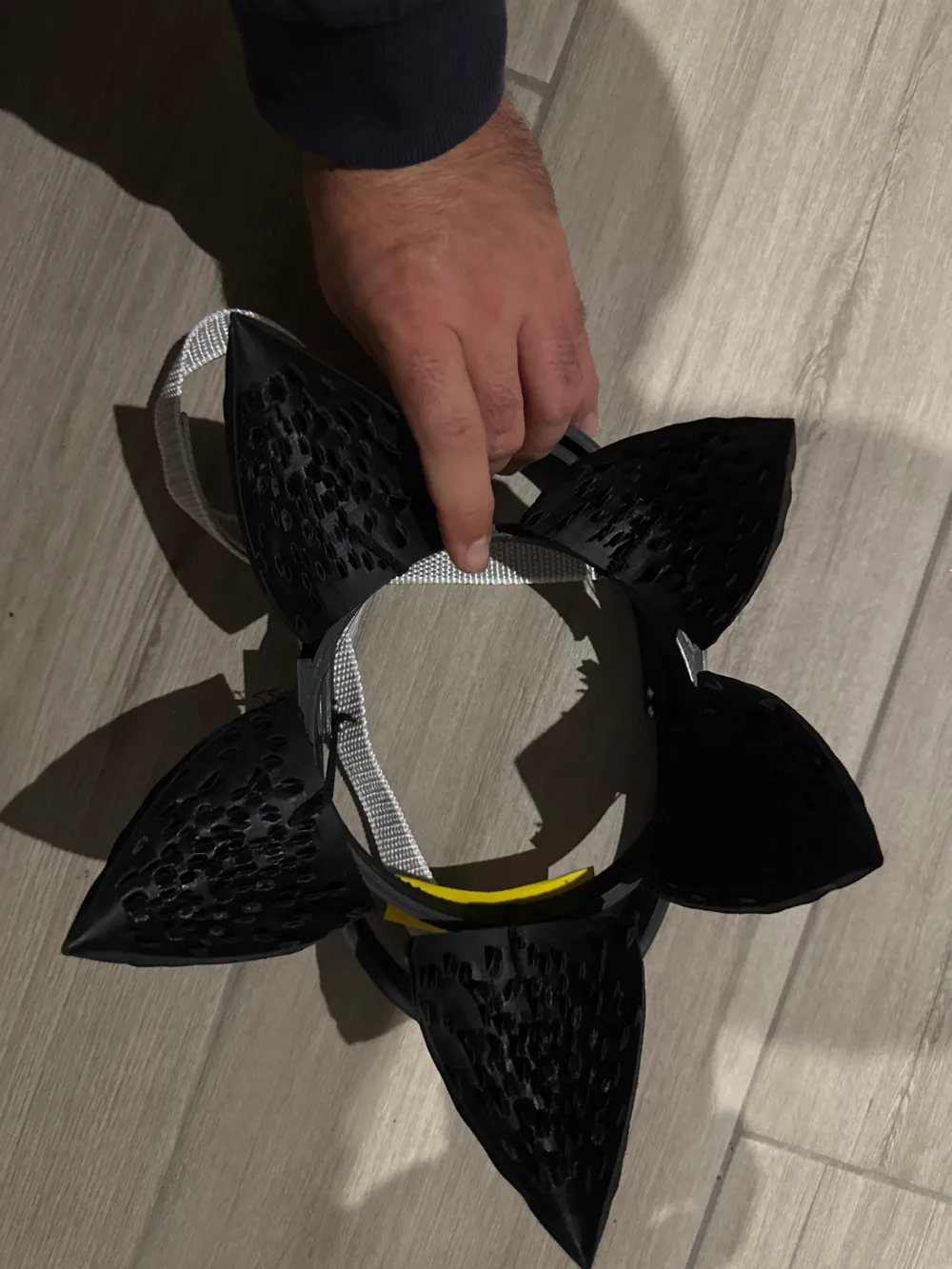

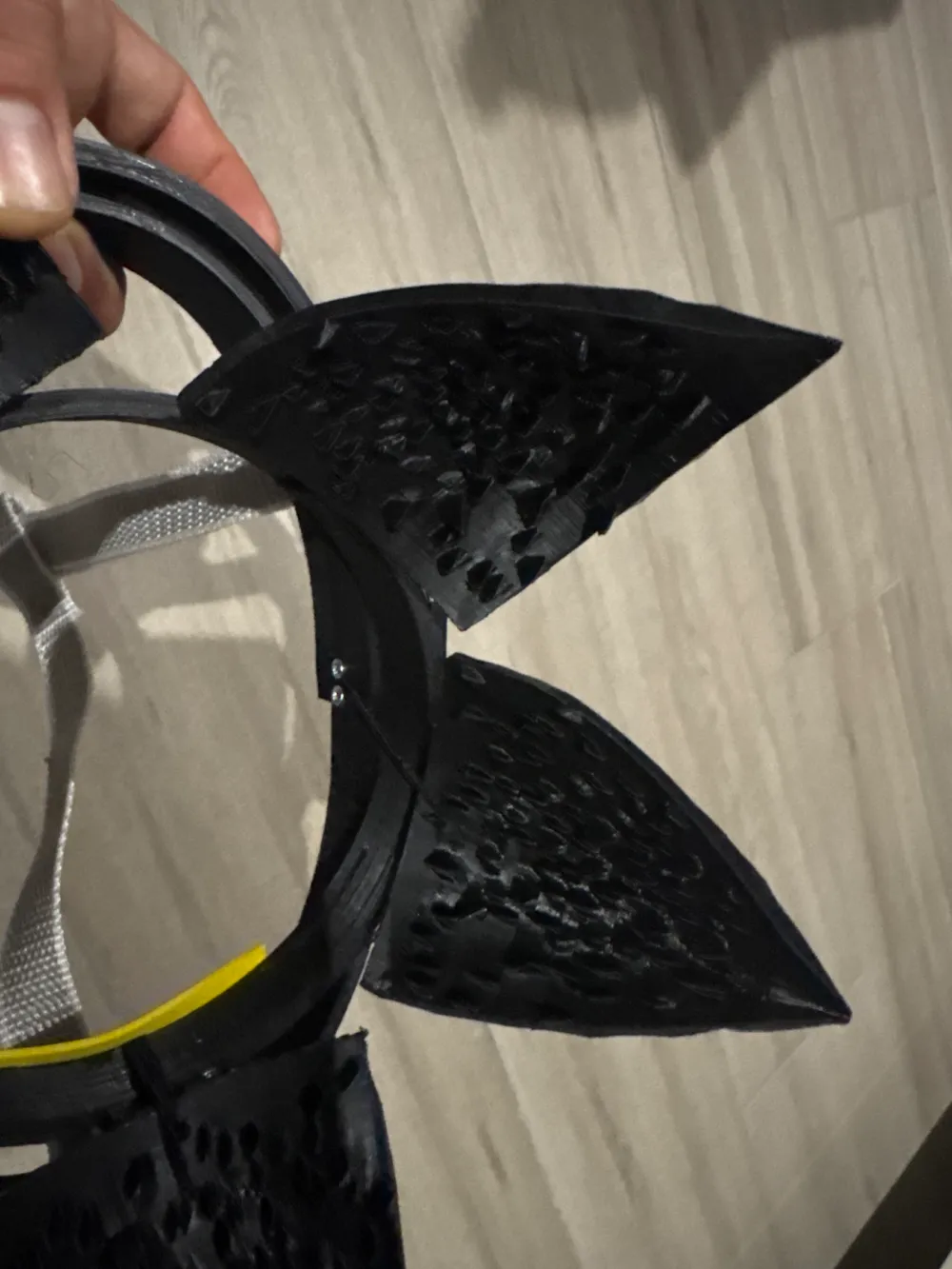

• Attach the main body to the flaps throught the hinges and put the bolts with the nuts
• Test if It open and close well in case this don`t work well grind a little bit the edges

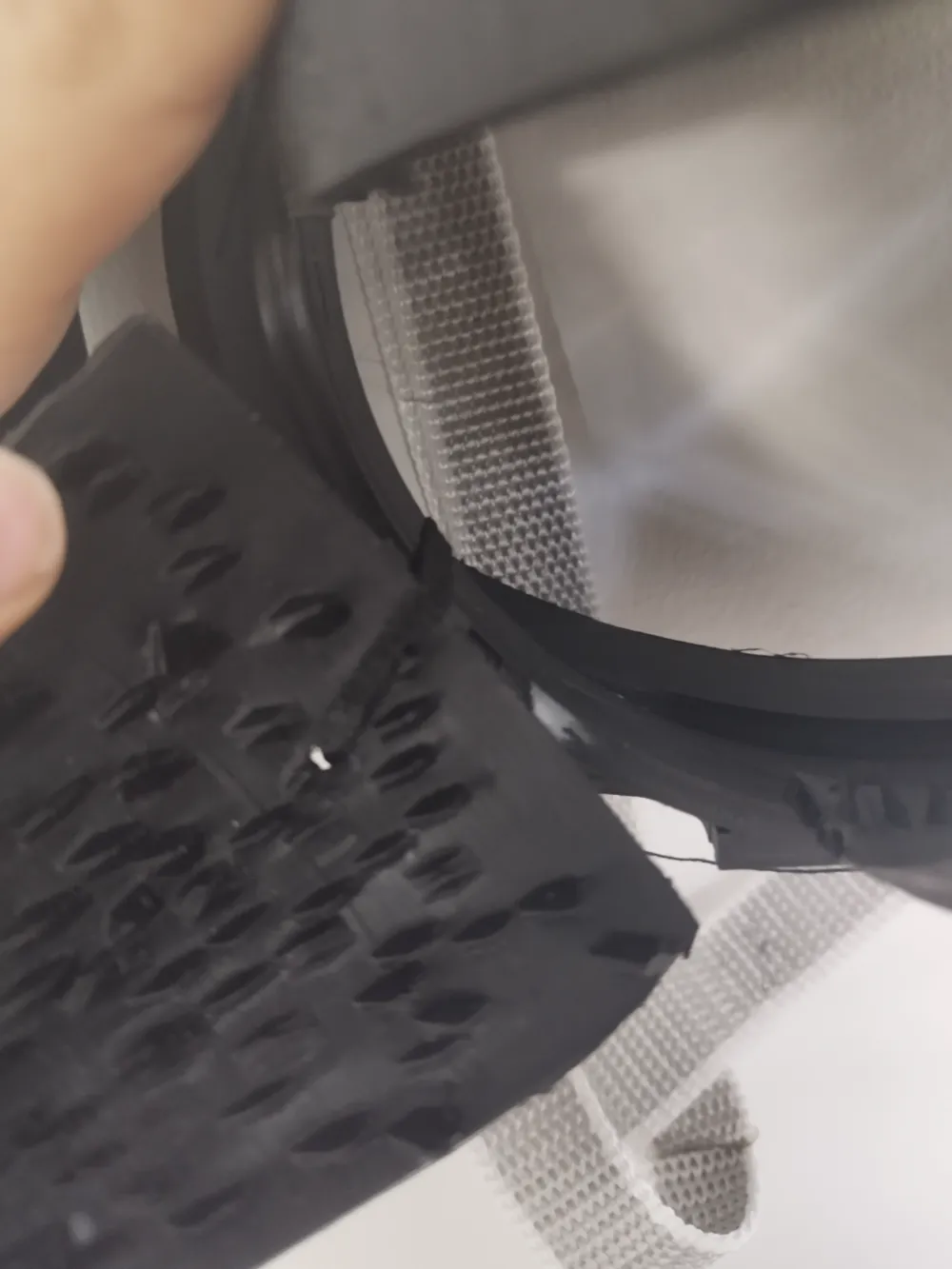

• Check that in each flap there's a hole if not, just drill It

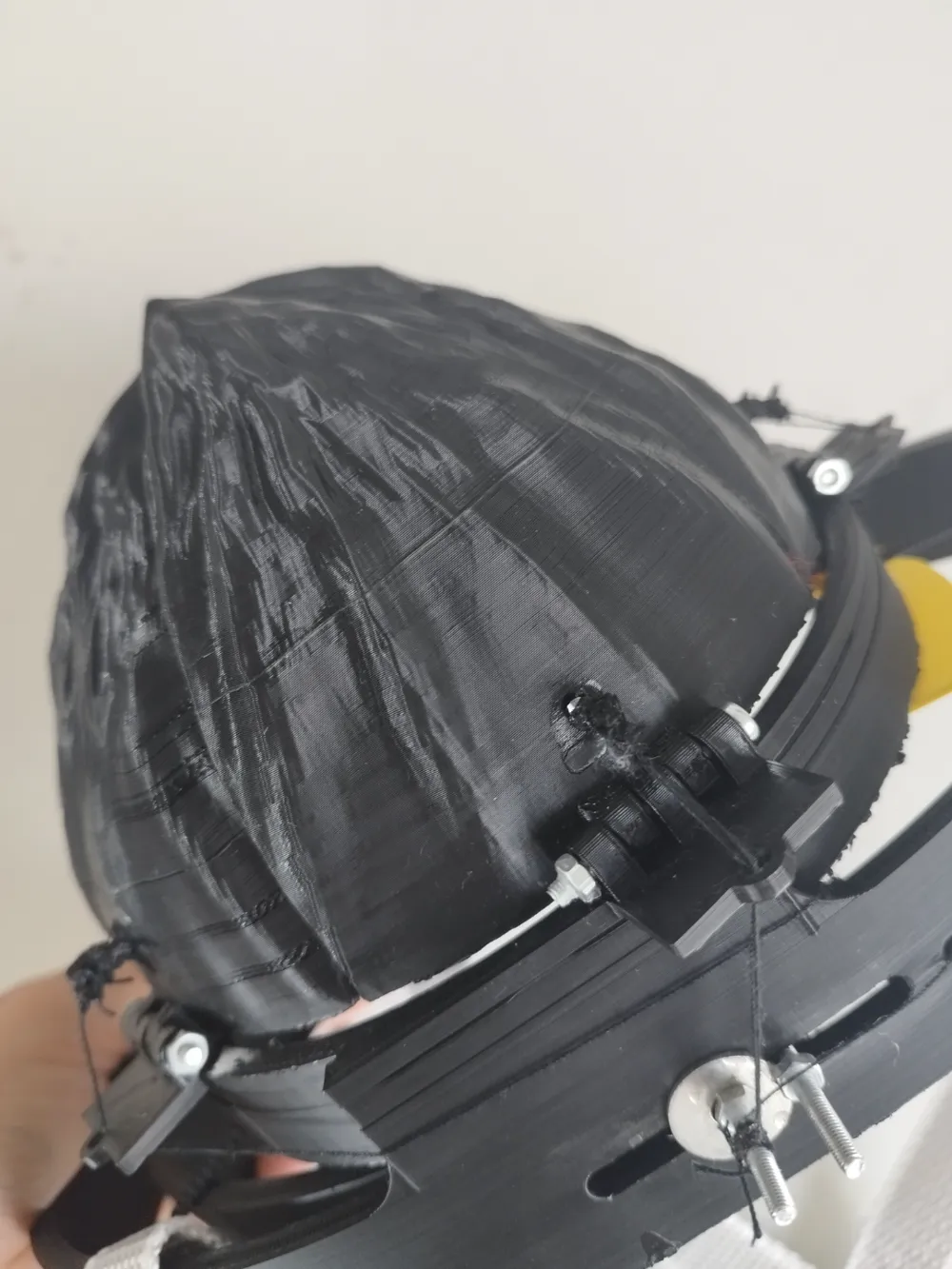

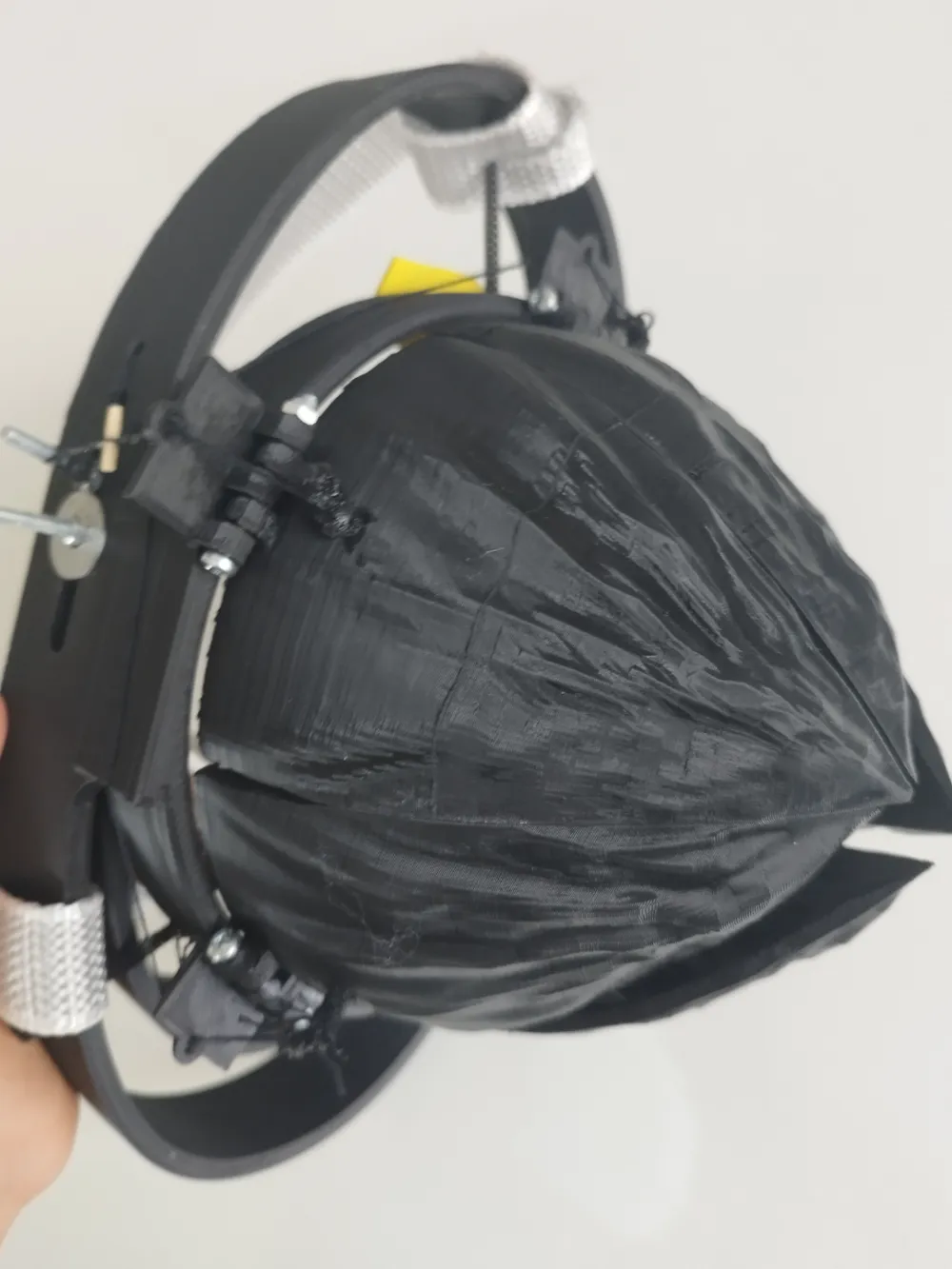

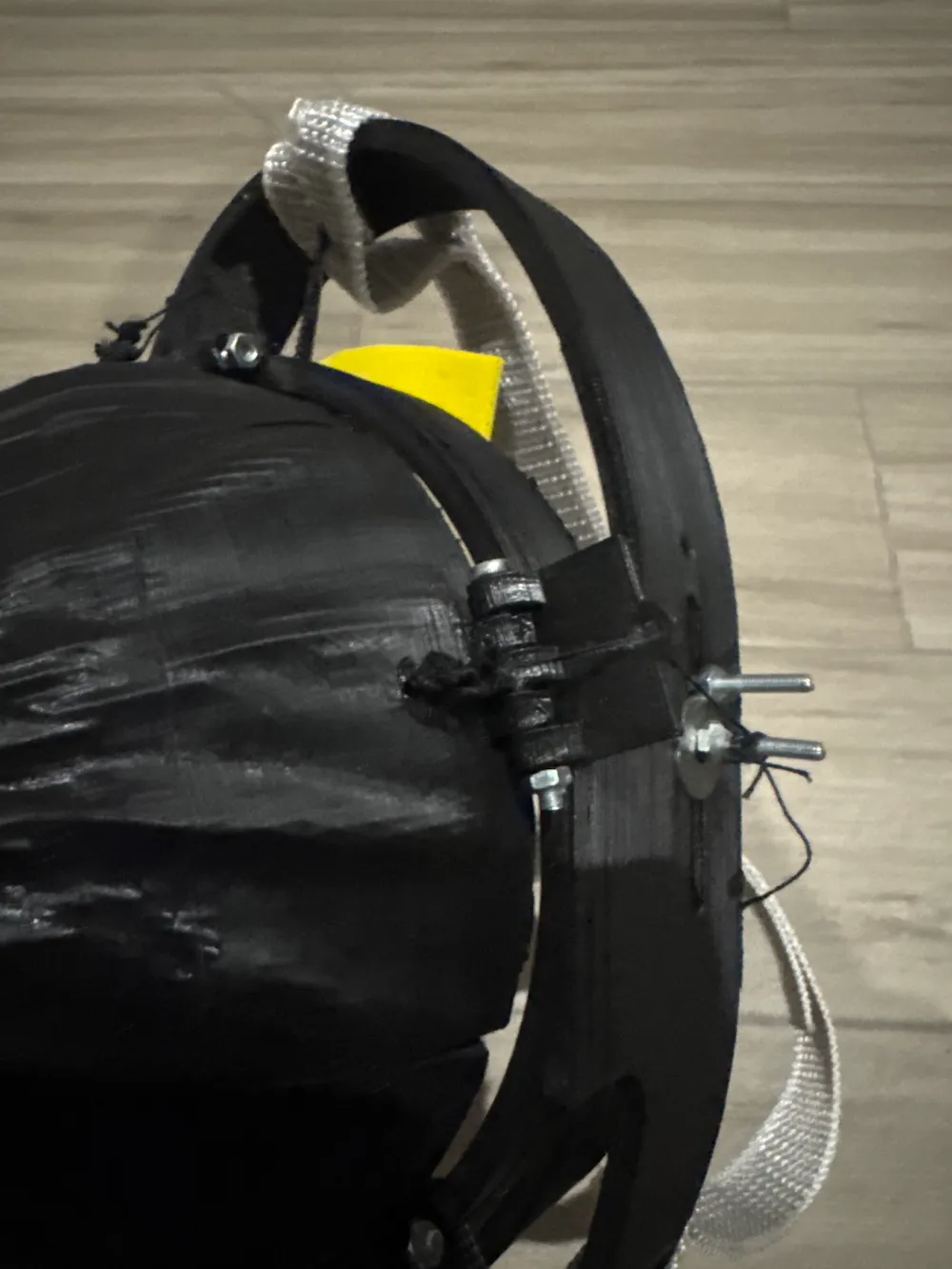

• Take the jaw mecanism and attach It with bolts to the main body, for this there's a rail in both sides of the main body, better with a washer
• Put the elastic bands in each hole and attach them by a knot to the main body
• Tie the treads to the elastic bands throught the holes of the flaps and throught the holes of the main body

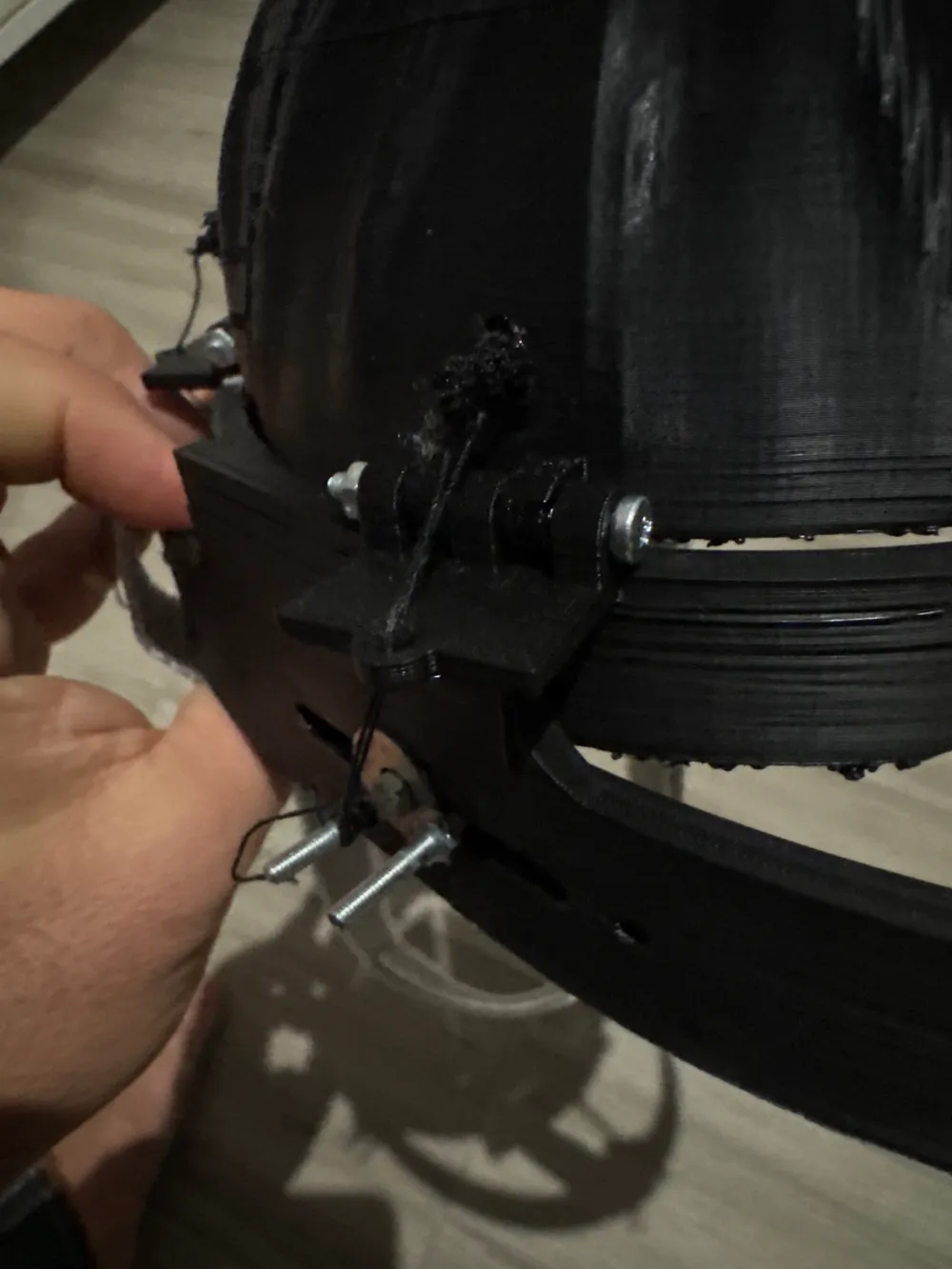

• For the upper one just tie the thread to the jaw mecanism's bolts
• For the middle ones do the same, tie the threads to the jaw mecanism's bolts
• The other two remaining must be passed throught the holes near the rail and attached as all the other ones

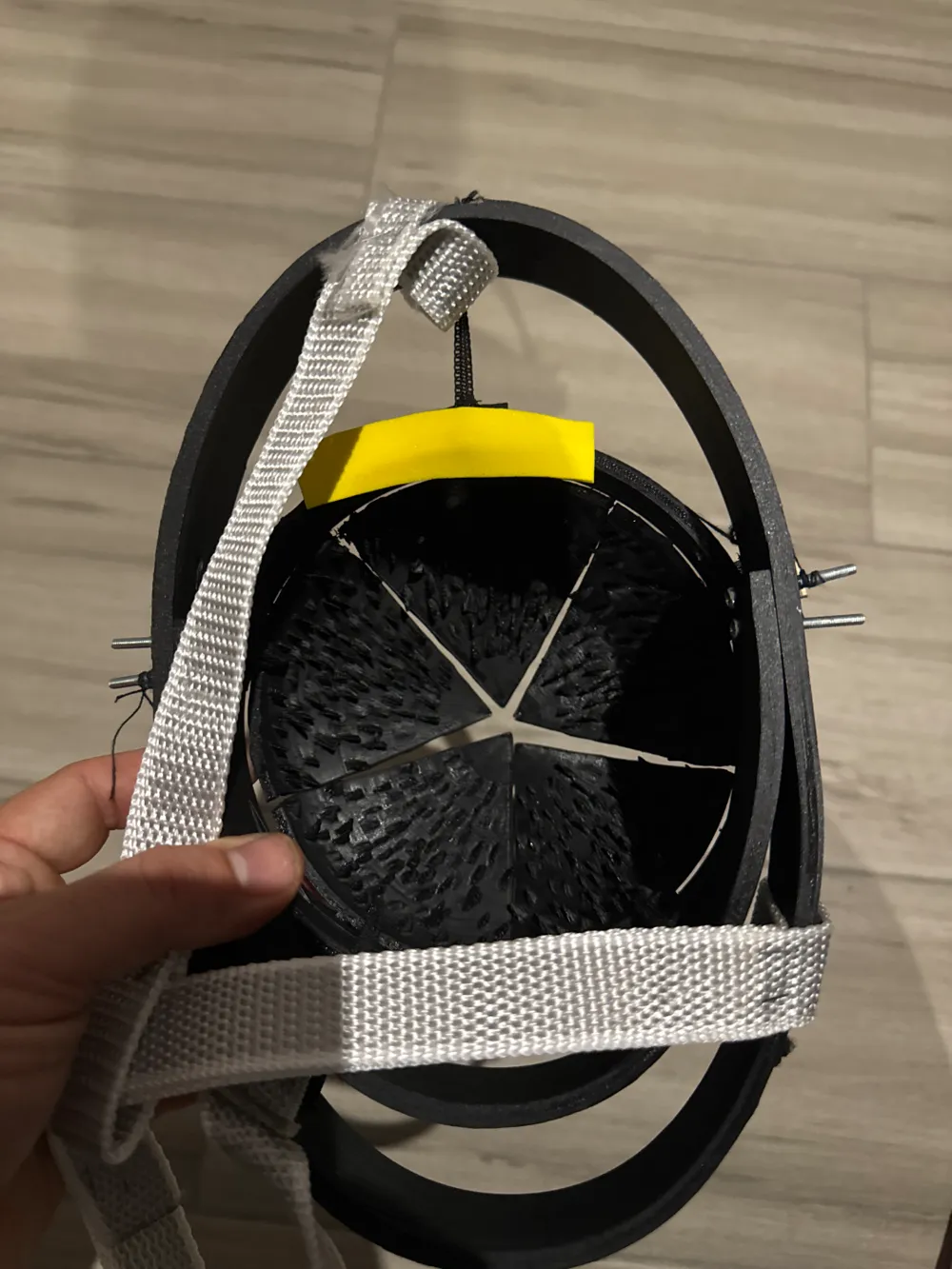

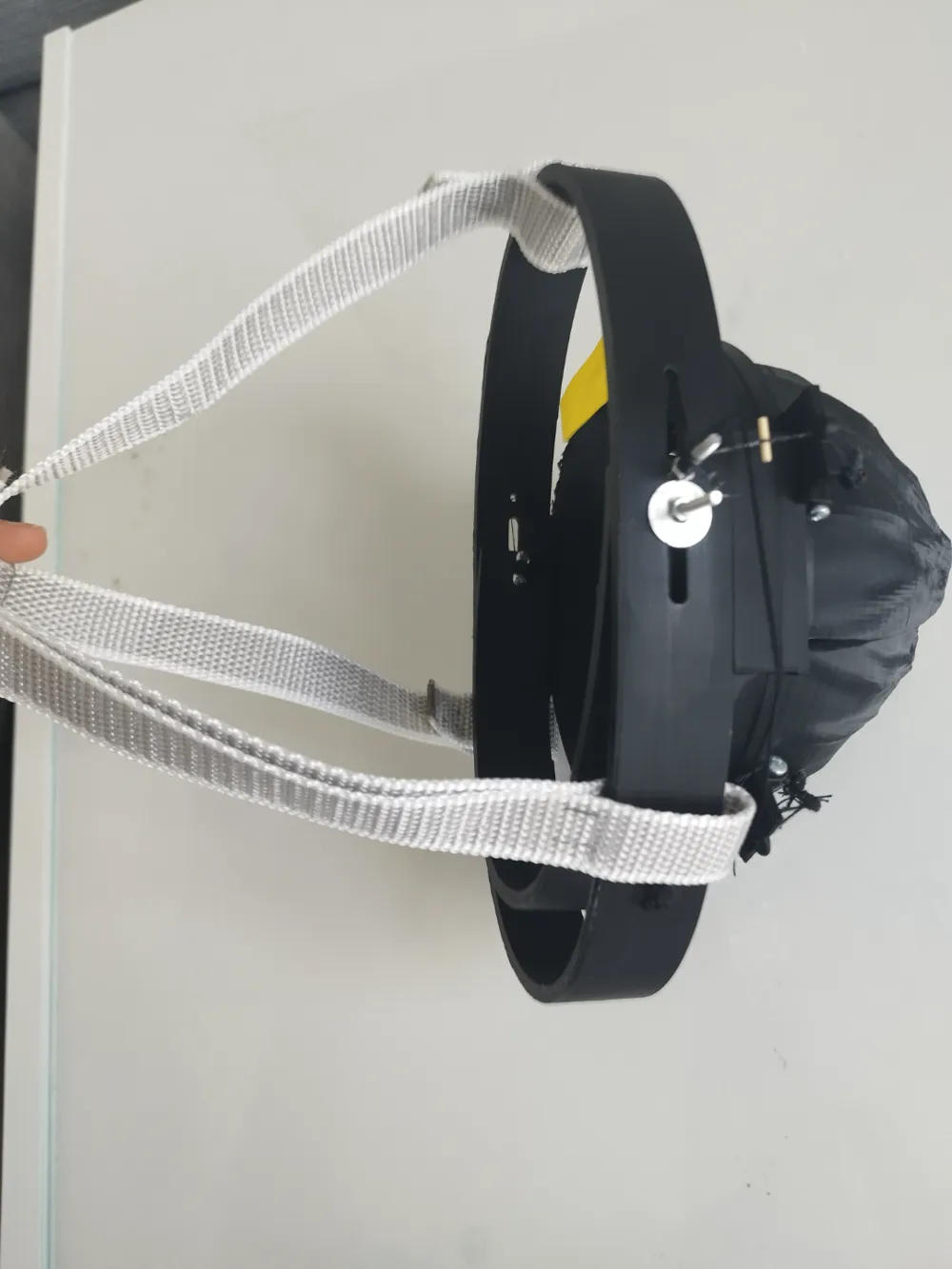

• For the straps that attach the mask to the head first and messure aproximately how much you need and take a little bit more for attaching It to the main body

  Repeat this process with the upper straps



  And your mask IS done!



  If you have any dudes write them in the comments.

It took several weeks to design this mask, please do not remix with out attributtion
