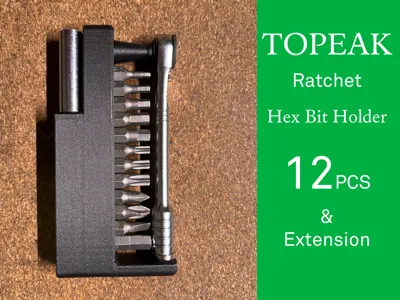

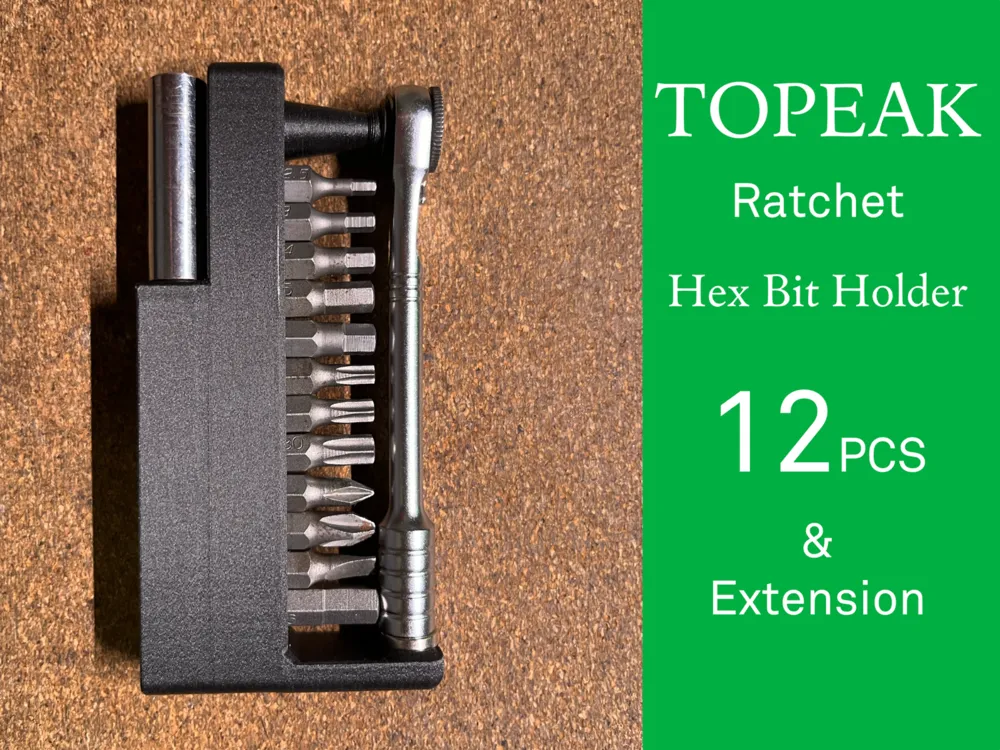

Topeak/iBrand 12PCS Hex Bit Holder
Print Profile(1)
Bill of Materials
Description

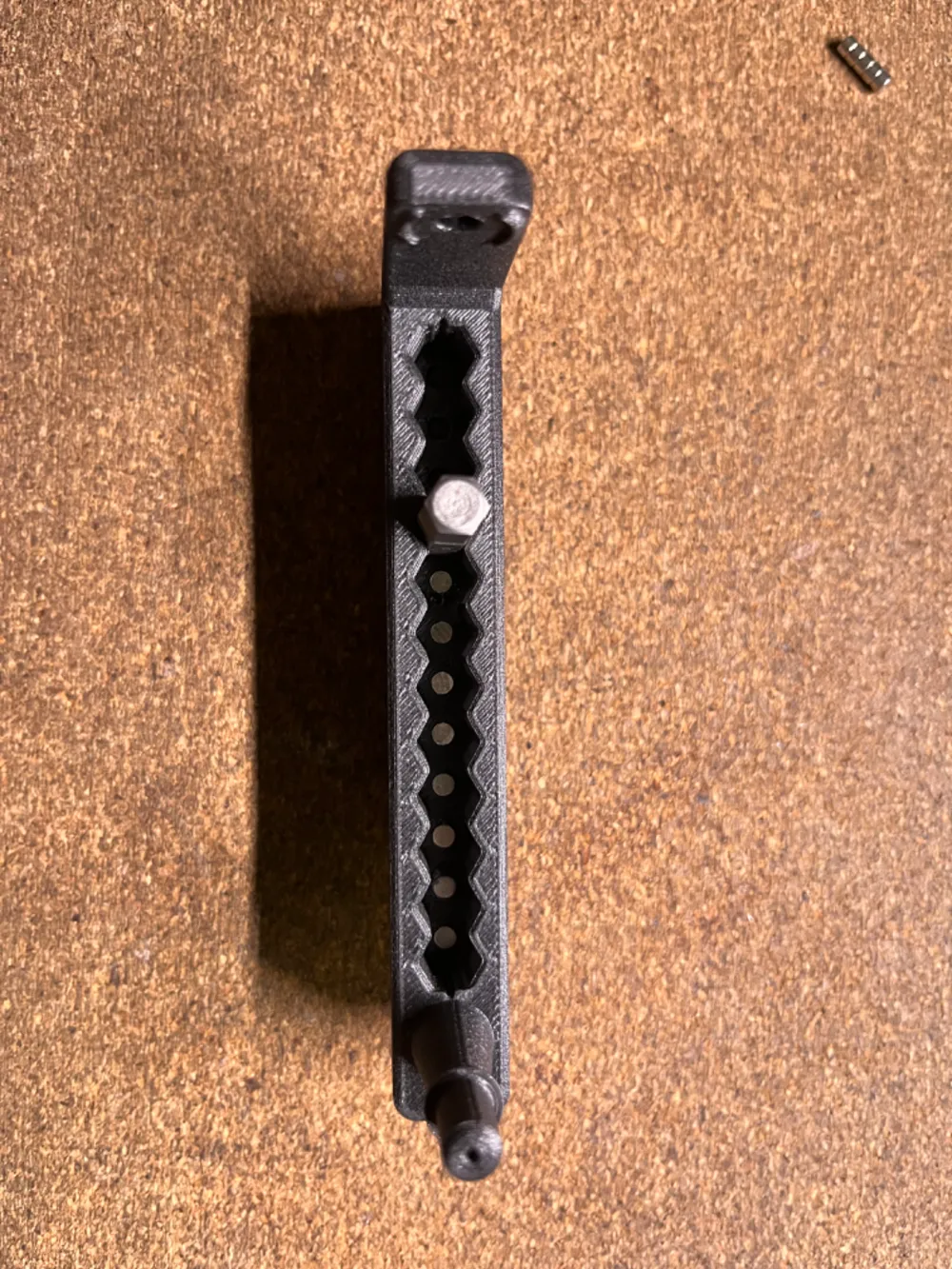

This set of tools has been with me for ten years, its case has broken, and now I have redesigned it.

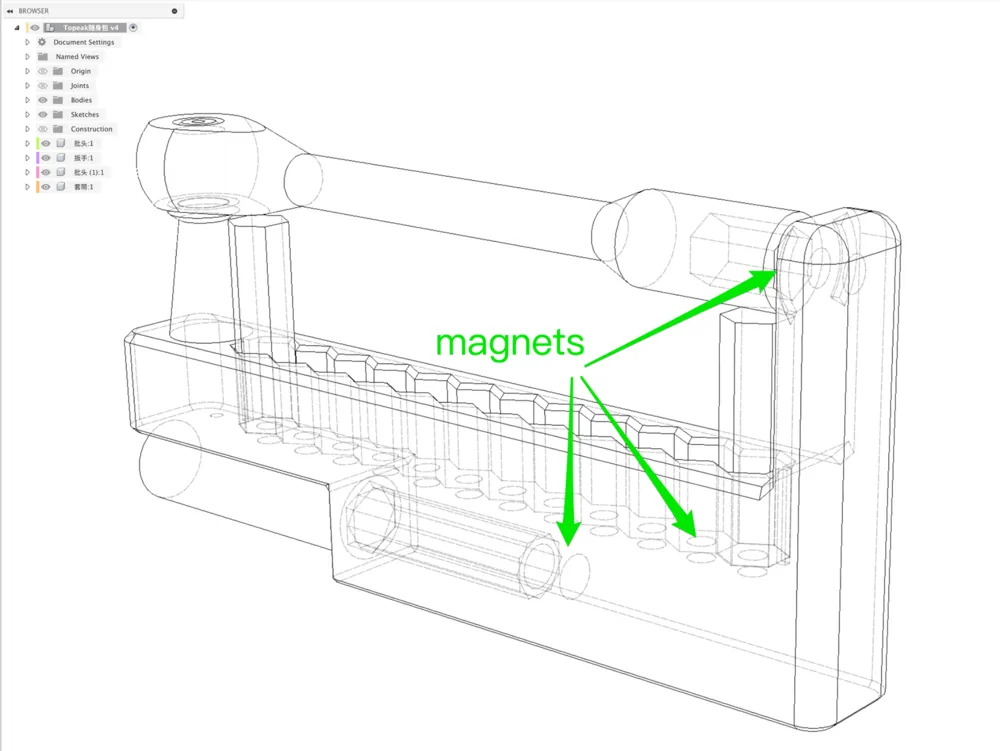

I took inspiration from @Der_Da2002, but it doesn't have an extension tube and magnets (yes, we all love magnets)
You'll need these:

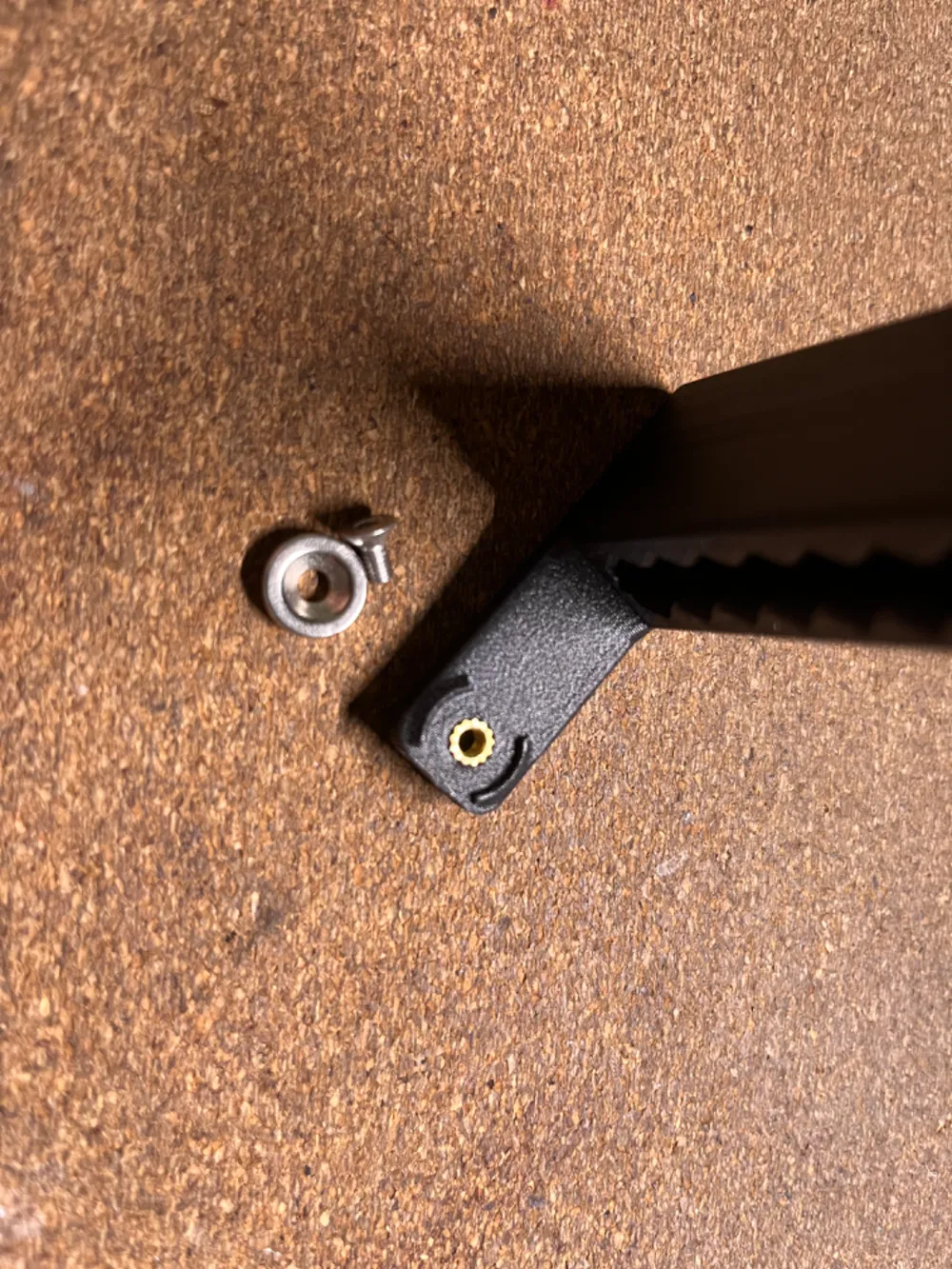

- M3x6 countersunk screw / tail / 1pcs
- M3x5 brass heat insert nut / tail / 1pcs
- 10x3mm magnet with countersunk hole / tail / 1pcs
- 3x1(or 1.5)mm magnet / screwdriver head / 12pcs
- 5x2mm magnet / extension storage / 1pcs

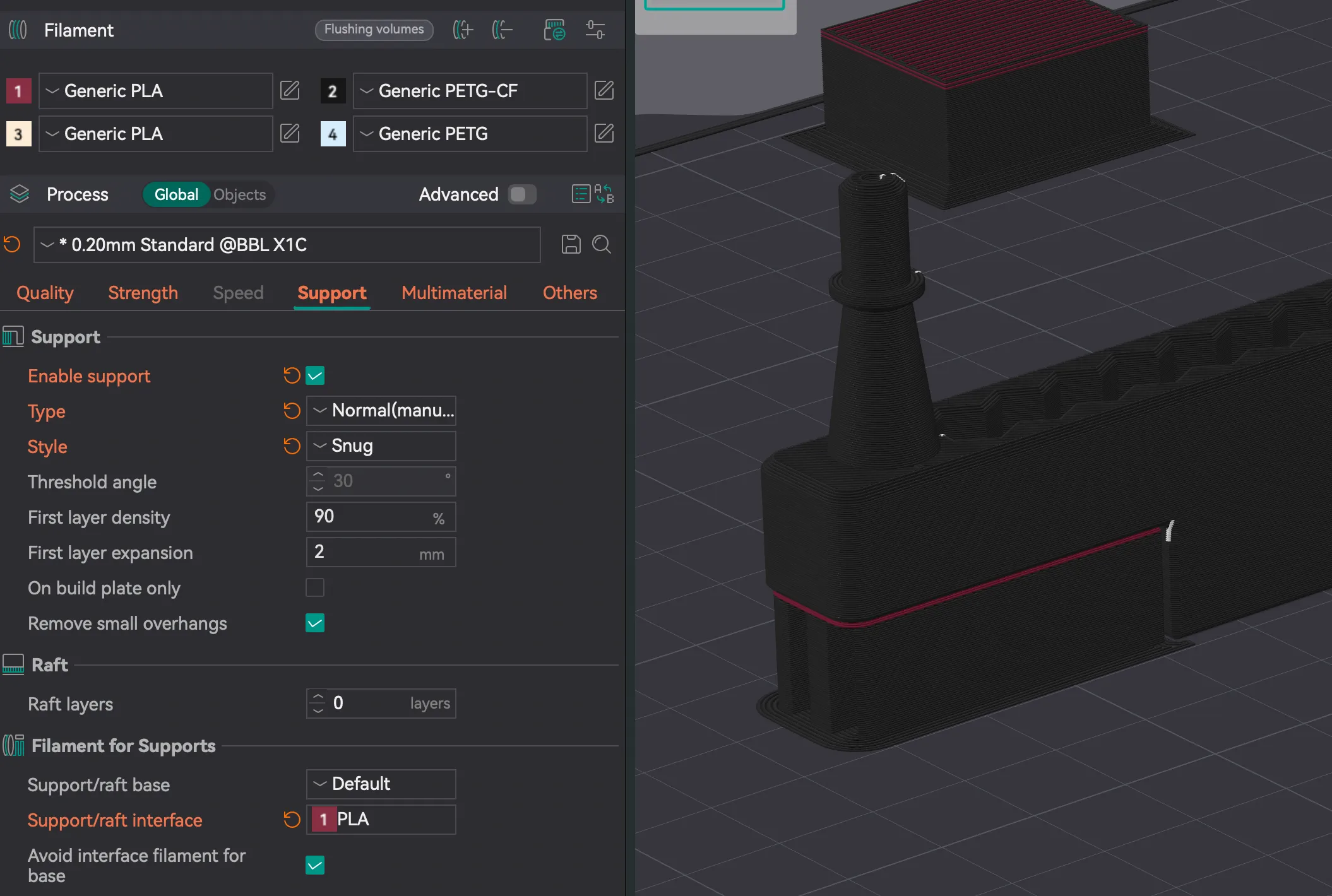

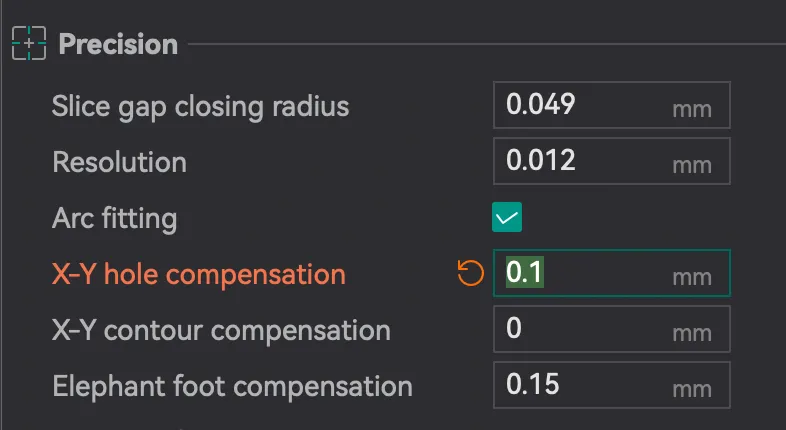

I printed it with PETG-CF & PLA(support), if it's too tight or too loose, you can adjust the XY hole compensation and test again.
Boost Me (for free)
Any suggestions please leave a comment.

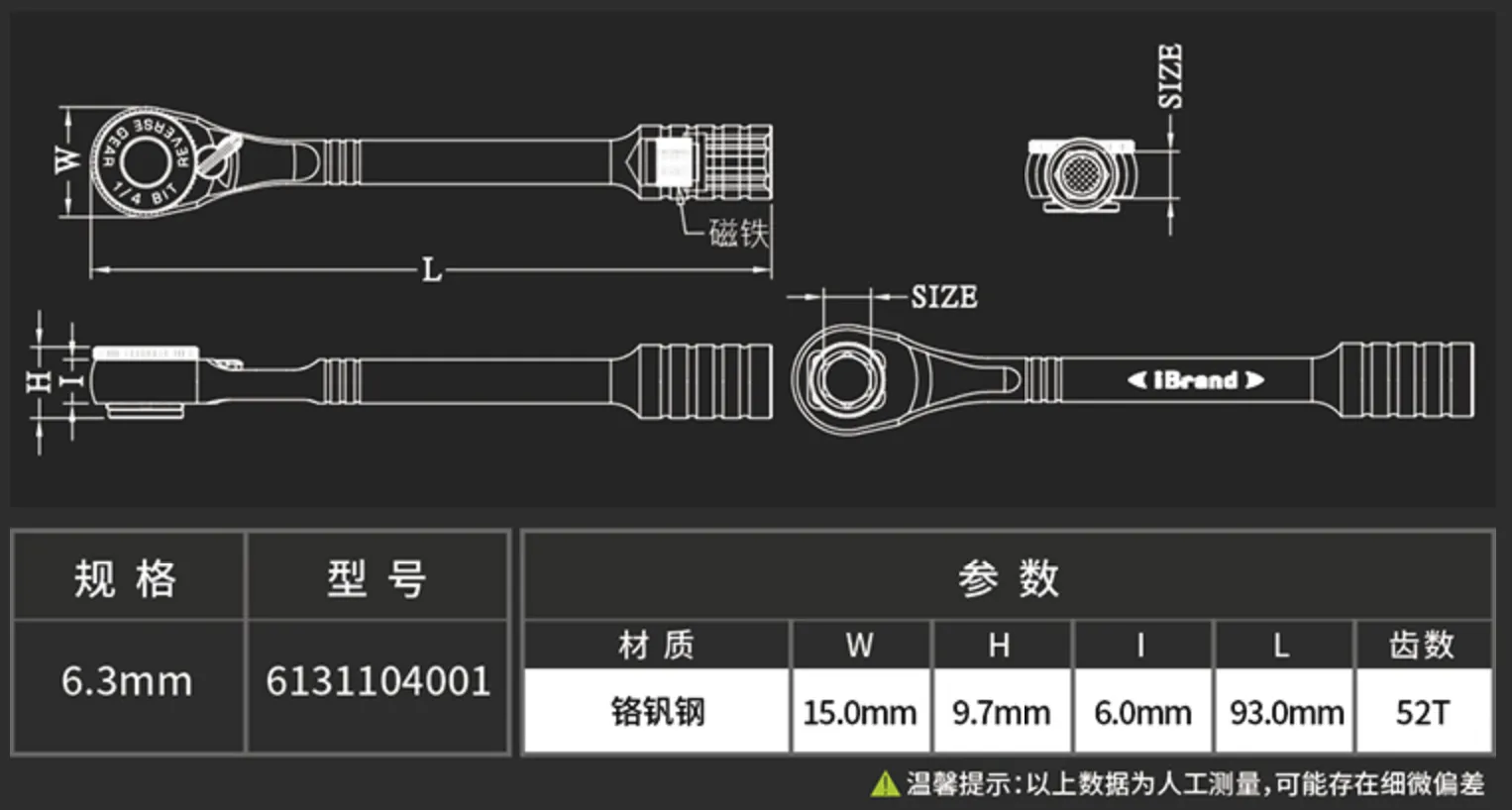

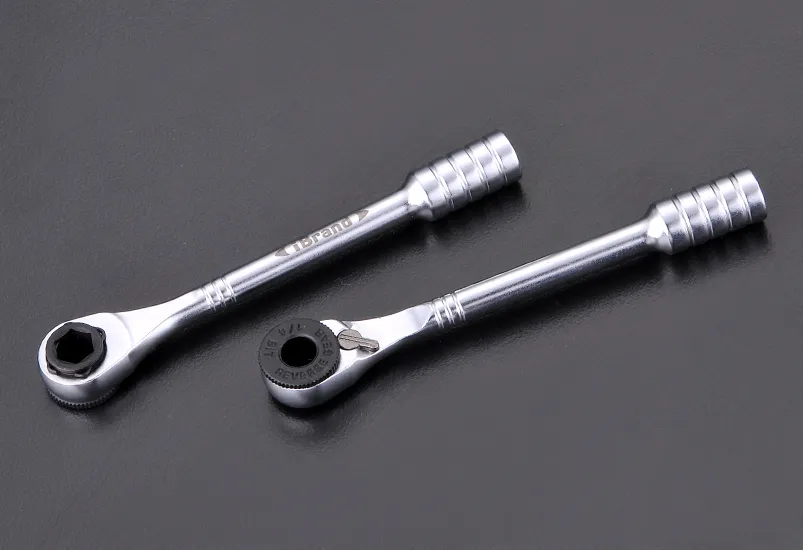

Update: I found that it also supports the 93mm length iBrand ratchet wrench.
