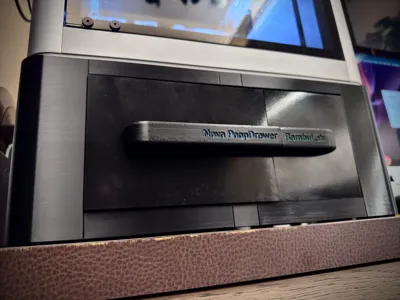

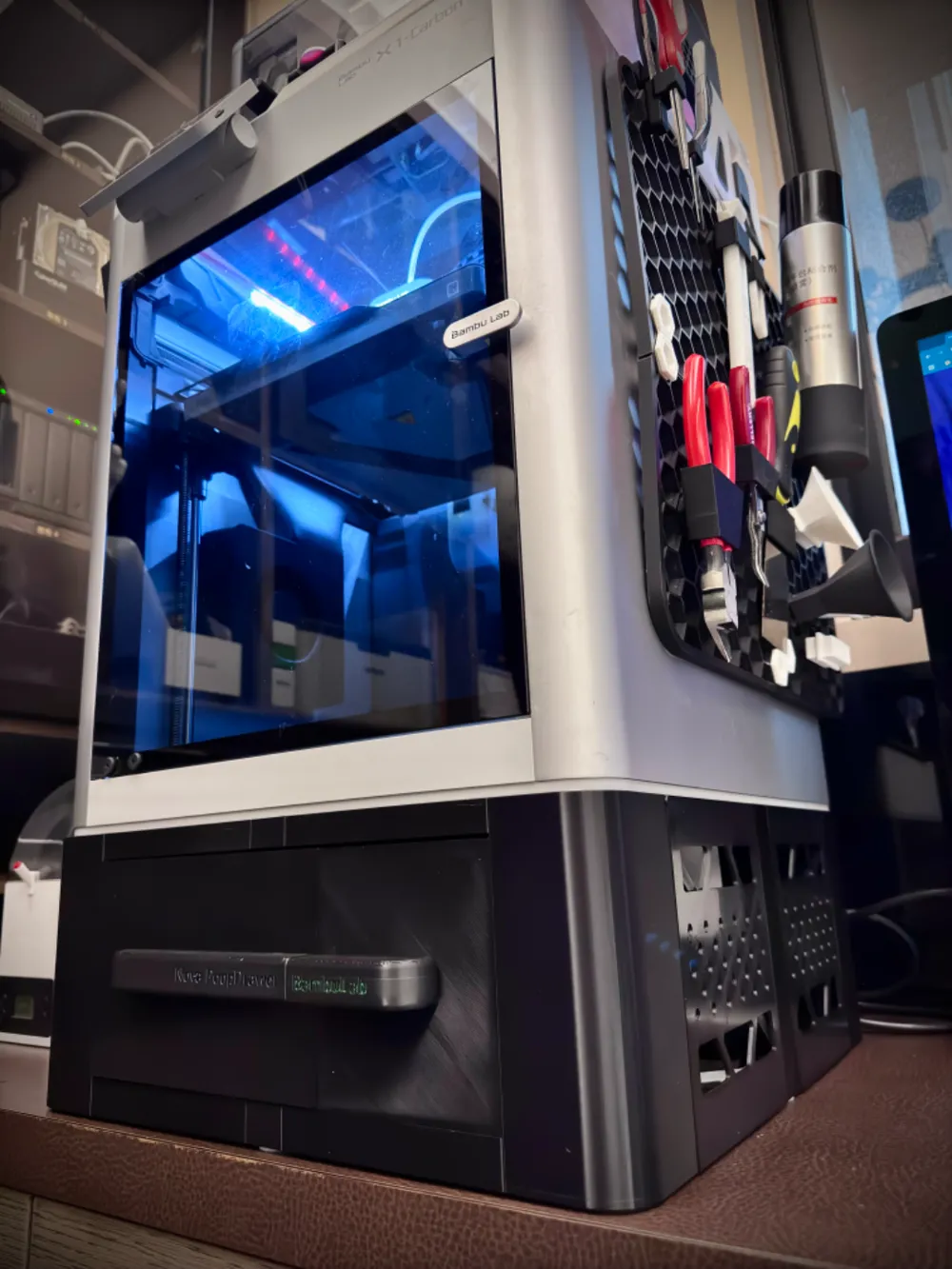

X1C PoopDrawer 150mm V1.1

Update

• V1.1
  It has been observed that some poop falls outside, likely due to the insufficient height at the back of Poop Tube A. Therefore, in version 1.1, the design of this part of Poop Tube A has been updated accordingly.

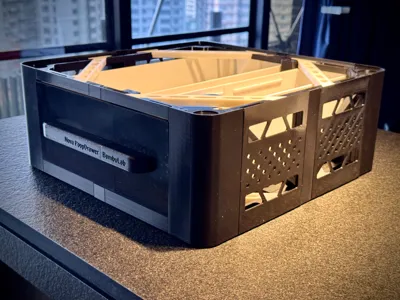

Model Features

• This model is designed based on a modular stacking structure, ensuring sufficient structural strength while minimizing filament usage and support requirements to facilitate easier printing.
• Although PETG is the default material for printing structural components, other materials with strength equivalent to or greater than PLA+ can also be used, as PLA+ has been tested and proven to meet structural requirements.
• This model incorporates elements from the following two designs, with the creators’ consent:
  • X1C Drawer Base: Link
  • Bambu Printer Drawers: Link

    You may choose to use this model as you see fit according to your preferences and needs.

Assembly Notes

To reduce unnecessary vibrations, some parts are designed to fit tightly. Due to thermal expansion and contraction in connecting different materials, auxiliary tools may be required.

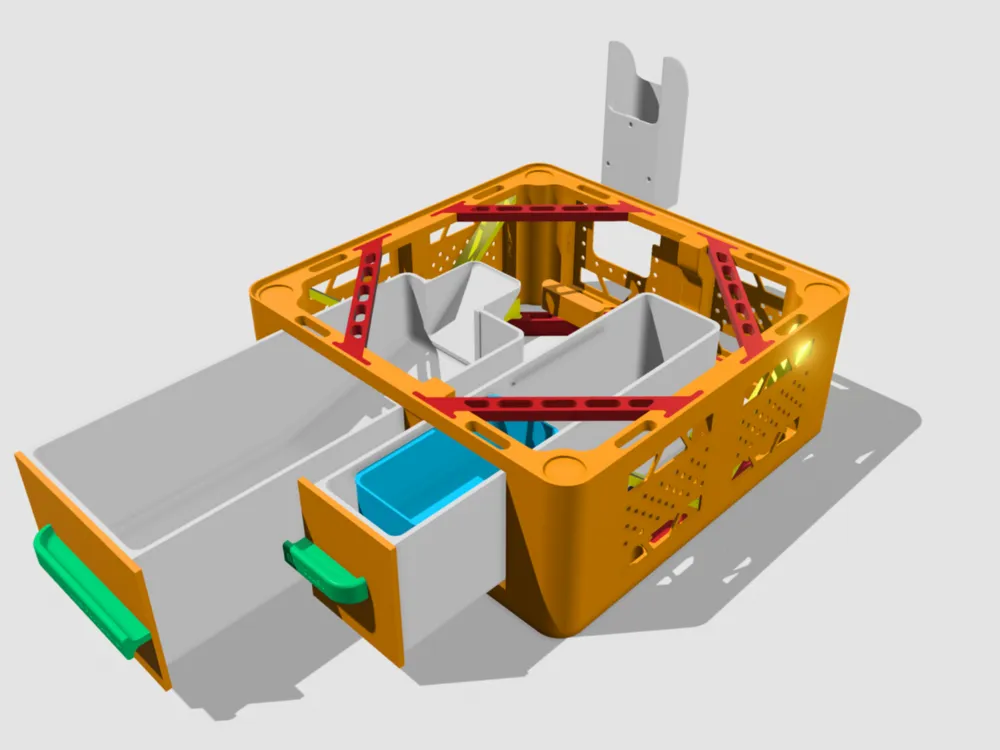

The structural components use PLA+, which has been tested and found to be suitable. Refer to the attached diagram for structural parts.

Certain parts are large components, and high-strength filament may cause warping at the edges, so please pay attention to printing parameters.

Additional Components:

• Non-slip pads: 40mm x 5mm x 4
• Strong magnets for specific parts:
  • Poop tube: 6mm x 2.5mm x 3
  • Panel: 6mm x 2.5mm x 28 (optional, may be omitted)

Assembly does not require glue. If glue is necessary, please ensure all parts fit correctly before applying as needed.
