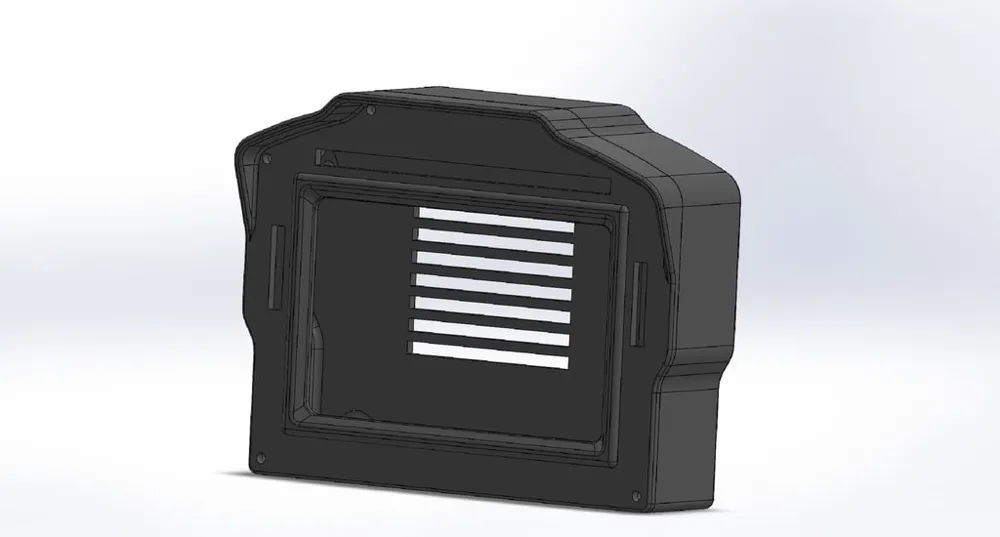

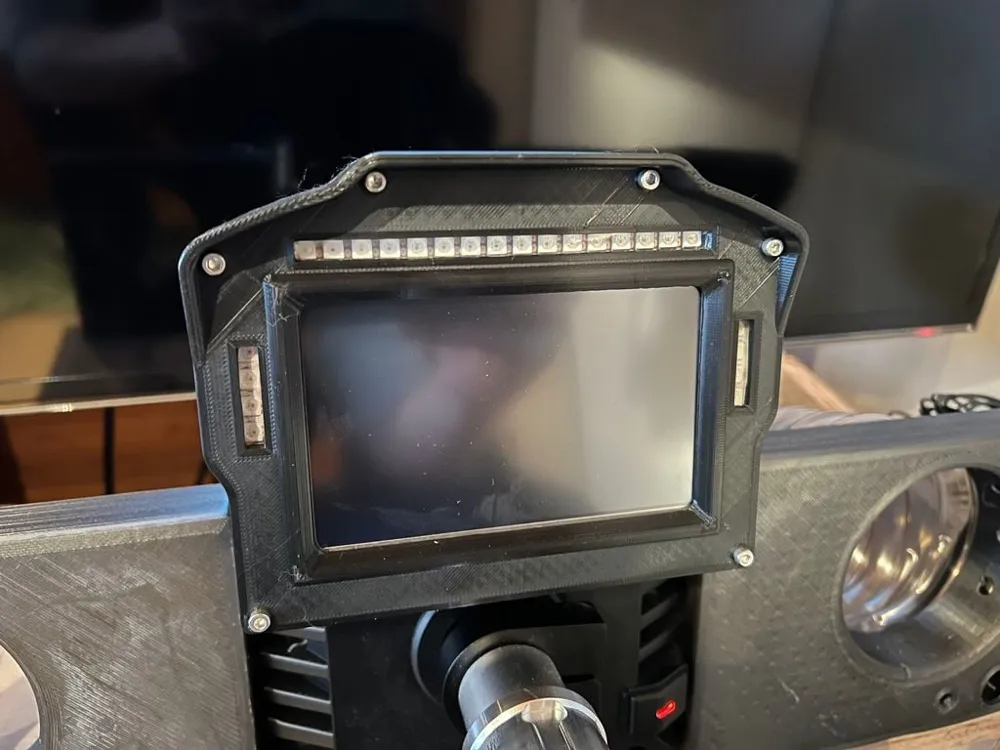

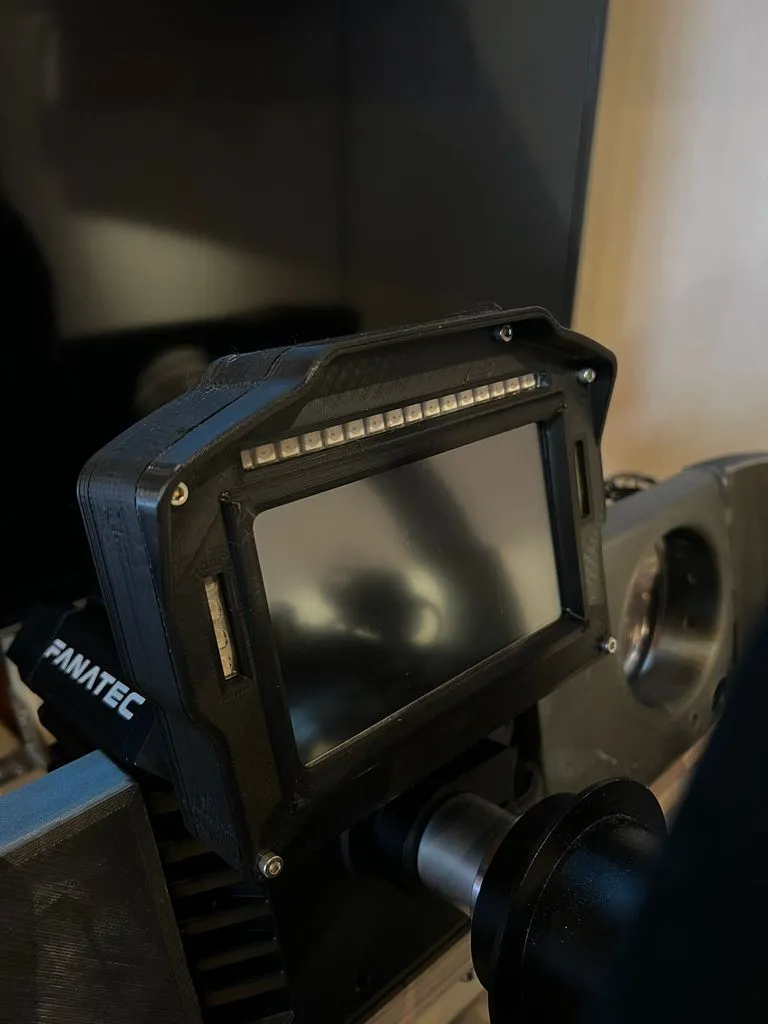

This is my Simracring Dashboard for my Fanatec CSL DD.

The Screen is an Touch Display with an Raspberry PI 3.

• https://www.amazon.de/gp/product/B071CKFTJH/ref=ox_sc_act_title_1?smid=A394PHJZ68XW4G&psc=1

The Leds are cut into 3 section an soldered together. Connectet to an Arduino Micro.

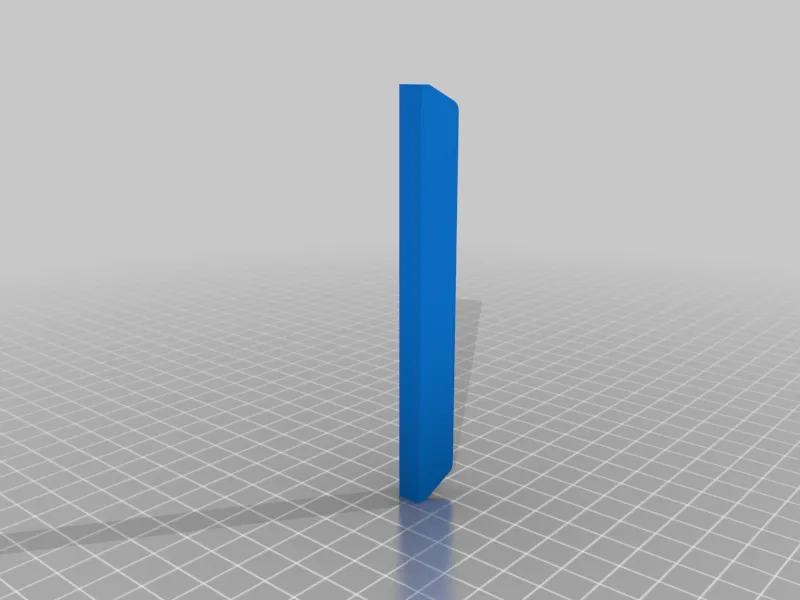

The LED-Strip get glued on the Strip_holders. And those are getting glued at the Screenhousing. In total you need 24 LED`s. I also glued an peace of light milky acrylic glass on top, to defuse the light a little bit.

• https://www.amazon.de/gp/product/B07DPGT1DV/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

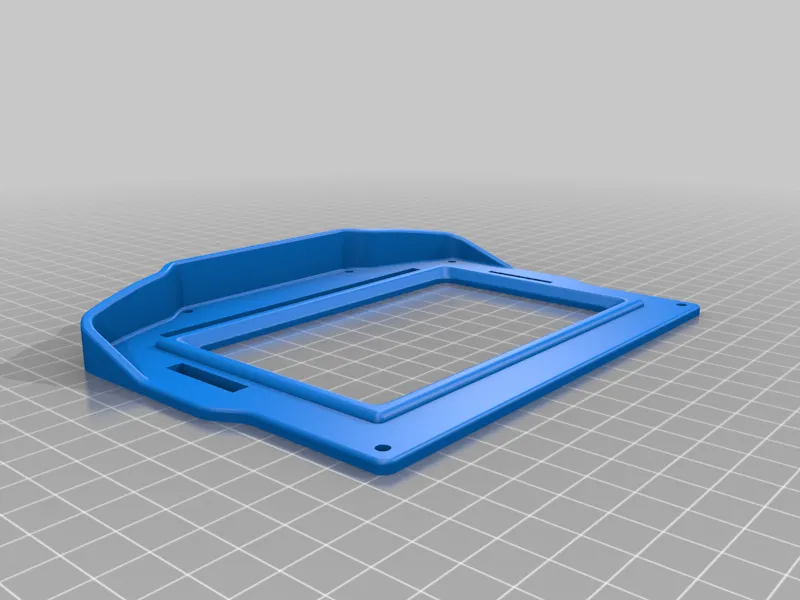

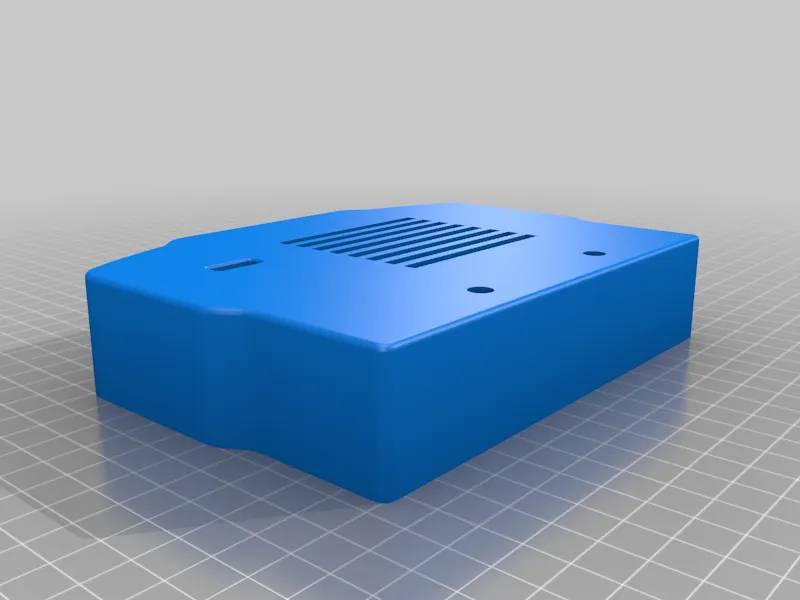

To srew down the housing an the Raspberry i used m3 bolds with head threaded inserts m3.

• https://www.amazon.de/gp/product/B08BCRZZS3/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1

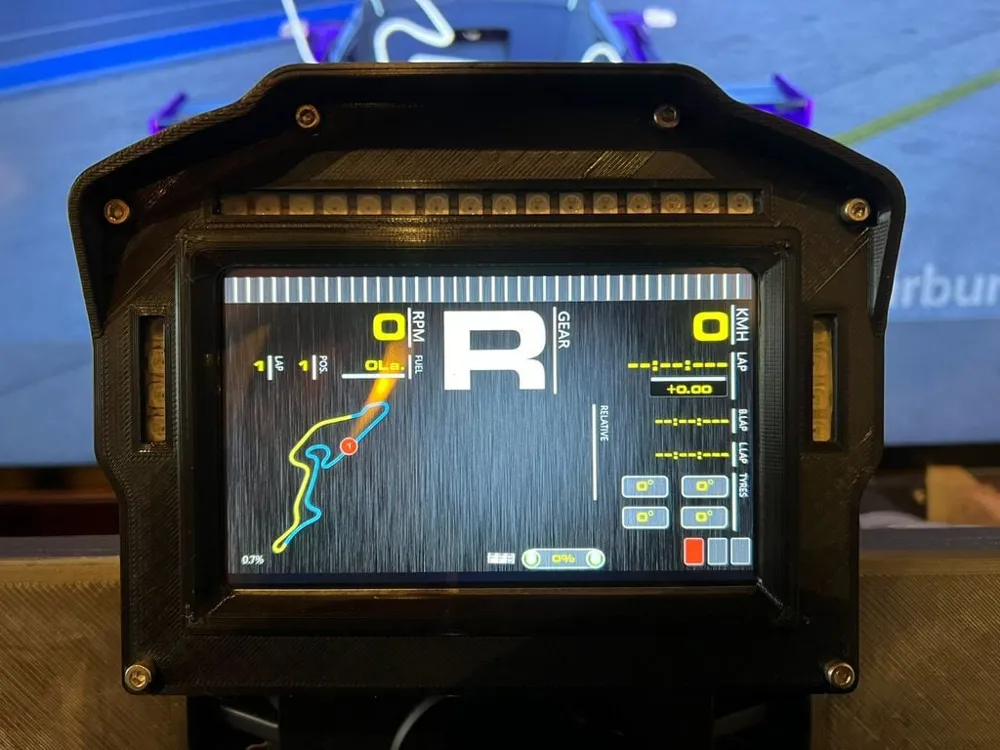

To get the Leds and Screen working i recommend you using SimHub.
