Car valve (shrader) thread to air mattress adapter
Print Profile(2)
Description

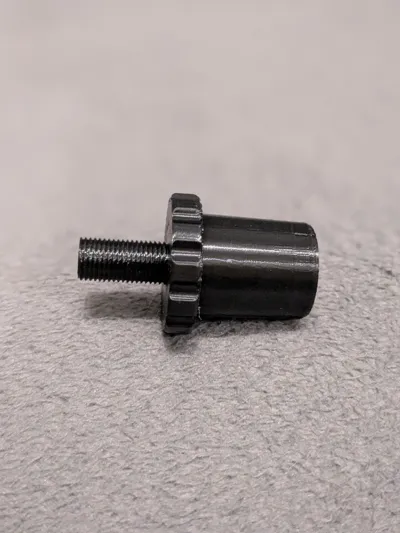

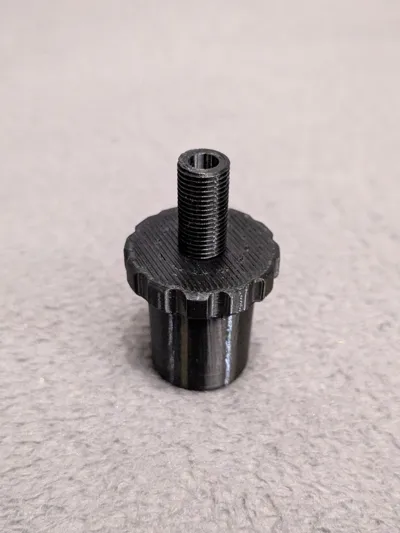

If you need to quickly inflate your air mattress and you have a hand pump or a compressor equipped with a schrader valve (standard car thread) use this adapter.

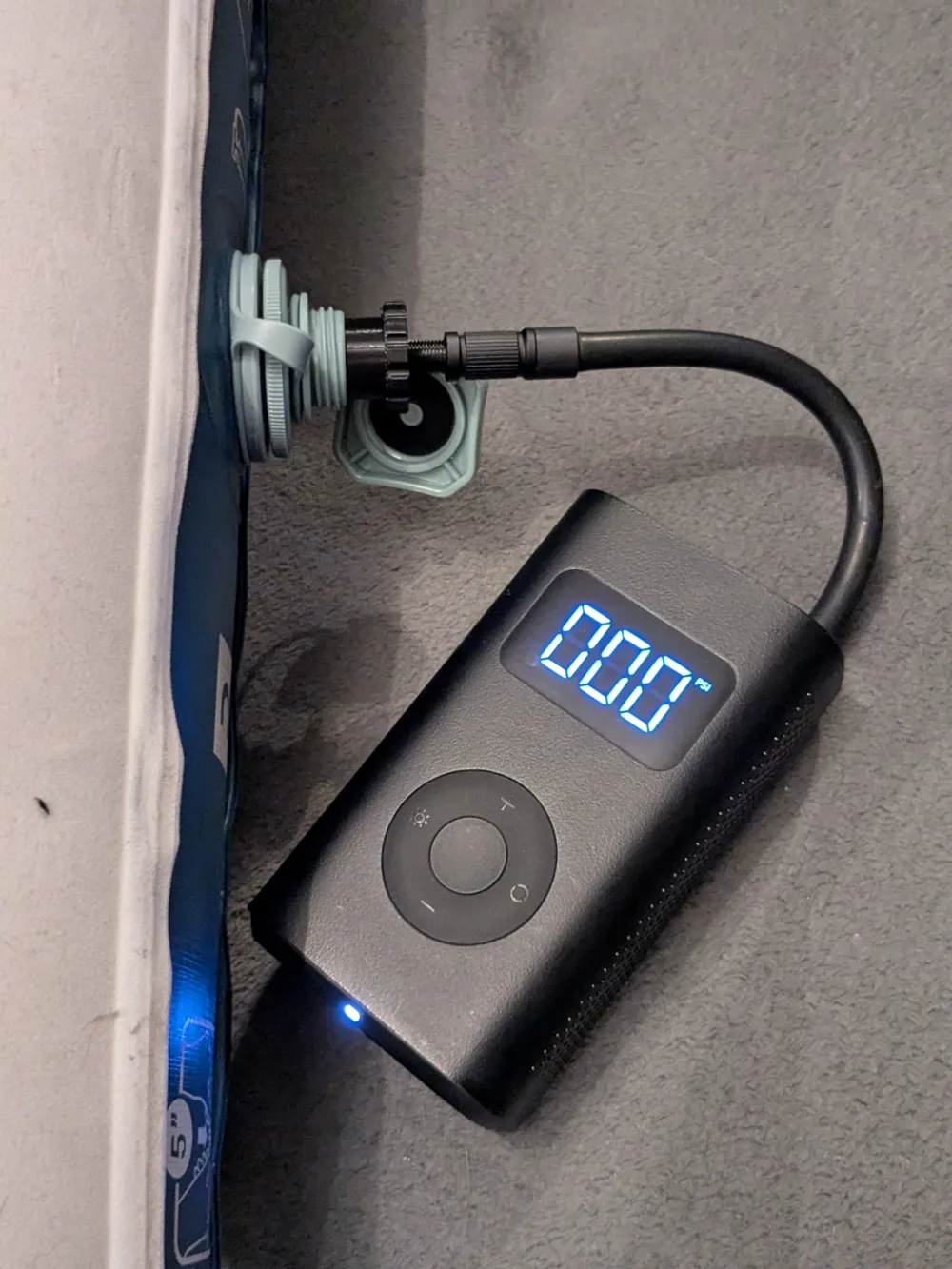

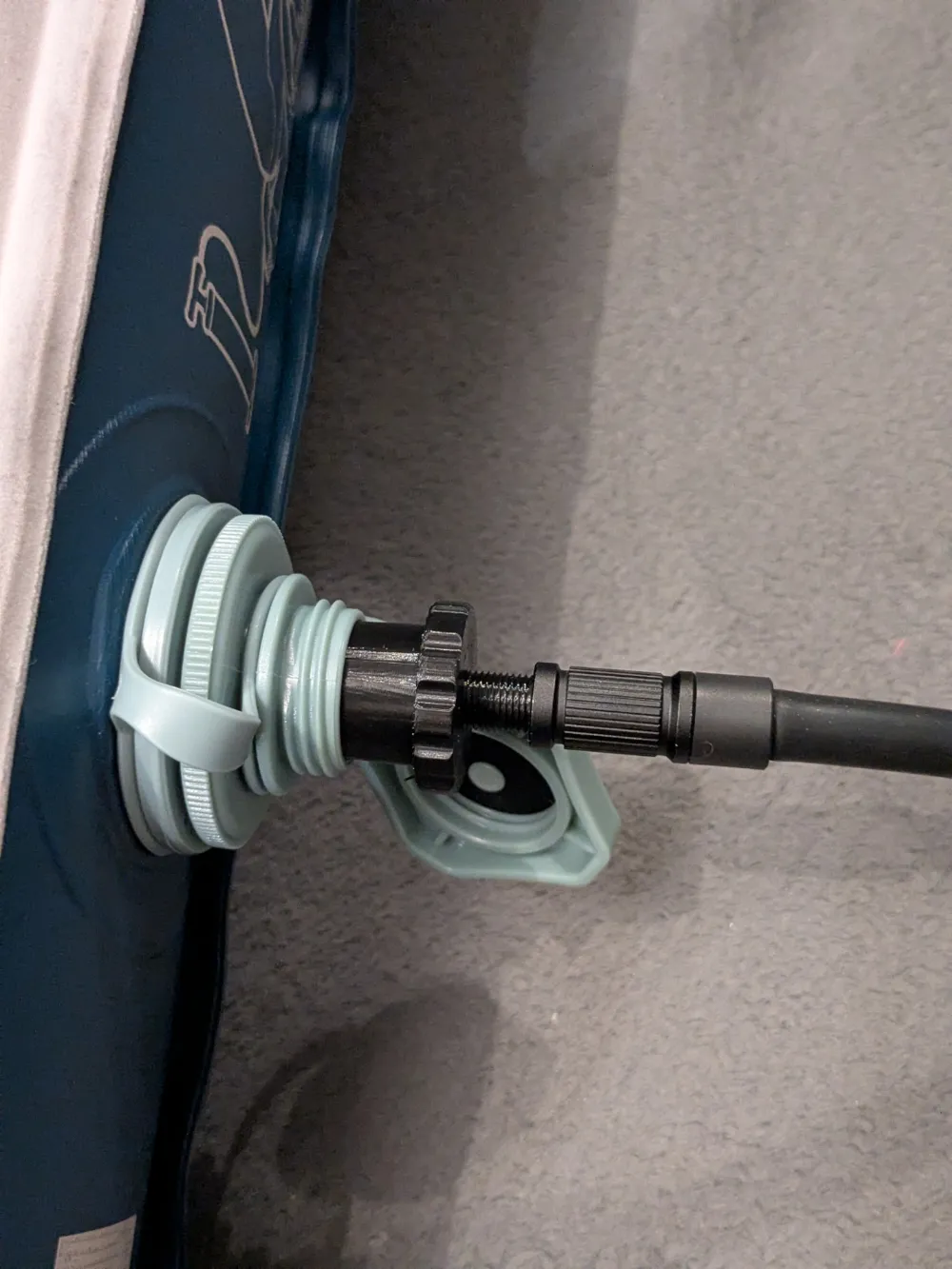

The nozzle tip tested with Decathlon mattresses and Mi Portable Electric Air Compressor.
I used full fill to make the adapter resistant to high pressure and temperature.

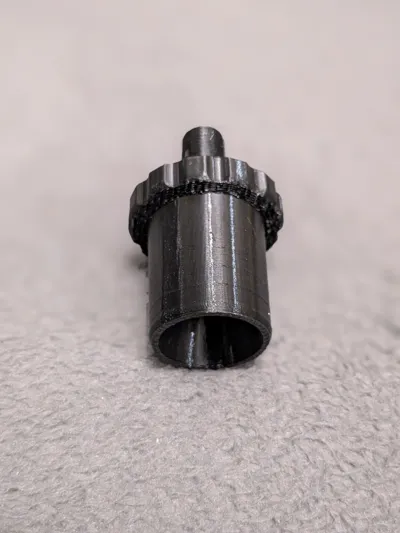

The nozzle tip is sized from 17.4mm to 18.5mm.

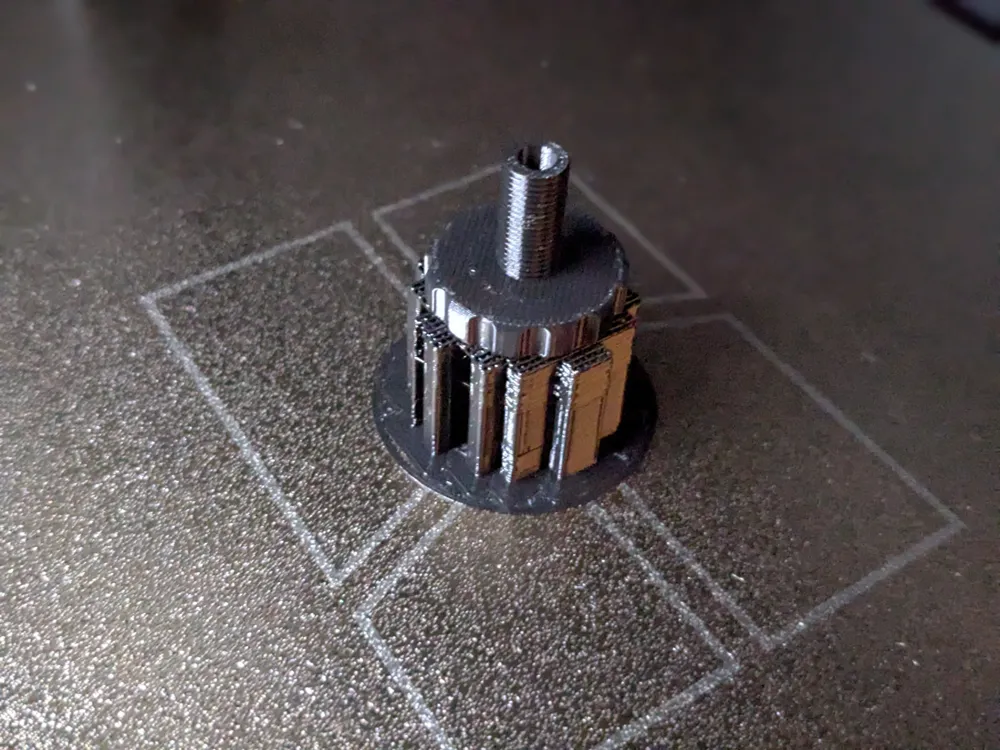

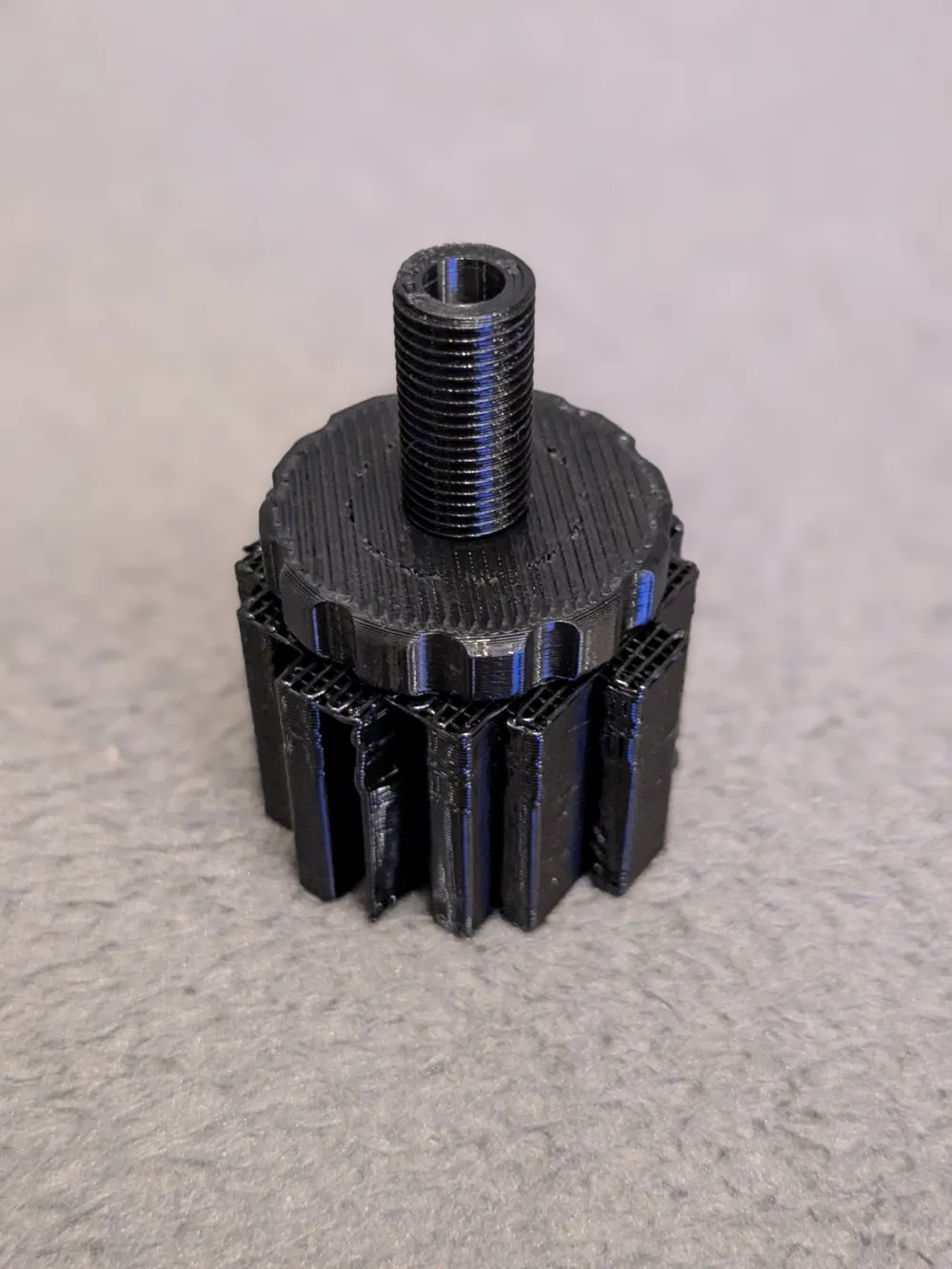

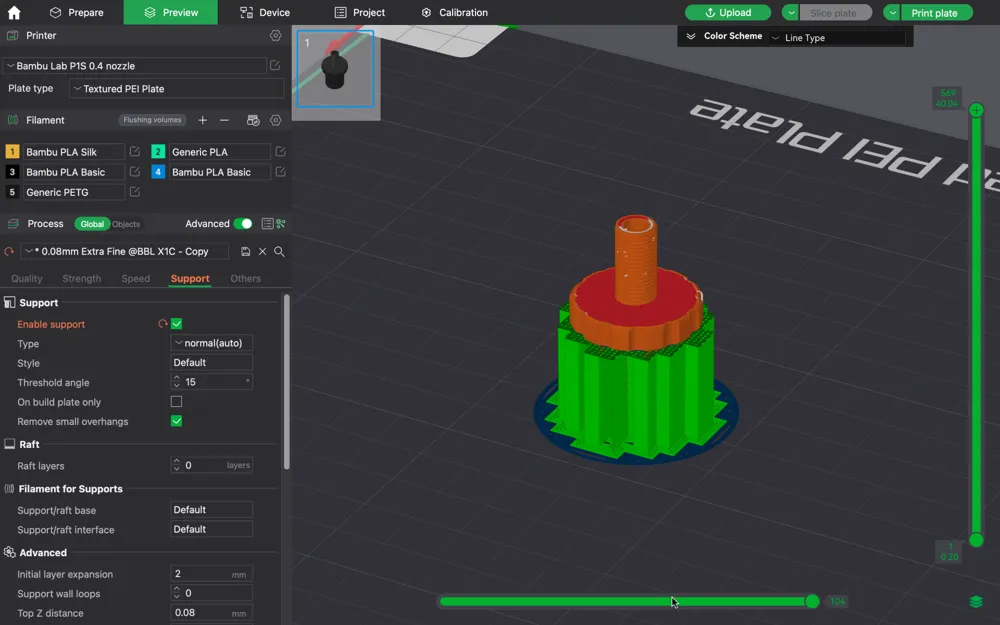

I used support in the print profile, but the adapter can be printed without support (thread quality will be maintained).
Print at least PETG to get enough strength and resistance to higher temperature caused by air compression process.

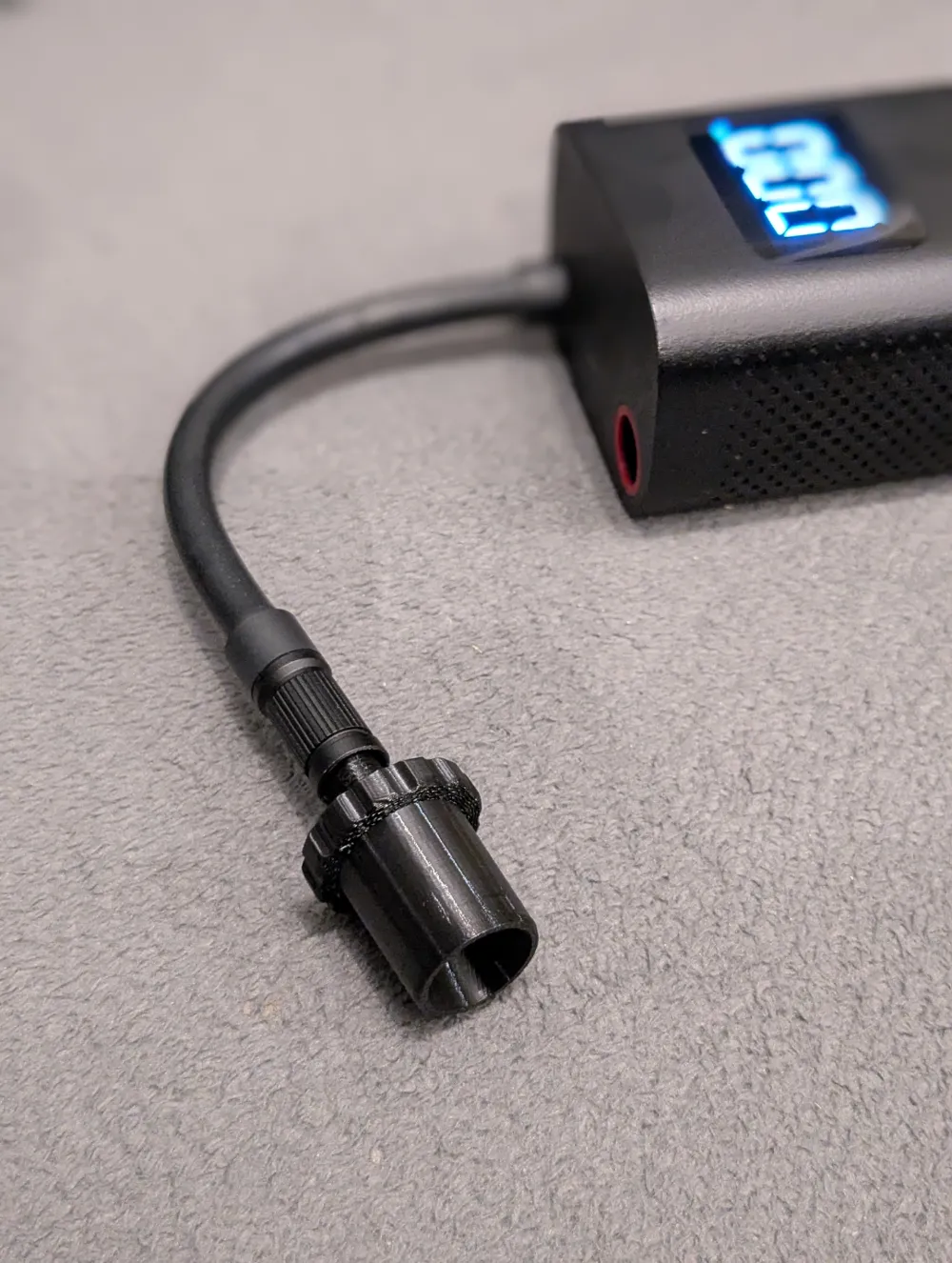

Be careful and delicate when screwing the adapter thread into the pump or compressor.
Enjoy!
