Garmin Vivosmart 5 band/bracelet adapter

The Garmin Vivosmart 5 only comes on a rubber band that encloses the unit, and the only aftermarket band adapters I could find were needlessly bulky. This one is pretty much as small as I could make it while still having enough strength for everyday use.

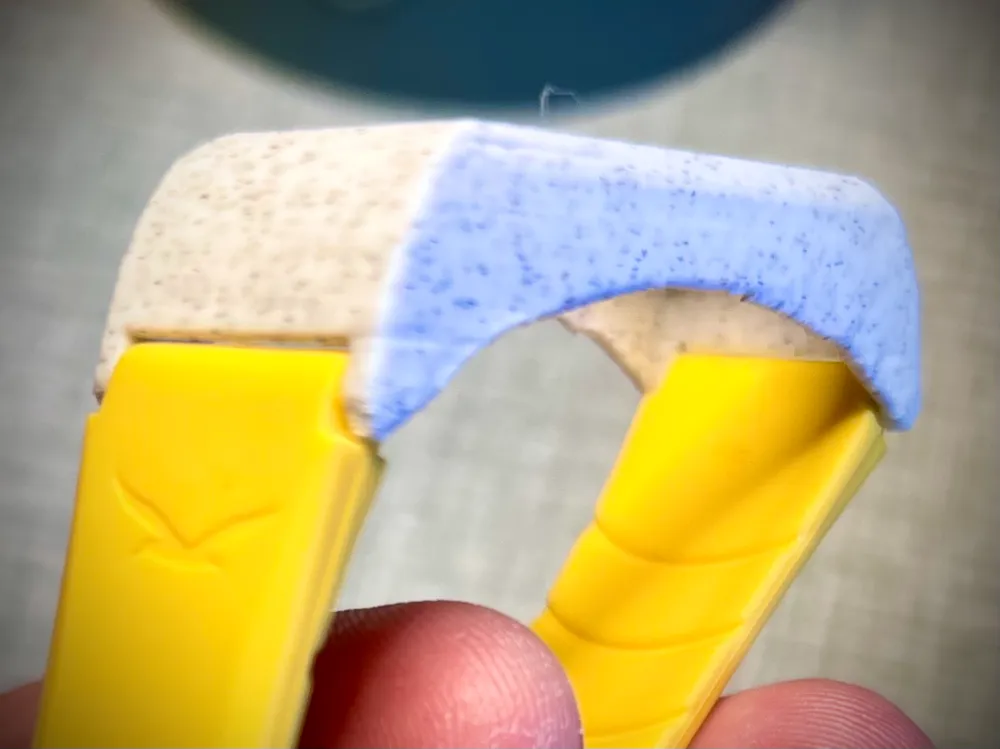

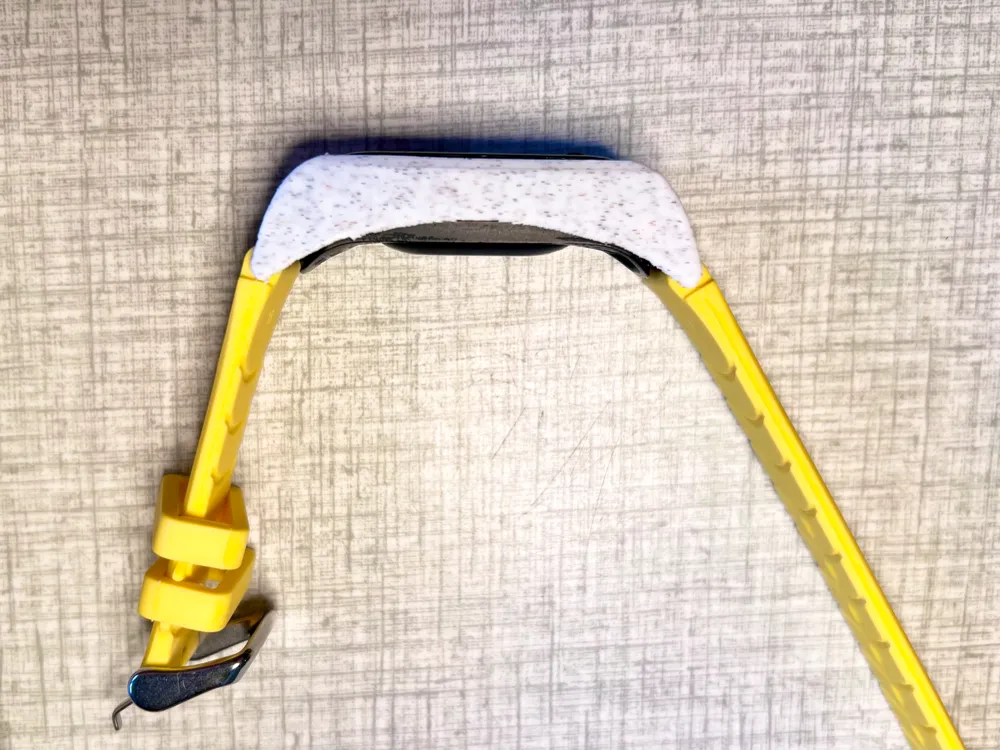

I have tested the 16mm lug width spring bar version with a pretty thick rubber strap, so I think most 16m straps should fit.

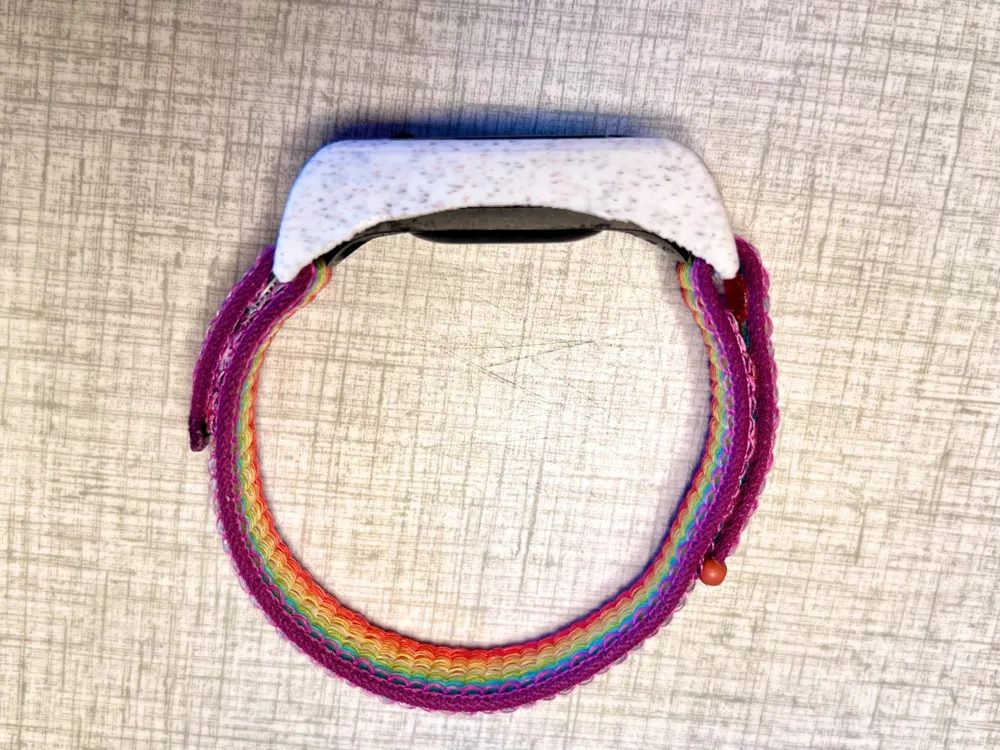

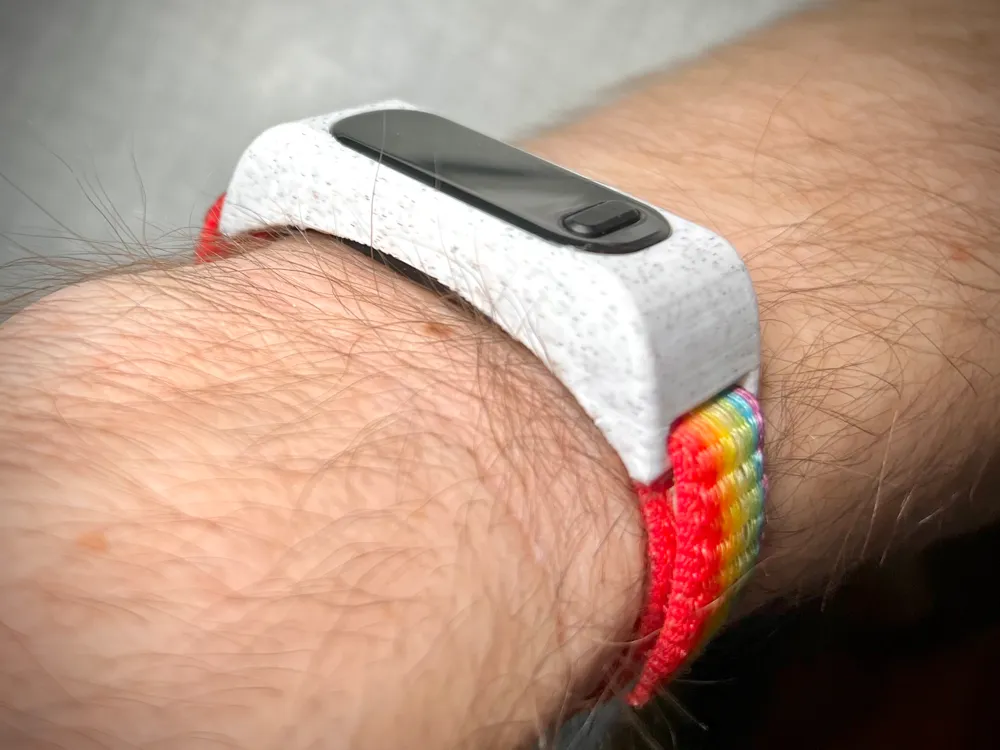

The 14mm version has fixed bars and is meant to be used with bands that can be looped around the bars, such as the velcro band commonly found on e.g. Amazon. I scavenged mine off these for the Mi Band 8: https://www.amazon.se/-/en/dp/B0C3HKTZVZ . I will probably upload a version with spring bar holes for standard watch bands.

Should print fine in both PLA and PETG, but the bridging over the holes for the band might be problematic for PETG on the included profile and could require additional support. Support and brim should be easy to remove, but may require some sanding of potential rough edges around the bottom edge

Proudly made with FreeCAD.
