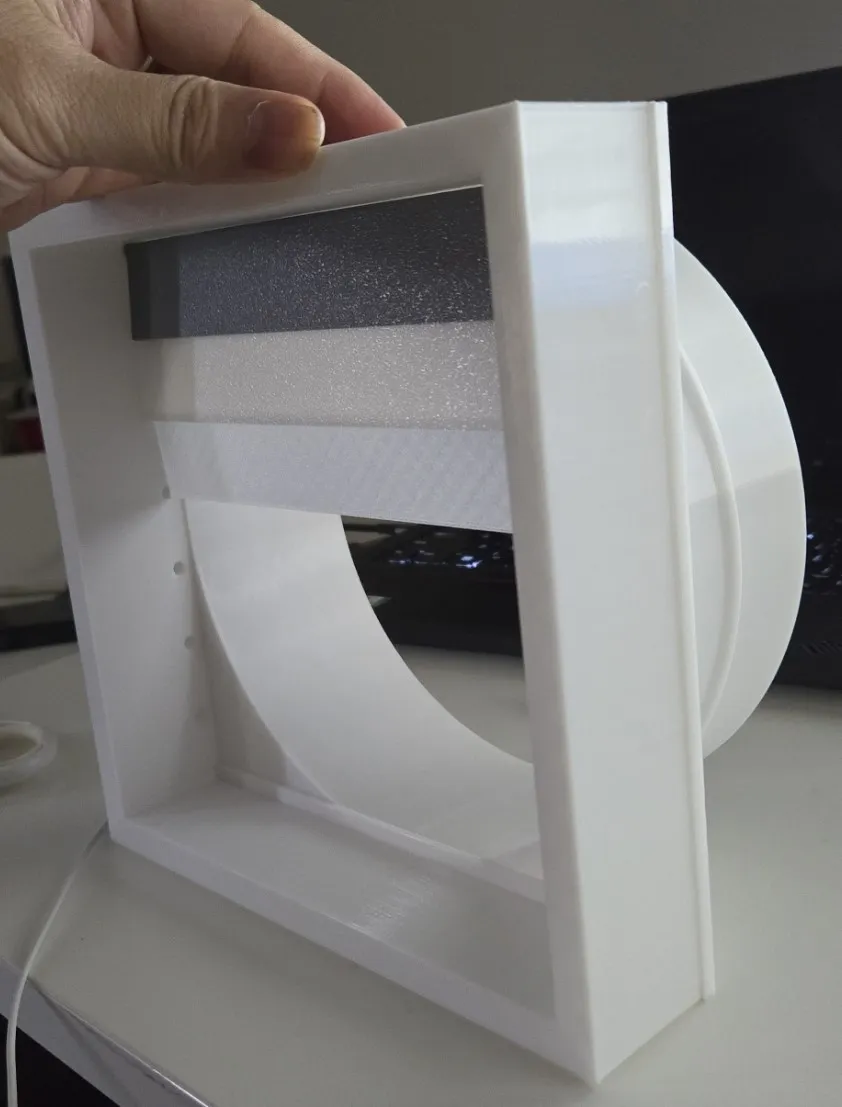

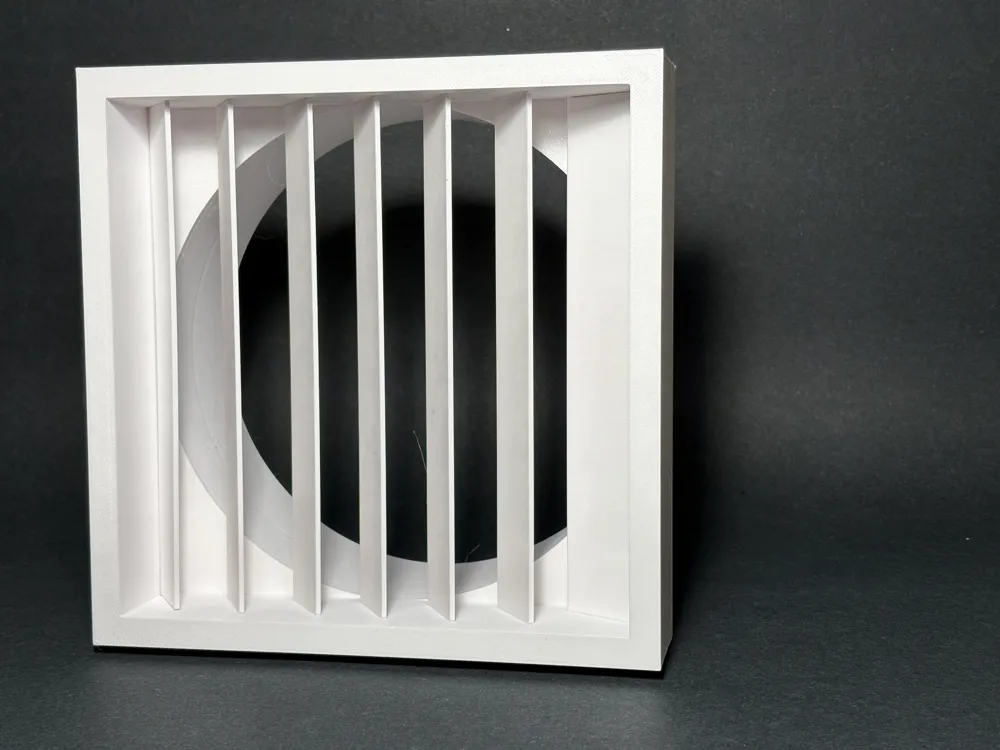

One-way air flow vent for 8 inch (20cm) flex duct pipe. Worked well for my DIY airbrush booth.

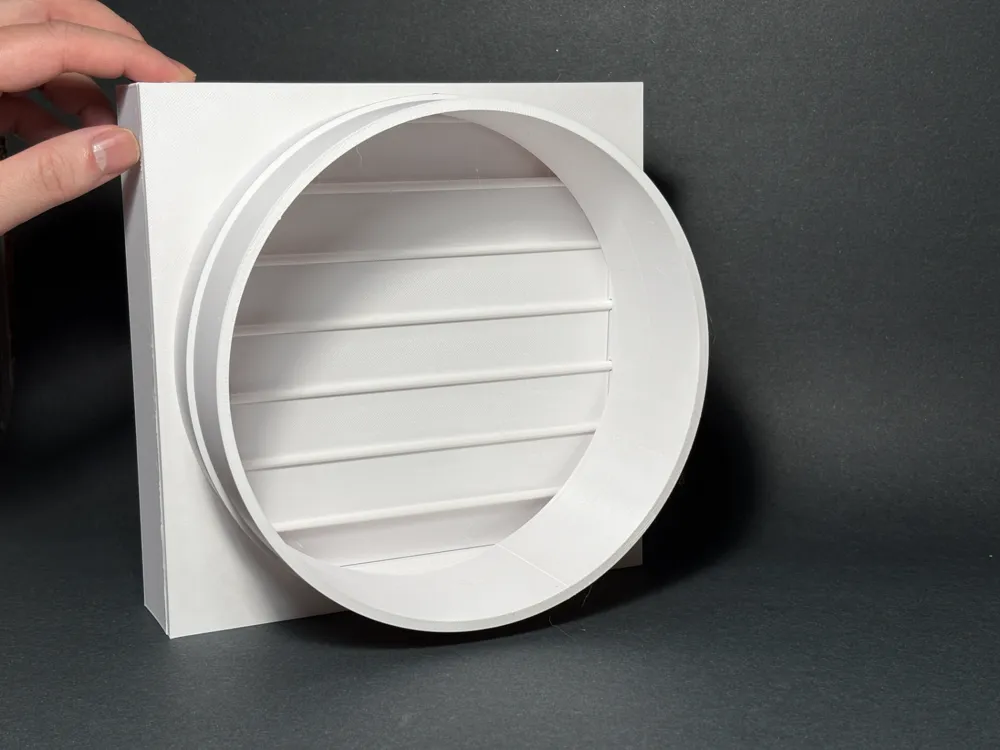

The connection is 7.5 inch in diameter, Fits 8inch (20cm) diameter flex pipes. Printed in PETG. To avoid using support, back plate is split and needs to be glued to the frame.

Comment & Rating (15)

@Davincimai2000

Print Profile

0.24mm layer, 2 walls, 10% infill

@shrinermac

Boosted

Print Profile

0.24mm layer, 2 walls, 10% infill

Great print, needed this in my shop! Just needed to add one more flap after printing.

The profile uploader has replied

@wontonnn

thanks! sorry I did not read your comment earlier. I did not notice that I missed one flap.. until I reprinted myself for another duct fan. fixed

@mike1005

Boosted

Print Profile

0.24mm layer, 2 walls, 10% infill

Fence tenon is tight Is the switch manual?
