Wallmount AMAZON Fire HD 10 (2023), magnetic slide
Print Profile(1)
Description
After many trials I found the perfect dimensions for my Fire HD10 (2023) wallmount.
Boost Me (for free)
Support me with a boost for more designs :)
The special on this one:

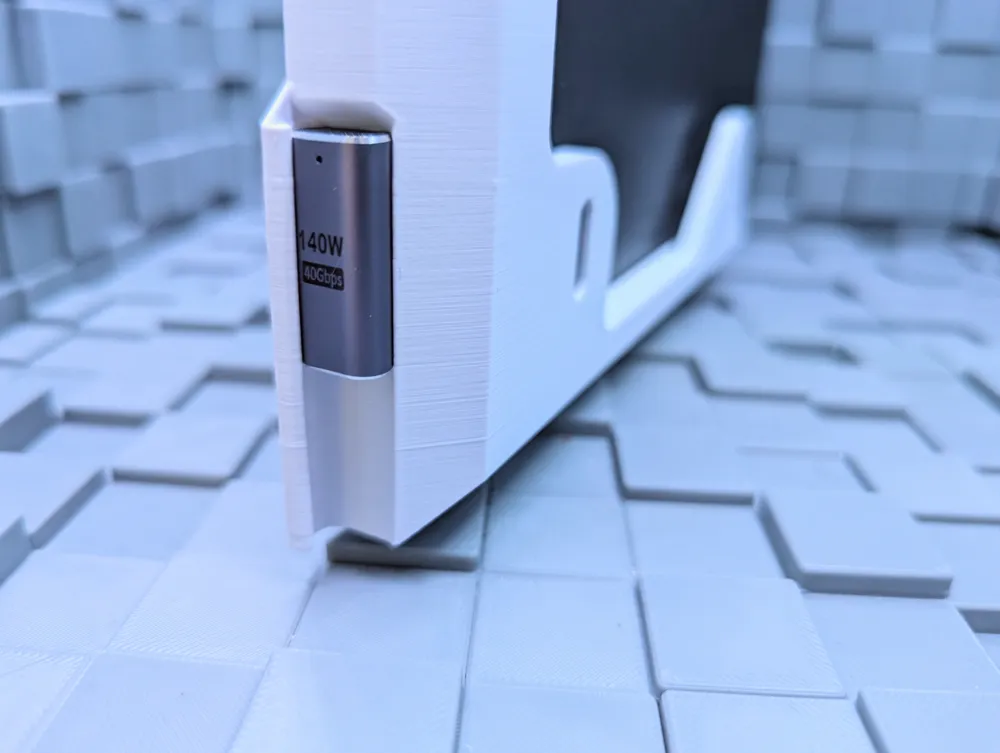

- it has a magnetic dock to charge when the tablet just slides into

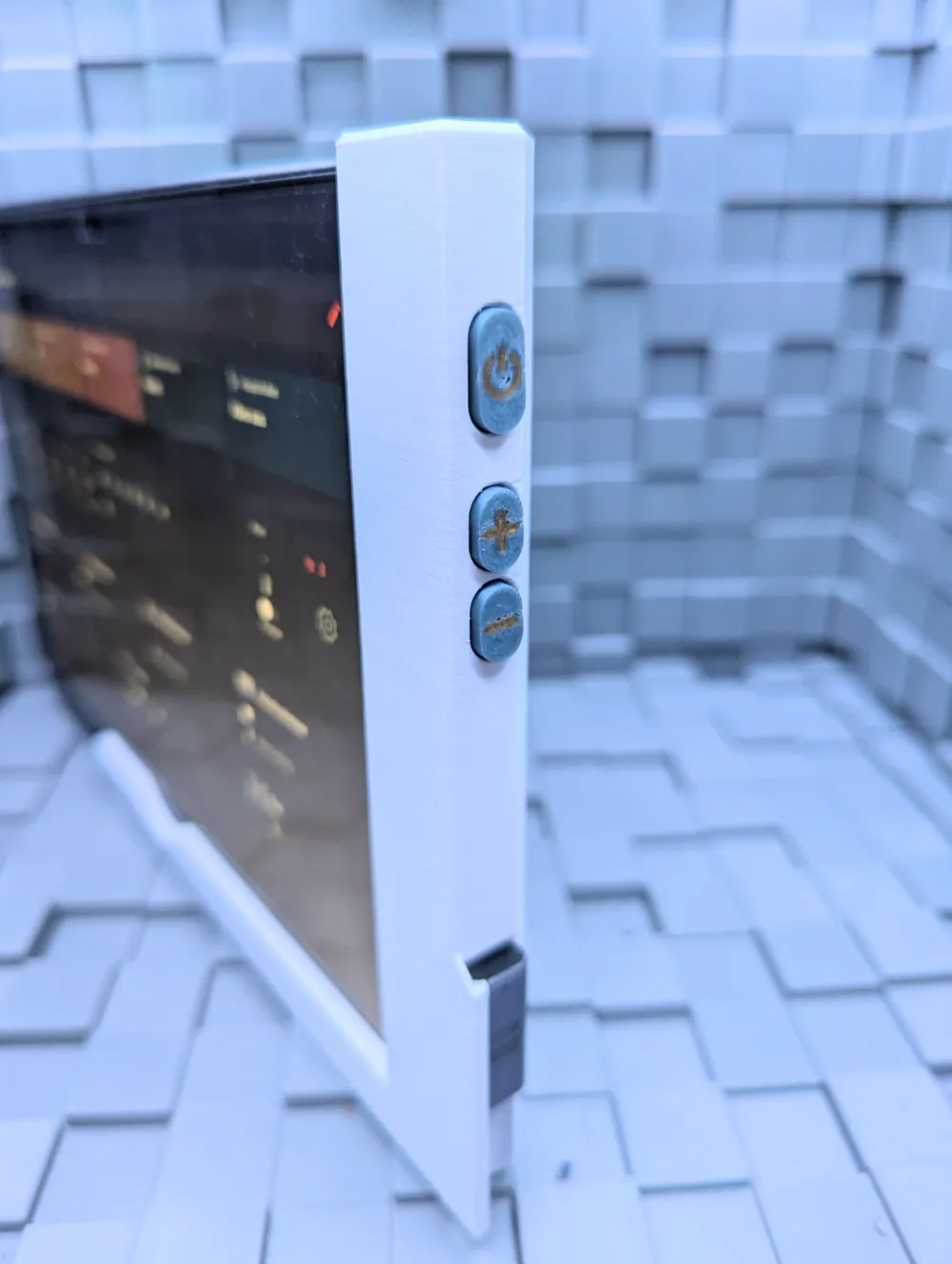

- it has button extensions with icons

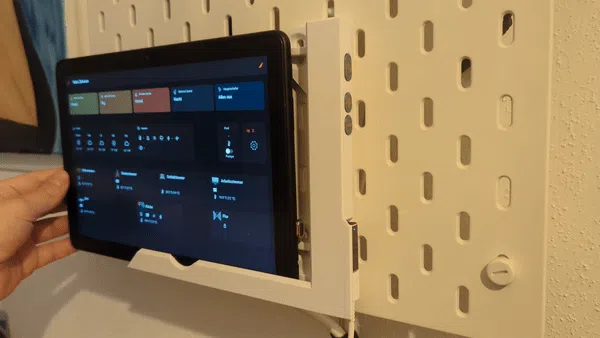

- can be mounted to skadis with the T-Clip system
you could also plug a normal cable manually but i recommend the magnetic dock: MoKo 140W USB C with 90 degree angle
https://www.amazon.de/gp/product/B0C4NPYP87/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
Else no additional hardware required.
Assembly:
- set each button base part into the wallmount and push it inside with something long (see orientation of triangle in the picture)
- (optional) add a tiny bit of glue to the buttons pin but ensure its not glue the button the the mount (shouldn´t be required)
- push the top part of the button against the base part to assemble the snap fit
3 T-Clips are required: https://makerworld.com/de/models/61308?from=search#profileId-640225

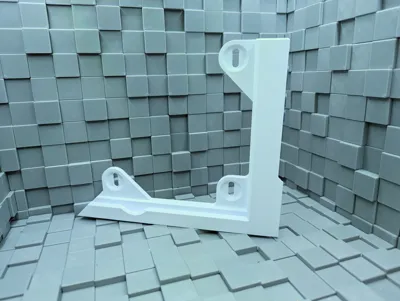

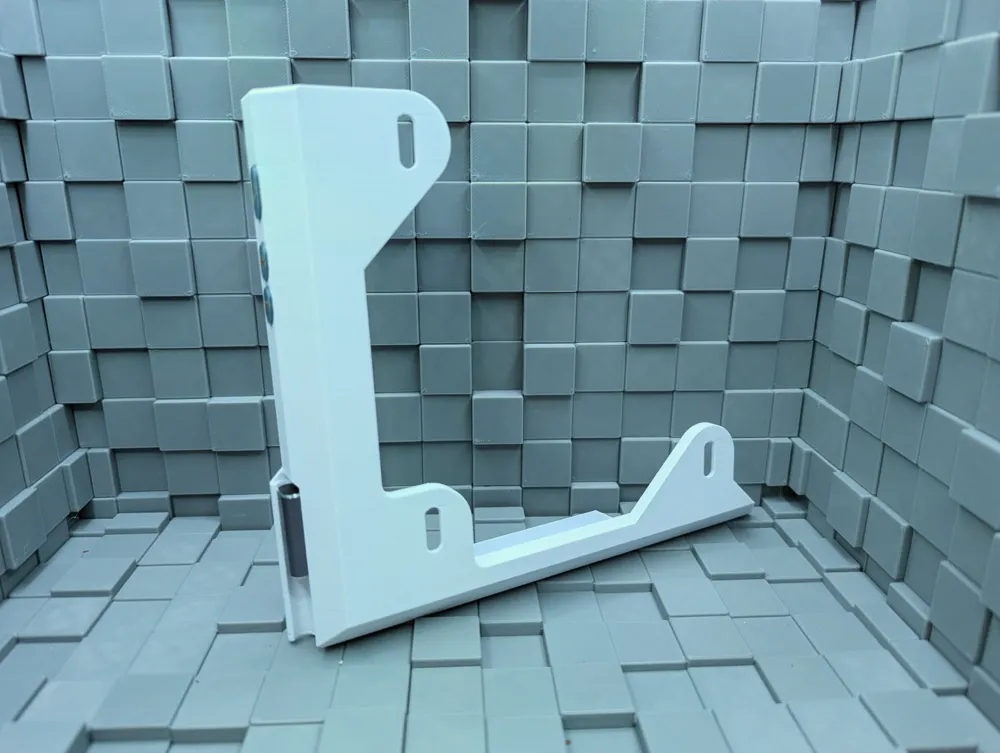

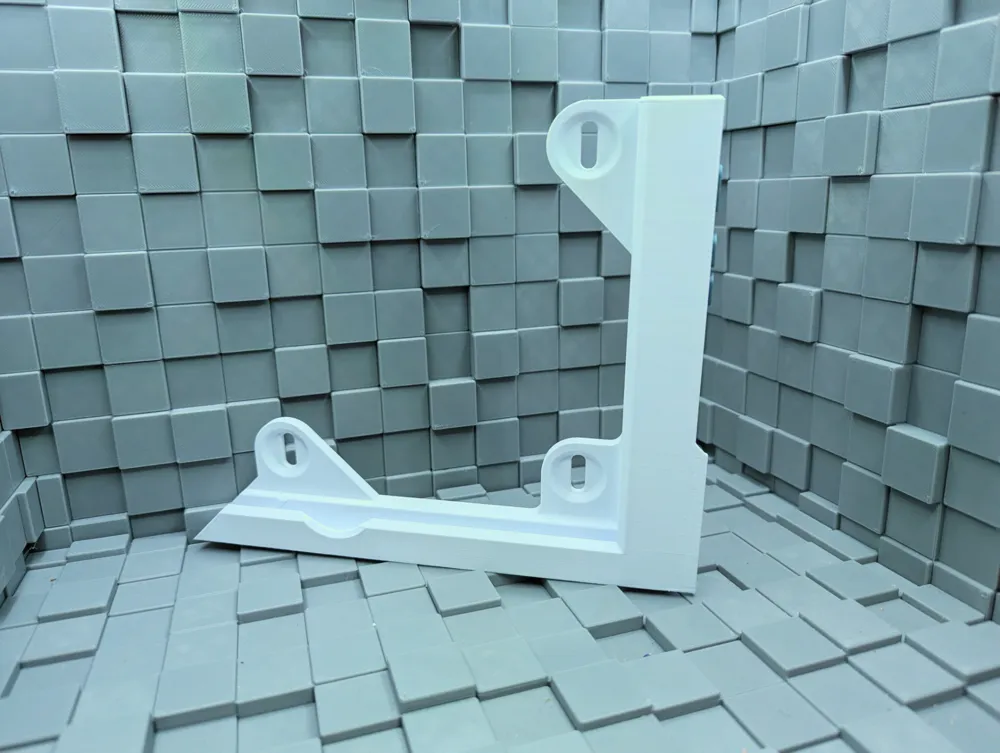

Plate 1: wall mount
Plate 2: Buttons (optional multicolor)

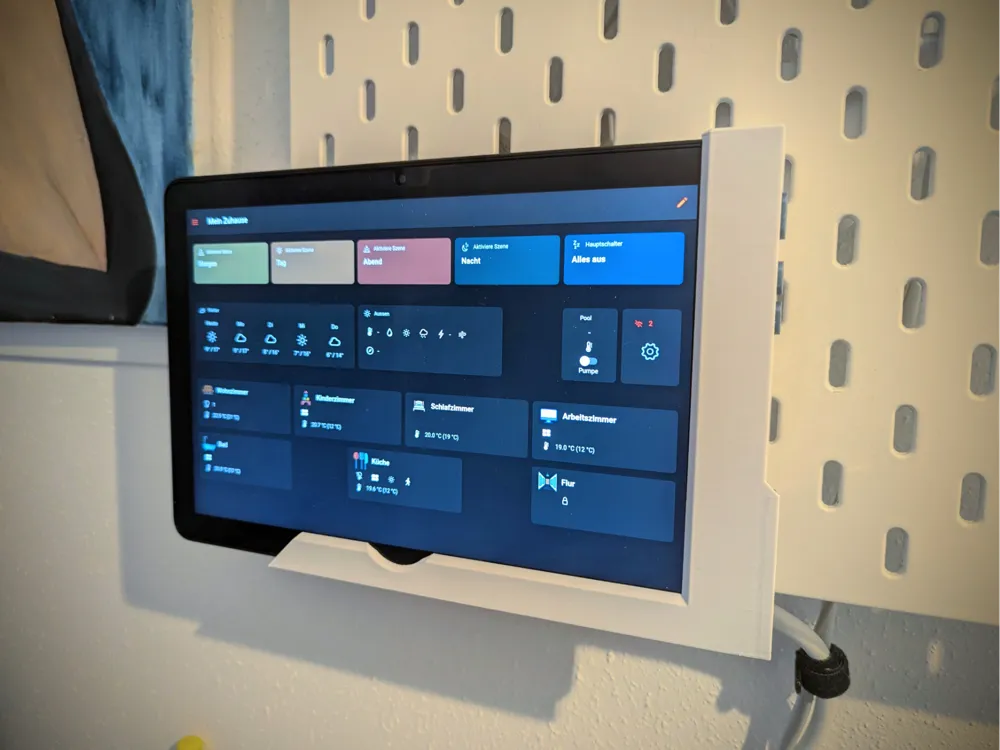

The visualition is made with openhab. I use fully Kiosk to activate the screen with the camera and hide the adds.
