Hook+mount for acoustic panels (NO DRILLING!)
Print Profile(3)
Description
After my wife wanted a new wardrobe with acoustic panels, I was looking for simple coat hooks.
Inspired by :
I quickly decided to design and combine my own hook + bracket in Fusion360 based on their models - and it fits PERFECTLY!
And the best thing in my eyes: no drilling + dowel + screw necessary!
The bracket is simply pushed between the panels, turned by 90° using a slotted screwdriver and then the hook bracket is screwed on using 2x 3.5x16mm screws. The actual hook then simply fits over the hook holder and you're done!
The wall hooks were adapted for acoustic panels from HOFER (Aldi) with a distance of 19mm.
Printed with eSun PLA+; 15 % infill

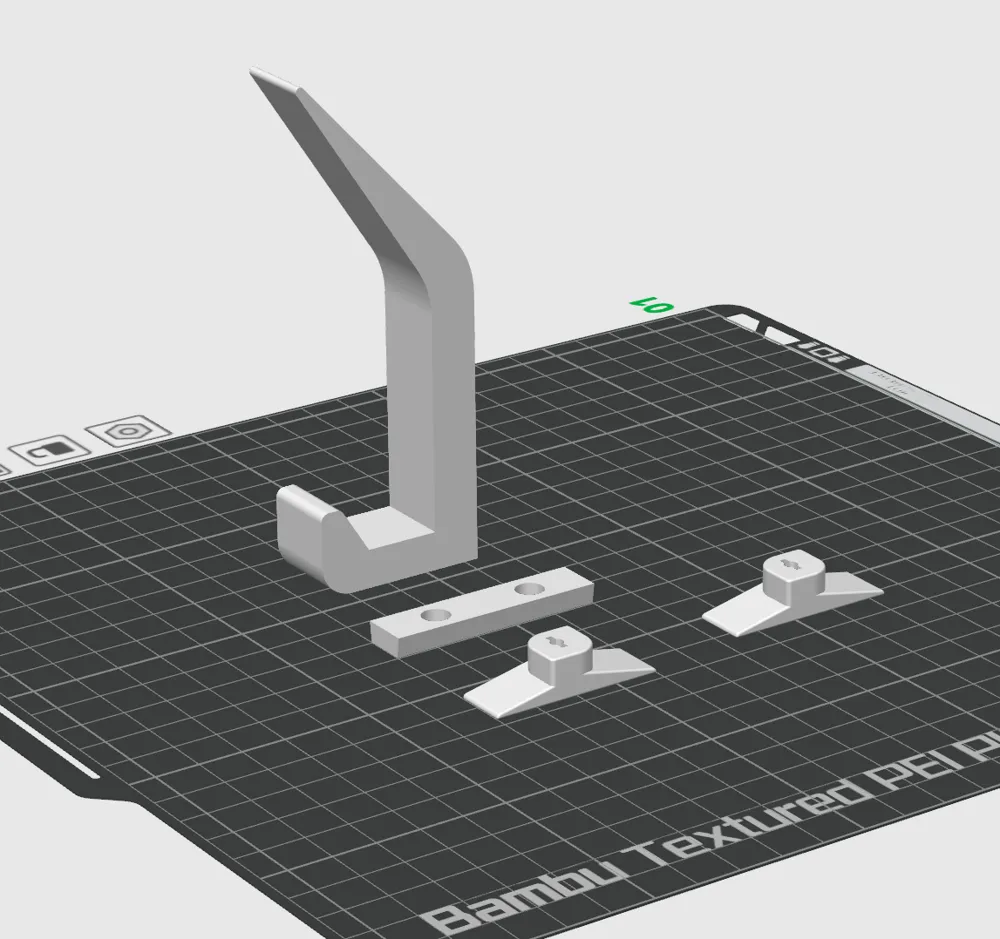

Print bed dimensions:
X: 90.80 | Y: 103.99 | Z: 116.09 mm
Object dimensions:
Hook: height 116mm | width 18.50mm | depth 41mm
You need 2x screws 3,5x16mm (no affiliate link, just for example: AMAZON)
Printed WITHOUT ANY SUPPORTS on my BambuLab A1-Combo
Happy printing!
EDIT: thanks to @Kellkolon I added another version with 13mm - you can find the .stl and also the .3mf profile above. ENJOY!
EDIT#2: thanks to @Bifi87 I added another version with 15mm - .stl and also .3mf profile above - ENJOY!
