HP Microserver Gen8 CPU-Shroud
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.1 h
1 plate
Open in Bambu Studio
Boost
7
15
0
0
9
5
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- 40mm-Fans x 2:
- Fan-Y-Splitter x 1:
- Molexor-Floppy-to-Fan-Connector x 1:
Description

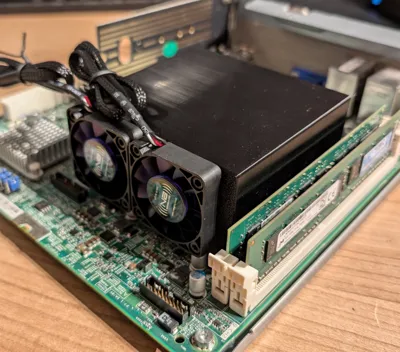

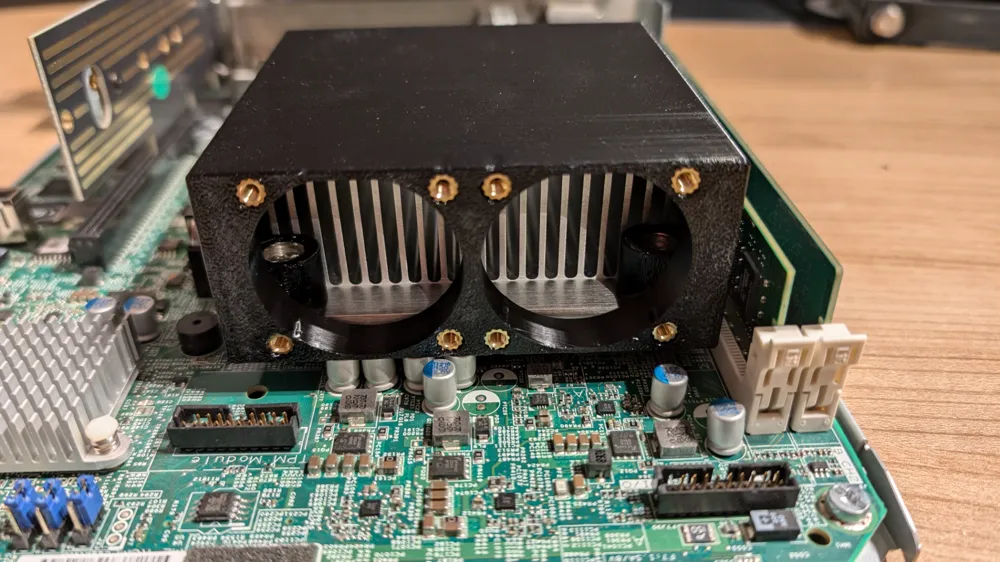

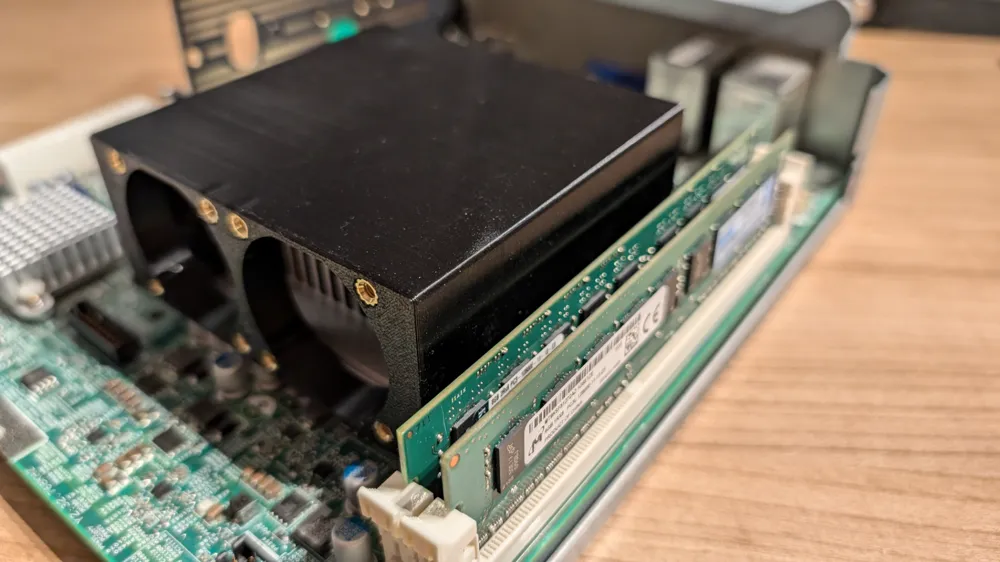

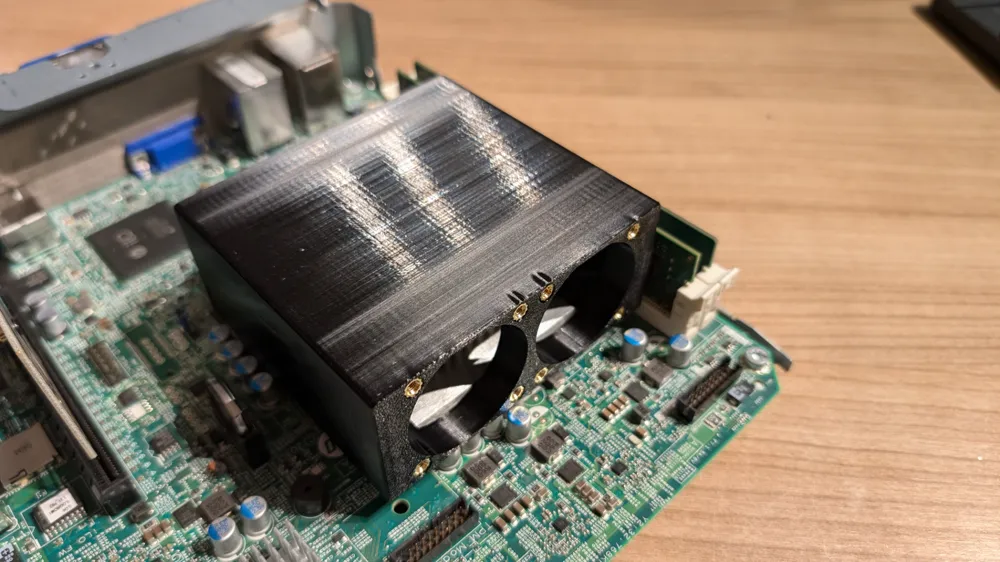

Simple CPU-shroud for the Microserver. You can simply plug it onto the radiator.
You will need the following parts:
- 2 x Fan 40x40x10 (recommended: BlackSilentFan 40mm XM2) You can also use thicker fans
- 8 x M3x10mm Cylinder head bolts

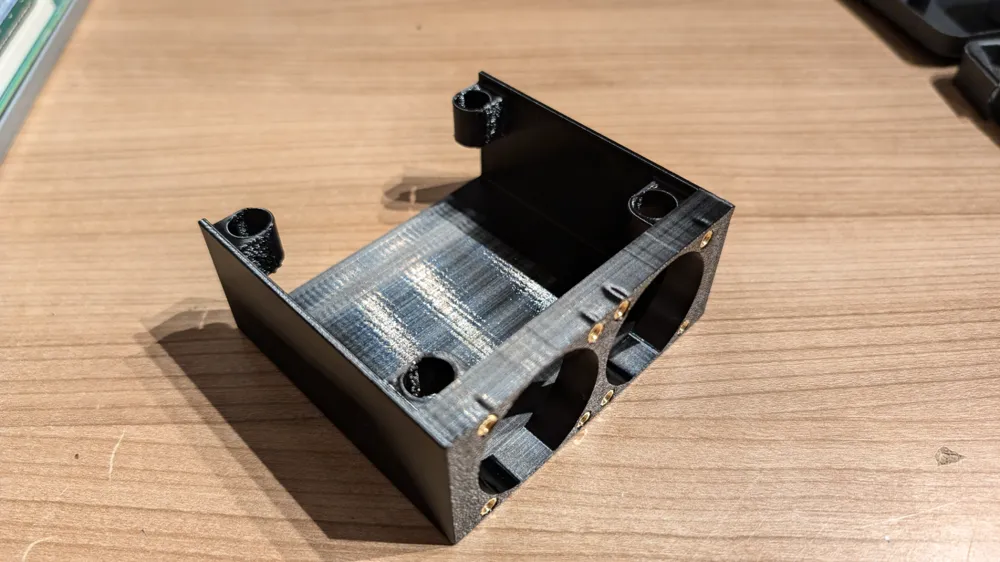

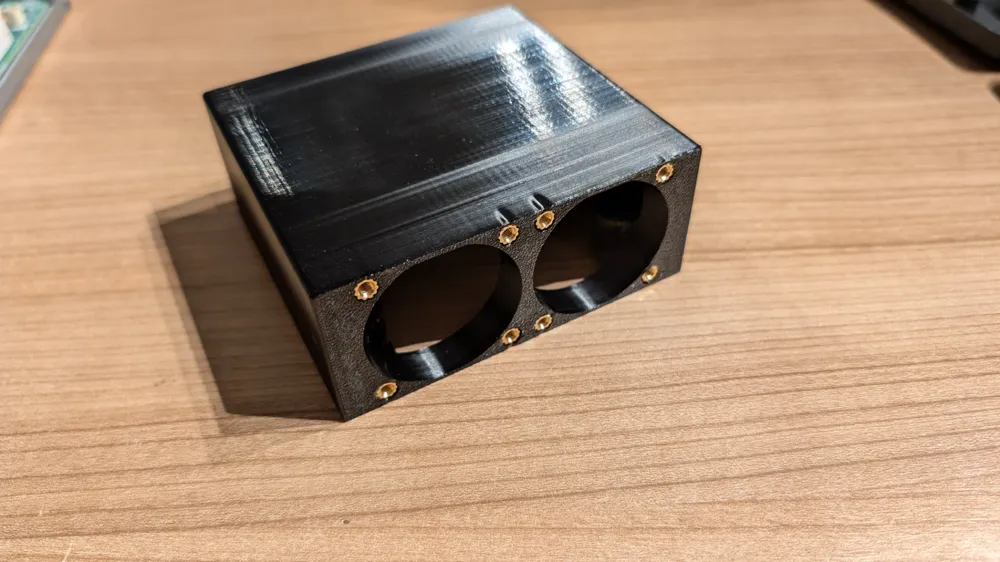

- 8 x threaded inserts M3x4x5 (you can use longer inserts)
- 1 x Y-splitter for Fans
To power the Fans connect it to the Y-Splitter. Connect the splitter to a Molex-connector or the Floppy-Connector.

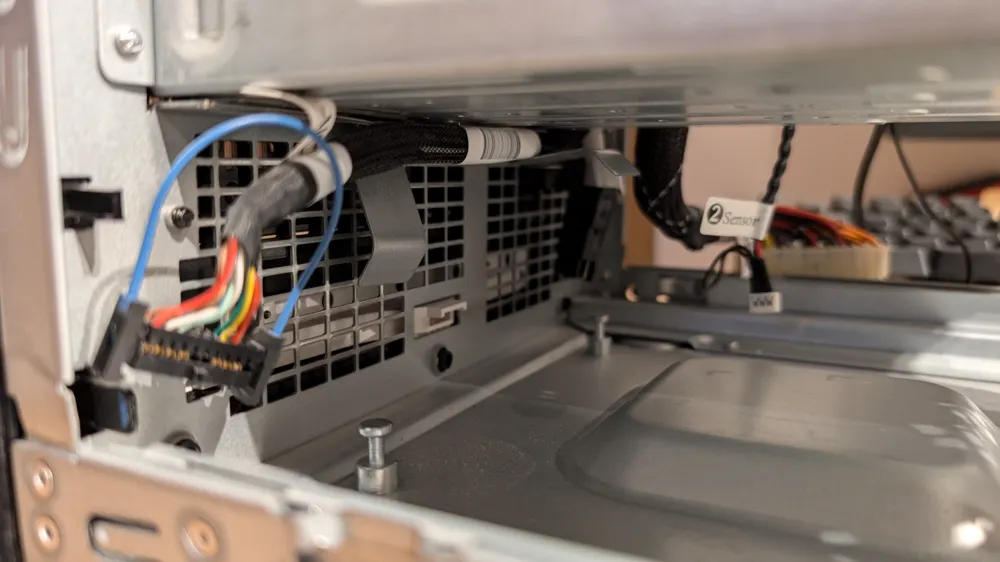

Like you can see in the second picture, you have to bend down one of the caple holders of the server.
