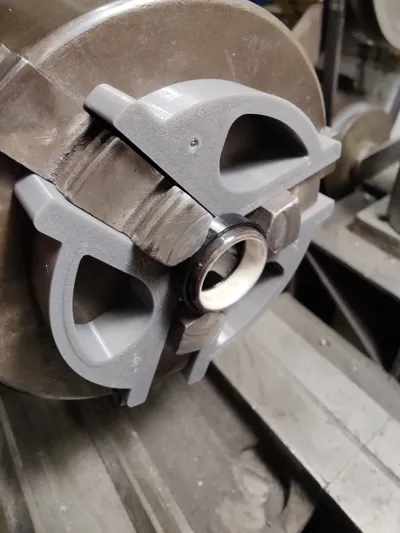

Lathe spacer, spider for 130mm chuck

Lathe spacer, spider for 130mm 3 jaw chuck for 17mm wide jaws.

The models are reinforced in the middle with full infill

Printed in PETG but would work in PLA and other materials as well

-14mm high with magnets

-10mm high with magnets

-5mm high with magnets

3,2,1mm are without magnets. They are getting serious bends and are mostly not usable.

The magnets used are 12x4mm with holes to screw them in.

They will work with or without magnets.

If you want to get really precise, sand the top and bottom on a flat surface with sandpaper grid 600. Put the paper down on a very flat surface and sand the model in motions of 8. It's working very well for me when I do wooden rings.

There is also raw dwg. if you want to change any measurements. (Used program Autocad2018)
