Vesa bracket attachment arm 100mm
Print Profile(1)
Description

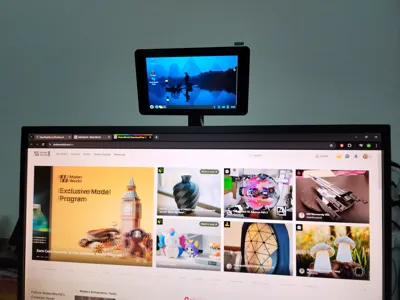

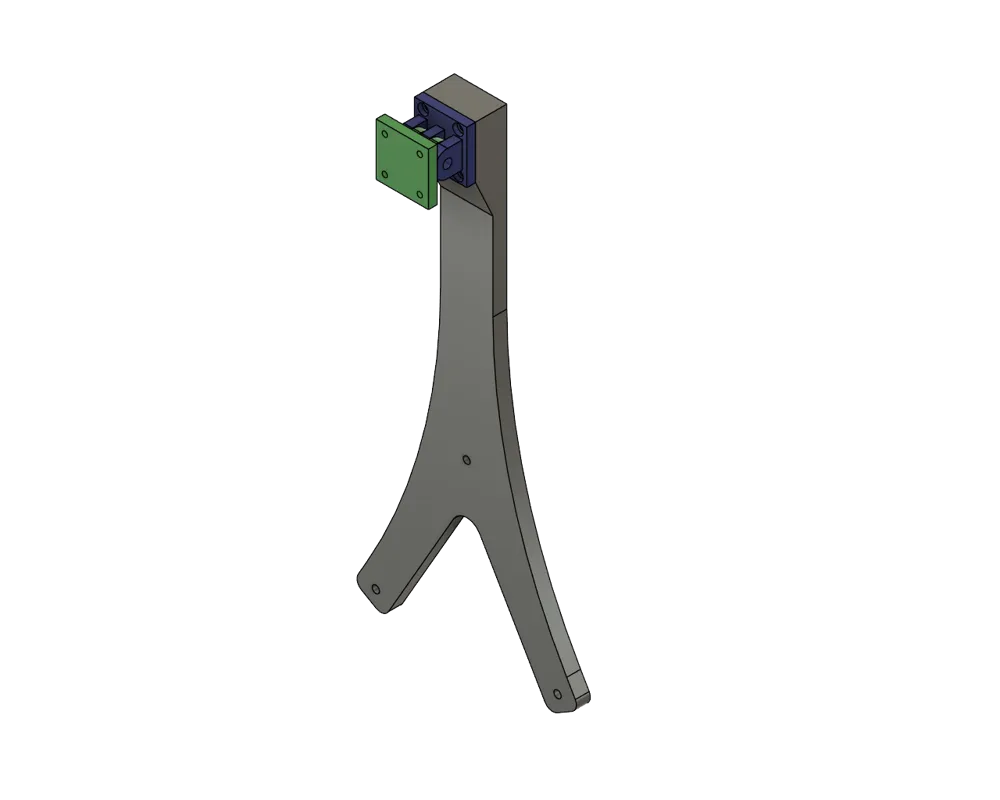

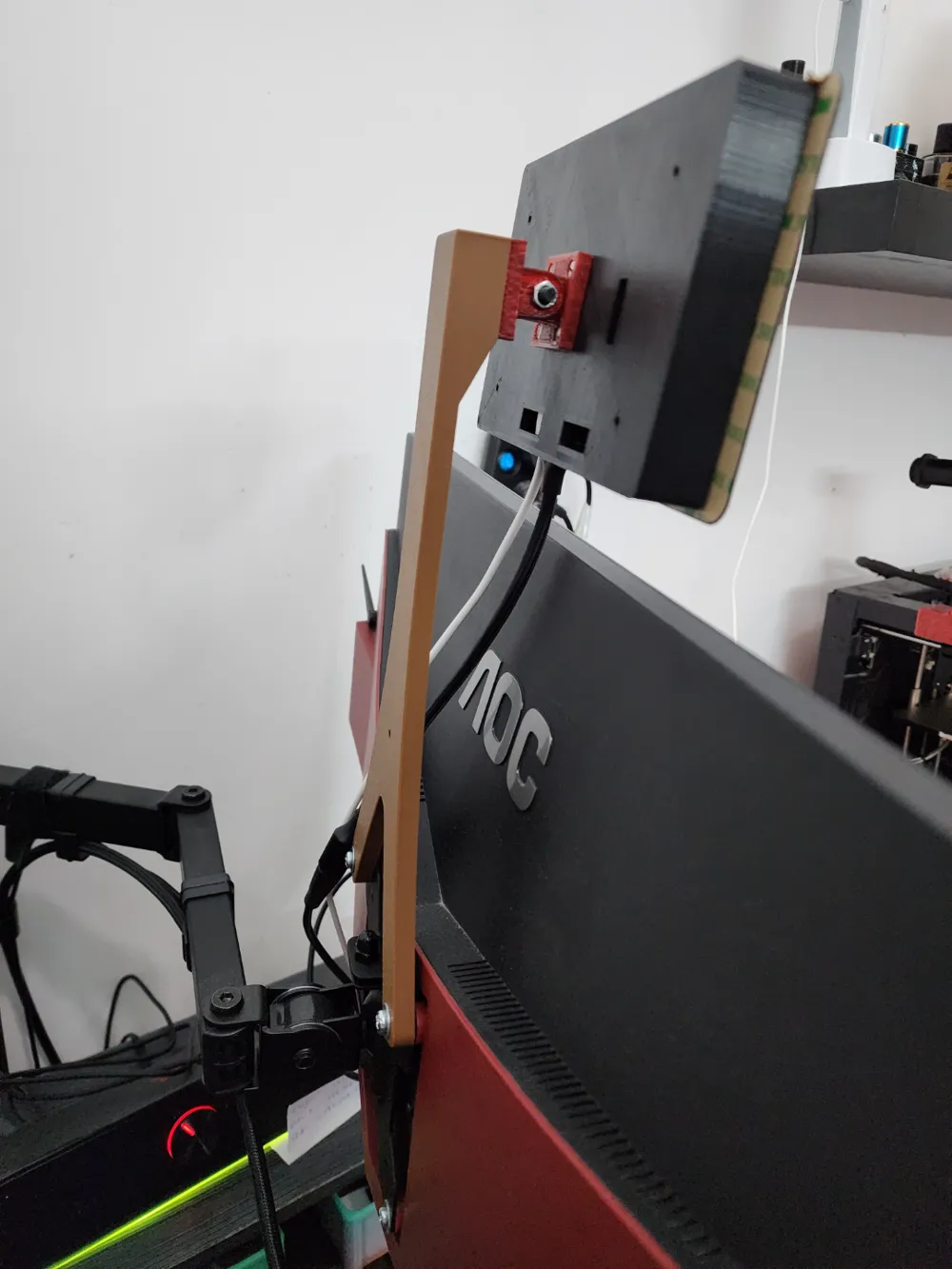

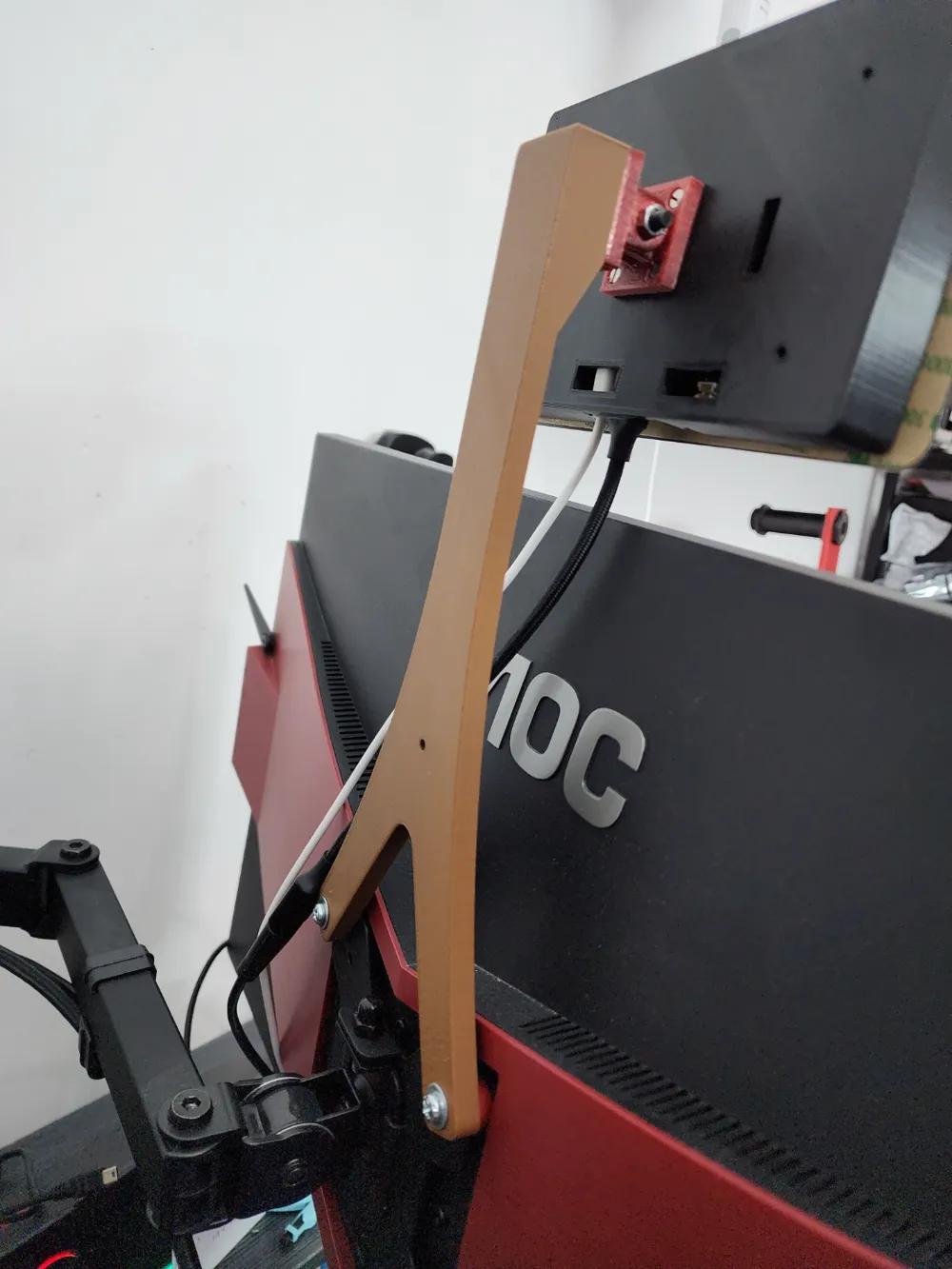

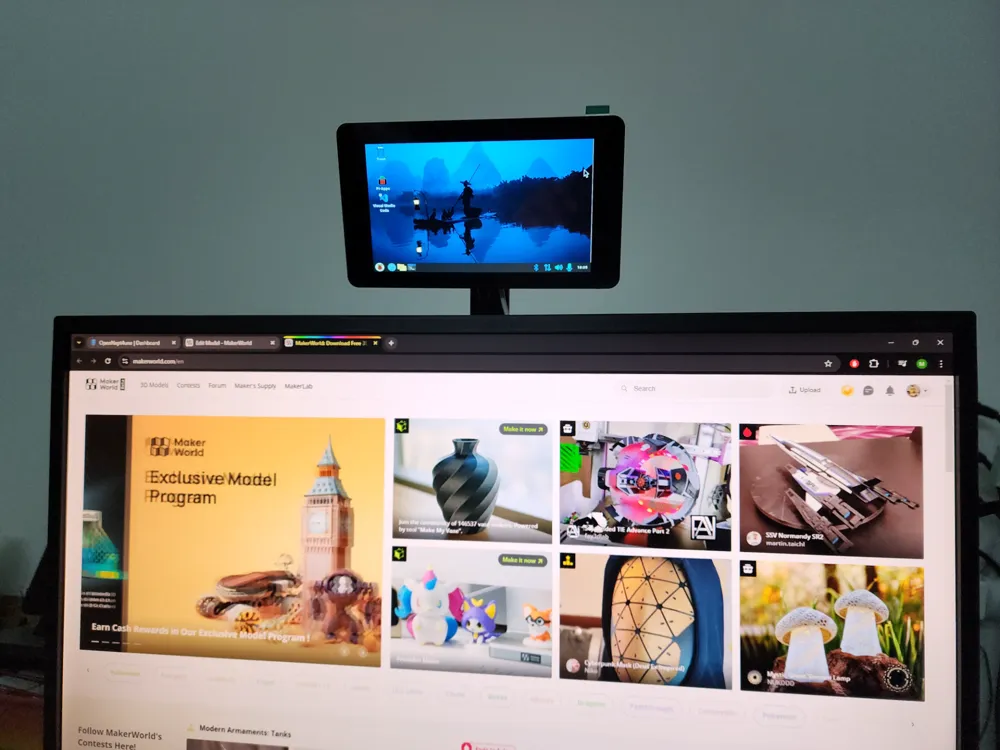

This is an arm extension to add a small 7 inch screen to the back of Vesa mount bracket on pc screen.
Compatible for the 100mm holes.
The bracket is compatible with the 7 inch LCD screen case too: https://makerworld.com/en/models/442662#profileId-348618
Hardware list:
M3x15mm = 4 pieces (for tilt Hinge)
M5x30 mm = 1 piece ( to connect the two hinges)
M5 nut = 1 piece (to tighten the hinges)

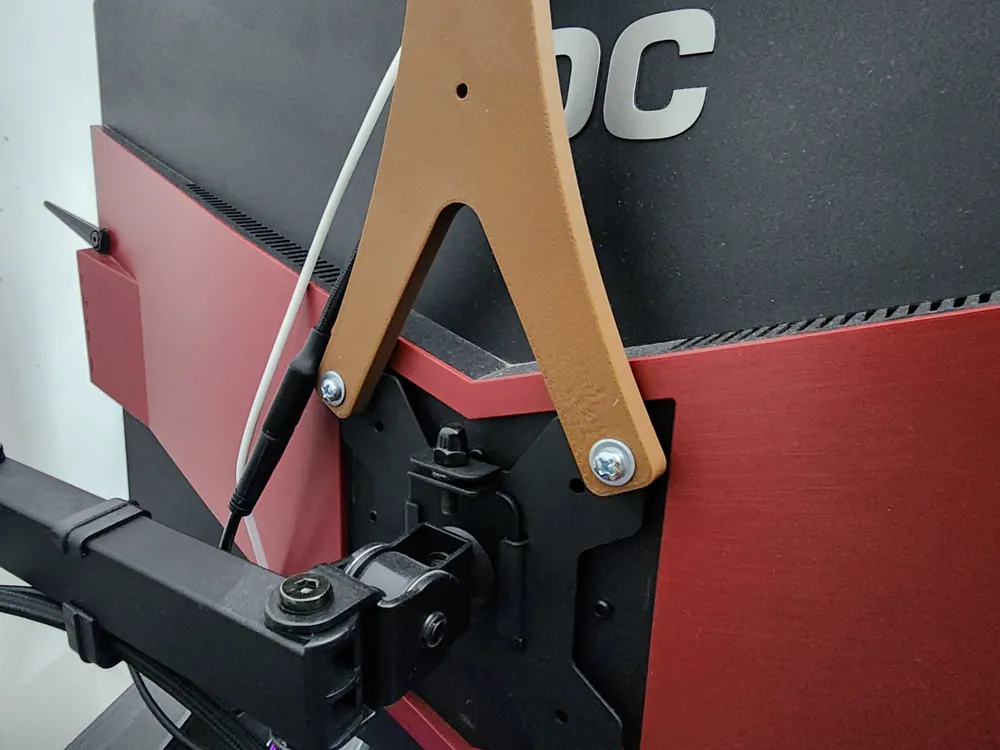

M4x20mm = 2 pieces (for the vesa bracket bolts to monitor's back) size may vary due to your screen bolt - check your OG bolt size and add 8mm to it will be the bolt you need to use instead of 20mm).
Note: you might need to squeeze the bracket for the holes to alight, don't worry it wont break.
