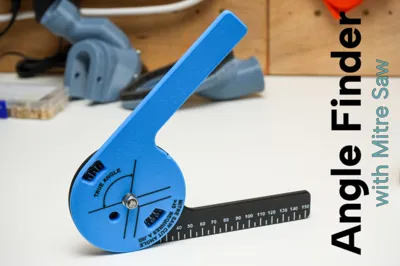

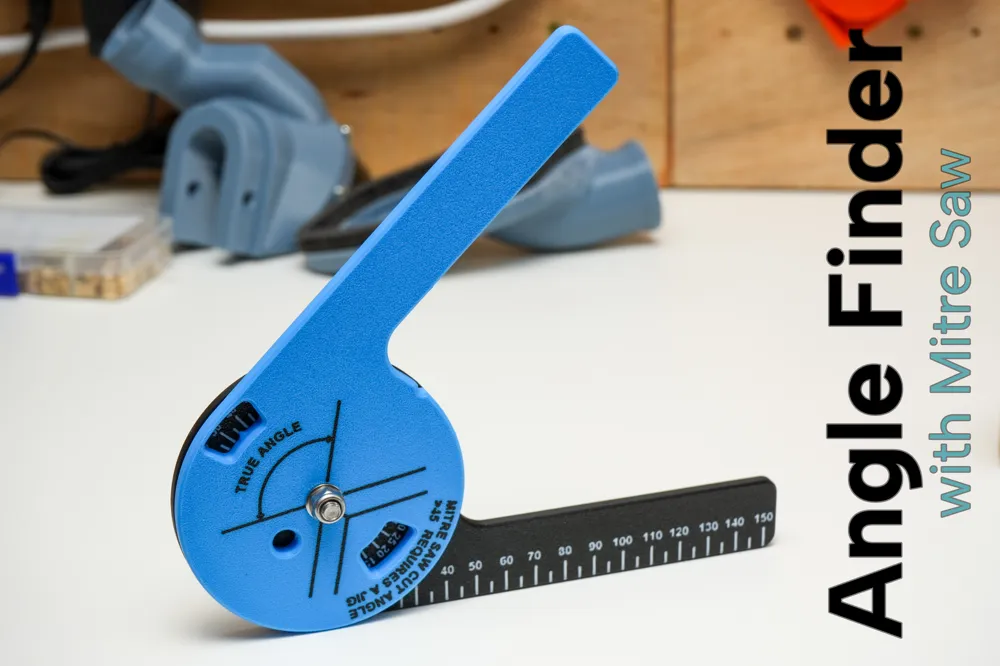

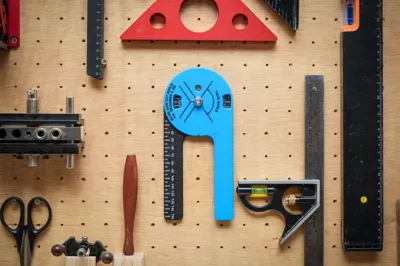

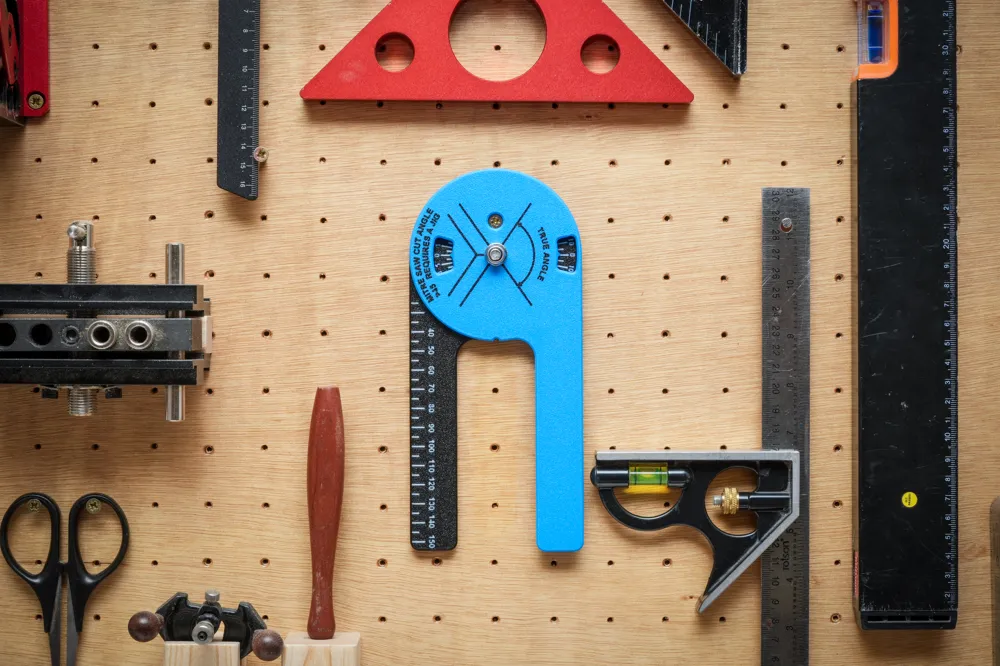

Angle Finder Gauge

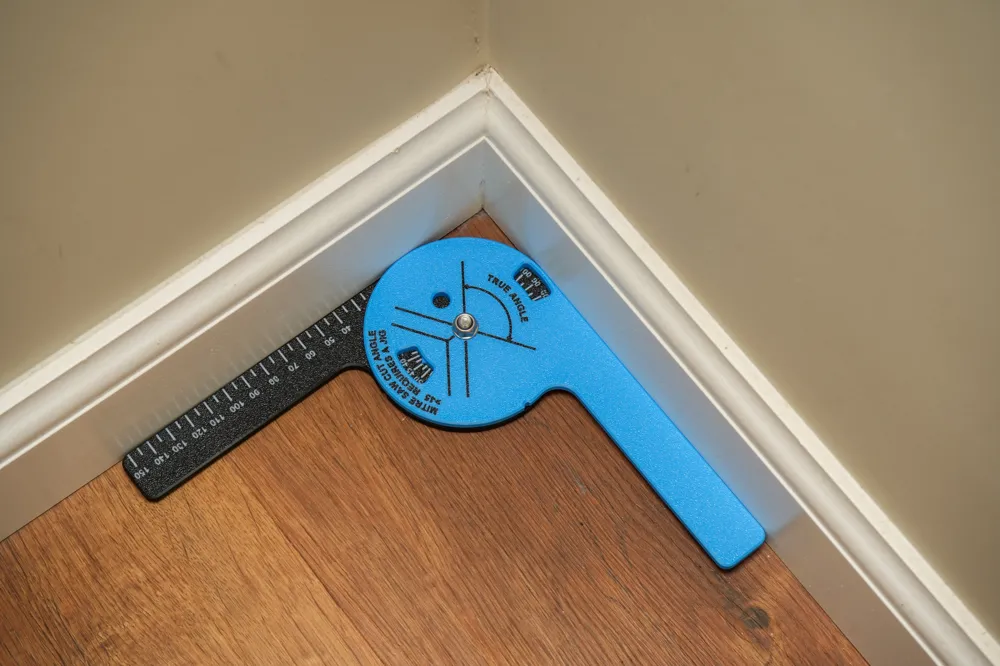

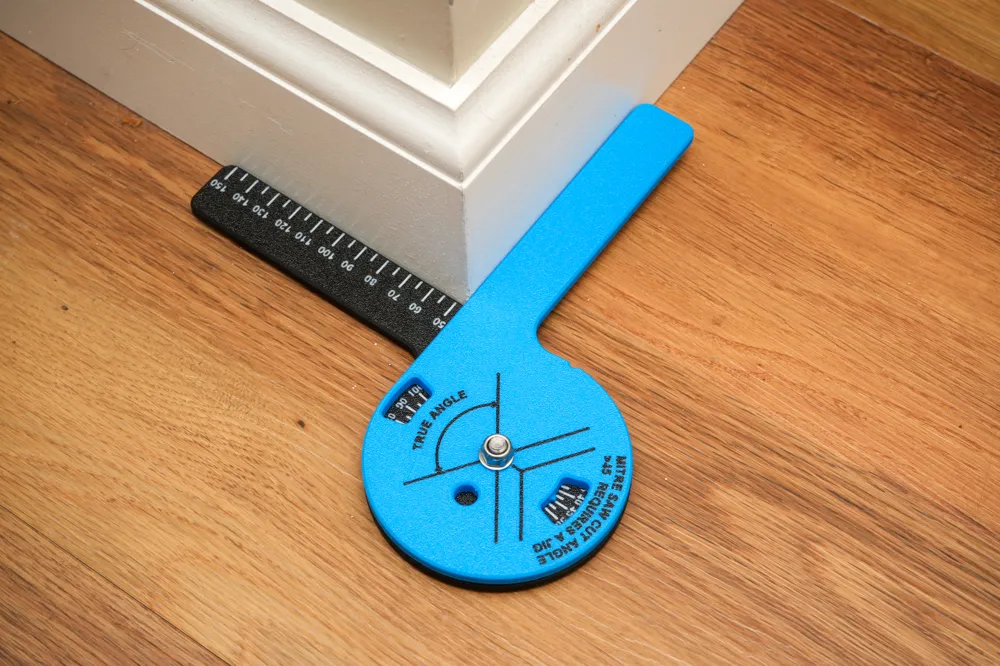

This compact Angle Finder gauge will measure the True Angle of an project, as well as provide the Mitre Saw Cut Angle. The tool will measure internal or external details, so that coving, cornicing, skirting etc can be cut to accurately match the space.

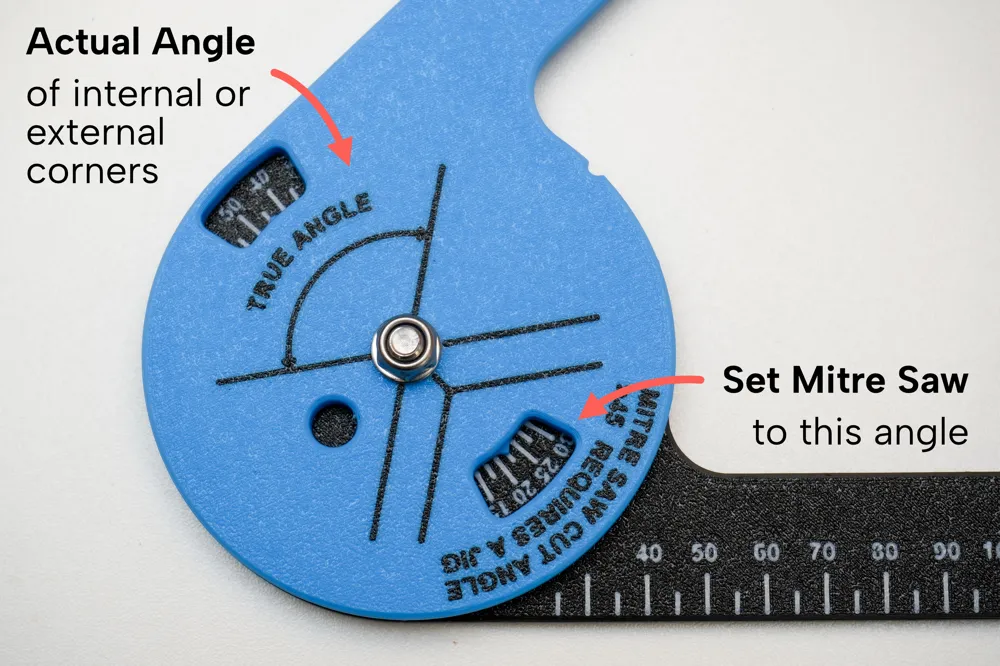

The Mitre Saw Cut Angle, is the exact angle you will need to set your mitre saw to, to create a mitre at a given angle. Because mitre saw angles are measured differently to the true angle, this can be tricky to figure out, hence the value in this gauge. Note that cut angles greater than 45° will require a jig on your mitre saw to achieve.

Print Notes

The model is optimised around a 0.4mm extruder, numbers will not be visible with a larger size. For the numbers to be visible, they will need to be printed in a contrasting colour. It can be tricky to get all the numbers and scales setup to print the correct colour, so for this reason I would recommend using the .3mf Print file.

• Nozzle: 0.4mm
• Layer Height: 0.20mm
• Infill: 20%
• Orientation: Text side down
• Supports: Not Required
• Brim: Not Required
• Seam: Random and Scarf Joint
• Top Shell Layers: 4
• Bottom Shell Layers: 4
• Wall Loops: 2
• Print Sequence: By Objects
• Filament Colours: Use a contrasting filament for numbers and angle indications

Parts for Assembly

• 1 no. - M6x16 Socket head screw
• 1 no. - M6 Washer
• 1 no. - M6 Nut (preferably a lock nut)
