Upside Down Filament Dry Box with Hygrometer
Remixed by
IP Report
Print Profile(2)
0.2mm layer, 6 walls, 25% infill
Designer
5.6 h
1 plate
Lid fit check
12 min
1 plate
Open in Bambu Studio
Boost
234
692
109
67
776
333
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- Withosent 4L Cereal Container x 1: https://www.amazon.de/dp/B09H2T5B2H?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
- Silica Gel x 1: https://www.amazon.de/dp/B01I5Y2DG6?ref=ppx_yo2ov_dt_b_fed_asin_title
Description

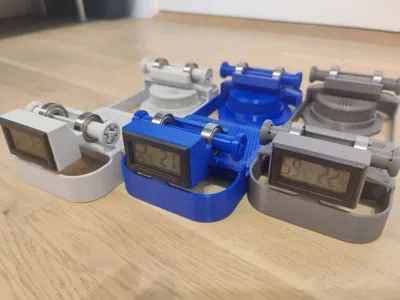

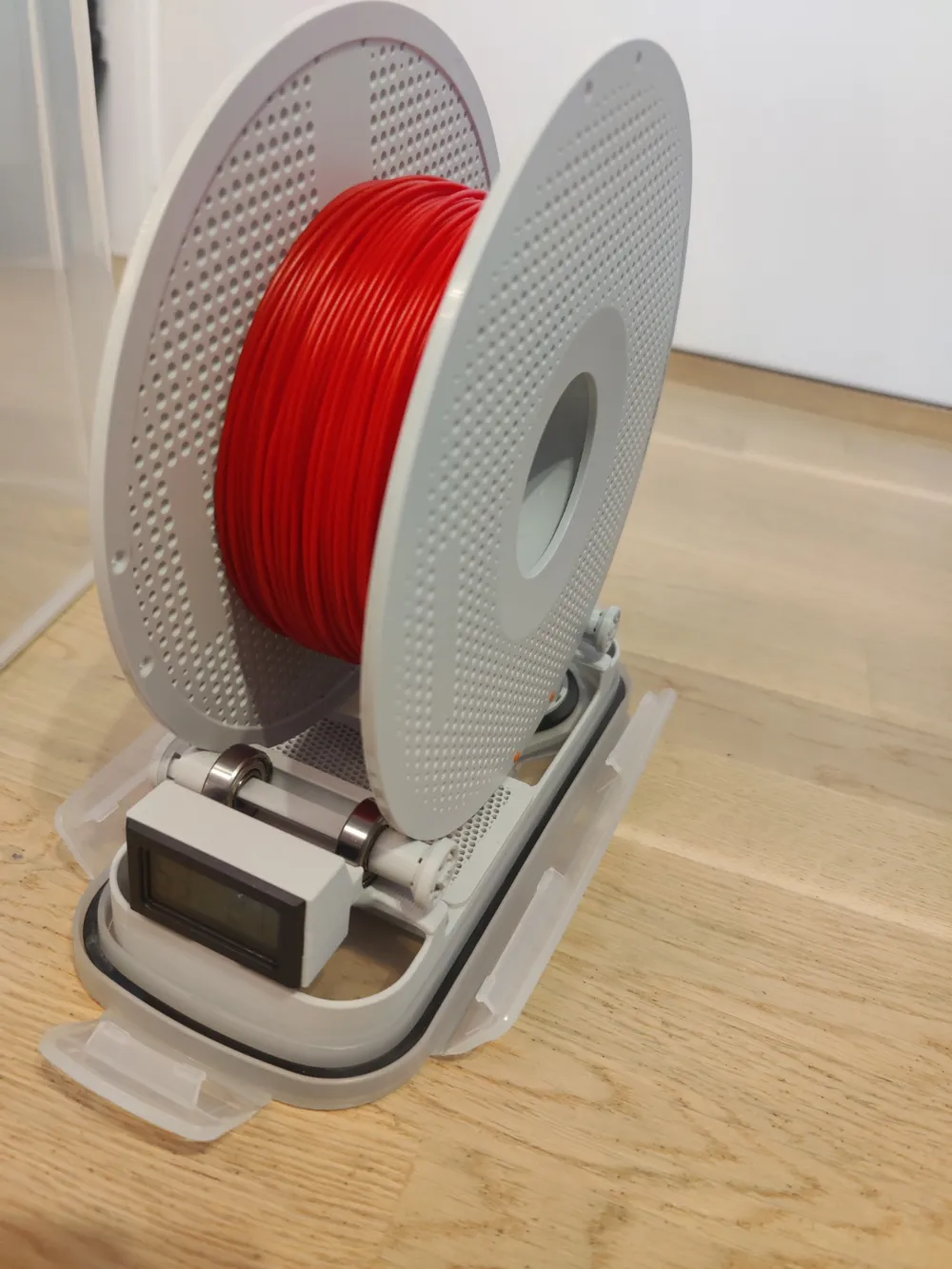

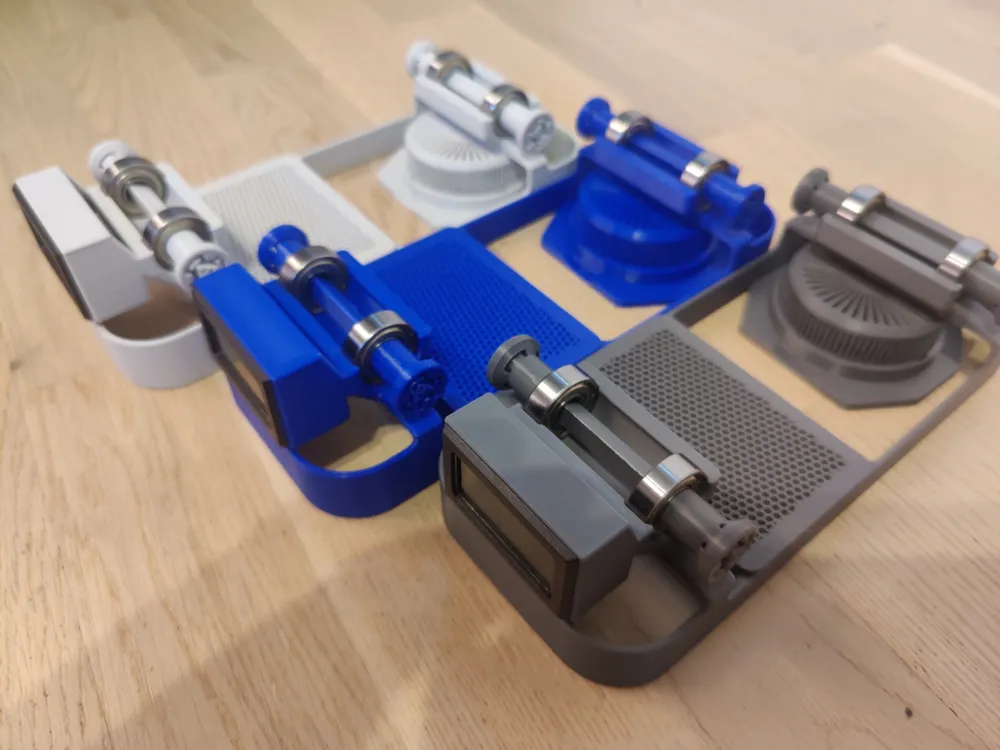

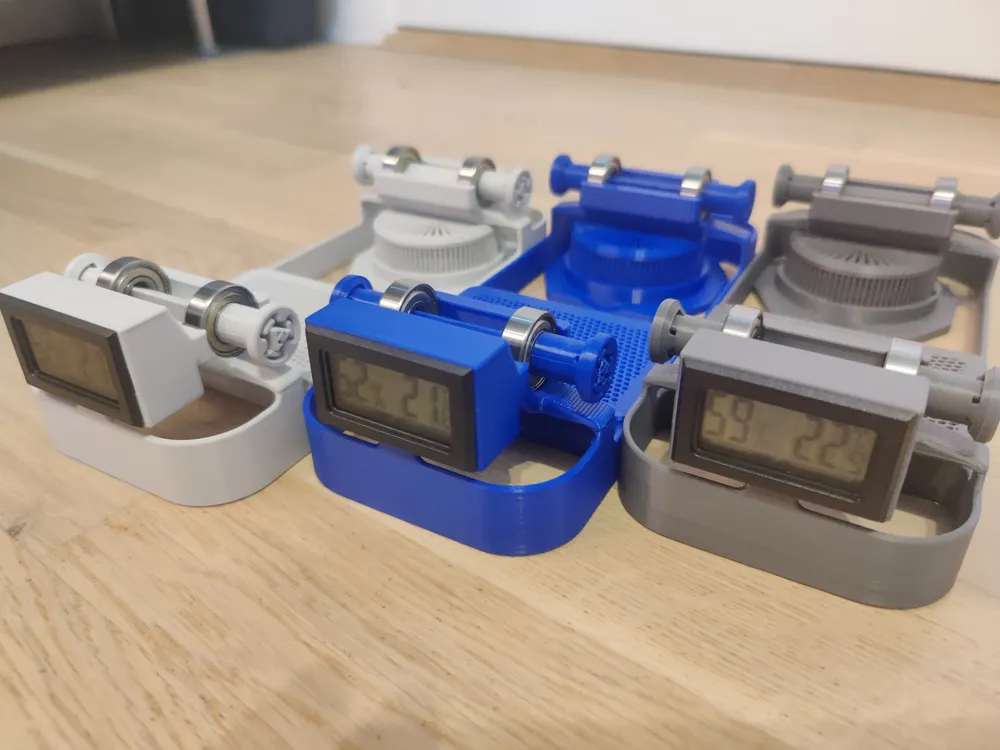

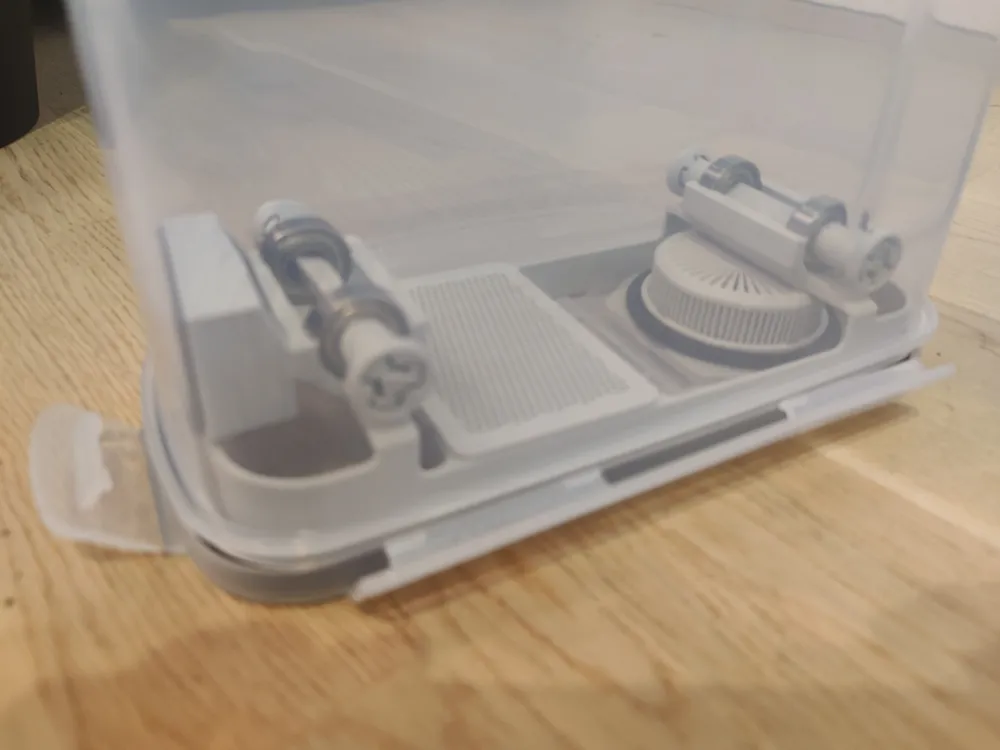

I collected different designs for the lid-based spool holder for the well-used 4L cereal box to make it possible to turn upside down for more storage room.

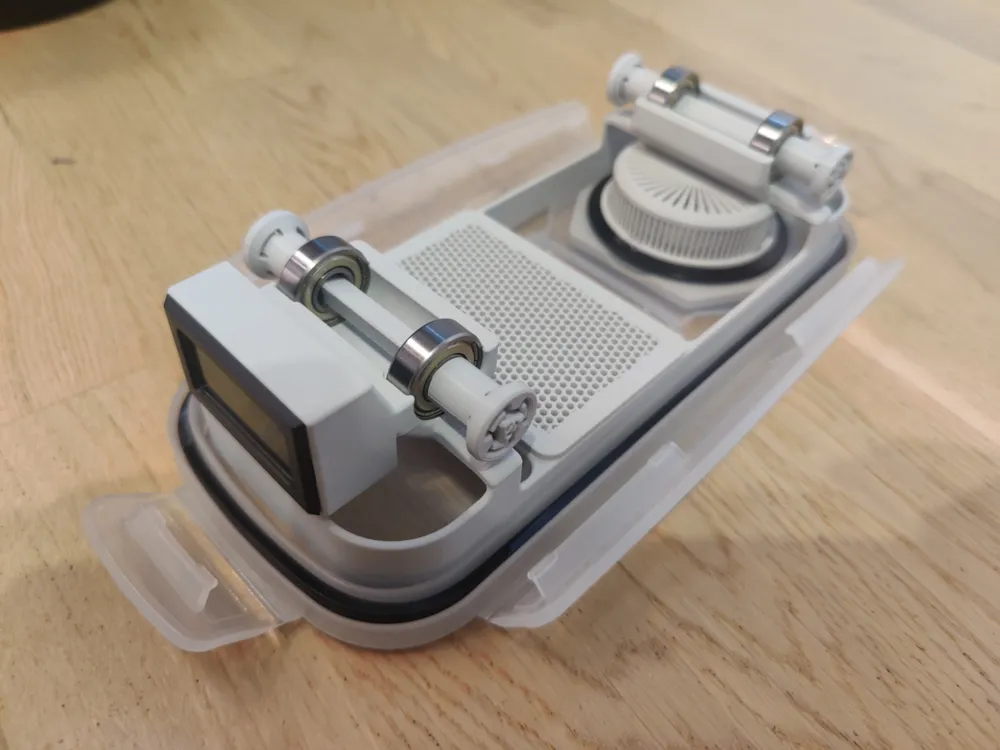

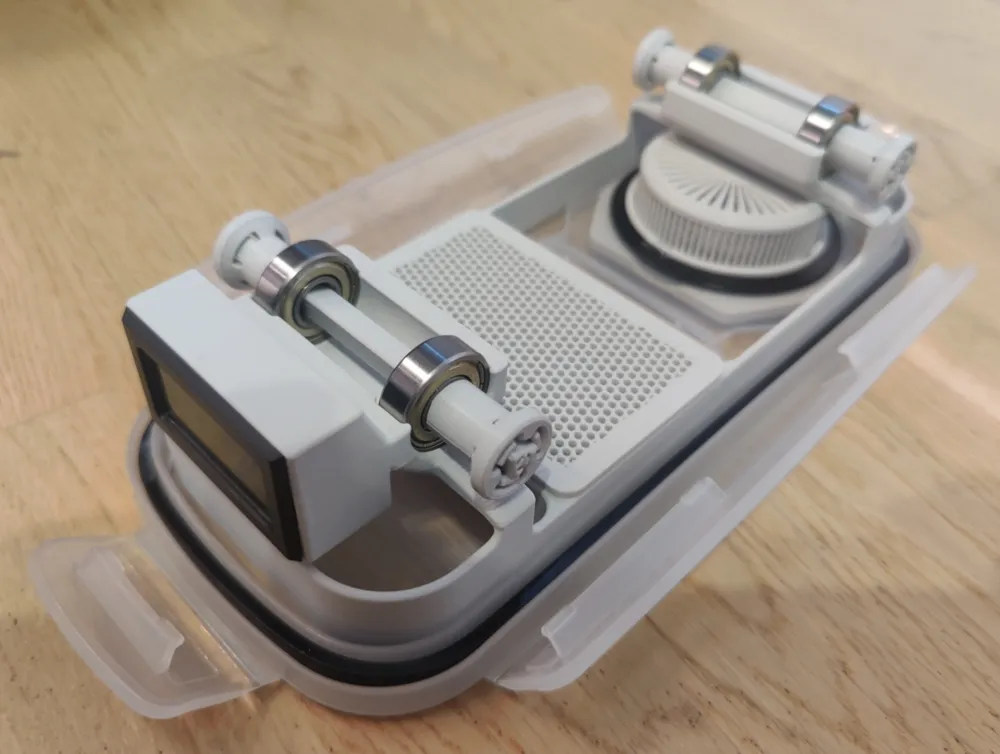

This design has a built-in desiccant pocket in the base and a desiccant bin for the hole in the lid.

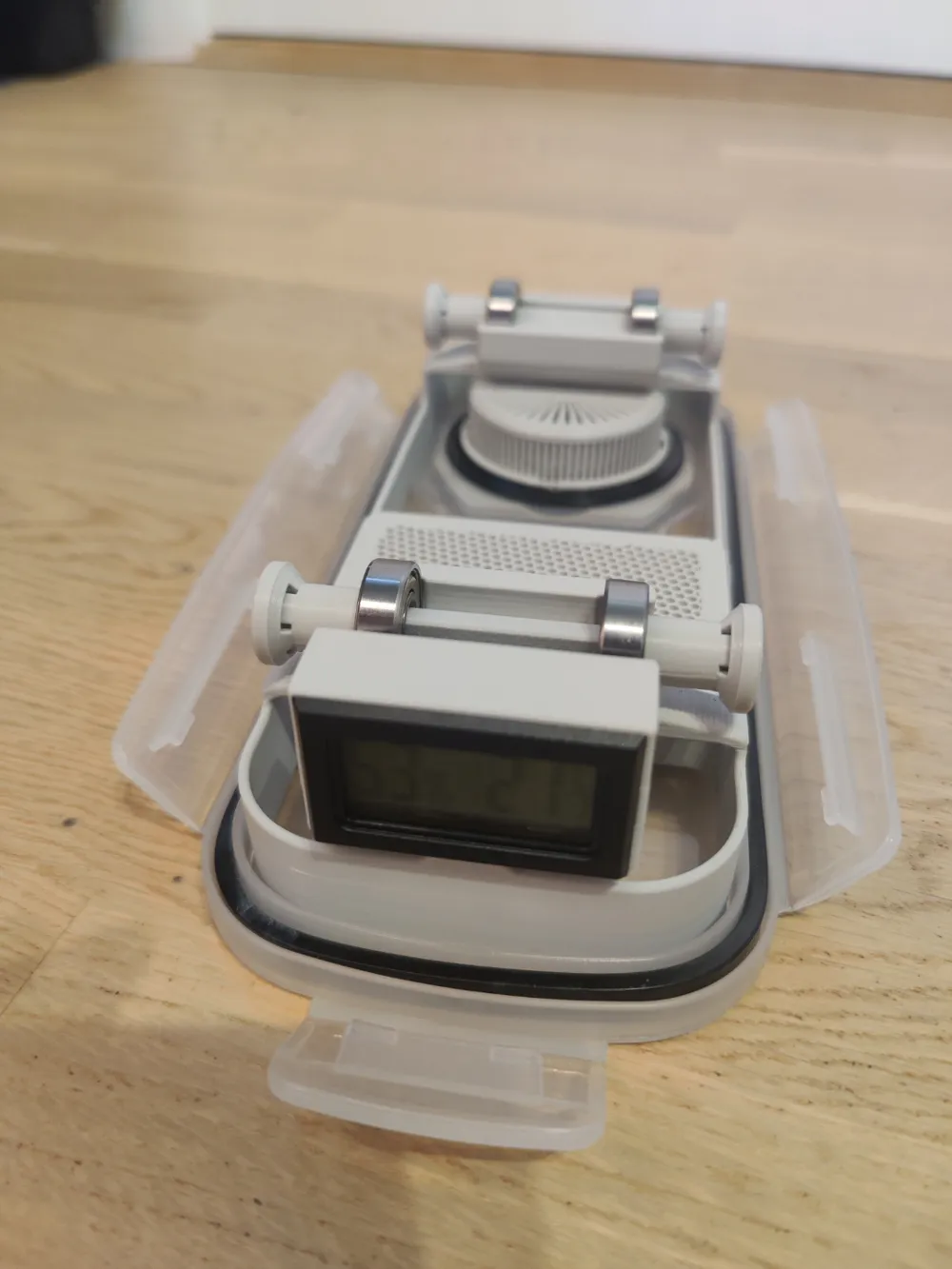

I also added a rectangular Hygrometer holder for the base.
Notes:
- Do NOT print in PLA Matte as some of the layers are thin, it will not be durable enough. Stick to PLA Basic or PETG
- If you are having problems fitting the bearings on the axes, use a Deburring tool on the edges to make them fit easily.

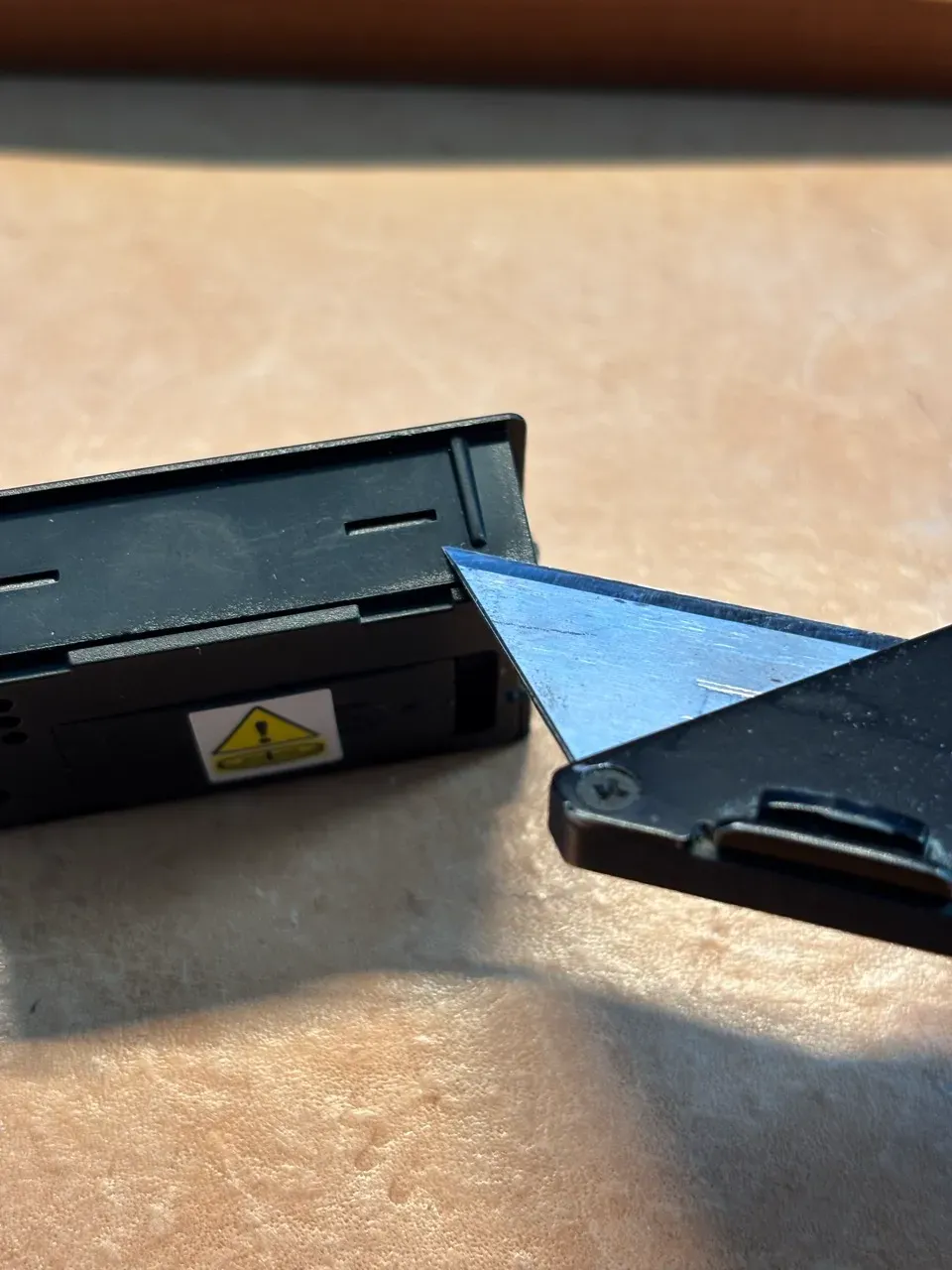

- Unfortunately, not all hygrometers are the same. Do your hygrometers have small extra guidelines like this image? If so, they need to be cut off.
Other Versions:

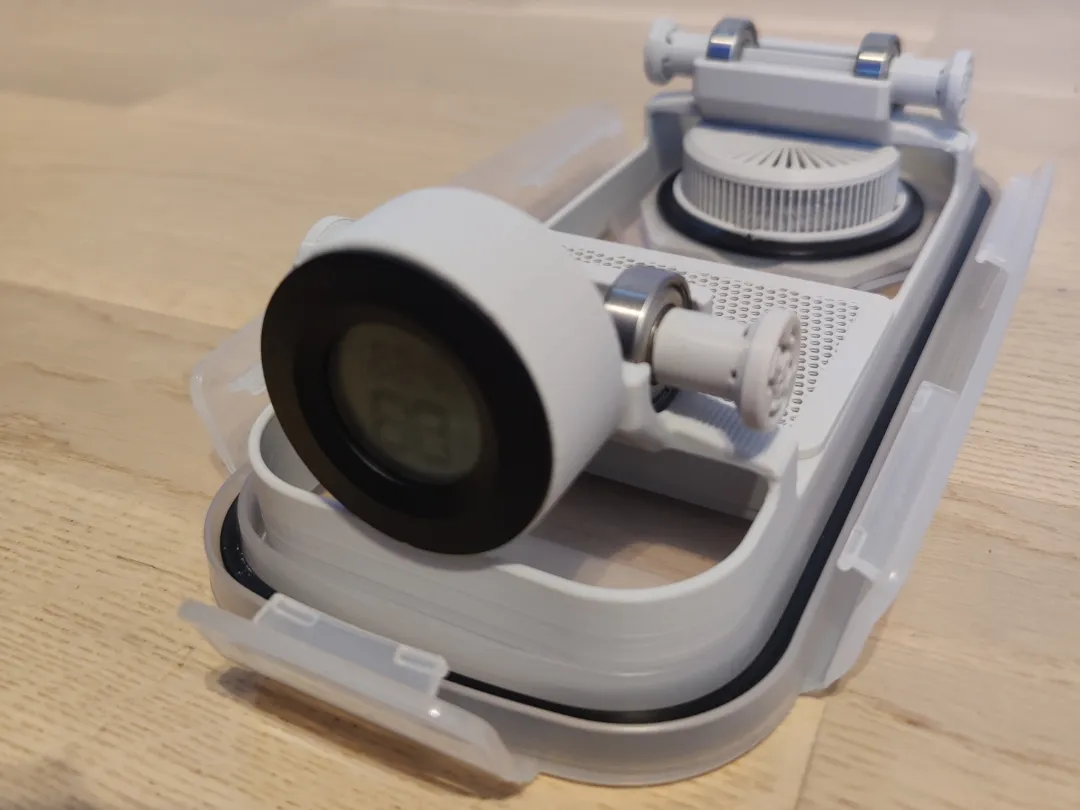

I have also made a version for a round hygrometer
https://makerworld.com/en/models/768344#profileId-703833
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Share AlikeRemixes (3)
