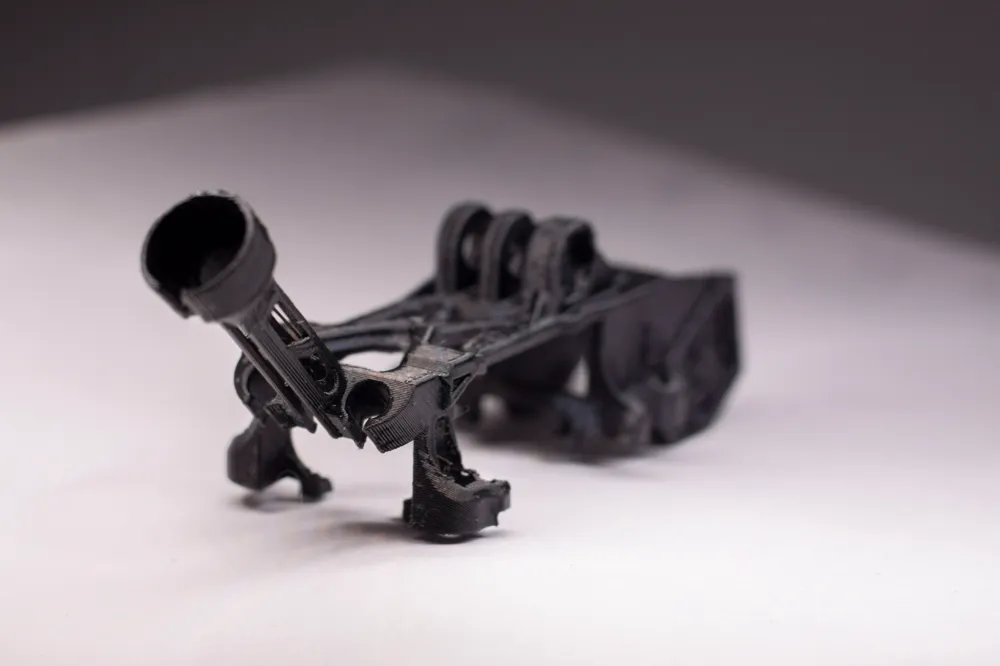

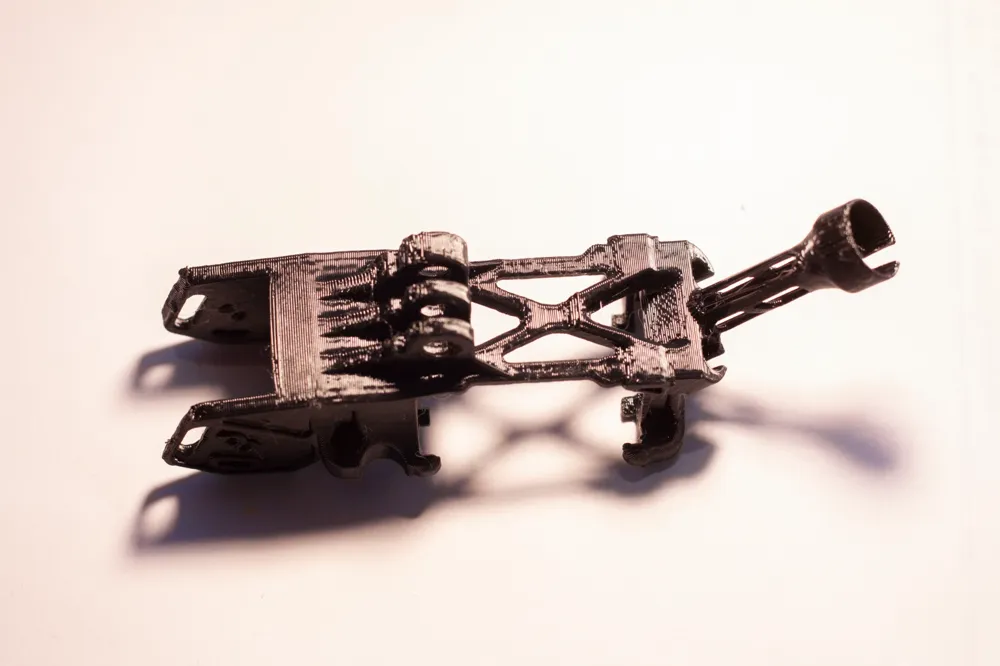

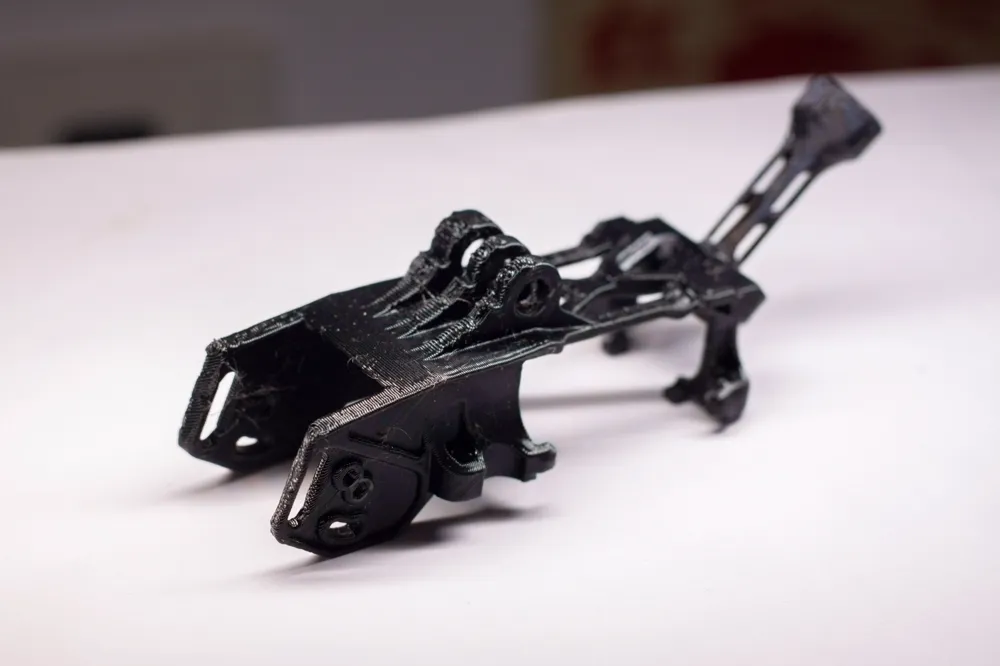

BETAFPV Pavo20 Pro Digital Video Transmitter Frame with Dog Mount Version

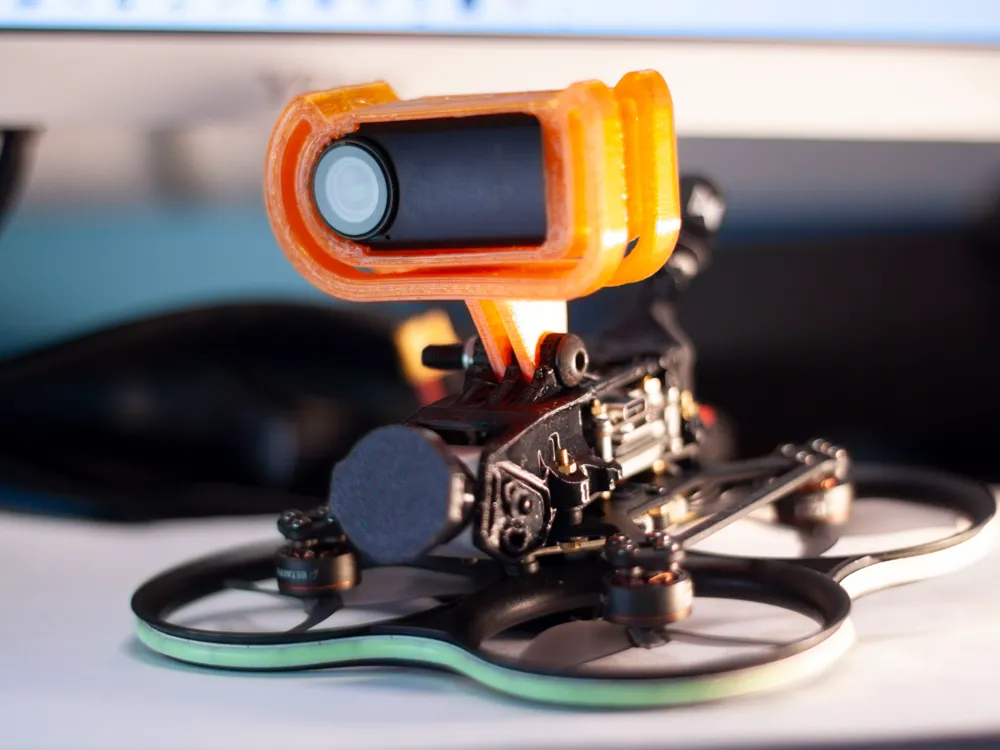

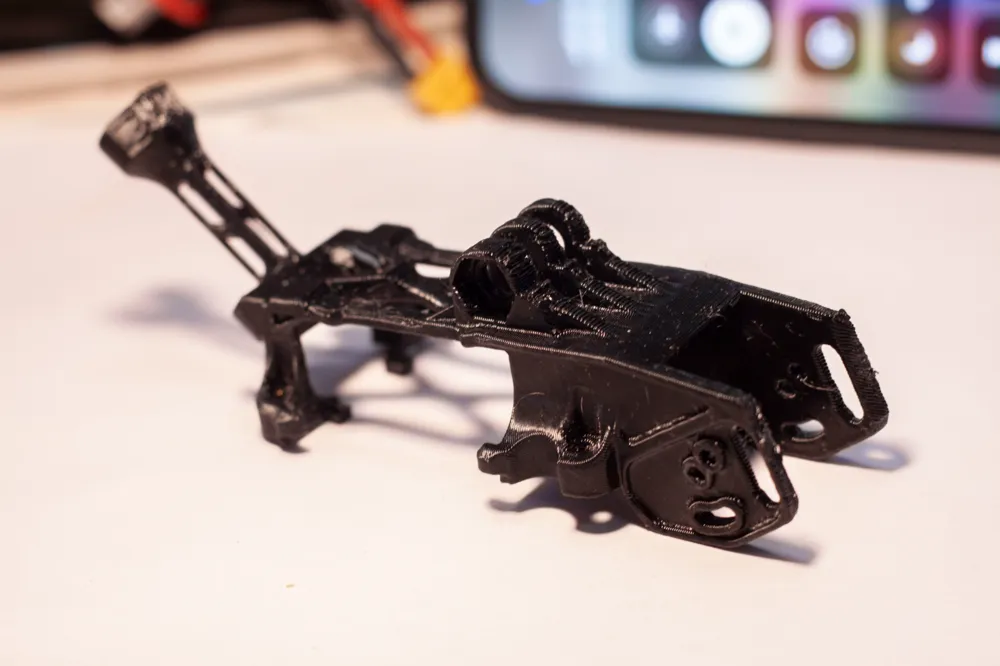

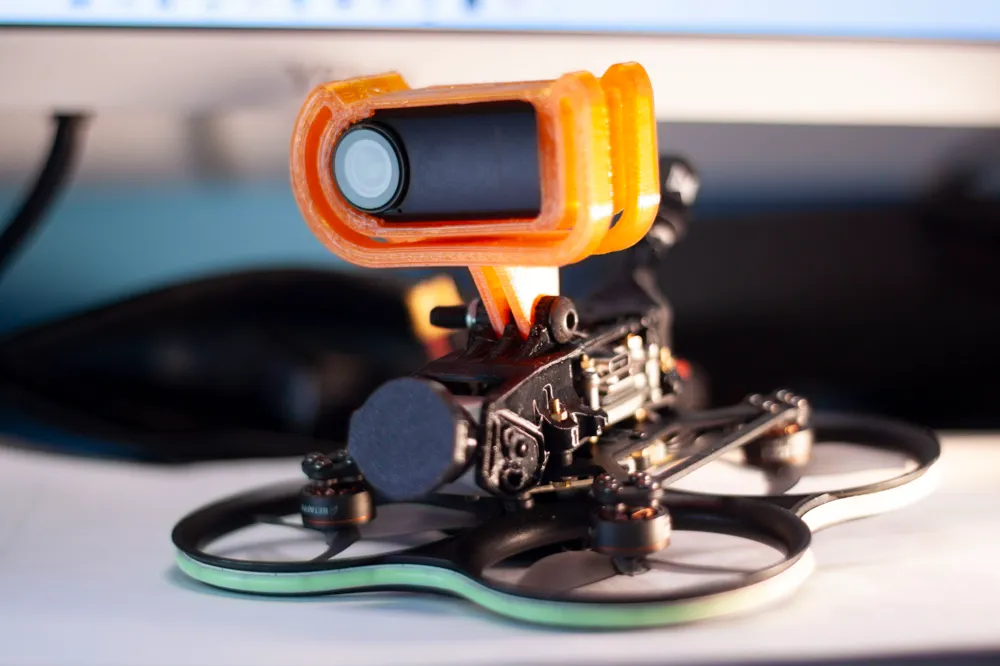

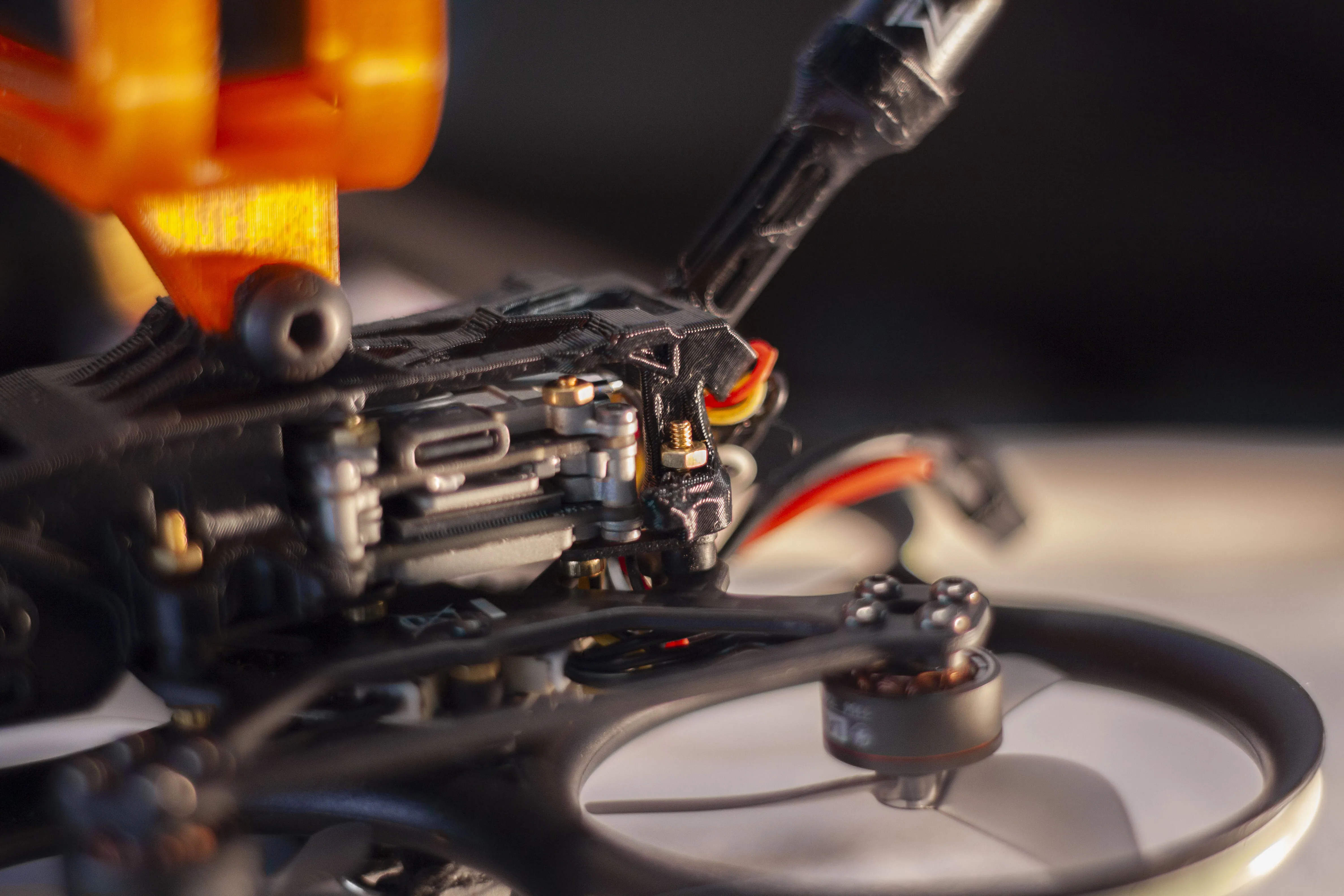

It is risky to mount a camera on a two-inch drone, so be careful when making modifications. Thanks to the powerful power configuration of the Pavo20 Pro, even after installing this modification and mounting the Eagle Eye 4K thumb camera (which added about half the weight of the aircraft), the initial test's control feel was surprisingly good.

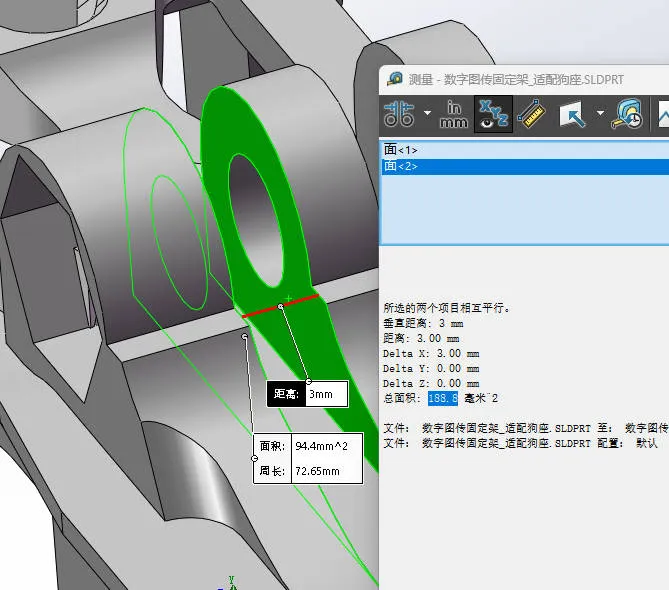

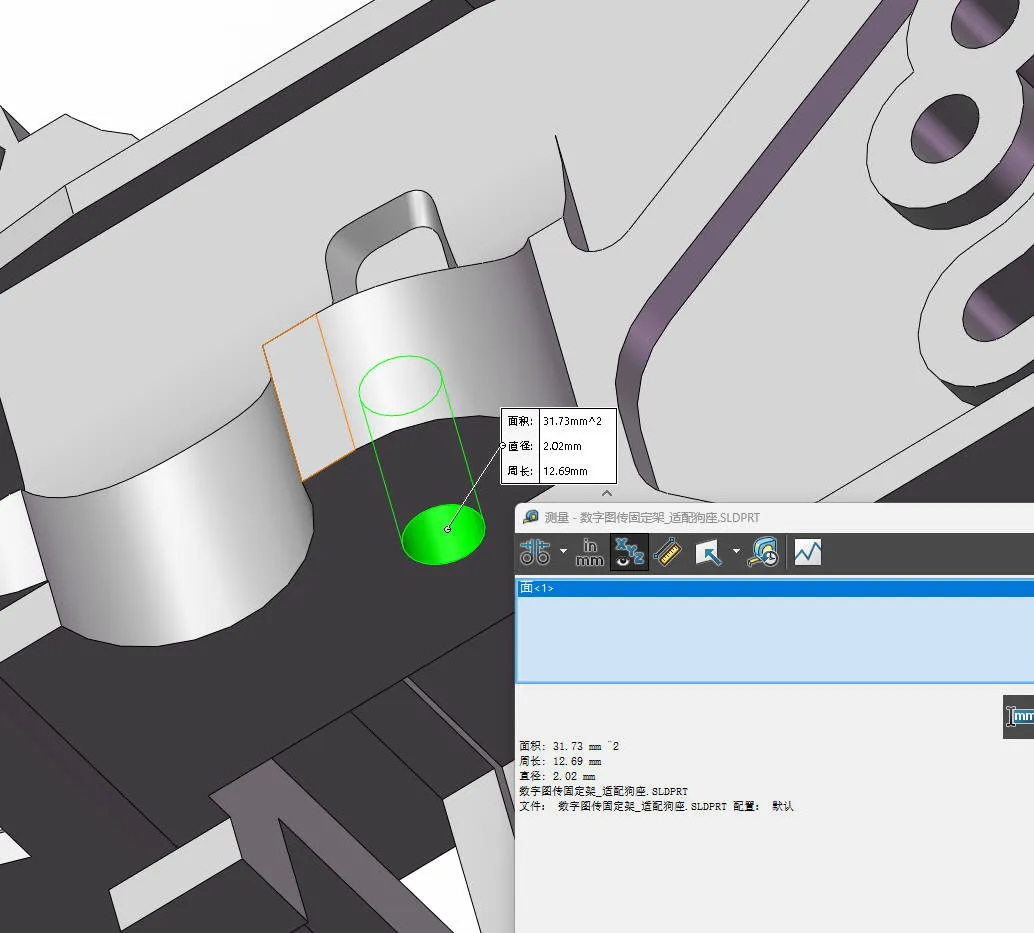

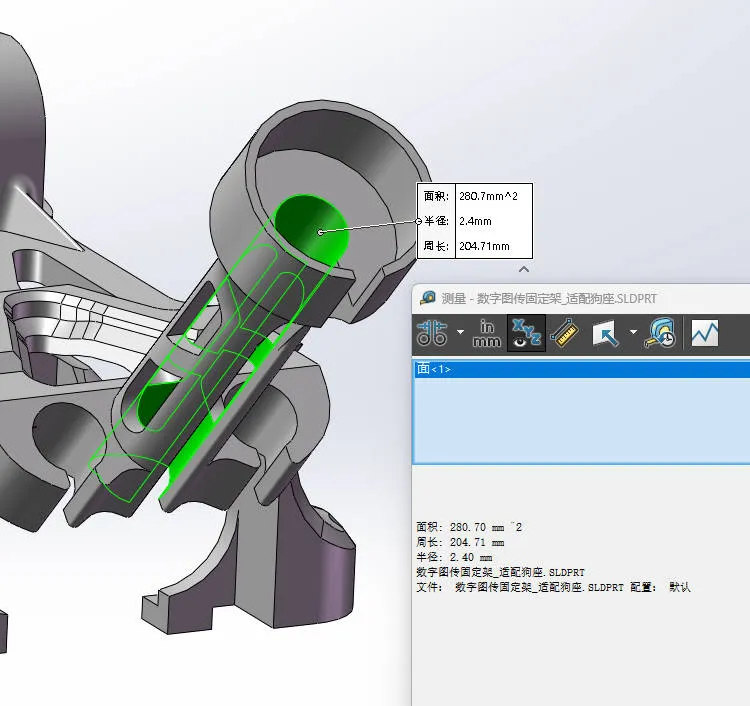

Some dimension information is shown in the figure below:

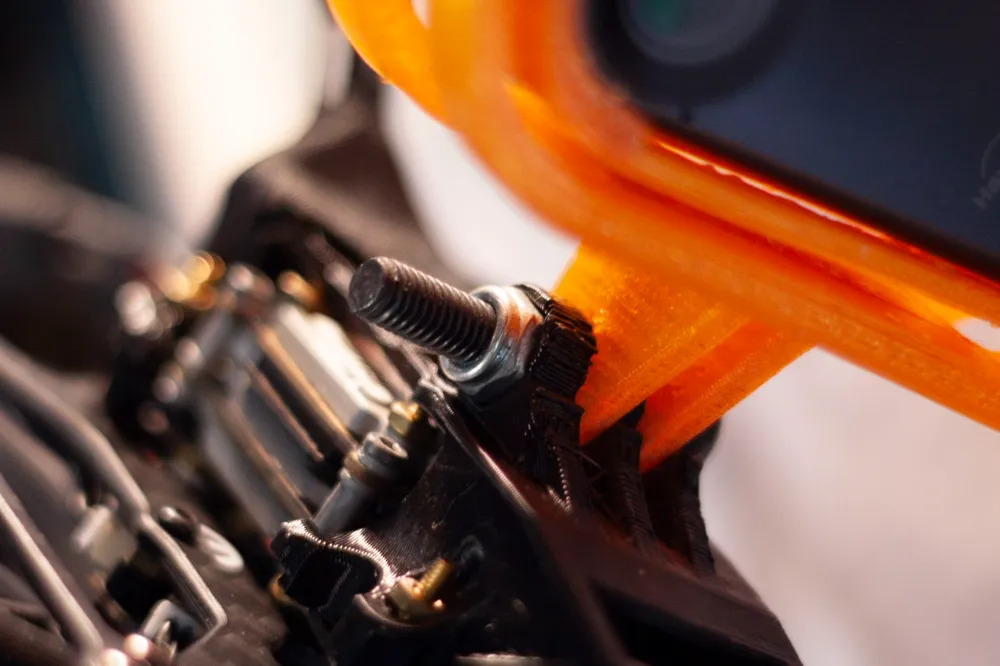

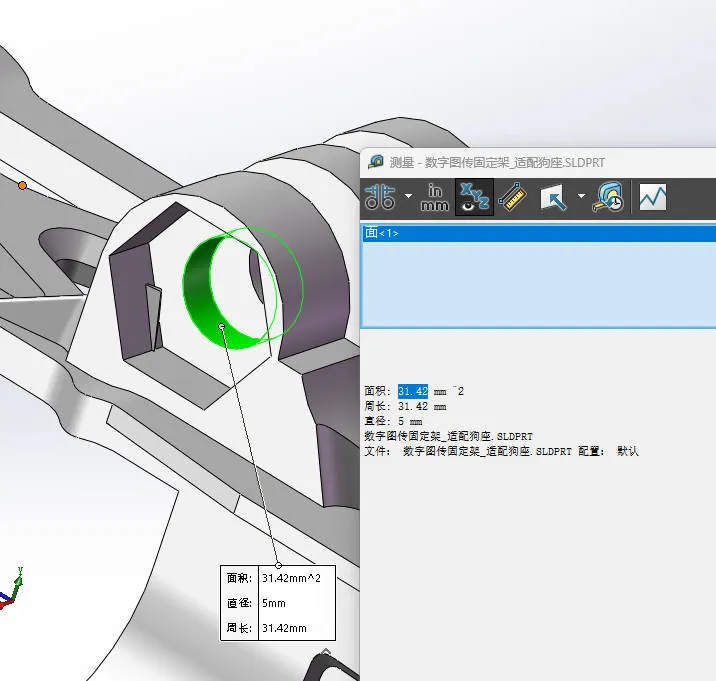

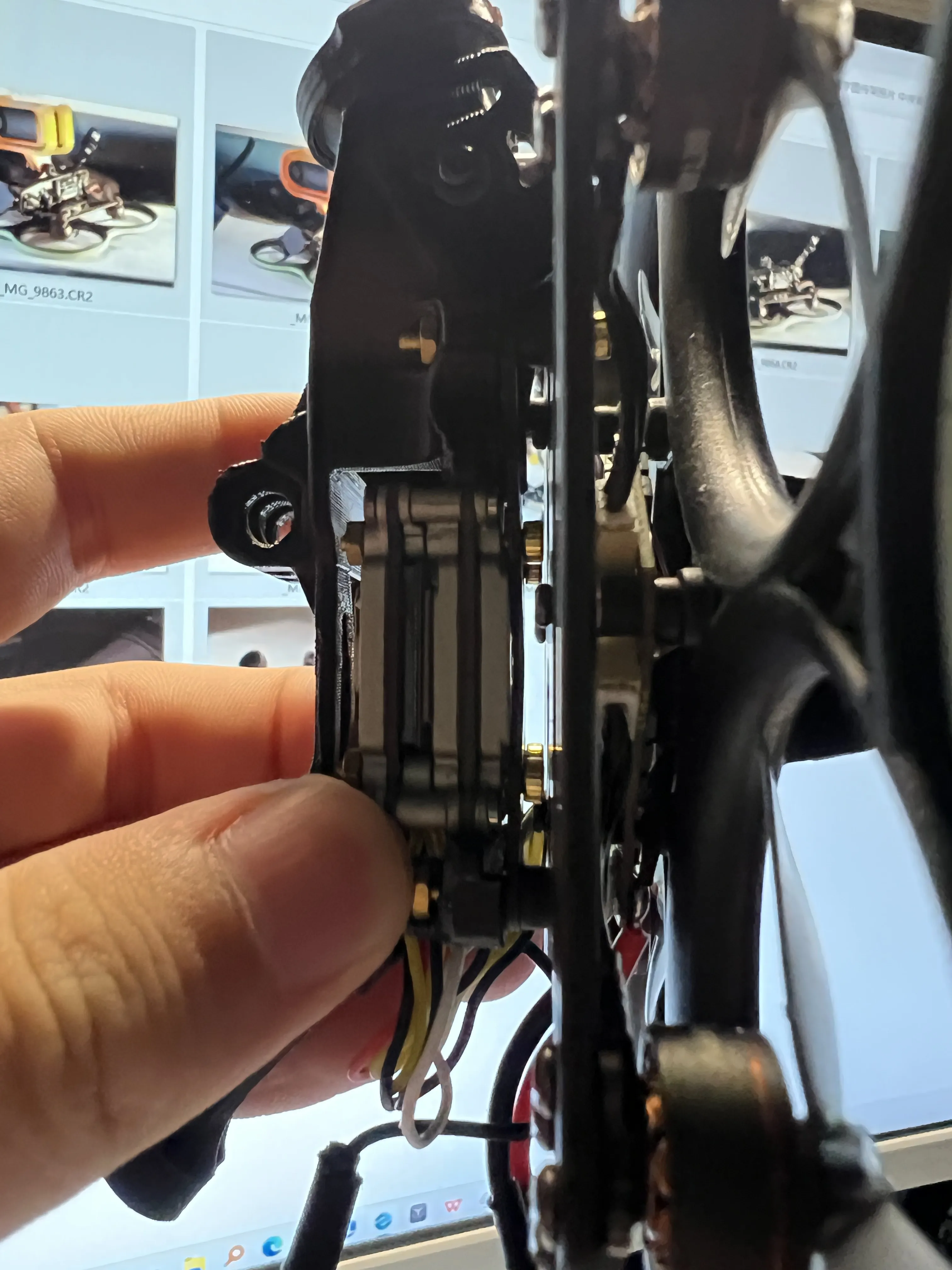

The four screw holes at the bottom seem to be able to fit with the screws perfectly. To be safe, it is strongly recommended to use nuts for fastening. Also, do not overtighten the screws here, I did not draw the axial limit or anything, so pay attention to the distance between the bottom screw cylindrical head and the frame during installation, be careful of damaging the aerial end when flying.

I don't have an O3 video transmitter (and if I did, I wouldn't draw this abstract thing), there may be interference with parts related to the O3 video transmitter installation, if so, please contact me to modify the drawing, or directly modify the attached STEP file.
